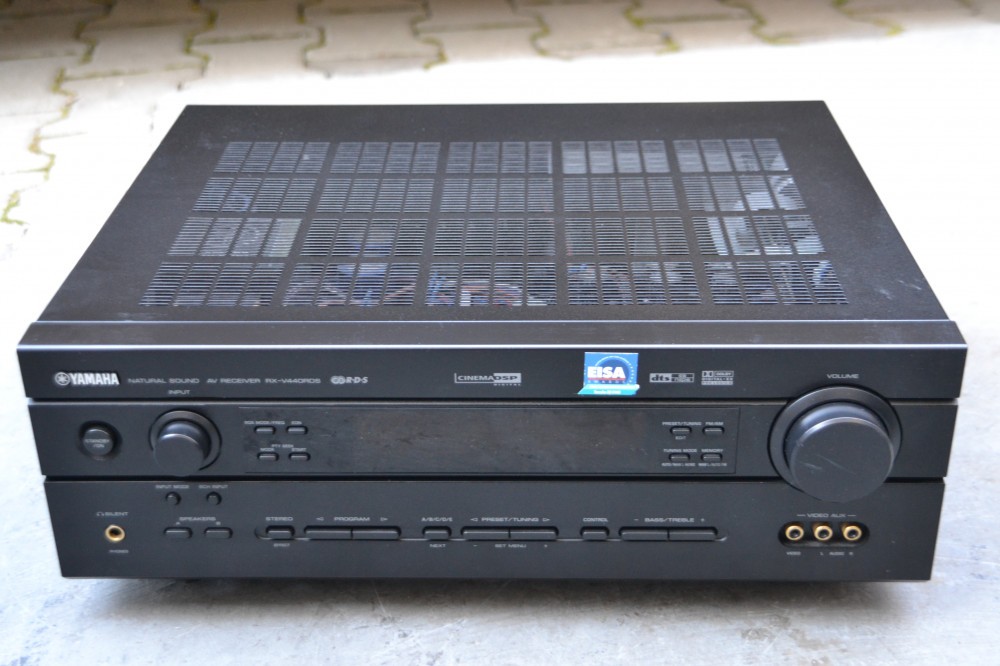

Amplificator Yamaha RX V 440 RDS

Amplificator Yamaha RX-V 440 RDS: 5 intrari, 8 iesiri, impedanta 4-16 ohmi, 270 w consum din retea, intrare 5.1 , optical+coaxial in, culoare neagra, reglaje bass, treble, balance, Dolby Digital, Prologic II, radio cu RDS, EON, PTY, multiple memorii.

MAIN, 20Hz-20kHz, 0.06% THD, 8Ω 75W + 75W
CENTER, 20Hz-20kHz, 0.06% THD, 8Ω 75W + 75W
REAR, 20Hz-20kHz, 0.06% THD, 8Ω 75W + 75W
MAIN, 1kHz, 0.06% THD, 8Ω 90W + 90W
CENTER, 1kHz, 0.06% THD, 8Ω 90W + 90W
REAR, 1kHz, 0.06% THD, 8Ω 90W + 90W
MAIN, 8/6/4/2 Ω 95/120/160/190W
8Ω 1.2dB
MAIN L/R, 20Hz-20kHz, 8Ω 80 or more
CD, etc 150m/V/47kΩ
CD, etc (Effect on) 2.2V
OUT (REC) 150mV/1.2kΩ
Mono 4.0V/1.2kΩ
CD, etc, (40mV, 8Ω) 340mV/560Ω
CD, etc, MAIN L/R +0/-3.0dB
Boost/Cut +/-10dB (50Hz)
Turnover Frequency 350Hz
SUBWOOFER OUT: LPF fc=90Hz, 18dB/oct
MAIN, CENTER, REAR SP SMALL:HPF fc=90Hz, 12dB/oct
CD, etc, to MAIN SP OUT L/R (1V) 0.06%
CD, etc, Input Shorted (Effect off) 100dB
MAIN, SP OUT 150uV
CD, etc, Input 5.1kΩ Shorted, 1kHz 60dB
Muting - ∞
Video Signal Type NTSC
Composite Video Signal Level 1Vp-p/75Ω
Y 1Vp-p/75Ω
Cb/Cr 0.7V/75Ω
Video Maximum Input Level 1.5Vp-p
Video Signal-to-Noise Ratio 50dB
Composite Video Signal 5Hz-10MHz, -3dB
Component Signal DC-60MHz, -3dB
Tuning Range 87.5 to 107.9MHz
Mono (1kHz, 100% Mod) 2.0uV (17.3dBf)
Stereo (1kHz, 100% Mod) 25uV (39.2dBf)
Selectivity (400kHz) 70dB
Mono/Stereo (IHF) 76/70dB
Mono/Stereo (1kHz) 0.2./0.3%
1kHz 45dB
20Hz-15kHz +0.5/-2.0dB
FM 100% Mod. 1kHz 550mV
Antenna Input 75Ω unbalanced
Usable Sensitivity 300uV/m
AM 30% Mod. 1kHz 150mV
