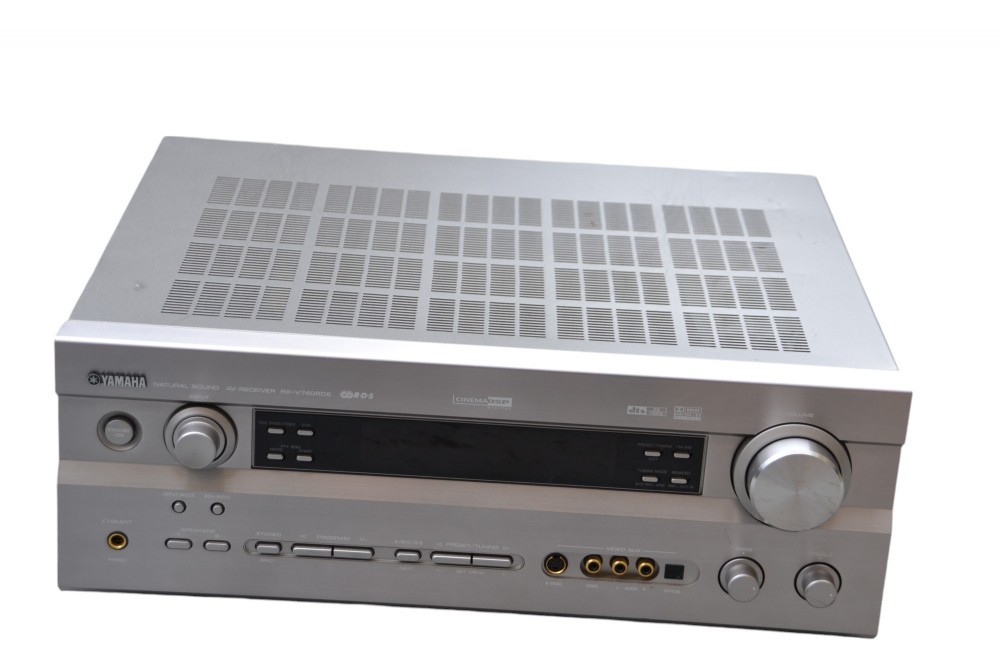

Amplificator Yamaha RX V 740 RDS

Amplificator Yamaha RX V 740 RDS:

Amplificator Yamaha RX-V 740 RDS : 7 intrari, 8 iesiri, intrare 5.1, optical+ coaxial, impedanta 4-16 ohmi, reglaje bass, treble, balance, mufe aurite, iesire casti, senzor de telecomanda, Cinema DSP, DTS Neo 6, Dolby Digital, Prologic II, radio cu RDS, EON, PTY, multiple memorii, culoare argintie, made in Malayesia.

MAIN, 20Hz-20kHz, 0.06% THD, 8Ω 90W + 90W
CENTER, 20Hz-20kHz, 0.06% THD, 8Ω 90W + 90W
REAR, 20Hz-20kHz, 0.06% THD, 8Ω 90W + 90W
MAIN, 1kHz, 0.06% THD, 8Ω 95W + 95W
CENTER, 1kHz, 0.06% THD, 8Ω 95W + 95W
REAR, 1kHz, 0.06% THD, 8Ω 95W + 95W
MAIN, 8/6/4/2 Ω 105/130/150/190W
8Ω 1.2dB
MAIN L/R, 20Hz-20kHz, 8Ω 80 or more
PHONO MM 2.5mV/47kΩ
CD, etc 150mV/47kΩ
PHONO MM, 1kHz, 0.05% THD, (Effect on) 100mV
CD, etc (Effect on) 2.2V
OUT (REC) 150mV/1.2kΩ
PRE OUT (MAIN, etc) 2.2V/1.2kΩ
Mono 4.0V/1.2kΩ
CD, etc, (40mV, 8Ω) 340mV/560Ω
CD, etc, MAIN L/R +0/-3dB
Boost/Cut +/-10dB (50Hz)
Turnover Frequency 350Hz
SUBWOOFER OUT: LPF fc=90Hz, 18dB/oct
MAIN, CENTER, REAR SP SMALL:HPF fc=90Hz, 12dB/oct
CD, etc, to MAIN SP OUT L/R (1V) 0.06%
CD, etc, Input Shorted (Effect off) 100dB
PHONO MM to OUT (REC) 86
MAIN, SP OUT 150uV
CD, etc, Input 5.1kΩ Shorted, 1kHz 60dB
Muting - ∞
Video Signal Type NTSC
Composite Video Signal Level 1Vp-p/75Ω
Y 1Vp-p/75Ω
C 0.286Vp-p/75Ω
Cb/Cr 0.7V/75Ω
Video Maximum Input Level 1.5Vp-p
Video Signal-to-Noise Ratio 50dB
Composite Video Signal 5Hz-10MHz, -3dB
S-Video Signal 5Hz-10MHz, -3dB
Component Signal DC-30MHz, -3dB
Tuning Range 87.5 to 107.9MHz
Mono (1kHz, 100% Mod) 2.0uV (17.3dBf)
Stereo (1kHz, 100% Mod) 25uV (39.2dBf)
Selectivity (400kHz) 70dB
Mono/Stereo (IHF) 76/70dB
Mono/Stereo (1kHz) 0.2./0.3%
1kHz 45dB
20Hz-15kHz +0.5/-2.0dB
FM 100% Mod. 1kHz 550mV
Antenna Input 75Ω unbalanced
Usable Sensitivity 300uV/m
AM 30% Mod. 1kHz 150mV
CD Player
Signal-to-Noise Ratio 52dB
Specifications
Antenna Loop Antenna
Dimensions (W x H x D) 17 1/8" x 6 7/16" x 15 3/8"
Weight 25 lbs.
