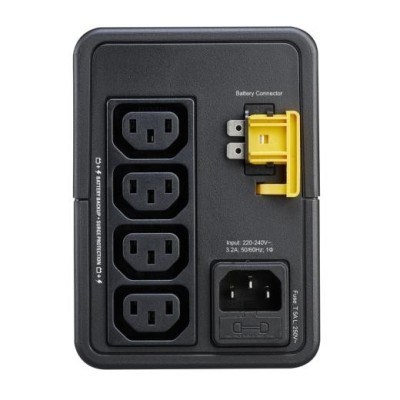

APC BACK-UPS 700VA AVR

APC Easy UPS BVX 700VA, 230V, AVR, IEC Sockets

Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Includes: User manual

Output power capacity

360 Watts / 700VA

Output Connections

(4) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.2meters

Max Configurable Power (Watts)

360 Watts / 700VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

• Operating altitude: 0 - 3000 m
• Operating temperature (T-T): 0 - 40 C
• LED indicators: Yes
• Operating relative humidity (H-H): 0 - 95%
• Output frequency: 50/60 Hz
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• International Protection (IP) code: IP20
• Waveform: Sine
• Input operation voltage (max): 280 V
• UPS topology: Line-Interactive
• Input operation voltage (min): 170 V
• AC outlets quantity: 4 AC outlet(s)
• Response time: 6 ms
• Battery life (max): 2 year(s)
• Output operation voltage (min): 230 V
• Output frequency regulation: 0.5 Hz
• Surge energy rating: 273 J
• Surge protection: Yes
• Output operation voltage (max): 230 V
• Audible alarm(s): Yes
• Automatic Voltage Regulation (AVR): Yes
• Output voltage regulation: 10%
• Noise level: 40 dB
• Storage temperature (T-T): -15 - 40 C
• Cold start: Yes
• Output power: 360 W
• Certification: CB, CE, EN/IEC 62040-1, EN/IEC 62040-2
• Audible alarm modes: Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm
• Non-operating altitude: 0 - 3000 m
• Input frequency: 50 - 60 Hz
• Output power capacity: 0.7 kVA
• Input power factor: 0.51
• Battery recharge time: 8 h
• Battery voltage: 12 V
• Cables included: Input power cable
• Package width: 222 mm
• Package height: 142 mm
• Package weight: 4.5 kg
• Width: 31 mm
• Depth: 138 mm
• Height: 98 mm
• Weight: 4.5 kg
• Battery technology: Sealed Lead Acid (VRLA)
• Battery capacity: 7 Ah
• Harmonized System (HS) code: 85078000
• Package depth: 346 mm
• Form Factor: Compact
