Autel MaxiBAS BT506 Auto Battery and Electrical System
Analysis Tool
The Autel MaxiBAS BT506 is a battery and electrical system analysis
tool that use as Adaptive Conductance an advanced battery analysis
method, to produce a more accurate examination of the battery’s
cold cranking ability and reserve capacity. BT506 enables
technicians to view the health status of vehicle's battery and
electrical system. Download the free and easy-to-use mobile app,
available for iOS and Android devices, to use with the BT506 to
perform testing and display test results.
Highlights:
1. Includes Connected Cable with Clamps
2. Test 6- and 12-Volt Batteries: 100 - 2000 CCA
3. Test 12- and 24-Volt Cranking/ Charging Systems
4. Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
5. Battery Health Report/ Temperature Compensation / Cloud-Based
Service
6. Battery Ratings: Compatible with CCA, CA, MCA, JIS, DIN, SAE,
IEC, EN, EN2, BCI, GB
7. Support In-Vehicle and Out-of-Vehicle Testing of Passenger
Vehicle Batteries
* Out-of-vehicle Battery testsing
* In-vehicle testing of Battery, Starter, Charging system voltage
(not amps)
Note: The BT506 Does Not Have a Screen!
To perform testing and display test results the BT506 must be used
with an Autel MaxiSys Tablet or Other Smart Device (Free iOS or
Android Apps Available).
What Convenience Does BT506 Bring You?
Autel battery tester MaxiBAS BT506 applies Adaptive Conductance to
gauge a battery’s conductance health. Compared with ordinary load
testers, this technology allows multiple tests without draining the
battery and to test batteries that are low or nearly completely
discharged. This Autel car battery tool BT506 similarly uses
Adaptive Conductance to test the battery’s partnering components,
the alternator and starter to see if they can take and store a
charge.
Following is the Benefits of Adaptive Conductance
Technology:
* Test Accuracy Rate by 94.11%;
* Bad Battery Detection Rate by 63.55%;
* Reduce Charge & Retest Rate by 30.03%.
With the Adaptive Conductance Technology, BT506 realizes faster
diagnosis and higher efficiency.
Cranking And Charging System Test
BT506 Battery Tester can test battery and also 12- and 24-volt
Cranking/Charging Systems( starter and alternator), Same as
BT608.

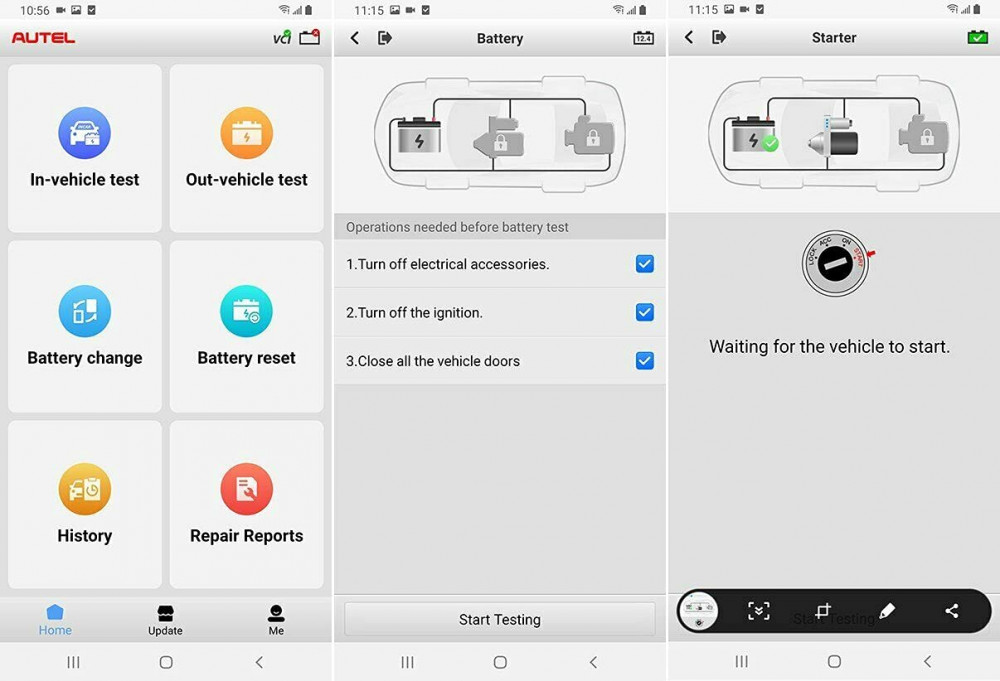

1). In-Vehicle Test:
* Battery Test:
With the clear guidance on the screen, you can do the battery test.
And the battery test results include a color-coded result summary,
a list of test data such as SOC, Voltage, Measure Capacity, and
repair tips.
* Starter Test:
Follow the on-screen instructions, start the engine and let it
idle. Then the test results of the cranking system will display on
the screen which include starting voltage, starting current and
starting time.
* Generator Test:
Through the alternator test, technicians are able to check the load
voltage/current, no load voltage/current, and ripple. The direct
test result on the screen will tell you whether the charging is
normal, and whether there is an issue with the output or ripple,
which helps avoid damaging the battery and shortening its life due
to overcharging or incomplete charging.
2). Out-Vehicle Test:
Out-vehicle test is used to test the condition of batteries that
are not connected to a vehicle. This function aims to check the
health status of the battery only.
Automativally Identify Battery Type:
Clamp the BT506 to a in-vehicle battery, the vehicle information
will be automatically populated and its battery information tab
will pop up from the bottom of the screen, select the correct
battery parameters on the screen to process the diagnosis.
* BatteryTypes: FLOODED, AGM, AGM SPIRAL, EFB, and GEL;
* Standards: CCA, SAE, CA, EN, IEC, DIN, JIS and MCA.
Specifications:
Item | Description |
Connectivity | USB 2.0, Type C |
Bluetooth | V3.0 BR/ EDR+ V4.2 LE Dual-Mode |
Input Voltage | 5 V DC |
Working Current | < 150 mA at 12 V DC |
Internal Battery | N/A |
CCA Range | 100 to 2000 A |
Voltage Range | 6 to 36 V |
Working Temperature | -10°to 50° C (14° to 122° F) |
Storage Temperature | -20° to 60° C (-4° to 140° F) |

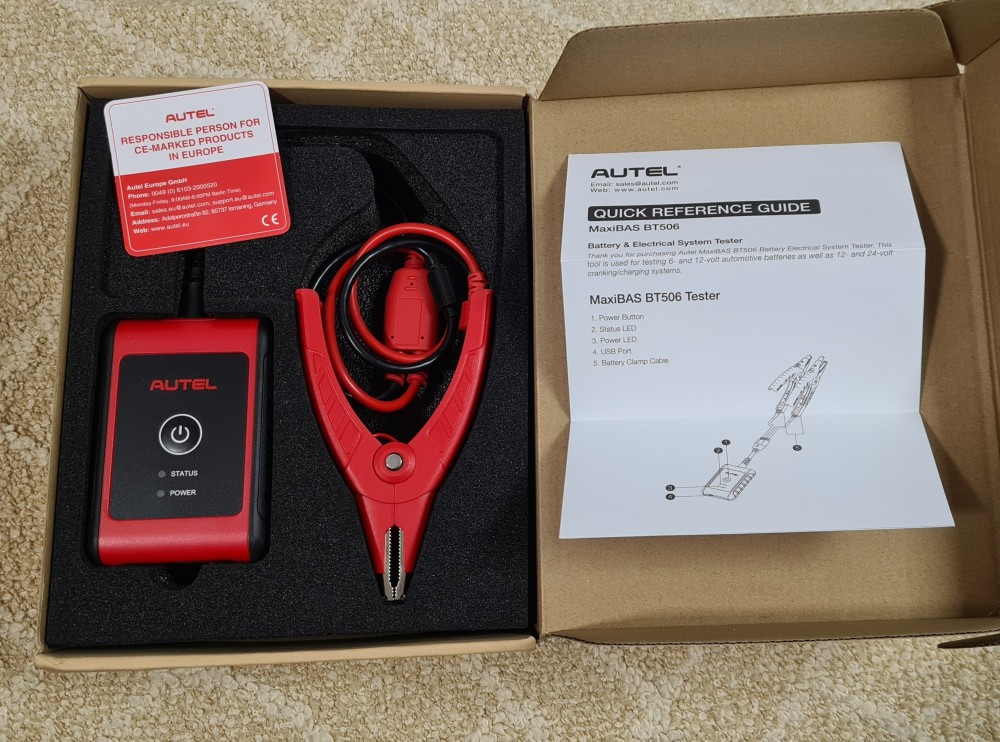

Package List:
1pc x MaxiBAS BT506
1pc x User Manual
