Brass Quick Coupling with Locknut 1" Inch

Quick coupling made of pressed brass with 40 mm lug spacing


These quick couplings are suitable for common systems such as GEKA etc.

Simply select your desired quick coupling and its size.

Details of the individual items:


Blind coupling/end cap

• universally suitable with hole for attaching a chain

Seal

• NBR seal for 40 claw couplings.
• Form seal tested to KTW-A and W-270. Suitable for drinking water.

Swivel coupling with nozzle

• 1/2" inch = nozzle approx. 13mm outer diameter (hose inner size)
• 3/4" inch = nozzle approx. 19mm outer diameter (hose inner size)
• 1" inch = nozzle approx. 25mm outer diameter (hose inner size)
• 2-piece hose piece made of brass, nozzle 360° rotatable, making coupling very easy

Foot valve with spring, stainless steel suction basket

• Stainless steel suction basket with fine-mesh stainless steel mesh
• Temperature resistant up to 100°C
• Valve cone made of nylon
• Seal made of NBR
• Closing spring made of stainless steel
• Internal thread available in: 3/4" inch (approx. 26mm), 1" inch (approx. 32mm), 1 1/4" inch (approx. 42mm), 1 1/2" inch (approx. 48mm), 2" inch (approx. 60mm)

Threaded piece with external thread

• Threaded piece with external thread and quick coupling suitable for the Geka system
• Available in 1/2" inch, 3/4" inch, 1" inch, 1 1/4" inch, and 1 1/2" inch

Threaded piece with internal thread

• Threaded piece with internal thread and quick coupling suitable for the Geka system
• Available in 1/2" inch, 3/4" inch, 1" inch, 1 1/4" inch, and 1 1/2" inch

Check valve with spring

• Valve cone made of nylon
• Seal made of NBR
• Stainless steel spring
• Temperature resistant up to 100°C
• Internal thread available in: 3/4" inch (approx. 26mm), 1" inch (approx. 32mm), 1 1/4" inch (approx. 42mm), 1 1/2" inch (approx. 48mm), 2" inch (approx. 60mm)

Hose piece / nozzle

• 1/2" inch = nozzle approx. 13mm outer diameter (hose inner size)
• 3/4" inch = nozzle approx. 19mm outer diameter (hose inner size)
• 1" inch = nozzle approx. 25mm outer diameter (hose inner size)
• 1 1/4" inch = nozzle approx. 32mm outer diameter (hose inner size)
• 1 1/2" inch = nozzle approx. 38mm outer diameter (hose inner size)

Hose connector / double nozzle

• for connecting/repairing hoses in combination with clamps (not included)
• 1/2" inch = nozzle approx. 13mm outer diameter (hose inner size)
• 3/4" inch = nozzle approx. 19mm outer diameter (hose inner size)
• 1" inch = nozzle approx. 25mm outer diameter (hose inner size)

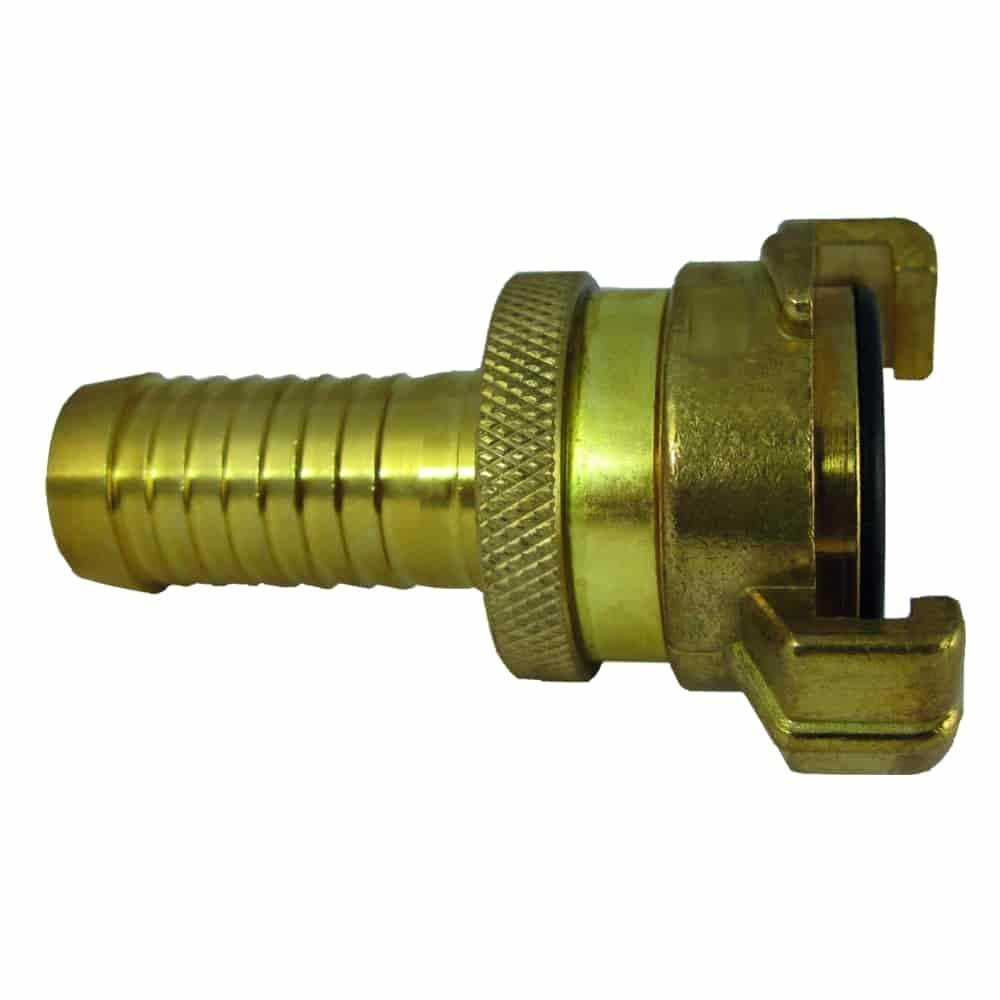

Quick coupling with locknut (adjusting ring)

• Suction and high-pressure coupling for suction lines
• Absolutely tight and secured against self-loosening by protective ring
• 1/2" inch = nozzle approx. 13mm outer diameter (hose inner size)
• 3/4" inch = nozzle approx. 19mm outer diameter (hose inner size)
• 1" inch = nozzle approx. 25mm outer diameter (hose inner size)
• 1 1/4" inch = nozzle approx. 32mm outer diameter (hose inner size)

Spray nozzle

• Very robust
• Water jet infinitely adjustable

T-piece

• Brass T-piece with 3 x 1" inch internal thread
• 3 x threaded piece 1" inch external thread
• Item delivered in individual parts and must be assembled by yourself (Teflon tape additionally needed)

Transition hose / quick coupling

• For direct connection to the hose
• 1/2" inch = nozzle approx. 13mm outer diameter (hose inner size)
• 3/4" inch = nozzle approx. 19mm outer diameter (hose inner size)

Transition plug / quick coupling

• one-piece
• 1 side suitable for Gardena Click system
• 1 side suitable for Geka system

Y-distributor

• one-piece
• With 3 x Geka-compatible quick coupling

Y-distributor with shut-off valve

• With 3 x Geka-compatible quick coupling
• Outlets individually shut off by ball valves
• Quick coupling made of pressed brass with 40 mm lug spacing
• These quick couplings are suitable for common systems such as GEKA etc.
• Due to the design, the flow rate decreases
