CGDI MB Prog Benz + EIS/ELV cables + AC adapter + ELV repair adapter

CGDI MB with Full Adapters including EIS/ELV Test Line + ELV Adapter + ELV Simulator + AC Adapter

Top 8 Reasons to get CGDI Prog MB Key Programmer:

1. Supports fastest Benz Car key add: collection time 1'50s, password calculation time 40s, 99% get password for one time calculator, it is the fastest key programming tool to calculate the password at present.
2. Supports MB all key lost: support models including 211,209,204,207,212,166,246,197,172,164 +, 216
3. CGDI Prog MB can calculate the password online free each day
4. Can work with BE key or orginal key
5. Update Online on official website for free //
6. Support more old Mercedes cars key programming by OBD compared to other Mercedes key programmer like VVDI MB BGA, such as
W210, W203, W639, W220,W215, W169
Mercedes E Series W210 before year 2004
Mercedes C Series W203 before year 2005
Mercedes V Series V639 before year 2008
Mercedes A Series W169 before year 2009
Mercedes B Series W169 before year 2009
Mercedes S Series W220 before year 2005
Mercedes E Series W211 before year 2008

7. CGDI MB support ECU renew on these models at present:
ME9.7, MED17, CR3.xx, CR4.xx, CR5, CR60.xx, CRD.11, CRD2.xx, , SIM266, SIM271DE2.0, SIM271KE2.0, SIM4LE, SIMELKE
Support Gearbox Renew on EGS 7G

8. Language: English, Spanish, French, German and Chinese

CGDI MB Prog Programming Key Features:

1) Automatically identify the basic key information (including how many times you used SSID)
2) Can directly read pin code of BE keys via infrared, can erase BE keys.
3) NEC adapter can write the original Benz smart key and common key.
4) Can write the Benz original key via infrared.
5) Can restore the data of key and EIS with the key password.

CGDI MB Prog Function List:

1) Able to add keys on Mercedes Benz and program a new key when all keys are lost.
2) Add new Mercedes Benz keys: Data acquisition for 1 minute 50 seconds, pin code for 40 seconds and 99% success.
3) Program a new key to the following models when all keys are lost: 211, 209,204, 207, 212, 166,246,197,172,164+, 216 etc.
4) Can read EIS data via OBD, no need to distinguish the EIS/EZS model.
5) Can display the key status and directly disable the key position.
6) Can display EIS Number, can distinguish the Benz model
7) Can display EIS status.
8) Automatically identify EIS model.
9) Automatically identify CAN protocol
10) Can directly read key pin code via infrared on parts of 209/211/220/215 EIS.
11) Can read/write EIS via infrared.
12) Can generate the key data of HC05/908/912/9S12/NEC EIS/EZS with only 26s,format include:11/ 41/51 (41 format is smart key data)

Functions of the Adapters:

EIS/ELV Test Line for Mercedes (without Having to Get on the Car)

Mercedes Locks Platform Test Line for W204 W212 W221 W164 W166 W205 W222

Scope of Application:

The EIS ELV maintenance
Key programmer
Detection key

ELV Repair Adapter for CGDI MB Benz Key Programmer

1. Automatically forced clearingcontents
2. Enable ELV,Get out of suspended anim ation
3. Virgin,Solve accidental errors
4. Test Write ELV,Determine if it is working properly
5. W204 W207 W212 W209 W906 Reparing locked chip

CGDI ELV Simulator Renew ESL for Benz 204 207 212 with CGDI MB Benz Key Programmer

CGDI MB ELV Emulator is newly released adapter by CGDI Company, which can  Renew ESL for Benz 204 207 212, work with CGDI MB Benz key programmer, can do the same function with Xhorse ELV Emulator with cheaper price.

Most W204 W207 W212 ESL will damage with EIS. In this case, there are two possible reasons and solution:
ESL motor is damaged and need to replace a new motor
NEC chip is locked, theoretically it can be unlock, actually it needs to replace new ESL.

CGDI MB AC Adapter Features:

Acquire data via OBD at a quick speed
No need to dismantle EIS
No need to plug and insert the cable
Save much data acquisition time
CGDI MB AC Adapter Workable Models and the Data Acquisition Time:

Mercedes Benz S series
Chassis W221 EIS model 216 free of disassembly,free of plugging in and out,acquisition time of 12 minutes

Mercedes Benz E series
Chassis W221 EIS model 211 free of disassembly,free of plugging in and out,acquisition time of 9 minutes

Mercedes Benz C series
Chassis W209 EIS model 209 free of disassembly,free of plugging in and out,acquisition time of 9 minutes

Mercedes Benz B series
Chassis W246 EIS model 169 free of disassembly,free of plugging in and out,acquisition time of 35 minutes

Mercedes Benz A series
Chassis W246 EIS model 169 free of disassembly,free of plugging in and out,acquisition time of 35 minutes

Mercedes Benz R series
Chassis W251 EIS model 164905 free of disassembly,free of plugging in and out,acquisition time of 12 minutes

Mercedes Benz ML series
Chassis W164 EIS model 164905 free of disassembly,free of plugging in and out,acquisition time of 12 minutes

Mercedes Benz GL series
Chassis W166 EIS model 164905 free of disassembly,free of plugging in and out,acquisition time of 12 minutes

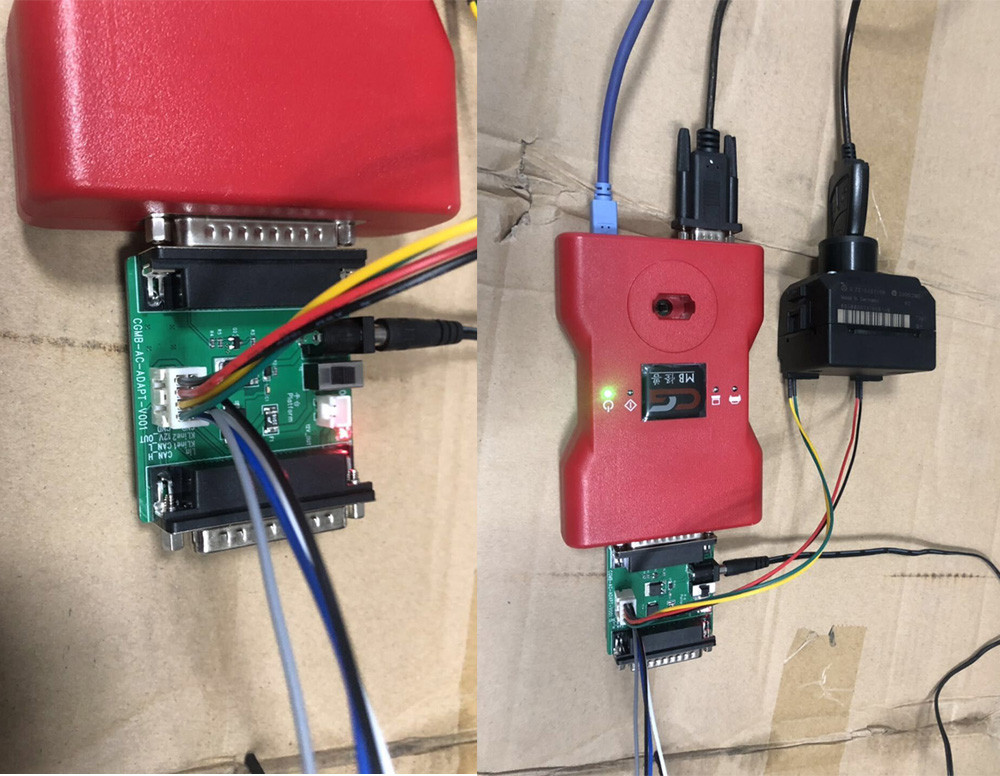

CGDI MB AC Apdater Connection Picture:



CGDI Prog MB New NEC Adapter

Cgdi mb new NEC adapter~no need to solder now

NEC keys support for erase and read&write: more convenient, faster and more efficient. Welcome to purchase.
The NEC adapter has two functions:
1. the left row pin ---- for smart key
2. the right row pin ---- for non - smart key,
An adapter helps you solve two major problems!

Specifications
Special Features: Erase and read&write Applicable models: Mercedes Color: green weight: 0.2kg 2018 CGDI Prog MB For Be-nz Car Key Add Fastest Fo: CGMB-NEC Adaper Item Type: Car Diagnostic Cables and Connectors: Erase and read&write

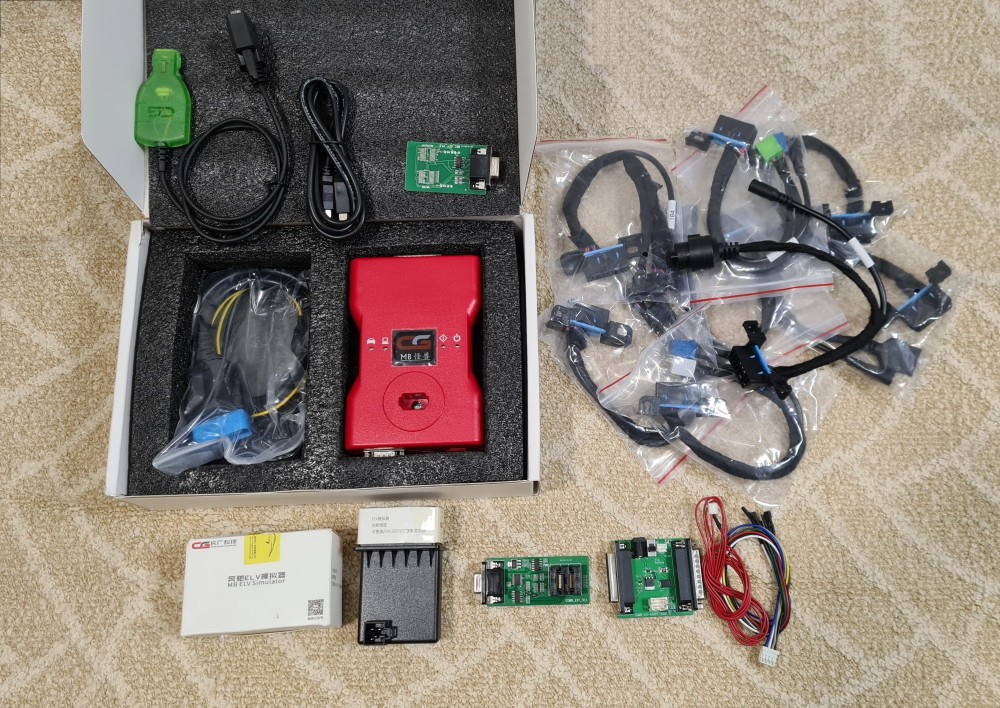

Packcage List:

1pc x CGDI MB Multiplexer
1pc x NEC Key Adapter
1pc x IR Adapter
1pc x OBD Cable
1pc x USB Cable
1set x EIS/ELV Test Line for Mercedes
1pc x ELV Adapter
1pc x ELV Simulator
1pc x AC Adapter
1pc x New NEC Adapter
