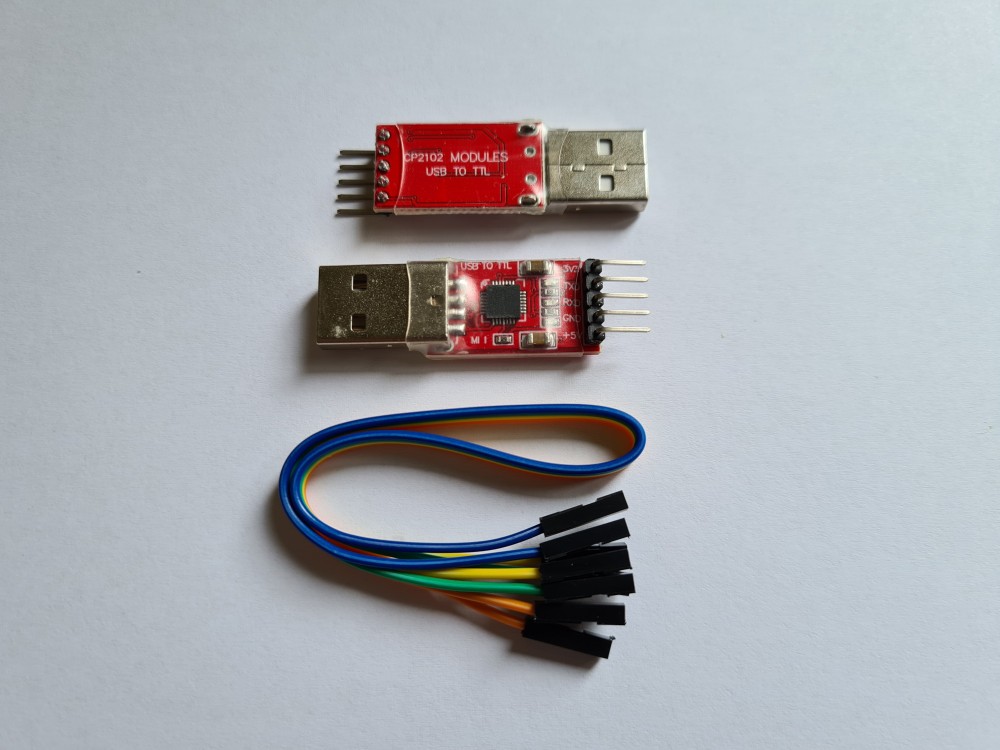

CP2102 USB 2.0 to TTL UART Module 5Pin Serial Converter STC Replace FT232

Name: CP2102 USB 2.0 to TTL UART Module 5Pin Serial Converter STC Replace FT232
Brand: Nespecificat
SKU: 212220301
Price: 40 RON
Availability: inStock
Rating: 5 (1 reviews)

* * 1 părere

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 3 disponibile

Livrare:

Curier rapid - 24,00 Lei Detalii

Estimat livrare:

Marți, 6 Mai.

Cantitate:

Pret:

40,⁰⁰ Lei

Produs:

Nou, Certificat de garanție 6 luni

Politica de retur:

Acest produs poate fi returnat in 14 zile Detalii

Plata:

La predare
Ramburs
Avans

Vandut de:

UPcloud SRL

100% pozitive (din 2479

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

5P - A type USB
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 5pin connector. 5pins for 3.3V,TXD,RXD,GND & 5V
All handshaking and modem interface signals
Baud rates: 300 bps to 1.5 Mbps.
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40degto +85deg
Supports Windows 98SE, 2003, XP, Vista, Window7, Mac OSX , Linux 2.6.x and 2.4.36
main color:Red
size:about45*14*8mm

Feature:

- Brand new and high quality.
- PCB Dimensions: 26.5mm * 15.6mm
- PCB Color: Red
- Weight: 4g
- using a new chip factory in 2013 CP2102
- with self-recovery fuse. In the event of accidental short circuit, it can effectively protect your computer USB port and Downloader
- with three LEDs: power indicator, data reception indicator, the data transmission indicator, working status
- with 3.3V and 5V dual power output
- pin leads to all sorts of useful
- with reset signal output, etc. directly to the FOR ARDUINO board Promini download!
- Supported operating systems:
-    Windows 98/Me/2000/XP/7
     OS-9
     OS
     X-Windows CE
     Linux 2.40 or later

CP2102 its high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), supports full-featured modem signals, without any external USB device. CP2102 with other USB-UART adapter circuit works similar to the PC through the driver's USB port into a virtual COM port in order to achieve the purpose of expansion.

Feature:

1.included USB transceiver, without external circuit device
2.includes a clock circuit, no external circuitry is
3.includes power-on reset circuit
4.chip 3.3V voltage regulator output voltage can be
5. Meet the USB2.0 specification requirements
6.SUSPEND pin supports USB suspend state
7.asynchronous serial data bus compatible with all handshake and modulation controller interface signals
8.Supported data format is 8 data bits, 1 stop bit and parity bits
9.connotation 512 byte receive buffer and 512 byte transmit buffer
10.Supports hardware handshaking or X-ON/X-OFF
