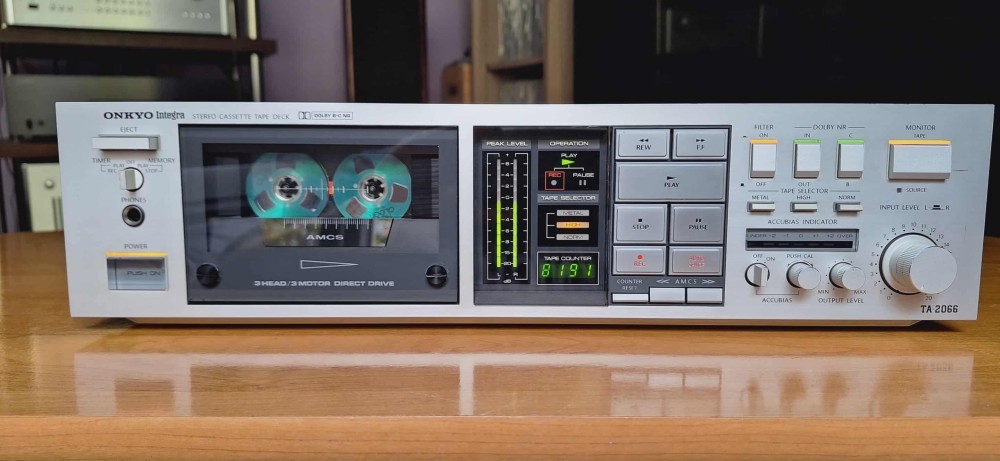

Deck Onkyo TA-2066

( Stare excelenta, servisat complet ) Deck Onkyo TA-2066 General Manufacturer: Onkyo Model: TA-2066 - Integra Series Type: Cassette Tape Deck Years of manufacture: 1983 - 1985 Made in: Japan Color: Silver, Black Remote control: Power consumption: 40 W Dimensions: 435 x 112 x 371 mm (WxHxD) Weight: 6.7 kg Original price approx.: 1'400 DM Connections Number of inputs: 5 2x Line DIN 2x mono microphone Number of outputs: 4 2x Line DIN Headphone 6.35 mm jack Technical Data Audio heads: 1x recording (hard permalloy), 1x playback (hard permalloy), 1x erasing head (ferrite head) Motors: 1x direct drive motor, 2x DC rotor Synchronous fluctuation: 0.035% (effective, evaluated). Belt types: Normal band, Chrome band, Pure iron band. Frequency response: 20 - 17.000 Hz at normal band 20 - 19,000 Hz for chrome tape 20 - 21,000 Hz for pure iron band Distortion ratio: Signal-to-noise ratio: 60 dB (pure iron band, without Dolby). With Dolby-B enhancement of 10 dB above 5 kHz and 5 dB at 1 kHz With Dolby-C enhancement of 20 dB at 5 kHz Auto Reverse: No Title search: AMCS Dolby: B/C MPX Filter: Yes Fader: No Pitch control: no CD synchro recording: no Special Features Rear band control Semi-automatic Accu-Bias adjustment Timer record & play Autospace Memory Stop 4-digit display Headphone and Line output level controls
