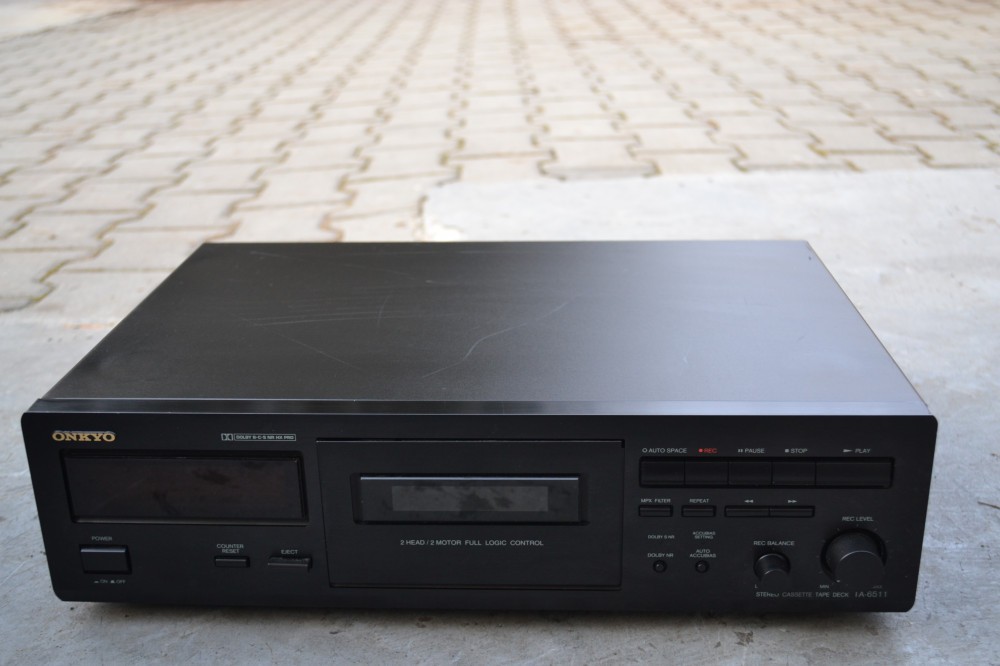

Deck Onkyo TA 6511

Deck Onkyo TA 6511 : incarcare centrala, Dolby B,C,S, HxPro, counter, culoare neagra, 2 capete, 2 motoare, made in Malayesia, poze reale.

Generally

Manufacturer: Onkyo
Model: TA-6511
Type: Cassette Tape Deck
Year of manufacture: 1996 - 1999
Colours: black, silver
Remote control:
Power Consumption: 17W
Dimensions (WxHxD): 435 x 121 x 307 mm
Weight: 5kg
New price approx.: 600 DM

Connections:

Number of inputs: 2
Line in (Cinch, RCA)
Onkyo system jack 3.5mm
Number of outputs: 2
Line out (Cinch, RCA)
Onkyo system jack 3.5mm

Technical specifications:

Tape heads: 2
Engines: 2
Tape Speed: 4.8cm/s
Wow and flutter: 0.07% (WRMS), 0.09% (DIN, weighted), 0.18% (DIN unweighted, see Stereo 10/1997, p.54).
Tape types: IEC I, II, IV
Frequency Response: 20-19,000 Hz (metal band), 30-18,000 Hz at +/- 3 kHz; 20-18,000 Hz (Chrome), 30-17,000 (Chrome, at +/- 3 kHz)
Distortion factor:
Signal-to-noise ratio: 58 dB (metal band, Dolby NR off); with Dolby B (at 5 Khz) 68 dB and 63 dB (at 1Khz); with Dolby C 78 dB at 5 Khz; 82 dB with Dolby S (at 5 kHz) and 68 dB with Dolby S (at 1 kHz)
Auto Reverse: No
Dolby: B, C, S
HX Pro: Yes
MPX filter: yes (switchable)
Fader: No
Pitch Control: No
CD Synchro Recording: Yes

Special equipment

Repeat Playback (Repeat button): Full/ Block
Title search (during playback, no extra buttons), up to 15 titles can be searched
Dolby S noise reduction
4-digit real-time tape counter
fluorescence display
Single capstan drive
Automatic calibration for bias premagnetization (Auto Accubias)
Remote controllable in the Onkyo RI system (RI system sockets must be connected), then also control with some CD remote controls (e.g. RC-278C, RC-279C)
CD Synchro (with Onkyo CD players via System Bus)
Brushed aluminum front
Clearly visible, large display. In light yellow for the silver model, in mint green for the black model
