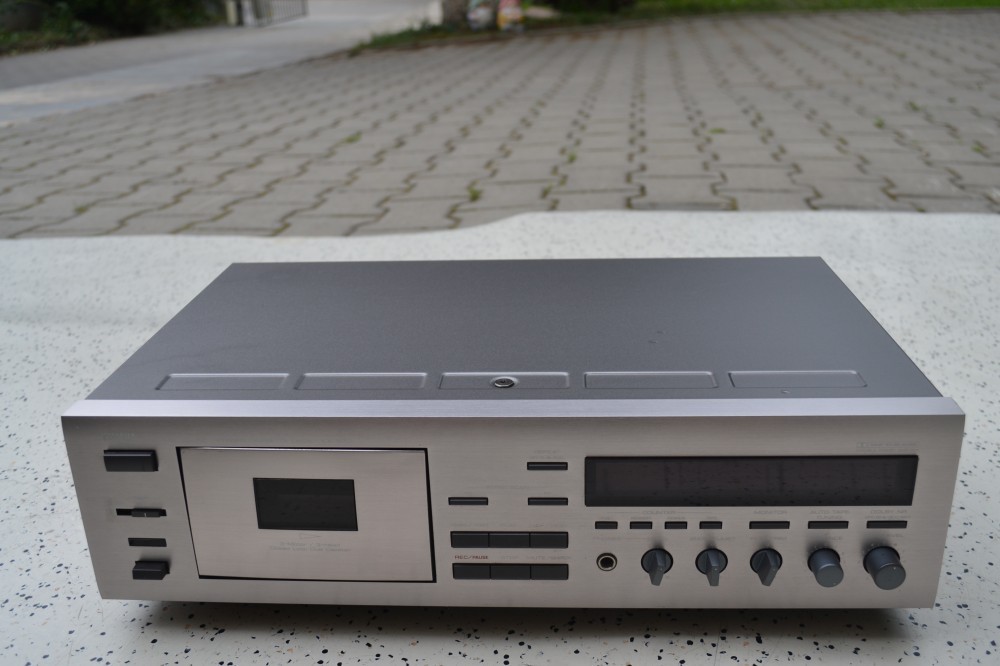

Deck Yamaha KX 670

Deck Yamaha KX 670: 3 capete, 3 motoare, dual capstan, dolby B, C, HX Pro, culoare titan, iesire casti cu volum separat, bias adjust, balance, vumetre, MPX filter, counter, repeat. Senzor de telecoamdna, Made in Malayesia.

Video functionalitate:

Manufacturer: Yamaha
Model: KX-670
Type: Single
Years of manufacture: 1993-1995
Made in: Malaysia
Color: titanium, black
Remote control: optional (RS-KX 1)
Power consumption: 16 watts
Dimensions: 435 mm × 131 mm × 283 mm (W × H × D)
Weight: 5.2 kg
Original price approx.: 650 DM

Connections

Number of inputs:
Line
Number of outputs:
Line
Headphones

Technical data

Sound heads: 3
Motors: 3
Synchronisation fluctuations: ±0.04 %/0.07 % WRMS/ 0.18 % DIN
Band types: Type I, II, IV
Frequency response:
Type I: 20-18,000 Hz ±3 dB
Type II: 20-19,000 Hz ±3 dB Type IV: 20-21,000 Hz ±3 dB Distortion factor: <0,8 %

Signalrauschabstand: >60 dB, 76 dB with Dolby C
Auto Reverse: no
Title search: yes
Dolby: B/C, HX-Pro;
MPX filter: switchable
Fader: yes
Pitch control: no
CD synchro recording: no
Special Features

Dual capstan drive belts!
2 rewind speeds
Timer switch
automatic title play
automatic tape type switching
calibration computer
Bias control
Dolby HX-Pro
Play Trim
real-time totalizer
Totalizer Memory
Repeat Segment and Total
Press search button, then fast forward button - finds beginning of music (beginning of cassette)
Headphone output level adjustable.
