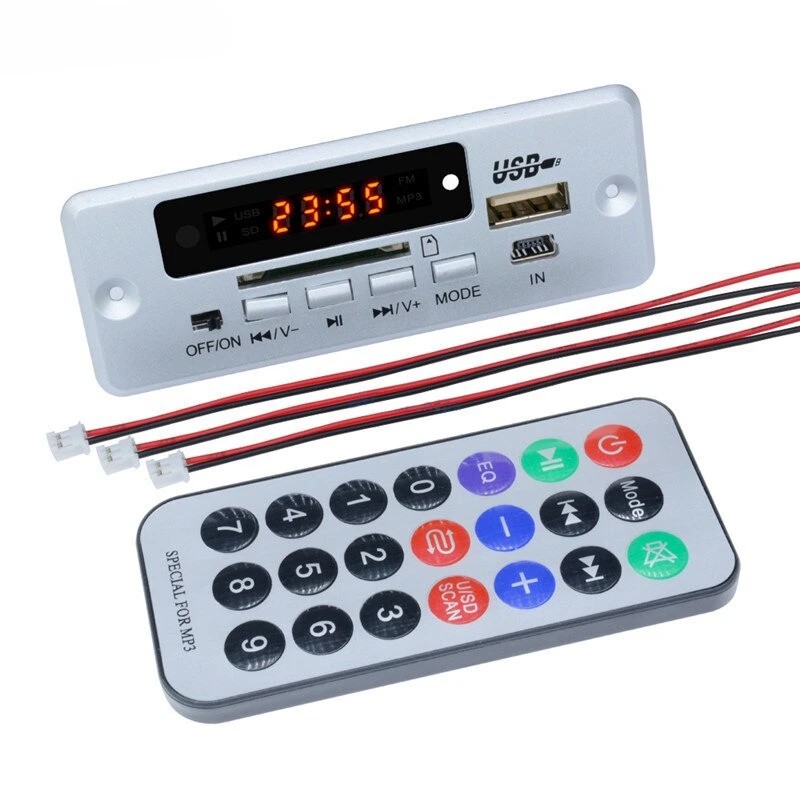

Decodor MP3 cu amplificator stereo 2x3W, card SD si Bluetooth, 5V

Produsul este nou!

Specificații în limba engleză:

MINI USB-IN can not be used directly if not connected to the battery.

Must connect the battery at first, then use MINI USB IN.Otherwise it may damage the decoder board.

Product Introduction:

1. Power Supply Voltage:3.6-5V;3W stereo power amplifier output (BTL output,no common GND,cannot connect with other amplifiers for use)

2. Mul-function:bluetooth receive;hands-free call;fast forward/fast backward;insertation MP3 play;AUX function;radio function

3. Self-equipped with bluetooth audio receive module;after cellphone and bluetooth module has matched successfully,cellphone can play MP3 or bluetooth can send loseless APE file to bluetooth receive module to play;support hands-free call;support playing MP3 document in U-disk or SD card;support radio playing

Bluetooth Function Operation Method:

1. Press "MODE" key to switch state  to "BLUE"

2. Open audio device with bluetooth function,search "ZTV-CT02EA" and connects with it

3. Volume can be controlled by external connection sound source device;or long press "PREV" and "NEXT" to adjust vlume

4. When there is call in,short press "Play/Pause"is for answering the phone and long press is for rejecting

5. When you want to call someone or in calling state,short press "Play/pause" is hanging up

6. Note:if current state is mute and there is call in,then it will release the mute state

Power On/off:

1. Power on:remove the power switch to "ON" position

2. Power off:remove the power switch to "OFF" position

MP3 Play:

  1) When power on,plug the U-disk or SD card which copied MP3 songs,and the machine will automatically recognize and play

  2) "PREV":short press will play the previous song;long press will decrease the volume

  3) "Play/pause":press the first time will stop the current playing song;press again will restore to playing state

  4) "NEXT":short press will play the next song;long press will increase the volume

  5) "MODE":mode selection;switch SD card,U-disk,clock,FM,bluetooth,LINE mode

FM Mode:

  1) When press "MODE" key to switch into FM state.PREV:short press will search radio station from up to down,long press will decrease the volume;"Play/pause":short press will automatically search and memory the radio station;"NEXT":short press will search the radio station from down to up,long press will increase the volume

Line Mode:

  1) When press "MODE" key to switch into Line state,voice source is input by "Line/DC";and volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key

Clock Adjustment:

  1) When press "MODE" key to switch into Clock state,press "Play/pause" key to select hour or minute;then the chosen part is flashing,if press "PREV" or "NEXT" again can achieve time adjustment

Bluetooth Mode:

  1)When press "MODE" key to switch into Blue state,open the audio device with bluetooth function;search for "ZTV-CT02EA" and connect with it;volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key.When there is call in,short press "Play/pause" is for answering the phone,long press is for rejecting

  2)If you want to call someone or in calling state,short press "Play/pause" is for hanging up

Remote Control Operation:

  1)In bluetooth state

    Power Switch:fake power off

    Mode Switch:the same as MODE key,switch mode (bluetooth->MP3->FM->Clock->bluetooth)

    Mute:press is for mute/unmute;please note that if the current state is mute and there is call in,then it will release the mute state

    Play/pause:the same as PCBA board function

    PREV:the same as PCBA board function

    NEXT:the same as PCBA board function

    Vol-:the same as PCBA board function

    Vol+:the same as PCBA board function

    Cycle:number repeat calling

MP3 State:

   1) PREV:short press for previous song;long press is for fast backward

   2) NEXT:short press for next song;long press is for fast forward

   3) Cycle:switch single loop to list loop

Clock Adjustment:

   1) When press "Time" to switch into "Clock" state,press "Time" key to choose hour or minute,then the chosen part is flashing;if press "PREV" or "NEXT" key again is for time adjustment
