Diagnoza auto originala Autel Maxidas DS808K + adaptoare - update ONLINE
- La predare
- Ramburs
- Avans
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Top reasons to get MD808K
AUTEL MaxiDAS DS808K Full Set VS MaxiDAS DS808
difference:
1.DS808K is full set, MaxiDAS DS808 is standard set .
2.DS808K can support OBD-I OBD-II protocols vehicle before
1998year,DS808 only support OBD-II cars
MaxiDAS
DS808K (With Conkit) Features:
1. Extensive vehicle coverage for more than 80 brands USA, Asian
and European car makes.
2. Exceptional OE-Level system coverage for all electronic
systems
3. Complete capabilities for codes, live data, active test, ECU
information, adaptation, matching, etc.
4. Smart Auto VIN technology for identifying vehicles easily
5. Automatic system and software updates with real-time push
message notifications via Wi-Fi
6. Instant remote control tech support anytime, Cloud-based MaxiFix
online community provides a vast database of diagnostic and repair
tips and proven filed fixes
7. Interactive Data Logging sessions enable direct contact with
Autel Technical Support for first-hand troubleshooting of
diagnostic bugs and errors.
8. One-stop multitasking designed for ideal management of workshop
operations to keep all data files, customer info, and vehicle
records well organized.
9. Convenient data management system for managing internal program
applications and reviewing data
10. featured with an extensive coverage of OE-level diagnostics .
Installed with a fast quad-core processor, DS808K offers maximum
convenience and efficiency for your diagnosis and analysis . It can
support Injector & Key Coding if you have original programmer
software.
Note: There are two options available when accessing the Diagnosis
section:

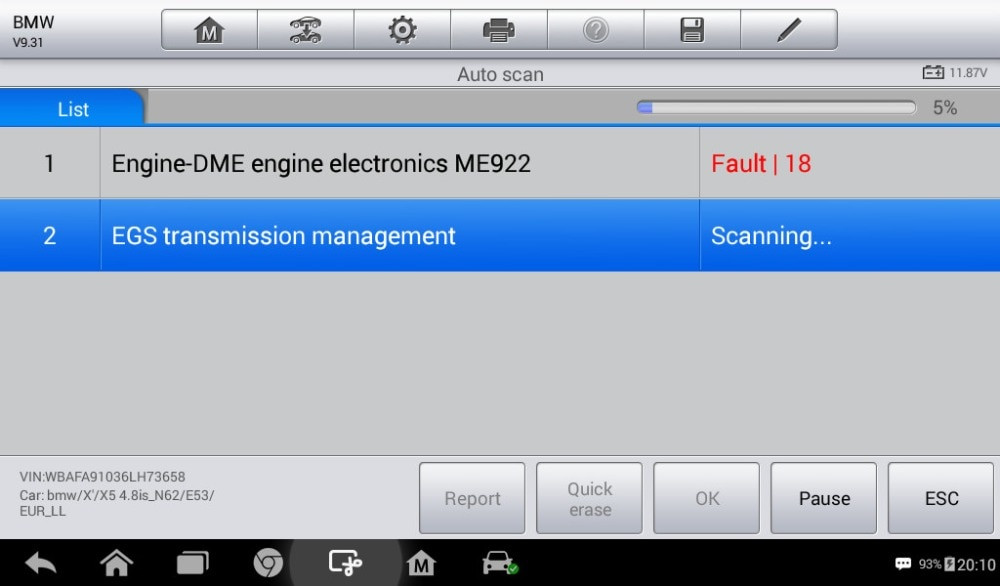

1. Auto Scan – starts auto scanning for all the available systems
on the vehicle.
2. Control Units – displays a selection menu of all available
control units of the test vehicle.
After a section is selected and the tablet establishes
communication with the vehicle, the corresponding function menu or
selection menu displays.

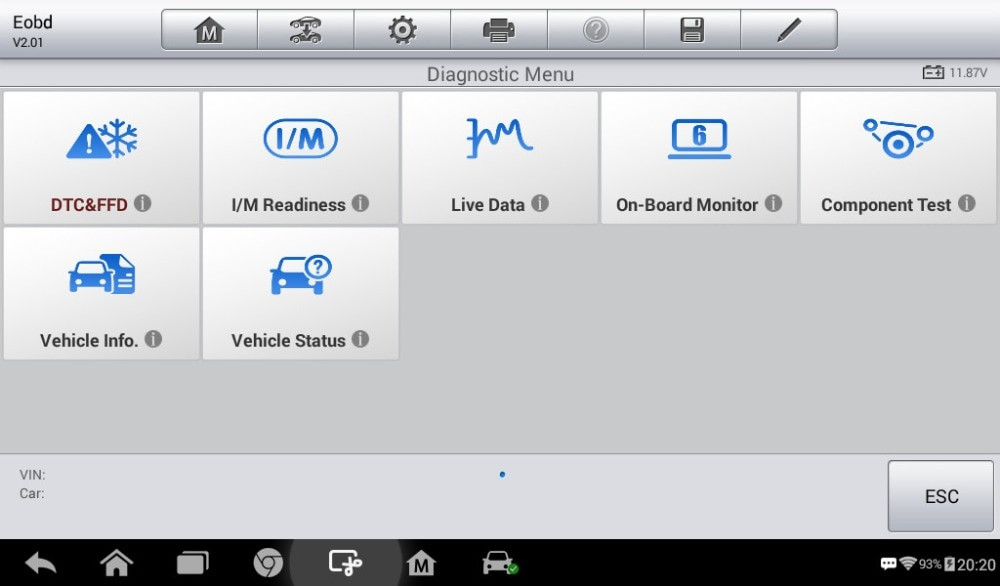

1.Diagnostic
functions:
Full system diagnositc functions, Read/erase codes , Live data , ECU informaiton , Active test , freeze frame data , I/M reainess status , Vehicle information, O2 monitor test , on-board monitor test , component test , modules present ,DTCs help.
- Reset and install service intervals
- Reset the oil change calculator in the engine and automatic transmission
- Replacement of brake pads on vehicles with an electric parking brake
- Adaptation of the sensor to the angular position of the steering wheel
- Regeneration of Diesel particulate filter
- Bleeding brake system with ABS, etc.
- Immobilizer functions
- Battery Registration and reset
DS808K Supported Automotive Protocols:
OBD-I, OBD-II,
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850
VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and
Singlewire CAN, fault-tolerant CAN), SAE J2610,ForGM UART,UART Echo
Byte Protocol, ForHonda Diag-H Protocol, TP2.0,
TP1.6

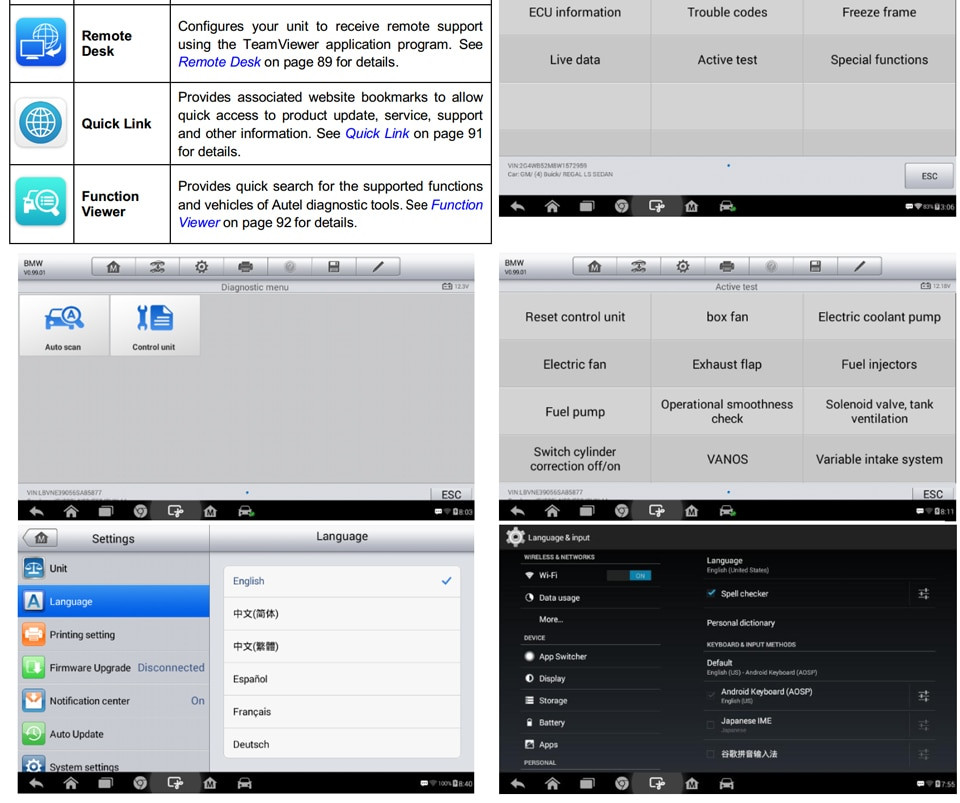

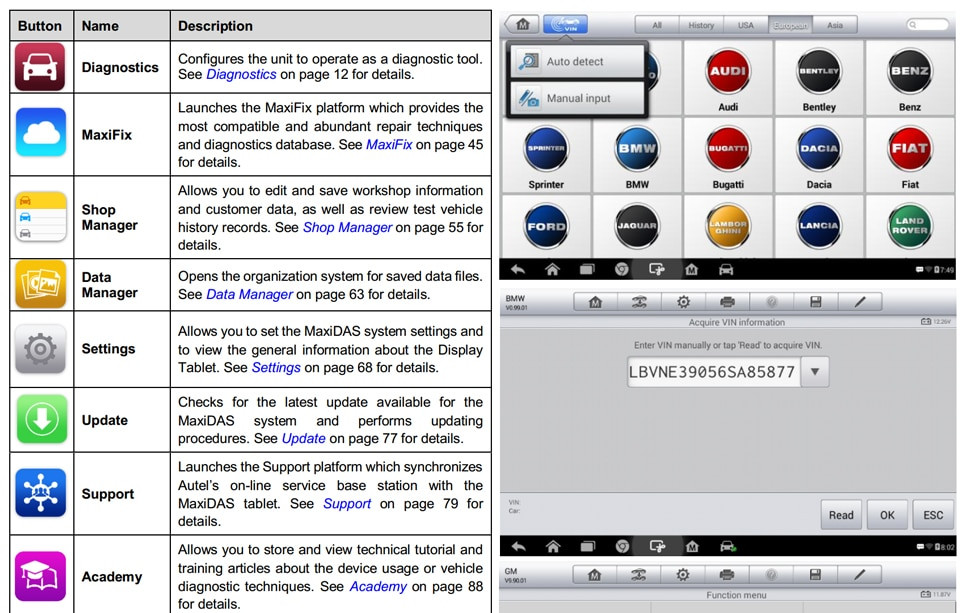

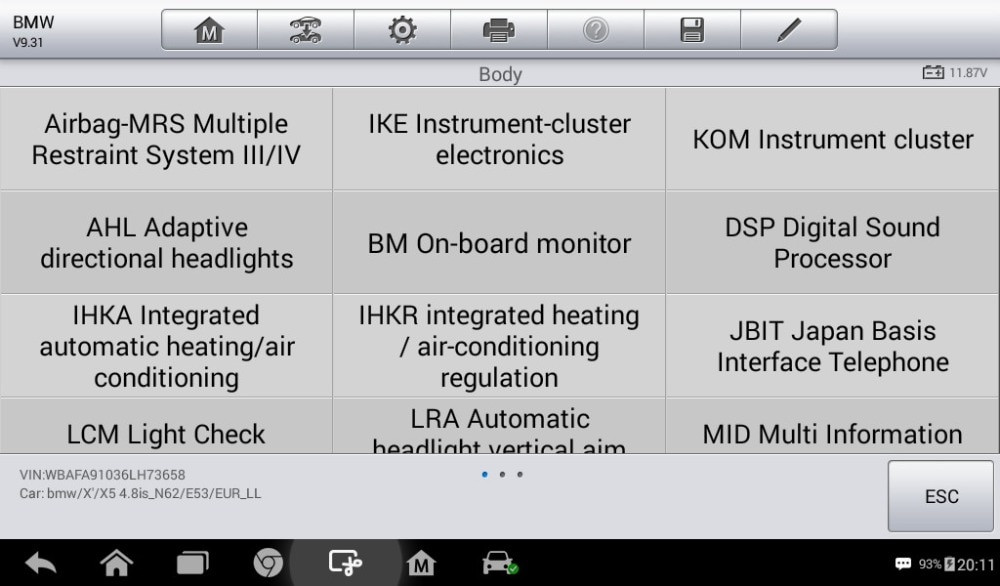

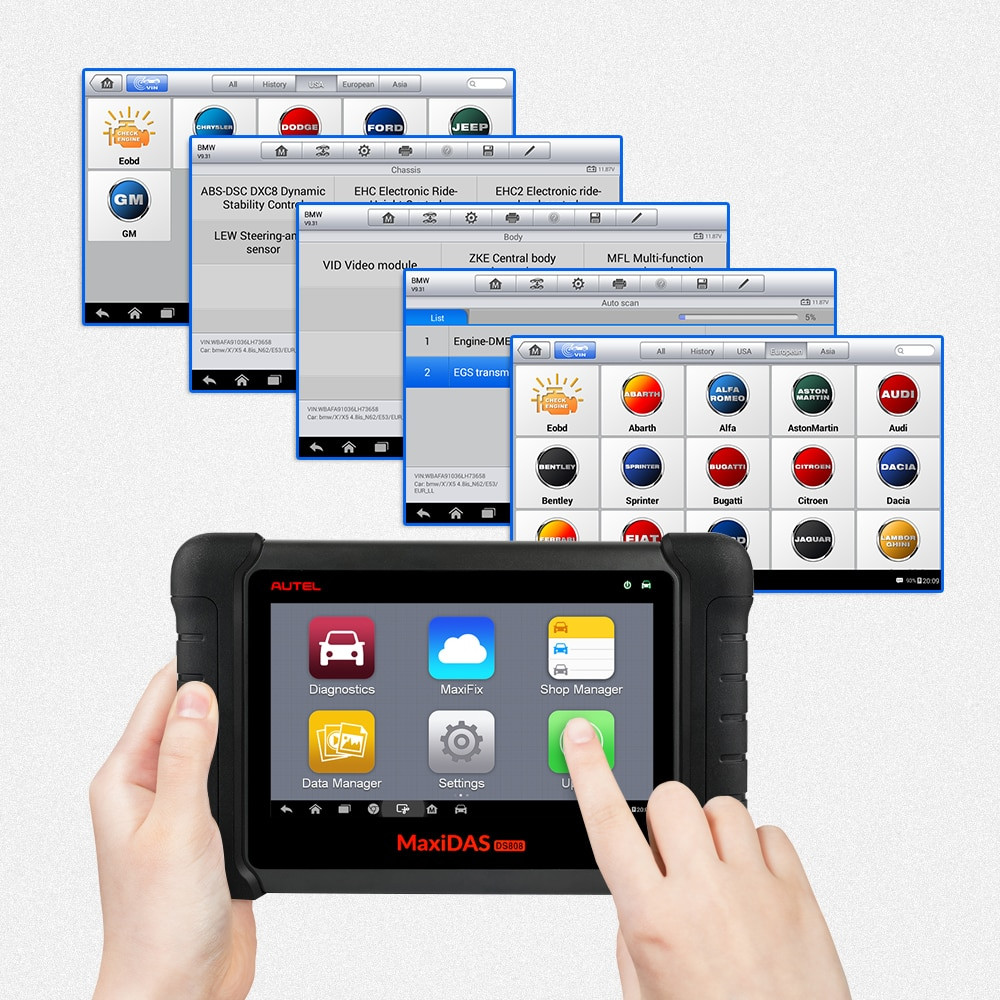

MaxiDAS DS808K Screenshot:

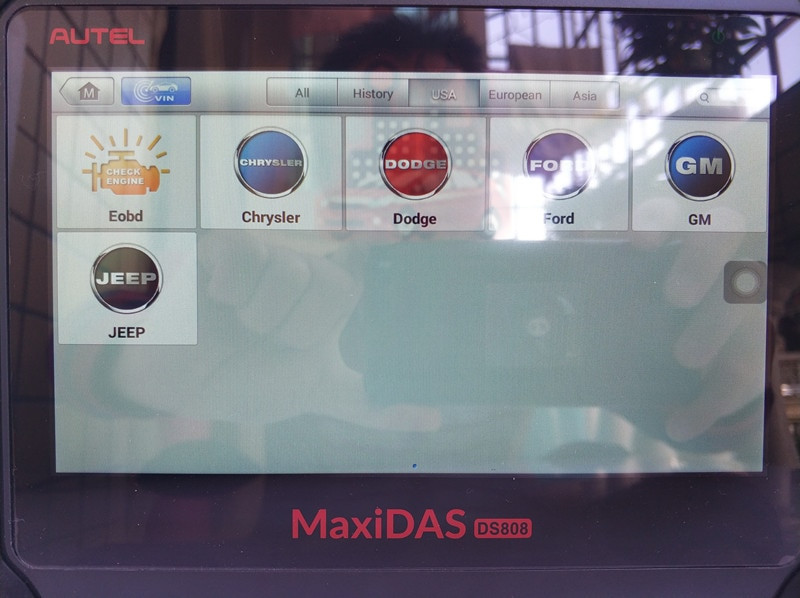

For USA

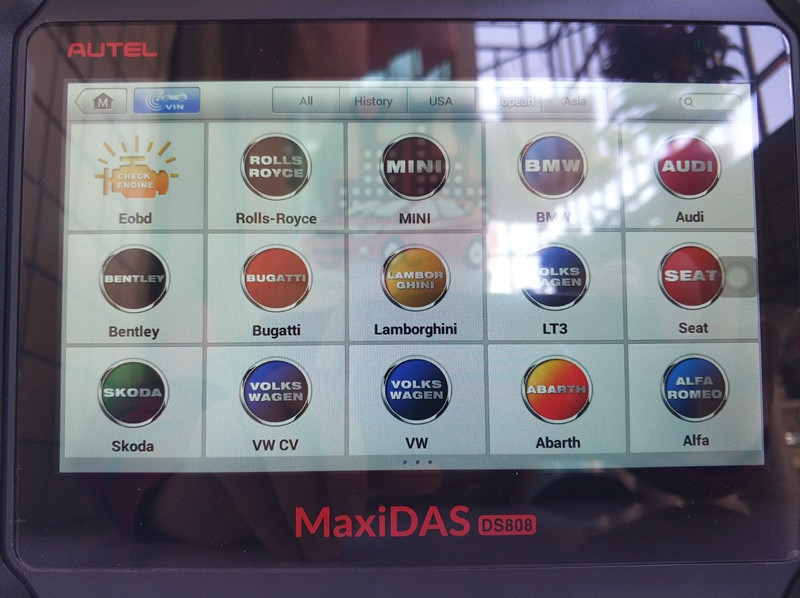

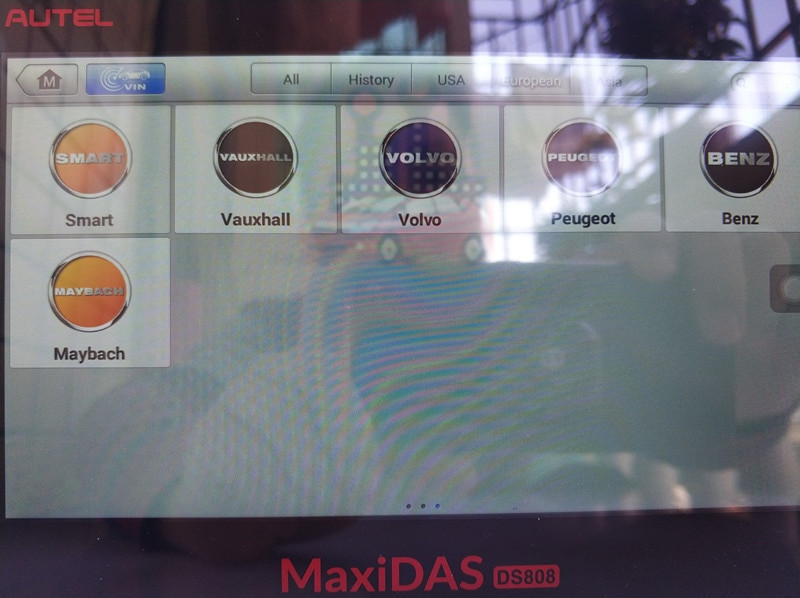

For European

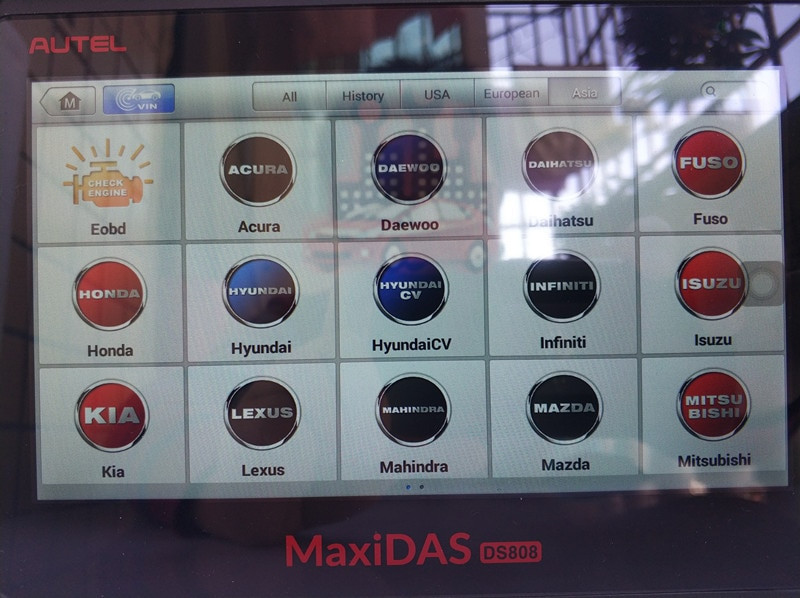

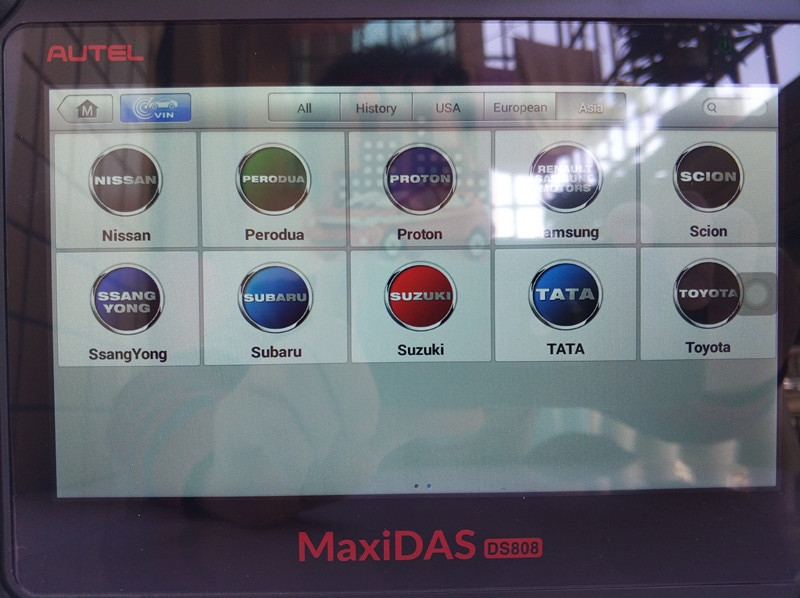

For Asia
How to update Autel DS808K (With Conkit) software:
1. Make sure the Display Tablet is connected to a power source with
stable access to the internet.
2. Tap the Update application button from the MaxiDAS Job
Menu;
or tap the update notification message when received
one;
or tap the Update icon on Vehicle Menu in Diagnostics
application.
The Update application screen displays.
3. Check all available updates:
If you decide to update all the items, tap the Update All
button.
If you only want to update one or some of the item(s), tap the
Update button on the right column of the specific
item(s).
4. Tap the Pause button to suspend the updating process. When you
tap Continue to renew the update, the updating process will
resume
from the break point.
5. When the updating process is completed, the firmware will be
installed automatically. The previous version will be
replaced
Specifications:
- Operating System:Android™ 4.4.4
- Net Weight:788 g (2.42 lb.)
- Processor:Cortex-A9 processor (1.5 GHz)
- Memory :32GB
- Display:7-inch LCD capacitive touchscreen with 1024x600 resolution
- Connectivity:• Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
- Sensors:Ambient light sensor for brightness auto changing
- Audio Input/Output:• Input: N/A • Output: buzzer
- Power and Battery:• 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
- Tested Battery Life:Around 4.5 hours of continuous use
- Battery Charging Input:5 V/1.5 A
- Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
- Operating Temp:-10 to 60°C(14 to 140°F)
- Storage Temp:-20 to 70°C (-4 to 158°F)
- Operating Humidity:5% - 95% non-condensing
- Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”

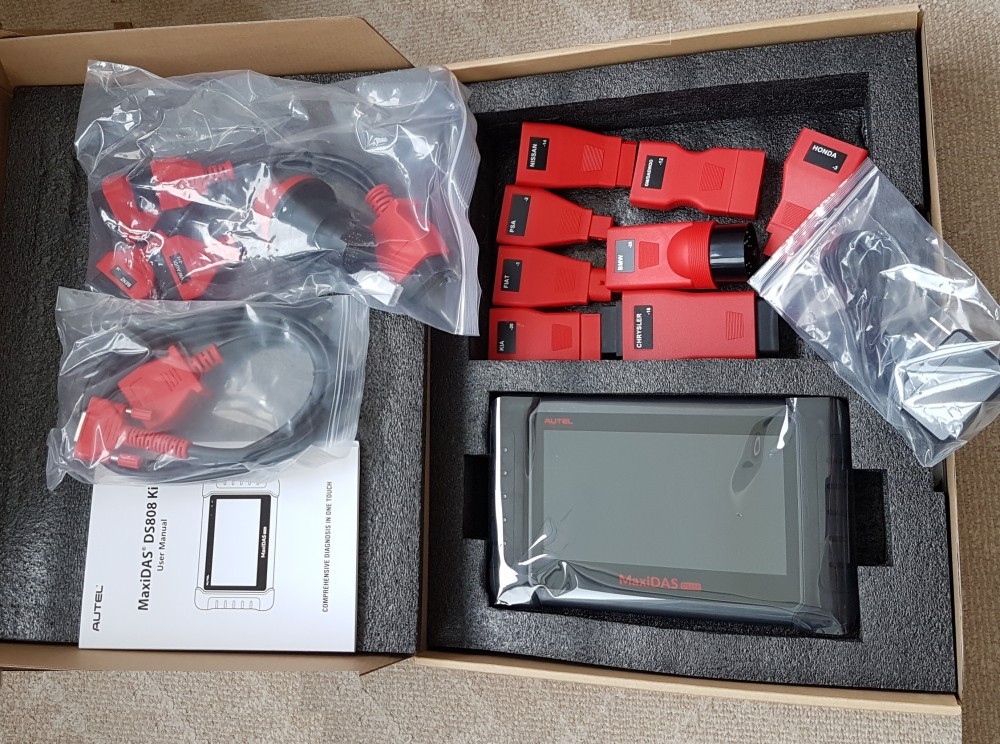

Packing list:
1pc x Power Adapter
1pc x USB External Power AdapterUser
1pc x ManualQuick reference guide
1pc x Main cableCarry case
1pc x Mini USB Cable
1pc x User Manual
1pc x Quick Guide
1pc x For Benz-14
1pc x For Chrysler-16
1pc x For BMW-20
1pc x For Kia-20
1pc x For Nissan-14
1pc x For GM/Daewoo-12
1pc x For Honda-3
1pc x For VW/AUDI-2+2
1pc x For Mitsubishi/Hyundai-12+16
1pc x For Benz-38
1pc x For PSA-2
1pc x For Fiat-3
