Product Description

GODIAG GD202 is a professional level diagnostic handheld tool, offering comprehensive system coverage for a vast array of car manufacturers. Featured with Four system diagnosis including engine, transmission, ABS&SRS system, and the most commonly required service features oil light/service reset, EPB,TPS,SAS and Battery configuration, GD202 provides workshops, technicians and enthusiasts alike affordable professional diagnostics solutions.

GD202 OBD2 Diagnostic Tool ABS Airbag SAS EPB Oil DPF TPMS TPS BRT Reset Code Reader ODB2 OBDII Automotive Scanner

GODIAG GD202 Highlights:

1. Work on both OBDI and OBDII cars, SUVs, minivans, light-duty trucks sold worldwide, including the latest 2021 models on some makes

2. Support Multi-languages, work with All 12V standard obd2 protocols vehicles.

3. Read and erase Diagnostic Trouble Codes (DTC's), Retrieves ECU information, Displays freeze frame data , data stream for most electronically controlled systems, including Engine, ABS, Airbag, Automatic Transmission four system

4. Identifies the vehicle you are testing rapidly and accurately on the basis of its VIN number

5. No battery required, it is charged directly from the OBDII car scanner interface in your vehicle( just need to turn on the ignition of your vehicle).

6. Internet updatable via USB

7. Works with most 1996 and newer OBDII& CAN compliant cars, SUVs, minivans and hybrid sold worldwide

8. Support all the 10 OBDII test modes

Features:

1. Provide easy diagnosis on more than 75 American, Asian and European vehicle makes

2.Support Multi-languages; works with All 12V standard obd2 protocols vehicles.

3. 4.0" 800*480 LCD color display, clearly arranged keys, menu driven operation, and shortcuts together make this device extremely easy to use

4. GD202 is easy to use

- Identifies cars quickly and easily with one-key VIN reading

- Extremely easy to use with clearly arranged keypad, menu

5. Life time FREE software and firmware updates

Support all the 10 OBDII test modes

Support all makes(80+) and four system(engine, automatic transmission,ABS,airbag)

Four Main System Diagnstic: Help User Read clear code and live date in Engine, Transmission ABS SRS System.

✔Diagnostic Engine System: The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

✔Diagnostic Transmission: It makes great sense in the safe driving when your car is slipping or difficult to shift. This diagnostic scanner can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

✔Diagnostic ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.

✔Diagnostic SRS Airbag System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

Support 11+ Service Function

Commonly used special function description

Oil life Service Reset

Service lamp reset:

1.If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.

2.After changing engine oil or electric appliances that monitor oil life, you need to use vident tools reset the service lamp.

Electronic Parking Brake (EPB) system maintenance

Brake pad replacement:

1.If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

2.Reset must be performed in the following cases:

a) The brake pad and brake pad wear sensor are replaced.

b) The brake pad indicator lamp is on.

c) The brake pad sensor circuit is short, which is recovered.

d) The servo motor is replaced.

Battery Replace Test (BRT)

Battery matching:

1.Use the car diagnostic device to reset the car battery monitoting unit to clear original fault information about insufficient battery electric quantity, and match the battery again and monitor battery based on current battery information.

2.Battery matching must be performed in the following cases:

a) Main battery is replaced. Battery matching must be performed to clear original electric quantity insufficiency information and prevent the related control module from detecting false information. If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start&stop function, sunroof without one-key trigger function, power window without automatic function.

b) Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery electric quantity use information more accurately, which can avoid the instrument panel displaying false information.

Diesel Particulate Filter (DPF) Regeneration Control System

DPF regeneration:

1.DPF regeneration is used to regularly clear PM (particulate matter) from the trap in combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM fire point combustion) to stabilize trap performance.

2.DPF regeneration matching must be performed in the following cases:

a) The bleeding backpressure sensor is replaced.

b) The PM trap is removed or replaced.

c) The fuel additive injector is removed or replaced.

d) The catalytic oxygenizer is removed or replaced.

e) The DPF regeneration MIL is on and maintenance is performed.

f) The DPF regeneration control module is replaced.

Throttle Position Sensor(TPS)- Electronic throttle sensor reset

Throttle matching:

1.Use the car decoder to initialize the throttle actuation element so that the ECU learning value is returned to the initial status to more accurately regulate throttle (or idle motor) operations to control intake air quantity.

2.Throttle matching must be performed in the following cases:

a) The ECU is replaced and the ECU does not yet store throttle working features.

b) The ECU is disconnected and the ECU memory is lost.

c) The throttle assembly is replaced.

d) The intake passage is replaced or removed, which affects idle speed control by ECU and throttle body.

e) The throttle is cleaned. Although the idle throttle potentiometer features are not changed, with the same throttle opening, the intake quantity has changed and idle speed control features have changed.

Steering Angle Sensor (SAS) Calibration

Steering angle reset:

1.To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.

2.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), peforming four-wheel alignment, or recoving car body, you must reset the steering angle.

Injector coding

1.Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

2.After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

ABS bleeding

1.When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

Suspension

Suspension matching:

1.This function is used to adjust car body height.

2.When the car body height sensor and control module in the air suspension system are replaced or the car level is incorrect, perform this function to adjust the car body height sensor for horizontal calibration.

EGR

This Function Is Used To Learn The EGR (Exhaust Gas Recirculation) Valve After It Is Cleaned Or Replaced.

Evaporative test

The EVAP system monitor checks for fuel vapor leaks by performing either a pressure or vacuum test on the fuel system. This routine is will create a positive pressure in the tank to determine if there are any leaks in the fuel system.

List of applicable models:

General Diagnostic Function
For Abarth, Acura, Alfa, AstonMartin, Audi, BRILLIANCE, BYD, Bentley, Benz, BMW, Bugatti, CHANGAN, CHANGHEAUTO, CHERY, CHERY_NE, Chrysler, Citroen, Dacia, Daewoo, EMGRAND, ENGLON, FOTON, Ferrari, Fiat, Ford, FordEU, GEELY, GLEAGLE, GM, GMBrazil, GREATWALL, Honda, Hyundai, Infiniti, Isuzu, Jaguar, KARRY, Kia, LIFAN, Lamborghini, Lancia, LandRover, Lexus, MAPLE, Mahindra, Maserati, Maybach, Mazda, Mini, Mitsubishi, Nissan, Opel, Perodua, Peugeot, Porsche, Proton, RELY, RIICH, Renault, Rollsroyce, Samsung, Saab, Scion, Seat, Skoda, Smart, Sprinter, SsangYong, Subaru, Suzuki, Tata, Toyota, VW, VW_CV, Vauxhall, Volvo

ABS bleed
For Acura, Bjxd, Bmw, Byd, Changan, Changhe, Chery, Chrysler, Citroen, Daewoo, Daihaisu, Dffx, Dfhonda, Faw Besturn, Ferrari, Fiat, Ford, Geely, Gm, Gqhonda, Gqtoyota, Greatwall, Haima, Hcbmw, Honda, Hyundai, Jac, Jaguar, Jiachuang, Karry, Kia, Lancia, Landrover, Lexus, Liebao, Mahindra, Maserati, Mazda, Mercedes-Benz, Mini, Mitsubishi, Myhr, Njywk, Opel, Peugeot, Porsche, Proton, Rely, Renault, Riich, Romeo, Saab, Scion, Smart, Ssangyong, Tata, Toyota, Vauxhall, Volvo, Yema, Yinxiang, Yqmazda, Yqtoyota, Zhongshun

Battery Configuration
For Acura, Audi, Bentley, BMW, Bugatti, Changanford, Chrysler, Citroen, Dfcitroen, Dfnissan, Dfpeugeot, Dfhonda, Faw Car, Fiat, Ford, Gqtoyota, Hcbmw, Honda, Hyundai, Infiniti, Jaguar, Kia, Lamborghini, Lancia, Landrover, Lexus, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Scion, Seat, Shvw, Skoda, Toyota, Volvo, Vw, Yqmazda, Yqtoyota, YQVW

EPB functions
For Abarth, Acura, Alfa, Audi, Bentley, BJXD, BMW, Bugatti, Byd, Chery, Chrysler, Citroen, Daewoo, Dfcitroen, Dfhonda, Dfpeugeot, Faw-Besturn, Ferrari, Fiat, Ford, Gm, Gqhonda, Gqtoyota, Hcbmw, Honda, Hyundai, Jaguar, Kia, Lamborghini, Lancia, Landrover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, MiNi, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Romeo, Saab, Scion, Seat, Shvw, Skoda, Subaru, Toyota, Vw, Vauxhall, Volvo, Yqmazda, Yqtoyota, Yqvw, Zotye

Injector coding
For Acura, Audi, Bentley, BMW, Bugatti, Chery, Chrysler, Citroen, Dfcitroen, Dfpeugeot, Creat Wall, Dfhonda, Fiat, Ford, Gm, Gqhonda, Honda, Hyundai, Inifiniti, Isuzu, Jaguar, Kia, Lamborghini, Lancia, Landrover, Lexus, Mahindra, Mazda, Mercedes- Benz(Passenger Car), Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Scion, Seat, Skoda, Smart, Ssangyong, Subaru, Suzuki, Toyota , Volvo, VW

Oil Light Service
For Abarth, Acura, Astonmartin, Audi, Baic, Bentley, Bjxd, Bmw, Borgward, Bugatti, Byd, Changan, Chery, Chrysler/Jeep/Dodge, Citroen, Dacia, Daewoo, Df-Citroen, Dfhonda, Df-Peugeot, Faw Car, Ferrari, Fiat, Ford, Gm, Gqhonda, Gqtoyota, Greatwall, Hcbmw, Holden, Honda, Hyundai, Infiniti, Isuzu, Jac, Jaguar, Karry, Kia, Lamborghini, Lancia, Landrover, Lexus, Luxgen, Mahindra, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Proton, Rely, Renault, Riich, Rolls-Royce, Romeo, Rover, Saab, Scion, Seat, Shvw, Skoda, Smart, Subaru, Suzuki, Toyato, Vauxhall, Volvo, Vw, Yema, Yqmazda, Yqtoyota, Yqvw, Zotye

Steering Angle Sensor Calibration
For Acura, Audi, Bentley, Bjxd, BMW, Bugatti, Byd, Changanford, Chery, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, Dfcitroen, Dffx, Dfhonda, Dfnissan, Dfpeugeot, Dfpv, Faw Besturn, Faw Car, Ferrari, Fiat, Ford, Geely, Gm, Gqhonda, Gqtoyota, Greatwall, Hai Ma, Hcbmw, Honda, Hyundai, Infiniti, Jac, Jaguar, Karry, Kia, Lamborghini, Lancia, Landrover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mahindra, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Proton, Renault, Romeo, Scion, Seat, Shvw, Skoda, Smart, Ssangyong, Subaru, Suzuki, Tata, Toyota, Vauxhall, Volvo, Vw, Yinxiang, Yqmazda, Yqtoyato, YQVW

Throttle Position Sensor(TPS)- Electronic throttle sensor reset
For Acura, Audi, Bentley, BJXD, BMW, Brilliance, Bugatti, Byd, Chang An, Changanford, Chery, Chrysler, Citroen, Dacia, Daewoo, Dfcitroen, Dffx, Dfhonda, Dfnissan, Dfpeugeot, Dfpv, Faw Besturn, Faw Car, Faw Tian Jin, Fiat, Ford, Geely, Gm, Gqhonda, Gqtoyota, Great Wall, Hai Ma, Haima Zhengzhou, Hcbmw, Honda, Huizhong, Hyundai, Infiniti, Jac, Jaguar, Kia, Lamborghini, Lancia, Landtover, Lexus, Li Fan, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Nissan Zhengzhou, Opel, Peugeot, Porsche, Proton, Rely, Renault, Riich, Romeo, Saab, Seat, Shvw, Skoda, Suzuki, Toyota, Vauxhall, Volvo, Vw, Wu Ling, Younglotus, Yqtoyota, Yqvw, Yueda, Zhongxing

DPF
For Acura, Audi, Benz, Bmw, Chrysler, Citroen, Daewoo, Dfhonda, Fiat, Ford, GM, Gqhonda, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Kia, Lancia, Landrover, Lexus, Maserati, Mazda, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Scion, Seat, Skoda, Subaru, Suzuki, Toyota, Vauxhall, Volvo, Vw, Yqmazda

Suspension
For Audi, Chrysler, Citroen, GM, Jaguar, Landrover, Mercedes-Benz, Peugeot, Seat, Skoda, VW

Evaporative Test
For Landrover, Jaguar

EGR
For BMW, Citroen, GM, Peugeot, Renault, Volvo

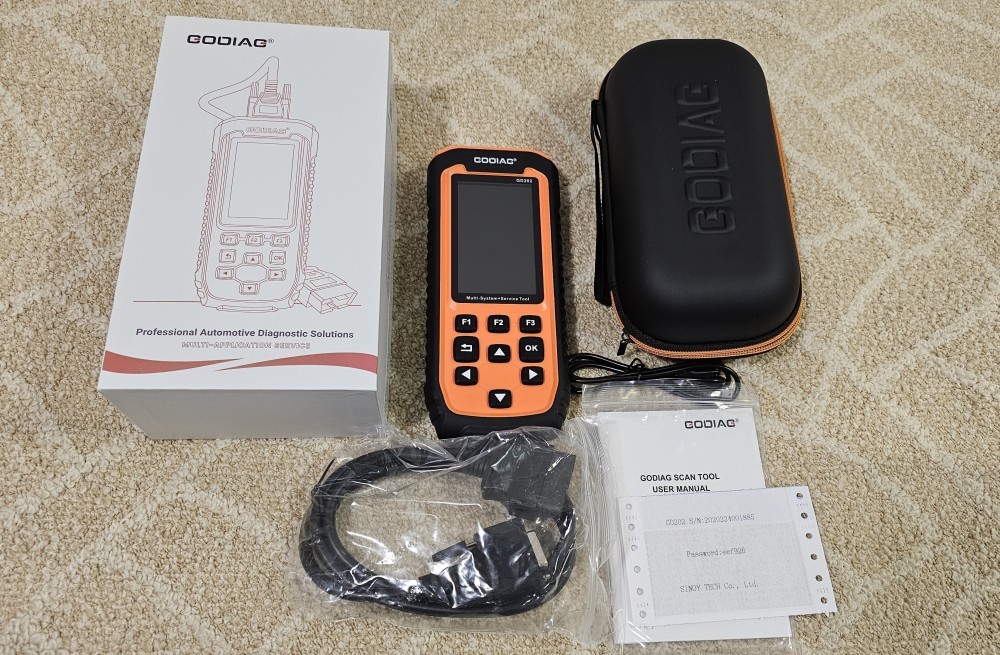

Package includes:

1pc x host
1pc x Cipher paper
1pc x usb cable
1pc x Test line

1pc x English version of instruction manual

1pc x Multilingual Quick Guide
