Diagnoza Tesla PRO Scanner pentru modelele S, X si 3

Tesla PRO scanner Diagnostic and Programming Tool for TESLA S, X, 3

Tesla PRO is the first independent device on the market supporting
diagnostics in TESLA model S, X and 3 so far.

You must be aware that the use of some for Tesla PRO functions in some
countries may be prohibited and against the law.

First of all, what you need to know about the Tesla PRO before work. Tesla PRO:
1.The tool is intended only for qualified personnel!
2.You must be aware of the risk of loss if something went wrong (learn keys or make adaptations of BMS controller or something else)
3.You must have electronic skills which allow you to make adapters yourself and the connection between Tesla PRO and the vehicle’s CAN interface.
4.Tesla PRO uses the CAN network to communicate with the ECU. Therefore, you will not have access to firmware, navigation update, configuration because it cannot be done via CAN. All mentioned things do by LAN on IC,CID not via CAN network

TESLA PRO is a young software with small box interface but is constantly being developed.Can help you solve a few problems with the TESLA car.

As so far, for TESLA PRO can work with ECU for TESLA Model S with some function for TESLA Model X and 3

Understanding TESLA network The following diagram of the TESLA “S” network will explain to you what you can use Tesla PROfor.

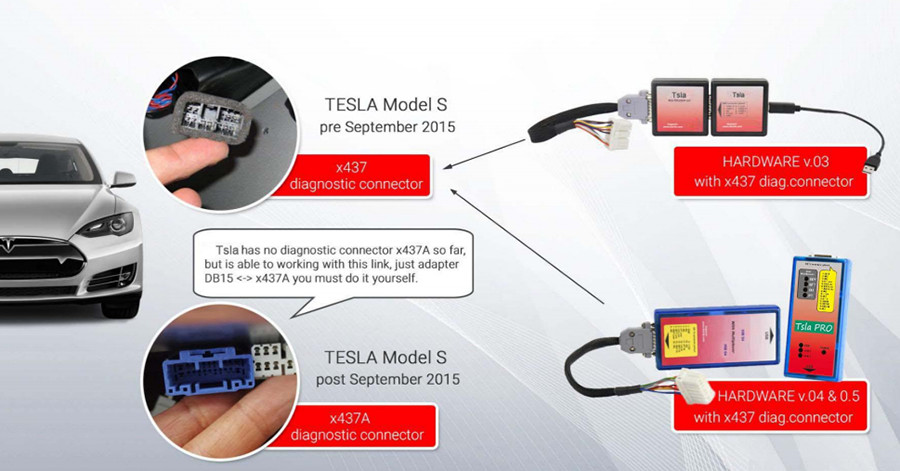

Tesla PRO Diagnostic interfaces Tesla PRO has no diagnostic connector x437A so far, but is able to working with this link, just adapter DB15x437A you must do it

Tesla PRO
Diagnostic and Programming Tool for TESLA S, X, 3

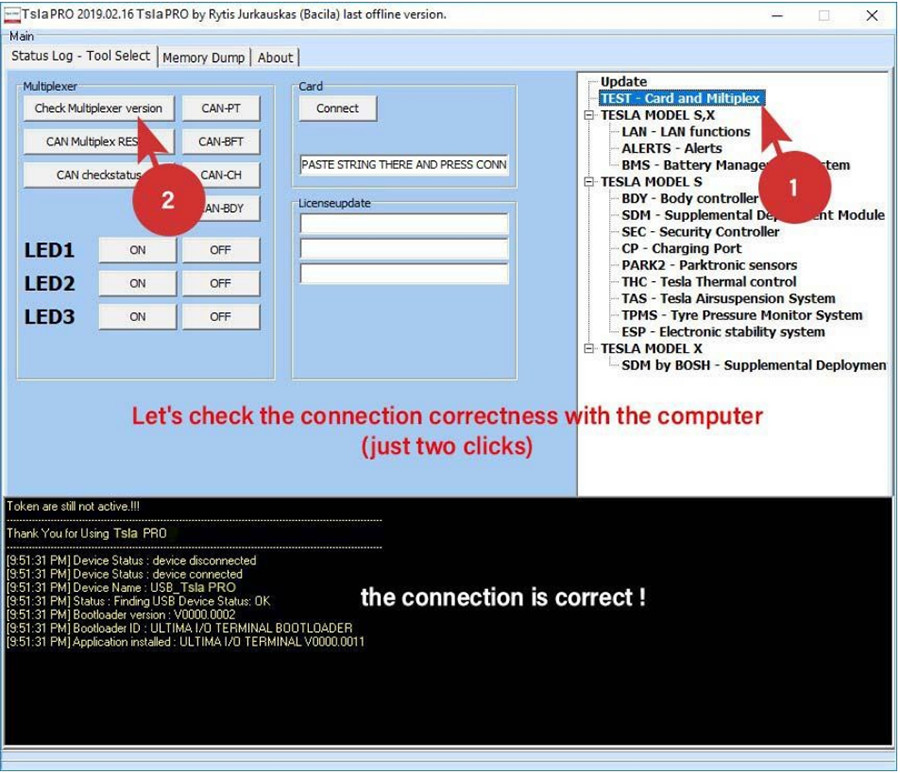

The First Test
Please attached Tesla PRO to TESLA car now

The Error shown above says that the connection between the Tesla PRO diagnostic tool and the car is incorrect.

Check if the plug is loose and is properly plugged into the diagnostic socket.

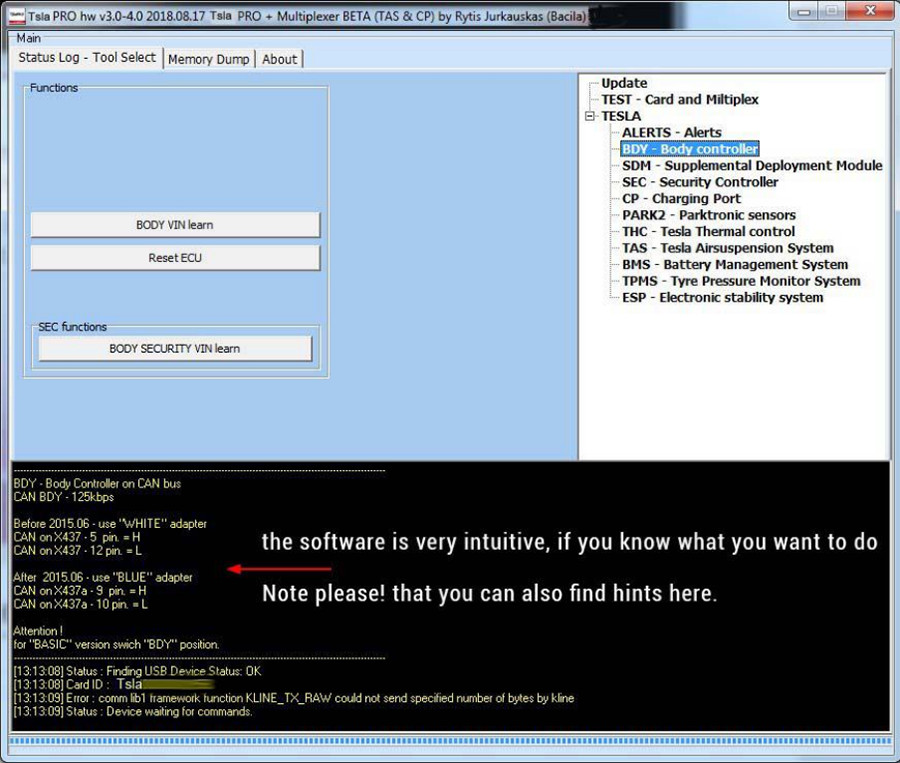

the software is very intuitive

the software is going to be constantly developed, so in the future version you supposed to get more useful information and changes build in

Diagnostic function options：

Tsla Pro T-CAN PRO V2023.03 Diagnostic Tools Functions

T-CAN PRO can work with ECU TESLA Model S,X,3

T-CAN PRO Diagnostic Tools can only support after 2015.09 Model S/Model X and after 2019 year Model 3

Before 2015, you can buy our cables to support the cars.(If you have the need, pls contact us)

2020.11.16 – Beta Battery Energy data reading by can, factory mode (updated).

2020.11.05 – Global DTC decoding codes update.

2020.10.26 – some Lan functions added. (wakeup, pinto drive, park DTC base)

2020.10.23 – CID commands Service and Factory Redeploy,

2020.10.22 – real-time by can level measure of TAS (EAS) Beta. (add some DTC base)

2020.09.25 – BMS contactor replacement procedure reset u019

2020.09.24 – m3 SDM read, erase DTC by can.

2020.09.21 last update. (Diag, Develop, FMODE by IC, Valet by LAN)

2019.05.23 NEW SDM by BOSH Module X and 3 models (read, clear fault codes and R/W EEPROM clear CRASH log.)

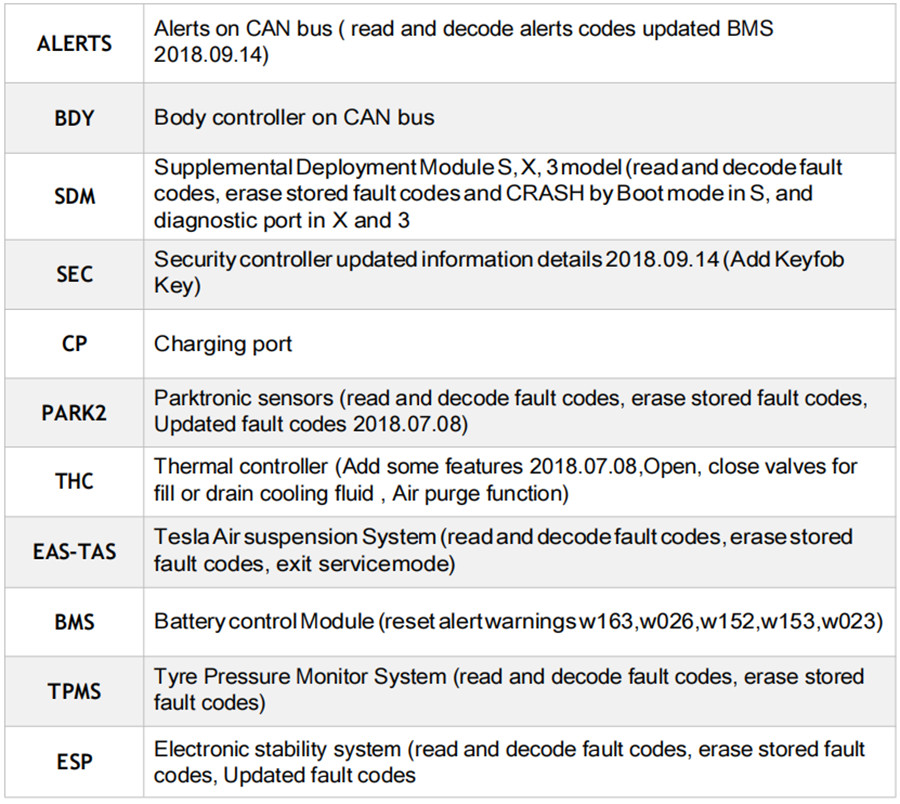

ALERTS – Alerts on CAN bus (read alerts codes updated BMS 2018.09.14 BETA STAGE !)

BDY – Body controller on CAN bus

DH – Door Handles – Learn Front Driver Side – CAN BDY -125 kbps (BETA Stage – added 15.07.2019)

SDM – Supplemental Deployment Module S model (read, clear fault codes, clear CRASH log by Boot mode pin.)

SDM by BOSH Module X and 3 models (read, clear fault codes, and R/W EEPROM clear CRASH log.)

SEC – Security controller (Add Keyfob Key)

PARK2 – Parktronic sensors (read and decode fault codes, erase stored fault codes) supported until 06.2016

THC – Thermal controller (Air purge function)

EAS – Electronic Air suspension System (read, decode, erase fault codes, exit service mode ) supported until 06.2016

TAS – Tesla Air suspension System (erase fault codes, clear Crash event, exit service mode ) after 06.2016

BMS – Battery control Module (reset alert warnings w163,w026,w152,w153,w023,read softpack)

TPMS – Tyre Pressure (read sensor ID stored in memory it is useful if you need to make a new non-tesla sensor)

ESP – Electronic stability system (read and decode fault codes, erase stored fault codes)

What is T-CAN?

T-CAN PRO is a solution/diagnostic tool for Tesla cars that only consists of hardware and software.

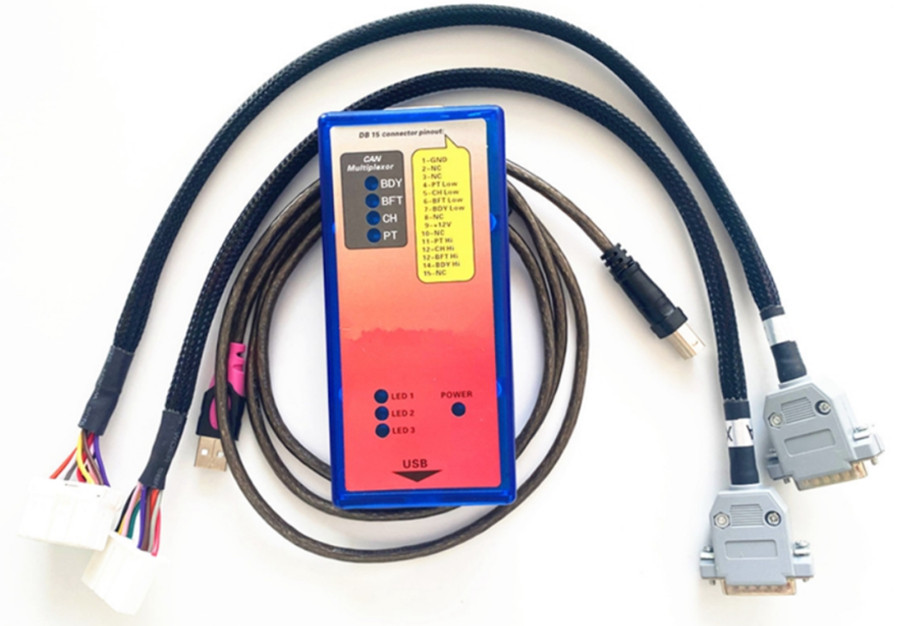

Hardware

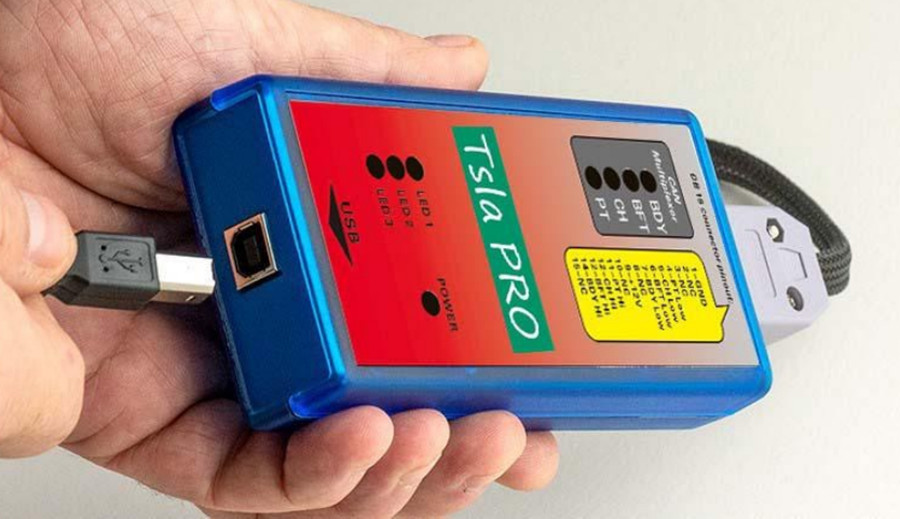

1.  Car Programmer – plastic blue box with info label on top, inside is PCB (Printed Circuit Boards with semiconductors and SIM card). The device does not contain batteries

2. 2 Data cables (type: x437 and x437A) - these 2 cables are used to connect the car to the programmer

3. USB cable – this cable is using to connect the programmer to the PC or Laptop

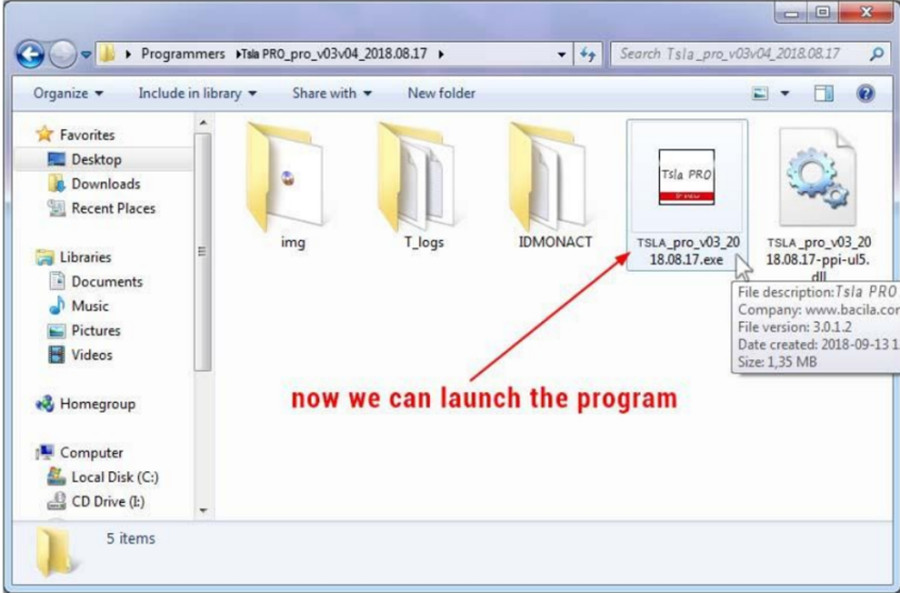

Software

1. The software you need to work with T-CAN PRO programmer.

2. There is no other software.

3. The software is frequently updated, so it is recommended to check from time to time  to see if new software is available.

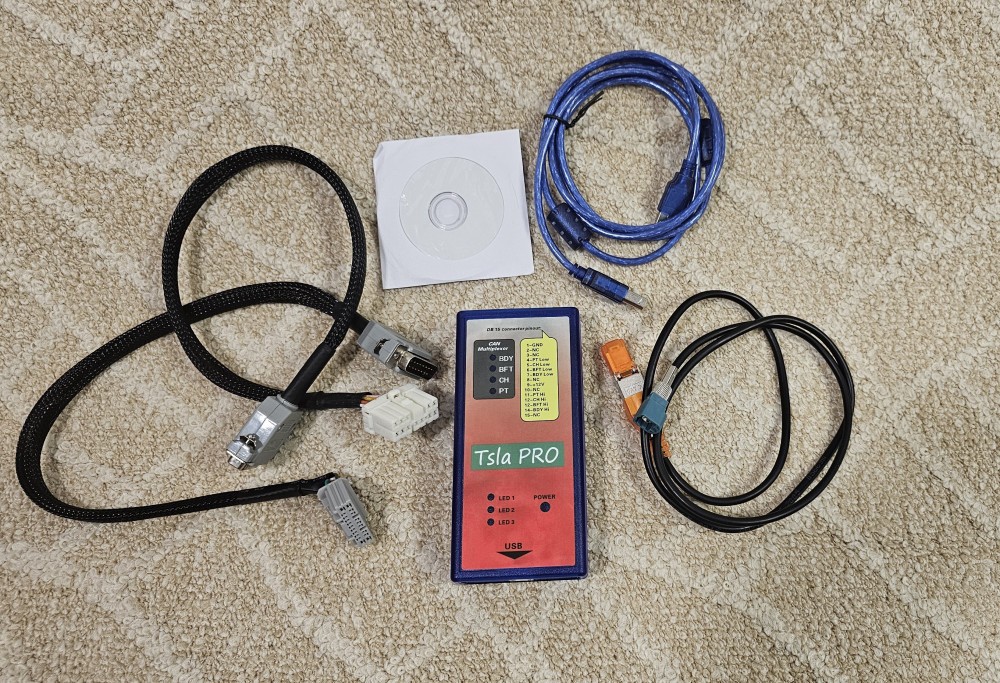

Packing List

1xT-CAN hardware

1xconnector/adapter x437

1xconnector/adapter x437A

1XUSB cable A/B
