Diagnoza VNCI 6154A VW Audi Skoda Seat suporta DoIP/CAN FD 2024

Product Description

VNCI 6154A ODIS V23.01 for VW Audi Skoda OBD2 Scanner Supports WiFi

What is VNCI 6154A?

VNCI 6154A (red SVCI 6154A) is the OEM 6154A Diagnostic Adapter that is compatible with lastest V23.01 ODIS-S. It perfectly replaces VAS 5054A and added supports CANFD, DOIP Protocol. VNCI 6154A is a universal diagnostic interface for the vehicles of the Volkswagen Group including VW, AUDI, SKODA, SEAT, Bentley, and Lamborghini.

VNCI 6154A Highlights:

1. VNCI 6154A Work with original driver, Don't need driver manager.
2. With base station/hotspot mode switching button.
3. Compatible with ODIS-S V9.1.0, V10.0, V11.0, V23; ODIS-E: V14.1/V15.0/V16.0/ V17
4. Free license until 2030 year
5. Works for all VAG Brands from 1995 to 2023
6. Support WiFi, WLAN and USB Connection
7. Supports win10 64bit systems.
8. FULL Multi-language edition covered 22 languages:  English (GB), English (US), French (FR), German (DE), Spanish (ES), Russian (RU), Greek (GR), Danish (DK), Croatian (HR), Italian (I), Hungarian (HU), Netherlands (NL), Polish (PL), Portugal (PT), Romanian (RO), Slovenian (SLO), Finish (FI), Swedish (SW), Turkish (TR), Czech (CZ), Japanese (JP), Chinese (CN), Korean (KO).
9. Supports Online/Offline programming (with online account)
10. Flashing of hidden features
11. Support all ODIS service and ODIS engineer function
12. Not need any license for VNCI. Use normal odis installation with launcher. Running original drivers without any modifications.
13. Compatible with latest ODIS-S V23 and ODIS V17 after firmware upgrade




NOTE:

1.PLEASE INSTALL ON WINDOWS 10(64BIT) AND MAKE SURE YOUR C:/ DRIVER HAVE 50GB SPACE  .
2.SVCI 6154A is not a J2534 Passthru because it loaded with newer vesion Firmware.
3. Compatible with latest ODIS version.
4. VVNCI 6154A power supply methods:
OBD port 12V power supply
USB port 5V power supply.



New Type SVCI 6154A (Red VNCI 6154A) Fixed some bugs:

1.Fixed that Interface heats up after long time use (lost firmware)
2.Fully Supported CAN FD and Doip protocols
3.Compatible with Oiginal ODIS all versions driver(Old 6154 only compatible with Original V24 ODIS Driver)
4.Upgrade to support ODIS-S 9.1/10.0/V11.0 and ODIS-E V14.1/V15.1/V16
5.Directly use with ODIS and no need Driver Manager

What is the difference between NEW 6154 DOIP Version and normal 6154?

DOIP 6154 can supports DOIP diagnosis, especially it can do 2018 to 2020 new cars,
DOIP 6154 supports more protocols then the old 6154.


VNCI 6154A Features:

– Estimated remaining times are shown for ECU flash operations.

– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests

– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.

– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.

– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.

– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.

– Service Software update has been stabilized.

VNCI 6154A Functions:

Online function
Clear fault codes
Flashing of hidden features
Coding and programming
Covering most of the models under Volkswagen Group's automotive brands
Support ODIS service v9.10/v10.0/v11.0+
Support ODIS Engineer v14.1/v15.0/v16.0+
100% Support DoIP protocol
100% Support CAN FD protocol
Support KWP2000/UDS/CAN/K-Line  protocol
100% support all protocols
Vehicle diagnosis
Online/Offline programming
Flashing of hidden features
Support all ODIS service and ODIS engineer function



The Following Vehicle Bus Systems are Supported

K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE)



Supports three types of connection:

Three connection methods to adapt to various scenarios: USB connection mode, AP direct connection mode, Base station connection mode.

USB connection mode: connect VNCI 6154A with computer via USB cable

AP(WIFI) connection mode: Power to VNCI 6154A through the OBD port, and then connect VNCI 6154A with computer via device WIFI, similar to Bluetooth connection

Base station(WLAN ) connection mode: Add VNCI 6154A and current computer to the current WLAN, and then power to VNCI 6154A through the OBD port.

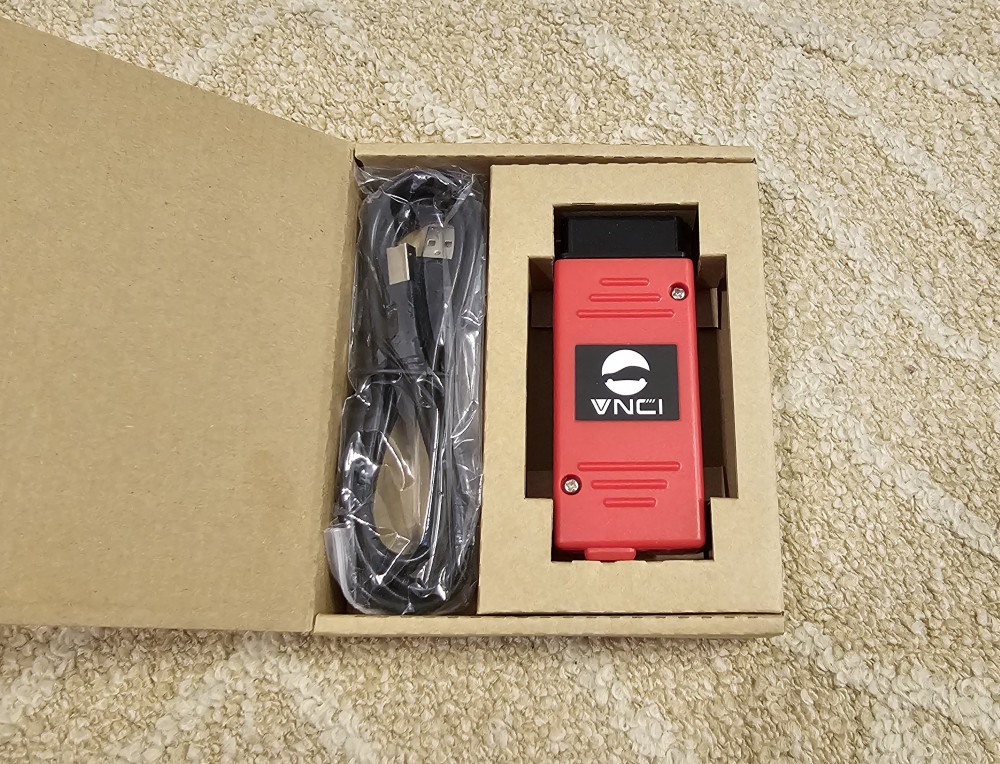

Packing List

1x 6154 Diagnosis Head.
1x USB cable
