Godiag GT112 K-Line IMMO2/3 + GT111 CAN BUS IMMO3/IMMO3.5 + GT110 CAN BUS UDS Test Platform

Godiag GT112 + GT111 + GT110 Test Platform with Pogo PIN

Package contains:

Godiag GT111 K-line test platform with Pogo PIN for VAG IMMO2/IMMO3
Godiag GT112 CAN-BUS test platform with Pogo PIN for VAG IMMO3/IMMO3.5
Godiag GT110 CAN BUS UDS test platform with Pogo PIN for VAG IMMO4

These test platforms support synchronization testing of keys and IMMO instruments, intelligent IMMO system emergency start area sensing detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.

It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, Xhorse VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.

Godiag VAG Test Platform Features:

1. Use POGO PIN to read and write data to the dashboard
2. Offline connection to the dashboard to convert to standard OBD2.
3. Perform key chip and instrument synchronization test.
4. Independent ignition switch
5. Key induction adapter with light

Intelligent IMMO System Emergency Start Area Induction Detection

Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.

Car IMMO Start and Start Key Chip Detection

Test Result Analysis:

1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

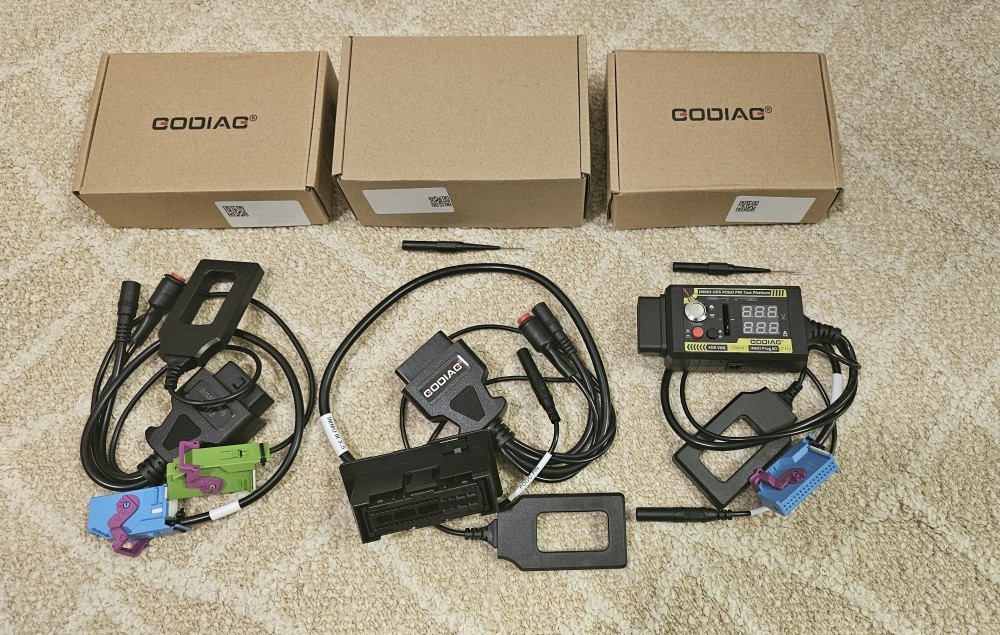

Package includes:

1pc x Godiag GT110 test platform
1pc x Godiag GT111 test platform with Pogo PIN
1pc x Godiag GT112 test platform with Pogo PIN
