GODIAG OBD2 jumper Breakout Tricore Cable pentru MPPS Kess V2 Fgtech OBD Work

GODIAG OBD2 Jumper Cable for MPPS Kess V2 Fgtech OBD Work

Functions:

1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.
9. Breakout Tricore Cable
10. Replace SF205 series(74€), working with Xhorse, CGDI, IM608 series products to read eis data for key matching.
11. Engineer recommend to buy the jumper cable with the Godiag GT105 together so that the Godiag GT105 can provide communication instructions.

Supported Models:

BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9,  TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16

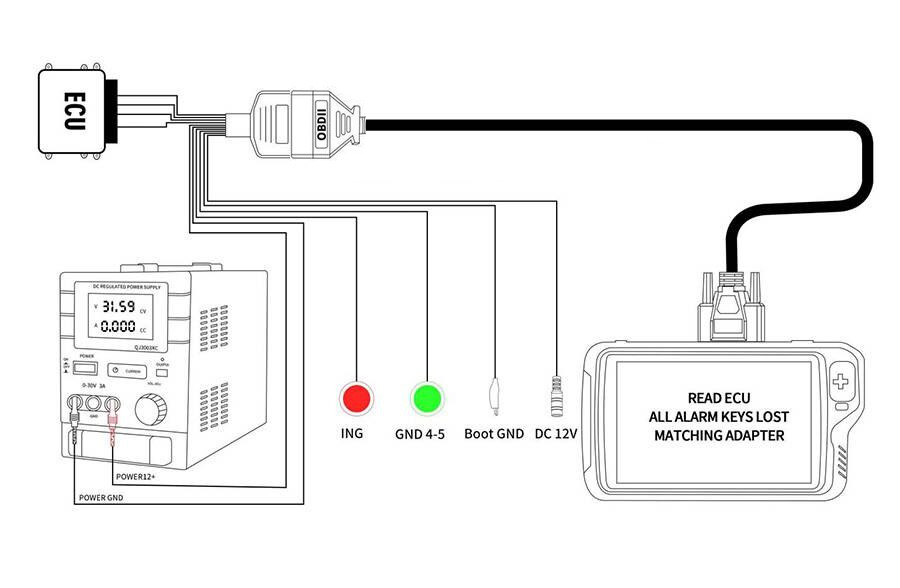

Connection diagram of the dedicated programming power connector.

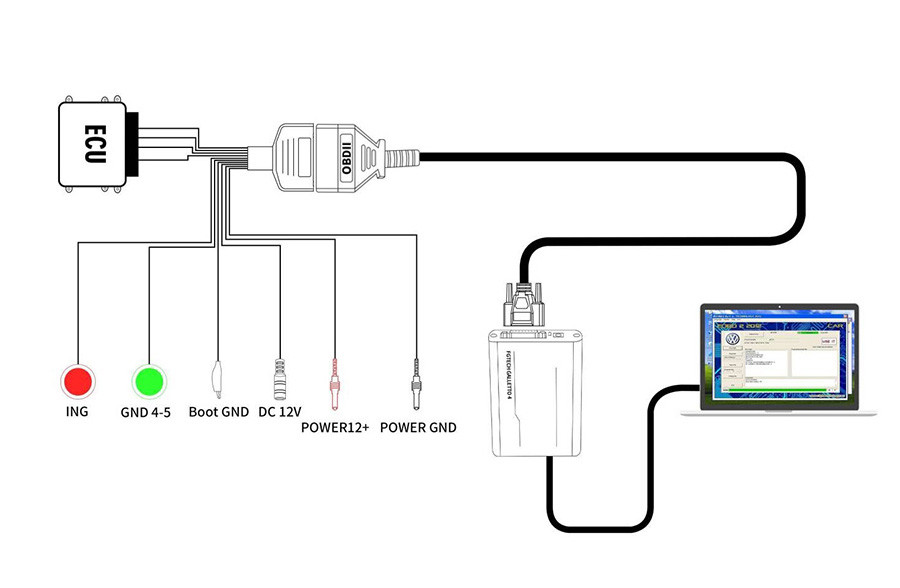

FGTECH programming connection diagram

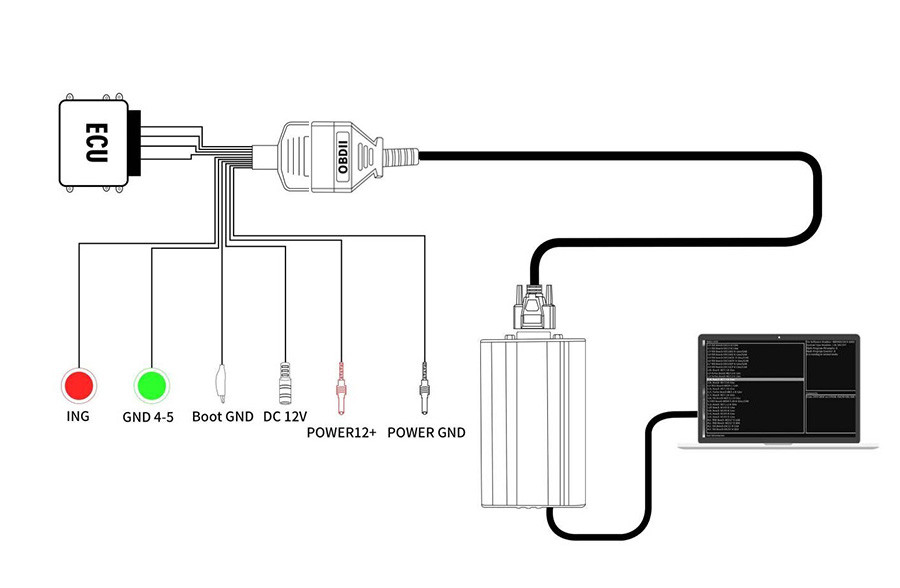

MPPS  ECU connection diagram

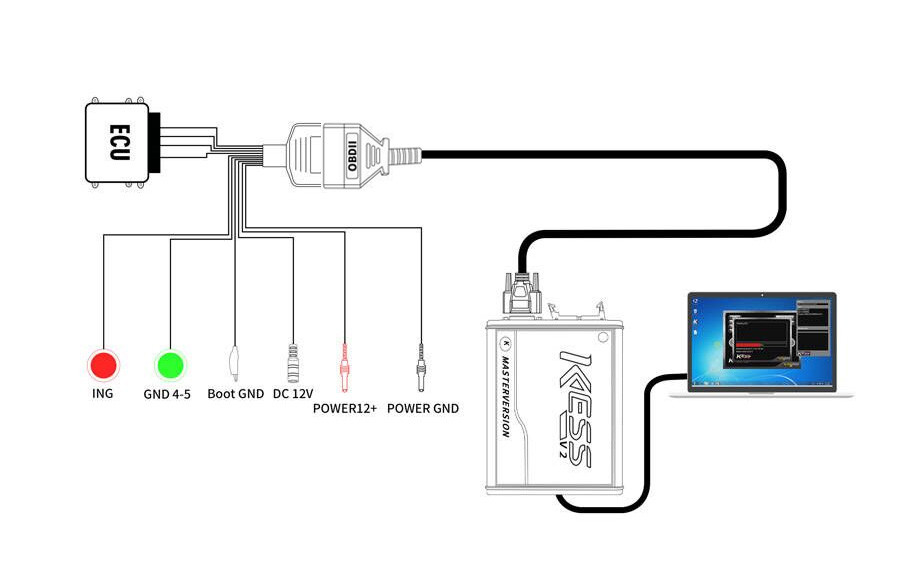

KESSV2 ECU connection diagram

What is the analog ignition switch?

After the ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.

Package Includes:

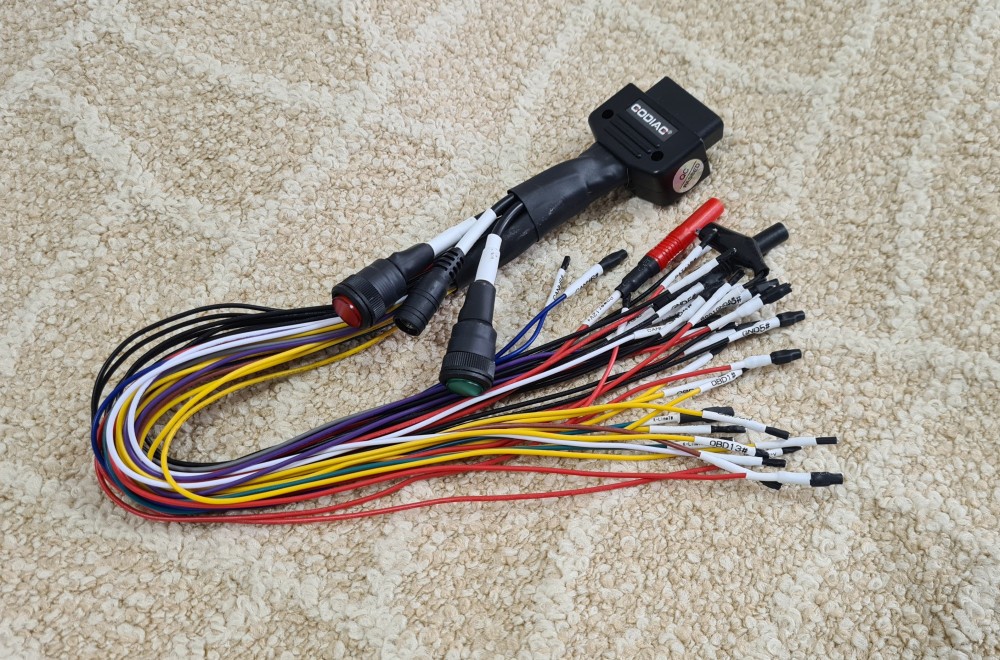

1pc x Full protocol OBD2 jumper
3pcs x Electrical resistance
