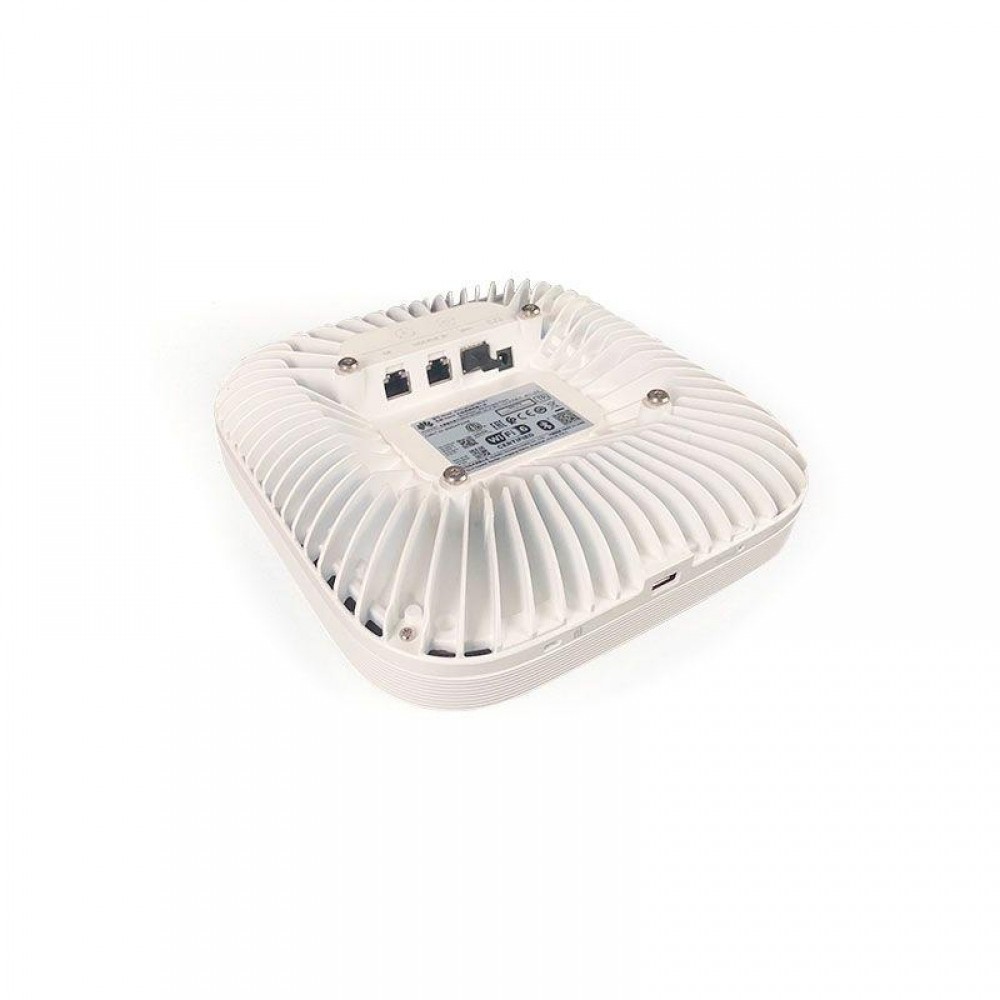

HUAWEI AP AirEngine6760-X1 WIFI6 INDOOR

Technical Specifications Installation Type Wall,Ceiling,T-Rail Height [mm] 61 mm Depth [mm] 220 mm Wide [mm] 220 mm Weight without packaging [kg(lb)] 1.85 kg (4.08 lb) Maximum number of physical ports on the entire device 10GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing 10GE optical port (SFP+), GE/10GE auto-sensing Maximum power consumption [W] 39.9 W (without USB or IoT card) Maximum heat dissipation [BTU/hour] 136.1 (without USB or IoT card) Power supply mode DC adapter,PoE Input voltage range [V] DC: 43.2 V to 57.6 V PoE: 802.3bt/at Rated input voltage [V] 48 V DC power supply description If an RTU license is loaded, no function is restricted If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted Maximum transmit power [dBm] 2.4G: 26 dBm (Max) Antenna gain [dBi] 2.4G: 4.5 dBi Radio interface Built-in smart antenna Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax Operating frequency band 2.4GHz,5GHz Radio number 2/3 Memory DDR4: 2 GB Storage NAND FLASH 512 MB; NOR FLASH 16 MB Storage temperature [gradeC(gradeF)] –40gradeC to +70gradeC (–40gradeF to +158gradeF) Long-term operating temperature [gradeC(gradeF)] –10gradeC to +50gradeC (14gradeF to 122gradeF) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1gradeC or 1.8gradeF every time the altitude increases by 300 m.) Long-term operating relative humidity [RH] 5% RH to 95% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) MTBF [year] 74 MTTR [hour] 0.5 USB USB 2.0 Console port BLE Console Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Service port surge protection [kV] PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B Ground Ground IoT slot IoT card BLE BLE5.0 3G/LTE filte (ACC) Supported
