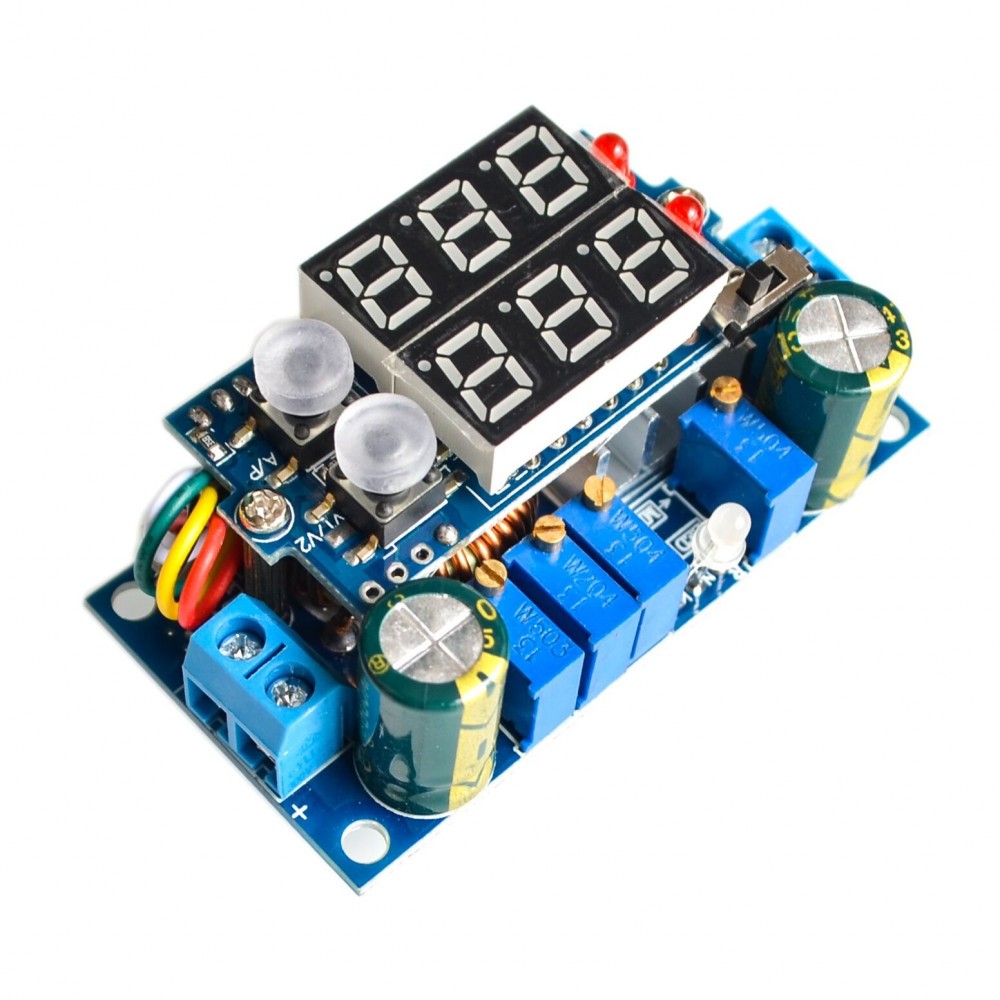

Incarcator MPPT panou solar step-down, IN: 6-36V, OUT: 1.25-32V

5A Buck Constant Voltage Constant Current MPPT

Module Properties: Non-isolated buck module (BUCK)

Input voltage: 6~36 V; Output voltage:1.25~32 V continuously adjustable (the default output 5V); MPPT voltage setting range: 6~36 V.

Output current range: 0.05~5A (The default output current is 3A); Turn lights output range: 0.01~5A (default turn lamp current 0.3A)

Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)

Color: Blue

Material: plastic

Operating temperature: -40~ + 85 degree

Operating frequency: 180 KHz

Short circuit protection: Yes

Over temperature protection: Yes (automatically shut off the output after overtemperature)

Input reverse polarity protection: None, (if necessary, please add the string into the diode)

Output anti-anti-irrigation protection: None, the output must be connected to the battery plus blocking diode, otherwise it will burn the module.

Installation: 4 Pcs 3mm screws

Connection: IN is the input, OUT is output

Multifunction double display: input voltage, output voltage, output current, output power

Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.

Module dimensions:60 x 31 x 22 mm (without meter)

Applications:

1. It can support high-power LED.
2. It can power supply for electronic devices.
3. For a variety of battery charge, can observe the state of charge.
4. As a car power supply , it can for your cell phone or digital products supply.
5. DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
6. Charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.
