Interfata DPA5 USB LINK Dearborn - Camioane/Utilaje - Excavatoare/Agricultura

Dearborn Protocol Adapter 5 is designed to help manufacturers diagnostic the fault of trucks,trailers, buses and light commercial vehicles.It covers multiple systems and widely used, it's user friendly.Dearborn Protocol Adapter 5 is an proferssinal tool for the maintenance of the commercial vehicle manufacturers.It covering all critical systems, including engines,transmissions, brake warning device, comfort, safety, emissions, air suspension, trailer and maintenance,to provide in-depth functionality for each application. It is based on the DS tool technology,it can use for the following hardware platforms: PC, Pocket PC (PDA) or netbook (UMPC,also known as Ultra Mobile PC),and provide information update for customers by regularly upgraded the supporting software.

Language of DPA5 List

Heavy-Duty Truck Diagnostic Applications

1. VOLVO TRUCK: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7,FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12

2. VOLVO BUS: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY,B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX,

3. MACK TRUCKS:V-MAC I,  V-MAC II,  V-MAC III,  V-MAC IV, Service Diagnostic

4. VOLVO CONSTRUCTION EQUIPMENT (CE):

Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F,L60E, L60F, L70E, L70F, L90E, L90F

Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,

Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B,EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C,ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B,EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611

Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990

5. Navistar:  ALL Diamond Logic Builder (DLB) ServiceMaxx

6. International: ALL Intune, MD32,

7. Fre ight---liner:  ALL ServiceLink:cascadia,century,columbia,Coronado,classic,FLDSD,4900FA,4900SA,4900EX.

Heavy-Duty Truck Diagnostic Engines

1,Detroit Diesel Diagnostic Link™ (DDDL)

    All DDEC VI equipped engines ,DD13,DD15,DD16,SERIES60,MBE4000,MBE900,and RS9, RSX9-A,RSX9-B, RSX9-R, RS10, RSX10 J1939 engine ,brake level for Series 2000 and 4000 Engines with USA and ISO firing order selection

2, Caterpillar (on high way engine for j1939)

  3126, 3406, 3306B, 3512C, C4.4,  C6.6  C7   C9  C11,  C13

3,Cu-m-mi-ns  INSITE7.6  insite7.5

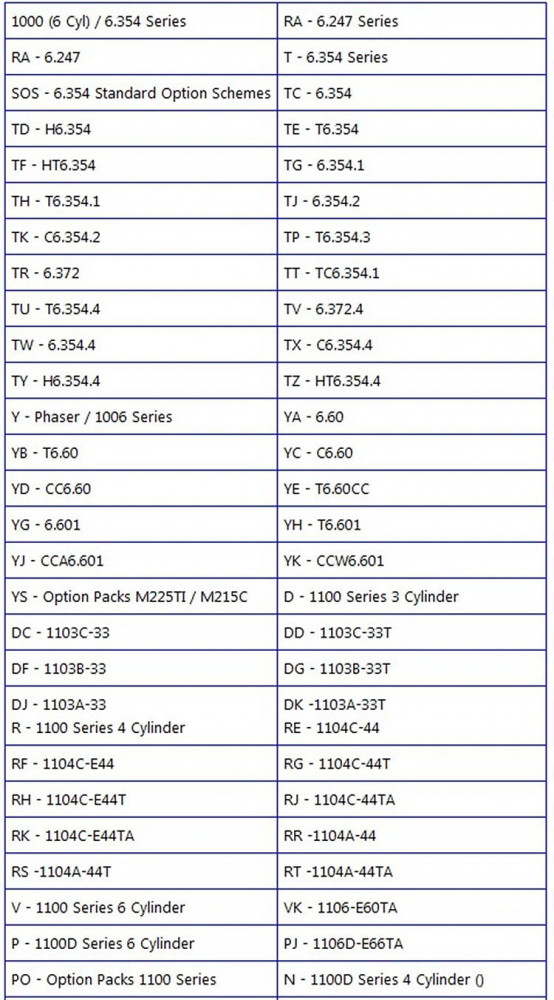

4,Perkins Engines

* Transmissions Brakes

1. Meritor  WABCO toolbox

    D and E Versions ,HABS, hpb, ESC, RSC, ECAS

2. Bendix? ACom? Diagnostics

    EC-17T, Generation 4 and 5, EC-30T, EC-60T (standard, premium and advanced), A-18T,MC-30T and the  trailer antilock braking TABS-6 unit

3. Meritor  ZF

4. Eaton Service Ranger

    Vorad VS-400 Collision Warning System

   Generation 2 Auto shift and Ultra shift Transmissions

   Generation 3 Auto shift and Ultra shift Transmissions

   Ultra Shift PLUS Transmissions

   Lightning Transmissions

   Hybrid Drivetrain Systems

5. Allison DOC

    Allison1000,2000,3000,4000,

   Cec2-5610,6610,8610,9610

   CEC-MTB600,CLBT-V,HT700,B700

   CEC-5,CEC-6,CEC-8,CEC9000

Support more software update !!!

 PC-to-Vehicle Interfaces

 API Support:

?  RP1210A/B

?  J2534-2

?  supports Windows xp and windows 7 32-bit and 64-bit and windows CE compliant

Not all applications are included. If compatibility confirmation is required, more information is needed, or there are questions about an unlisted application, please contact your dealer,he will send E-mail to us,. A specialist will help you make the right choice.

Protocol Coverage:

CAN - J1939/CAN125/CAN250/CAN500/CAN1000

2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000

J1587/J1708    J1850   J2534

ISO 15765 (Diagnostic CAN)

ISO 14230 (KWP2000 over ISO9141)  ALDL ATEC 160 (160 baud)

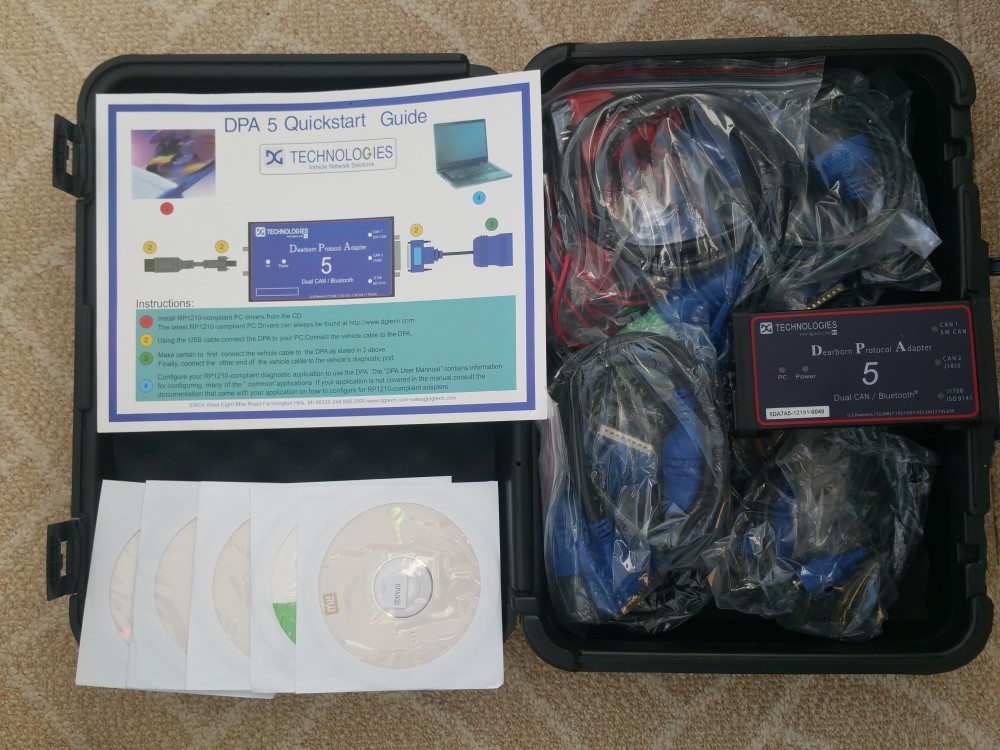

Cables and Accessories (Kit)

Kit Includes (6 Cable):

1X DG-DPA5-YDUALCAN

1X DG-DPA5-9OBDII_Volvo

1X DG-DPA5-VOLVO8PIN

1X DG-DPA5-VOLVO14PIN

1X DG-DPA5 KOMATSU

1X DG-DPA5-3Pin_Deutsch

1X DG-OBDii-o-Cable

1X DG-DPA5-15USB

Software Interface Capability(Includes DVD)

Detroit Diesel Diagnostic Link  7.05

Caterpillar  Electronic Technician  2010B

Cu-m-m-ins Insite  7.5 (windows XP and 7), inste 7.6 ( only for windows 7 )

International - ServiceMAXX Fleet Pro

Volvo PTT 2.40

VCADS /Elite Mack/Volvo  2.35

V-MAC Service Tools

Allison DOC? For PC-Service Tool - Protocols Supported: J1939, GMLAN, J1708/J1587, J1850, and

ATEC160

Allison DOC For PC (AED) - Protocols Supported: J1939

Allison DOC For Fleets (1000/2000) - Protocols Supported: J1939, J1850, GMLAN

Allison DOC For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587

Eaton ServiceRanger 3.2

Bendix Acom

ZF-Meritor TransSoft  / WABCO Toolbox

International ABS

International DLB

International Intune

International IPC v2.02

Perkins EST Diagnostic Interface  2010
