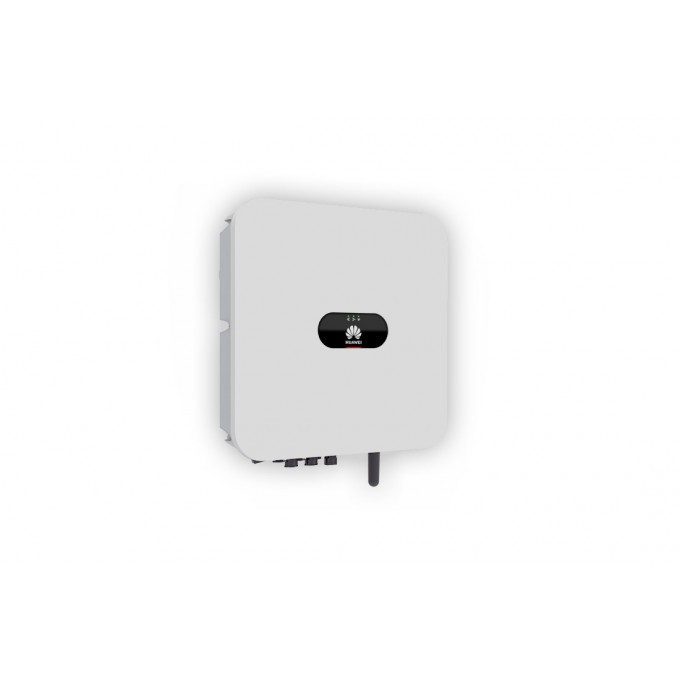

Invertor Huawei 4KW - Monofazat- hibrid - Wifi integrat

• 1-phase inverter with 4,400VA output
• 2 independent MPP trackers
• 1 battery connection (plug & play)
• Efficiency up to 98.4%
• Communication via WLAN, Ethernet* and 4G*
• RS485 for Smart Power Sensor & Battery
• AC and DC overvoltage protection

Huawei SUN2000-4KTL-L1 - General Specifications

Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2,000 m)
Cooling: Natural convection
Display: Status LEDs
Communication: RS485, WLAN, Ethernet*, 4G/3G/2G*
Weight (incl. mounting bracket): 12 Kg
Dimensions (incl. mounting bracket): 365 x 365 x 156 mm
Protection class: IP65

Huawei SUN2000-4KTL-L1 - Input DC

Recommended maximum PV power: 6,000 Wp
Max. Input voltage: 600 V
Starting voltage: 100 V
Full MPPT voltage range2: 90 V ~ 560 V (1)
Rated input voltage: 360 V
Max. Input Current per MPPT: 12.5 A
Max. Short-circuit current: 18 A
Number of MPP trackers: 2
Max. number of inputs: 2 Number of inputs: 2

Huawei SUN2000-4KTL-L1 - Output AC

Mains connection: Single phase
Rated power: 4,000 W
Max. Apparent power: 4,400 VA
Rated output voltage: 220 V / 230 V / 240 V
AC - Mains frequency: 50 Hz / 60 Hz
Max. output current: 20 A Output current: 20 A
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Distortion factor (THD): ≤ 3%

Huawei SUN2000-4KTL-L1 - Efficiency

Max. Efficiency: 98.4 %
European efficiency: 97.5 %

Huawei SUN2000-4KTL-L1 - Protective devices

DC load break switch: Yes
DC reverse polarity protection: Yes
AC overcurrent protection: Yes
AC short circuit protection: Yes
Overheat protection: Yes
Arc fault protection: Yes
DC overvoltage protection: Yes
AC overvoltage protection: Yes
DC insulation monitoring: Yes
Residual current monitoring: Yes

Huawei SUN2000-4KTL-L1 - Battery Compatibility

Compatible Battery: LG Chem RESU 7H_R / 10H_R
Voltage Range: 350 ~ 450 Vdc
Max. Current: 10 A
Max. Discharge Power: 4,400 W

Compatible Battery: HUAWEI Smart ESS Battery 5 kWh - 30 kWh 1
Operating voltage range: 350 ~ 560 VDC
Max. Operating current: 15 A
Max. Charging power3: 5.000 W
Max. Discharge power: 4,400 W

Huawei SUN2000-4KTL-L1 - Standards and Security

EN/IEC 62109-1, EN/IEC 62109-2

Huawei SUN2000-4KTL-L1 - Power supply conditions

G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727,
IEC62116

Further information on conformity to standards is available on request.

Huawei SUN2000-4KTL-L1 - Optimizer Compatibility

DC MBUS compatible optimizer: SUN2000-450W-P

Huawei SUN2000-4KTL-L1 - included in delivery

PV Connector
Battery Connector
AC Connector
Signal Cable Connector
Antenna
Bracket
