Modul Launch SmartLink C V2.0 - diagnoza remote Vehicle Data Link Connector
- La predare
- Ramburs
- Avans
)
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Product Description
Launch SmartLink C V2.0
Remote Diagnosis Device
The SmartLink Remote Diagnostics
System is a newly developed powerful service system dedicated to
remote vehicle diagnosis and service. In this system, SmartLink B
(Business), as a SmartLink Service Provider, can accept remote
repair orders issued by SmartLink C users via SmartLink Service
Platform.
Launch X431 SmartLink C
Features:
- Compatible with LAUNCH tools, OE tools or any other diagnostic tools
- SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
- Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
- Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
Requires Activation
card.

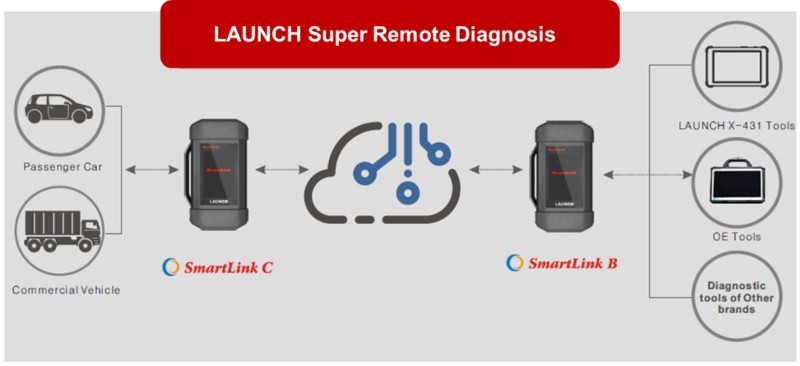

SRDs
SmartLink:
Super Remote Diagnosis
Solution:
SRDs is comprised of SmartLink C,
SmartLink B and Cloud Platform.
The SmartLink C can be connected to
the vehicle, and the SmartLink B can be connected with any
diagnostic device.
The remote diagnosis will be carried
out on the SmartLink platform.
Launch X431 SmartLink C

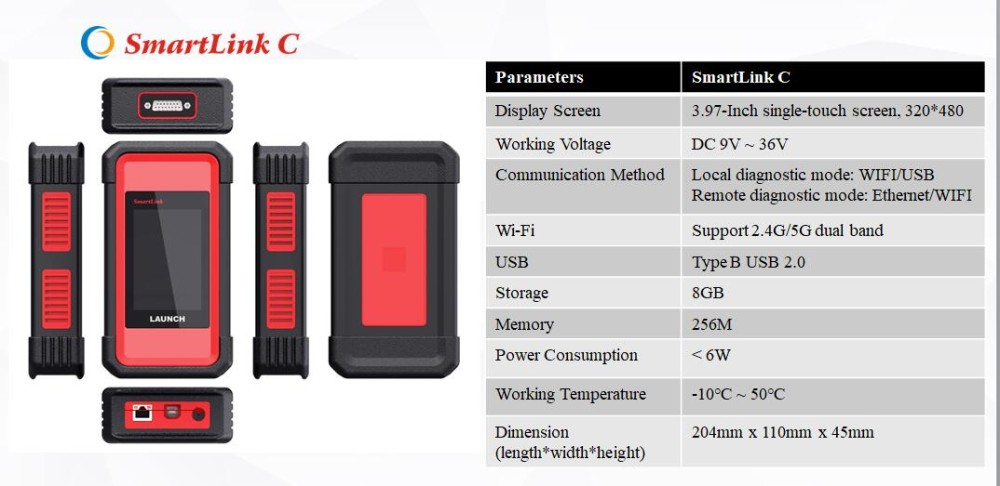

Technical Parameters
- 3.97“ Single-Touch Screen, 320 x 480
- Working Voltage: DC 9V ~ 36V
- Communication method: Ethernet
- Type B USB 2.0
- Storage: 8GB
- Memory: 256M
- Power Consumption: < 6W
- Working temperature: -10°C ~ 50°C
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 10% ~ 90%
- Dimension: 204 x 110 x 45 mm

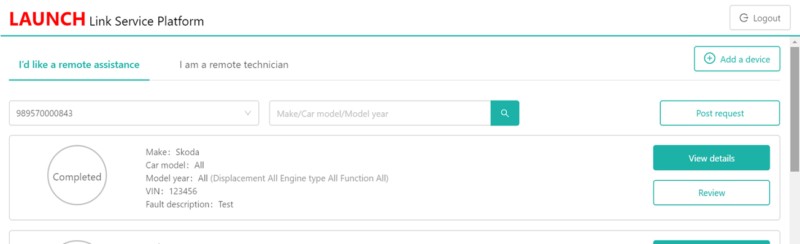

Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair
the connection between SmartLink C and SmartLink B operated with
the internet browser.
SmartLink C user can post the remote
diagnosis request on this platform. SmartLink B user can see the
requests from their clients and accept the request to do the remote
diagnosis.

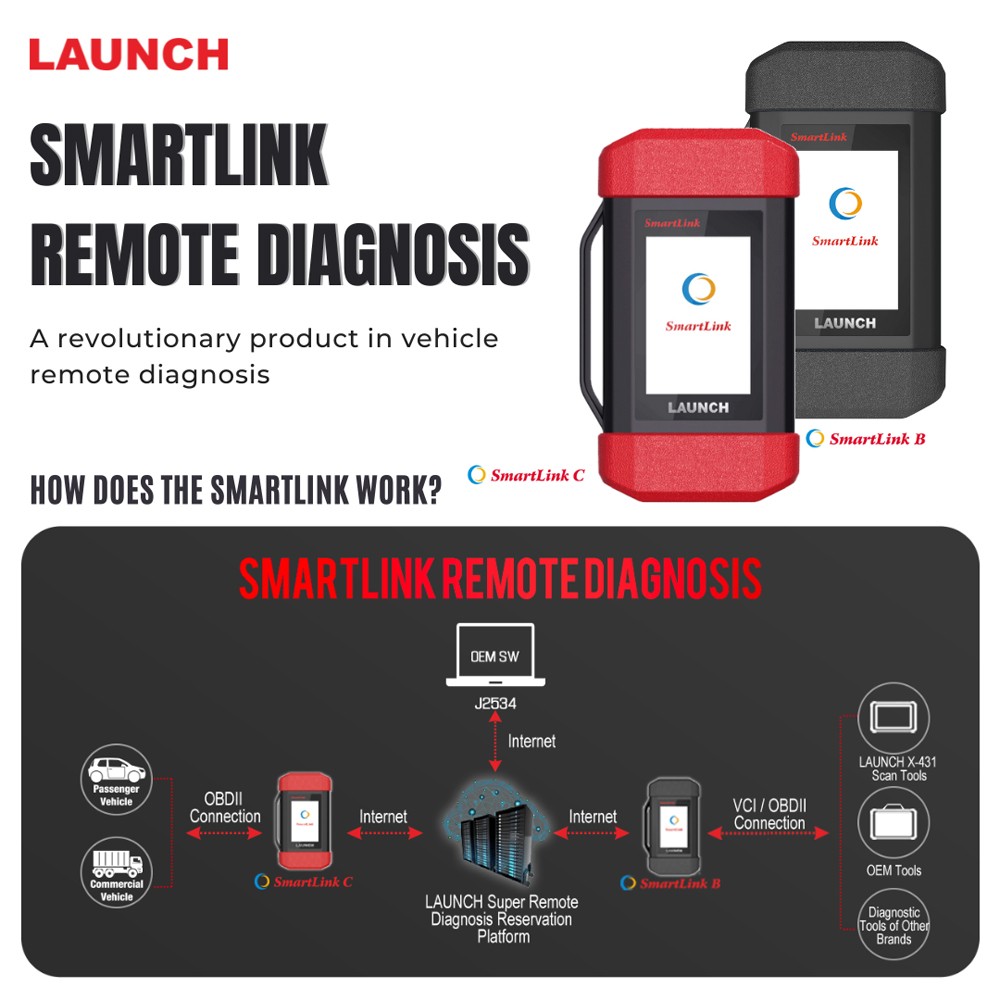

How Does the LAUNCH
SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better
understand the complete procedure of the Smartlink remote
diagnosis.
Launch X431 SmartLink C

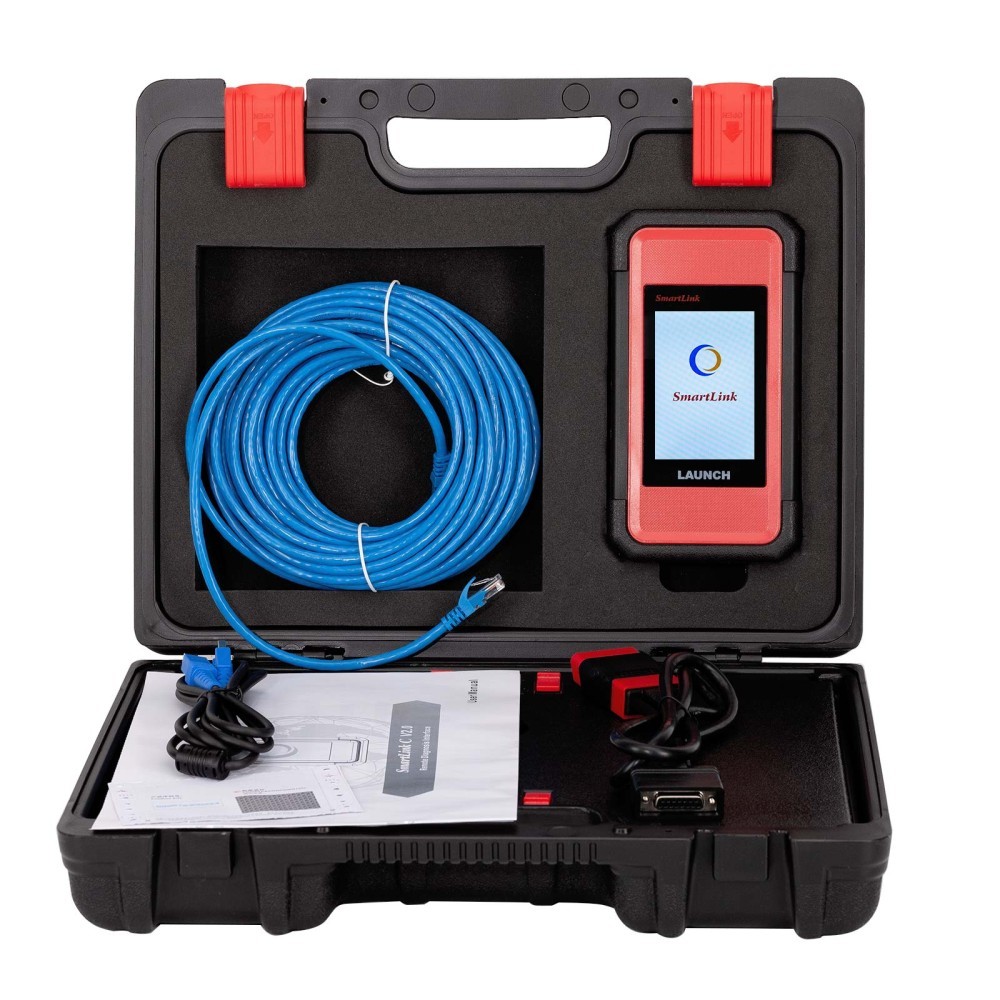

Packing List:
The following accessory items are
for reference only. For detailed items, please consult with a local
agency or check the packing list supplied with the
device.
- SmartLink C Dongle – For SmartLink Service Provider
- OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool
- CAT-6 Crossover Cable – Connects the dongle to the network modem
- Power Adaptor – Supplies power to the dongle through an AC outlet.
The SmartLink C system consists of the following two parts:
- SmartLink Service Platform – For binding the SmartLink C dongles and posting the remote repair orders (Note: Orders can be submitted only after the SmartLink C dongle is successfully bound).
- SmartLink C Dongle – Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.
SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.
Management Modes:
The service provider can select ONE of the two Management Modes:
The service provider manages the Smartlink C account status of the customer.
The service provider can activate the Smartlink C under his own account and manage the Smartlink C (post remote diagnosis request, license renewal) for the customer.
The customer doesn’t need to do anything on the platform, he just needs to contact the service provider and connect the Smartlink C hardware to the vehicle.
The customer manages the Smartlink C account status himself.
The customer can register his own user account on the SRDs platform and manage the Smartlink C (post remote diagnosis request, license renewal) himself.
The service provider can “Pre-bind” the customer’s Smartlink C, after “Pre-bind”, the customer’s request can only be seen by this service provider. No worry about other provider taking the customer.
NOTE: Each Smartlink can be activated only in one account.
SmartLink Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with an internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.
