OBDSTAR ODOMASTER X300M+ pt. ajustare KM, diagnoza OBDII, Oil Service Reset

OBDSTAR ODOMASTER for Odometer Adjustment/OBDII and Oil Service Reset



Description:

Odo Master is a new Android-based 5'' tablet specialized for cluster calibration and oil service reset.
The device inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use,
wide model coverage,fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.

OBDSTAR ODO MASTER Highlights:

1. The update cycle is short and fast (updated every 2-3 days)
2. Free upgrade within one year, the update fee is 175EUR/year after one year.
3. Strong competitiveness and industry advantage

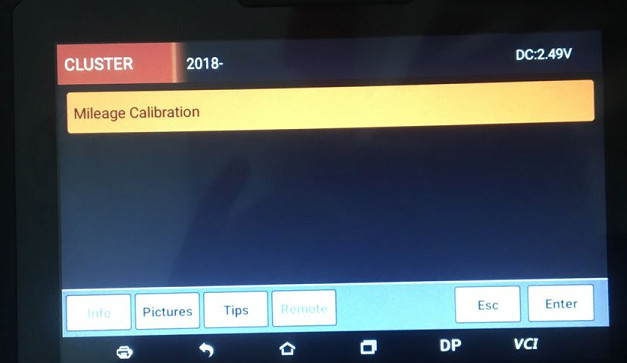

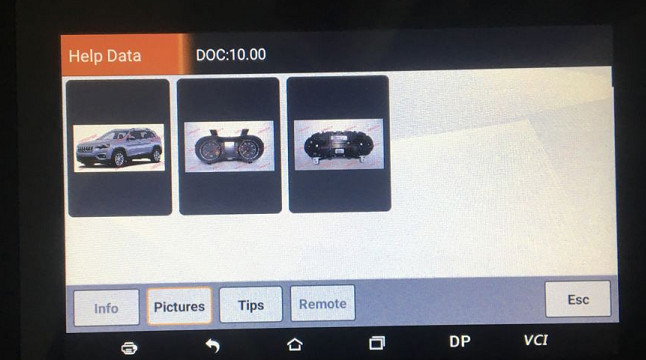

4. Add a new help function as shown below :
 (Applicable to some models, R & D information is being update)




5. Some models can support 18/19 years of car (such as GM/Chrysler):
Toyota camry 2018 via OBDII
Jeep Cherokee 2019 via OBDII
Dodge Charger 2019 via OBDII
Ram 2018- / 300C 2018- / Pacifica 2018- / Durango 2018- / Compass 2018-/ Challenger 2018- /Renegade 2018- / Grand Cherokee 2018- via OBDII
Ford F250 2017- 2018 / F350 2018 / F450 2018 / F550 2018 / Fusion 2013
Chevrolet Colorado Hour 2017- / Colorado 2018 / Corvette 2017
GM Cadillac 2017- CT6/ 2017- XT4 via OBDII
Ferrari California T 2014-
Nissan Kicks 2016/2017- Block ABS via OBDII
Nissan Kicks 2016/2017- Unlock Dash via OBDII

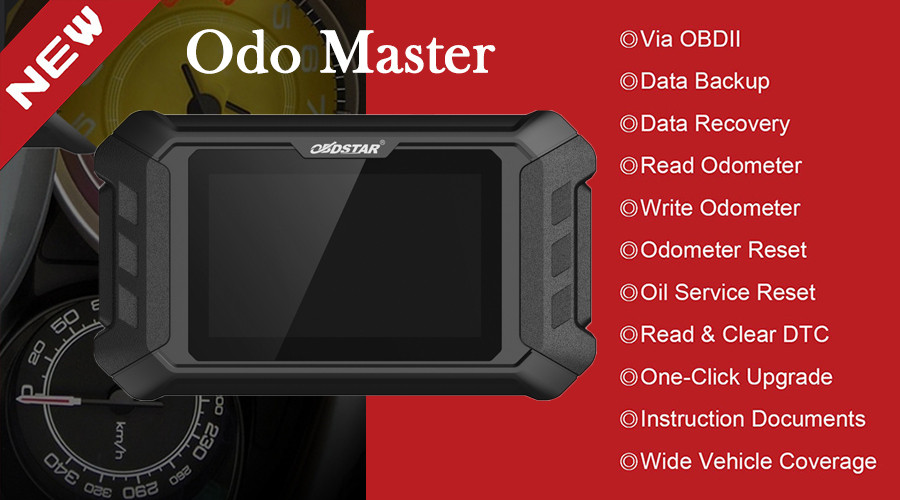

Functions:

1. Via OBDII
2. Date Backup
3. Date Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage


Vehicle Coverage:


Europe	Alfa Romeo; AUDI; Bentley; Benz; BMW/Mini; Citroen; Peugeot; Ferrari; Flat; Jaguar; Lancia; Land Rover; Maserati; Opel; Porsche; Renault; Smart; Volvo; IVECO; SKODA; SEAT;VW
Japan	Isuzu; Mazda; Mitsubishi; Infinite; Nissan; Subaru; Suzuki; Toyota
Korea	Kia; Sangyong
America	Ford; Lincoln; Chrysler; GM
China	Geely; Besturn; Changan; ROEWE MG; Roewe

Specifications:


Operation System	Android 5.1.1
CPU	RK3128 Quad-Core ARM Cortex A7 1.2GHz
Battery	2500mA, rechargeable polymer lithium battery
Extension Memory Card	32G Micro SD (TF) card supported
Extension memory card	32G Micro SD (TF) card supported
Storage Capacity	16GB
LCD	5.0 inch
LCD Resolution	8000*600
Touch Screen	Capacitive touch screen
Wi-Fi	supported
Working Temperature	-20℃ ~ 55℃（14℉ ~ 131℉）
Storage Temperature	-20℃ ~ 70℃（-4℉ ~ 158℉）
Dimension	140mm*89*mm*18mm
Weight	About 700g

Odo Master Difference:


Software Comparison Data	SP350 Odo Master_EN_FULL	SP350-B Odo Master_EN_STD	SP350-C Odo Master_EN_BASIC
Nissan calculator	√	√	√
DP50_DISPLAY	√	√	√
ORMAINRESET	√	√	√
OLOBD	√	√	√
VWH	√	√	√
SKAH	√	√	√
AUDIH	√	√	√
SEATH	√	√	√
PORSCHE	√	√	√
BENZH	√	√	√
BENTLEY	√
FORD	√	√	√
CHRYSLER	√	√	√
GM	√	√	√
HYUNDAI	√	√	√
INFINITE	√	√	√
KIA	√	√	√
MAZDA	√	√	√
MITSUBISHI	√	√	√
NISSAN	√	√	√
SSANGYONG	√	√	√
SUBARU	√	√	√
SUZUKI	√	√	√
GREATWALL	√	√
GEELY	√	√
FIAT	√	√	√
CITROEN	√	√	√
BESTURN	√	√	√
LANDROVER	√	√	√
JAGUAR	√	√	√
MG	√	√
ROEWE	√	√	√
RENAULT	√	√	√
PROTON	√	√
PEUGEOT	√	√	√
OPEL	√	√	√
VOLVO	√	√	√
SMART	√	√	√
TOYOTA	√	√	√
ALFA	√	√	√
FERRARI	√
BMWH	√
MASERATI	√
LANCIA	√	√	√
IVECO	√	√	√

Odo Master vs. X300M


Software Comparison Data	Odo Master	X300M
FORD	FIESTA	2017-	2013-
FOCUS	2019	2013-
TRANSIT	√	×
KA	2018-	2015-
GM	COLORADO	2018-	2005-
CRUZE	2017-	2010-
ESCALADE	2018-	2015-
XT6	2019	/
YUKON	2017-	2014-
CHRYSLER	CHEROKEE	2018-	2015
RAM	2018-	2011-
DURANGO	2018-	2014-
LANDROVER	DISSCOVERY 4	2015-	/
RANGE ROVER SPORT	2017-	2014
VW	MQB  2012-2014.06	√	×
MQB  2014.06-	√	√
RENAULT	CAPTUR	2017-	/
TRAFIC IV	2017-	/
KIA CEED	24C16	√	√
D70F3423	√	√
D70F3XXX	√	×
D70F3421	√	×
D70F35XX	√	×
NEC	√	×
NEC+24C16	√	×
KIA Optima	24C16	√	√
D70F3536	√	√
D70F3421	√	×
D70F352X	√	×
D70F35XX	√	×
NEC	√	×
NEC+24C16	√	×
NISSAN	ALTIMA  2013	√	√
KICKS  2017-	√	×
MITSUBISHI	OUTLANDER	√	×
TRITON 2015-	√	×

OBDSTAR ODO Master Hardware Comparison with OBDSTAR X300M

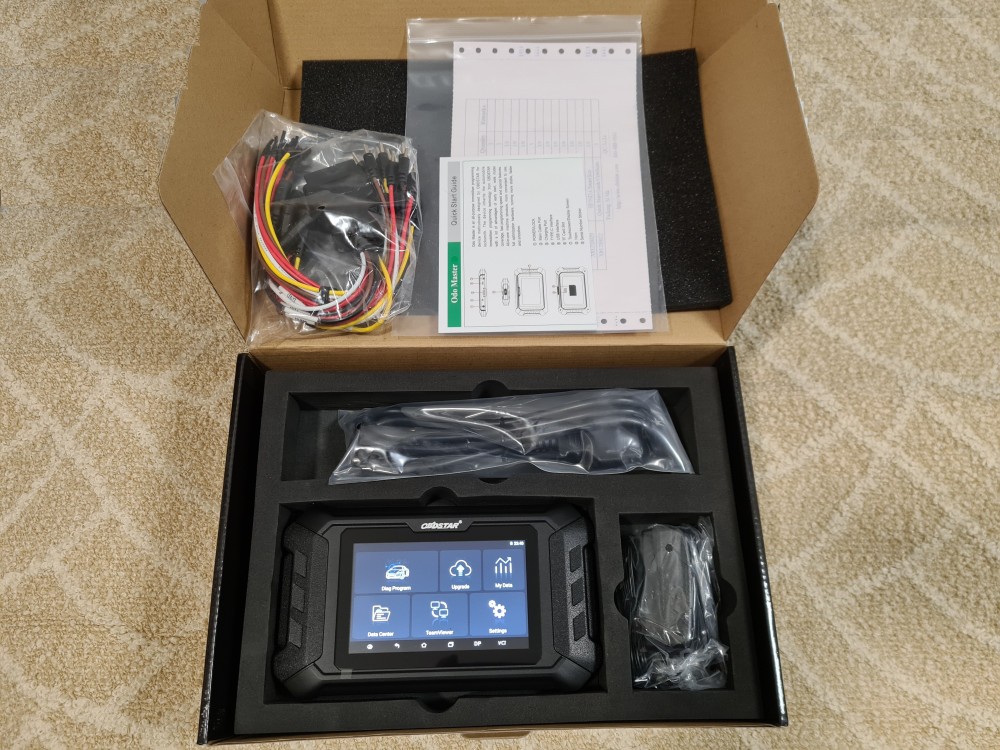

Package includes:

1PC x Main Unit
1PC x Main Cable
1PC x Charger
1PC x Multi-functional jumper
1PC x Configuration List/Certificate/Quick Start Guide Fold
1PC x Packing box
