Numar articol: 259811483

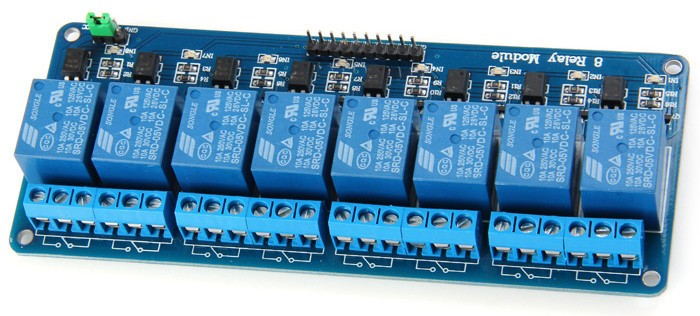

Placa 8 relee 5v 220v arduino stm raspberry

Name: Placa 8 relee 5v 220v arduino stm raspberry
Brand: Nespecificat
SKU: 259811483
Price: 35 RON
Availability: inStock

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier cu Garantia de Livrare - 18,00 Lei Detalii
Ridicare de la locker - 13,09 Lei

Estimat livrare:

Joi, 23 Oct.

Cantitate:

Pret:

35,⁰⁰ Lei

Primesti 35 puncte in aplicatie

Produs:

Nou, Fără garanție

Politica de retur:

Acest produs poate fi returnat in 3 zile Detalii

Plata:

La predare
Ramburs
Ramburs cu Garantia de Livrare

Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.

Vandut de:

optimelectros

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

8 channel relay module
Features

Using high-current relay , AC250V 10A DC30V 10A

Contact some independent wiring , safe and reliable

Standard interface , can be extended in a variety of development board

With fixed screw holes for easy installation

Suitable for a variety of platforms such as 51/AVR/AVR/ARM

Module Description :

1 , the module complies with international safety standards , the load control area and regional isolation tank ;

2, using double-sided FR-4 circuit board design, high-end chip production process ;

3, using loose music authentic relay control ;

4, with the relay instructions , pull off, disconnect does not shine ;

5, the signal input has a low signal , often beginning with a common terminal will be turned on ;

6 , the relay can control the various devices and the load ;

7 , 8 and 8 normally open normally closed contact ;

8 , blue KF301 terminals to the control line is more convenient.

9 , Module size : 138m * 56mm * 18.5mm ( L * W * H ) , Weight : 120g

10 with 4 fixing bolt holes , hole 3.1mm, pitch 131mm * 49.5mm

11 , finished by 100% functional testing and stability testing

Two module interface :

1, VCC: 5V power supply connected to the positive

2, GND: 5V power supply connected to the negative

3, IN1-IN8: trigger signal , active low

Relay outputs : a 12- line interface, the interface can be directly connected to all leads , user-friendly

1, NO1 - NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM

2, COM1 - COM8 Relay Common Interface

3, NC1 - NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant

Low Level 5V solid state relay:
