Programator Foxflash ECU TCU Tool OBD Bench Boot Mode full version

FoxFlash, Programator ECU, TCU, Software, Tuning, Chiptuning, Checksum, Flash manager activ, Turisme, Camioane, Motociclete, Barci

Product Description

V1.4.3 FoxFlash Super Strong ECU TCU Clone and Chip Tuning Tool

• ECU Type MD1 after 2020, can not being read by foxflash or other ecu chip tuning tool

FoxFlash Introduction:

FoxFlash is a powerful solution developed for professional chiptuners, calibration engineers and control unit (ECU and TCU) repair shops. foxFlash includes multi-method control unit programming for tuning ability.

FoxFlash Highlights:

• Master version, Software Version V1.4.3 Firmware version FW:D087
• Full protocols open
• Auto checksum
• Online support
• Two Years Warranty.
• Excellent technical support.
• Help desk and tuner account
• ECU and TCU connect wires with pdf
• Special functions
• Auto support eeprom and flash  checksum
• Free update. No subscription, no annual fee.
• No VPN needed. Professional Online support, Faster server (1000M/S),.
• Supports WiFi hotspot, convenient for outdoor work
• FoxFlash ECU TCU Driver List
• VR read online work (some ecu need use our VR system, tool auto connect to ousr server donload file )
• ECU can be restored to original if your ecu was damage or meet some bad tuning, use our tool can restore to original.
• Foxflash Manager app can be installed up to 6 laptops
• Support MEDC17 free clone service (most of others tool need patch the files after read out,but ours is free)
• Software can be download on official website:
• With the Latest firmware and updates. Use better quality BOM and PCB.
• Supported Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish

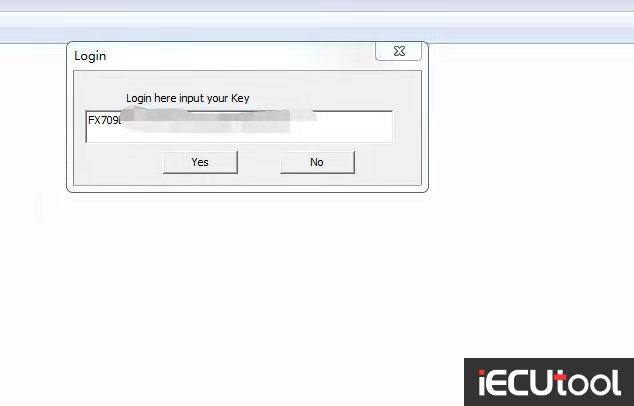

How to get tuner account and download damos files?
just send email to info@dfb-technology.com, told them you have received your foxflash, show them your foxflash backside serial number, and ask them to open tuner account for you.
Then you can log in your tuner account to download free damos files.

How to Update Foxflash Software?

The update will auto sync from the server to your side.

Run the foxFlash manager, click the download button till everything done.

Updage logs for foxflash software and hardware:

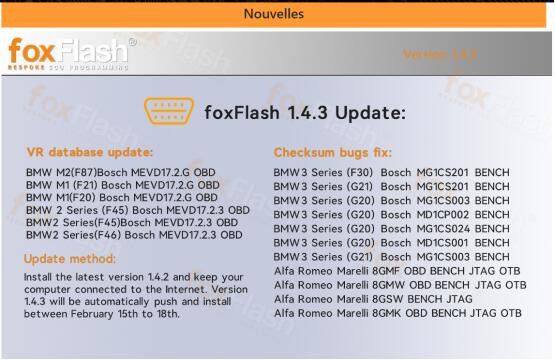

Latest V1.4.3 update contents：
VR database update:
BMW M2 (F87)Bosch MEVD17.2.G OBD
BMW M1 (F21) Bosch MEVD17.2.G OBD
BMW M1 (F20) Bosch MEVD17.2.G OBD
BMW 2 Series (F45) Bosch MEVD17.2.3 OBD
BMW 2 Series (F45) Bosch MEVD17.2.3 OBD
BMW2 Series (F46) Bosch MEVD17.2.3 OBD

Checksum bugs fix:
BMW3 Series (F30) Bosch MG1CS201 BENCH
BMW3 Series (G21) Bosch MG1CS201 BENCH
BMW3 Series (G20) Bosch MG1CS003 BENCH
BMW3 Series (G20) Bosch MD1CP002 BENCH
BMW3 Series (G20) Bosch MG1CS024 BENCH
BMW3 Series (G20) Bosch MD1CS001 BENCH
BMW3 Series (G21) Bosch MG1CS003 BENCH
Alfa Romeo Marelli 8GMF OBD BENCH JTAG OTB
Alfa Romeo Marelli 8GMW OBD BENCH JTAG OTB
Alfa Romeo Mareli 8GSW BENCH JTAG
Alfa Romeo Mareli 8GMK OBD BENCH JTAG OTB

Update method:

Install the latest version 142 and keep your computer connected to the Internet. Version 1.4.3 will be automatically push and install.


Quick start Tips :
1. ensure good internet
2. Device connected and powered (should show in windows device manager)
3. open manager
4. click ACTIVE 4. DO NOT CLOSE MANAGER
5. Open foxflash app.
Note you may need to disable windows automatic time sync feature.


FoxFlash Compatible operating systems:

Windows 7
Windows 8/8.1
Windows 10
Windows 11
Recommended minimum requirements:
CPU > 2.5 GHz (Intel i5, i7)
RAM > 4GB
64 bits

FoxFlash Customer Positive Review:
EDC17Cp39 on Freelander 2 obd read write chk ok
MD1CP001 MB W213 2018y R/W OK , checksum calculated from the original file.
Dcm6.2c – r/w ok. Full or partial, all ok. It was boot mode just for testing purposes
BMW MG1CS003 Read/Write ok
Bmw edc17c06 BENCH, Read ok, Write ok, Checksum ok, car starts
Audi A3 2017 DCM6.2V VR/Write ok.
Delphi DCM6.2V VW t6 2019 vr ok read write OBD, 16 min for write
VW T6, Edc17cp20, VR ok, write ok.
Psa delphi dcm6.2a Read ok, write mod file ok
EDC17CP20 READ ,WRITE OK
Edc17c46 R/W bench OK!
FORD TRANSIT SID211 OBD
Audi MD1CS004 read + write OK
Opel zafira B 1.9cdti 150cv Edc16c39 can Read and write ok with obd
Write marelli 5af.n8 and marelli 8f2 and everything ok written and chk ok
Bmw edc17c06 bench mode read flash and eeprom+tun+cs+write Car started fine
BMW MED17.2.5 R/W Ok Seam’s like a stable & Reliable tool, very Internet dependant.
PSA EDC16C34 R/W OK Hardcut added & Car started perfectly
EDC17C64 bench R/W OK
MED9.1 bench R/W OK
EDC16C9 bench R/W OK
EDC17C11 bench R/W OK
Mercedes CRD3.10 Full bench read/write (flash+eprom) + auto checksum
Citoren 2021 MD1CS003 r/w and checksum all welldone and really fast
Fiat-Bosch-ME73H4 read flash and eeprom OK!
just received and tested edc16u34. it worked reading and writing
Clone edc15 P+ BENCH Flash & eeprom Start
BMW EDC17C41_TC1797_ Bench bed written ok
Benz Vito EDC17C66 ALL OK, checksum with WinOLS
Clone edc15c13 renault BENCH Flash&eeprom Start
Audi A4 B6 1.9TDI (My own car) EDC15P+ OBD R/W – OK
Peugeot 508 DCM 6.2A R&W OK
Bmw E61 OBD R/W and cs ok
EDC17C70 Ford Focus MK3 FL2017 1.5TDCi 120km R/W OBD OK


We strongly recommend users to use online mode for follow reasons:

1: It is safer.
2: We can help you check if your file is correct online.
3: The autochecksum can work online check too.
4: The online mode can check if your modifying is correct. If not, we can help to solve the problem.
5: The online mode can auto VR read and write from our server, which mean you can get the original file, and we can help you recover or save your broken ecu.

BTW, if you want to go out or work outside with our tool, just use your phone to turn on a hotpot, ours tool can work with hotpot. You will NOT need any VPN, for we have a wordwide server. No matter where you are, you can connect us.

The online work is easier and safer. Please do NOT let your ecu become a brick without using the online mode.

How to get offline dongle for foxflash


Fox Flash Operation Modes:

1: OBD mode：(read the data from Diagnostic port ,you need remove the ecu or tcu from car or open the ecu box , just read everything from car, we also support obd vr read, we supply original file from our server, you can direct obd vr read it )

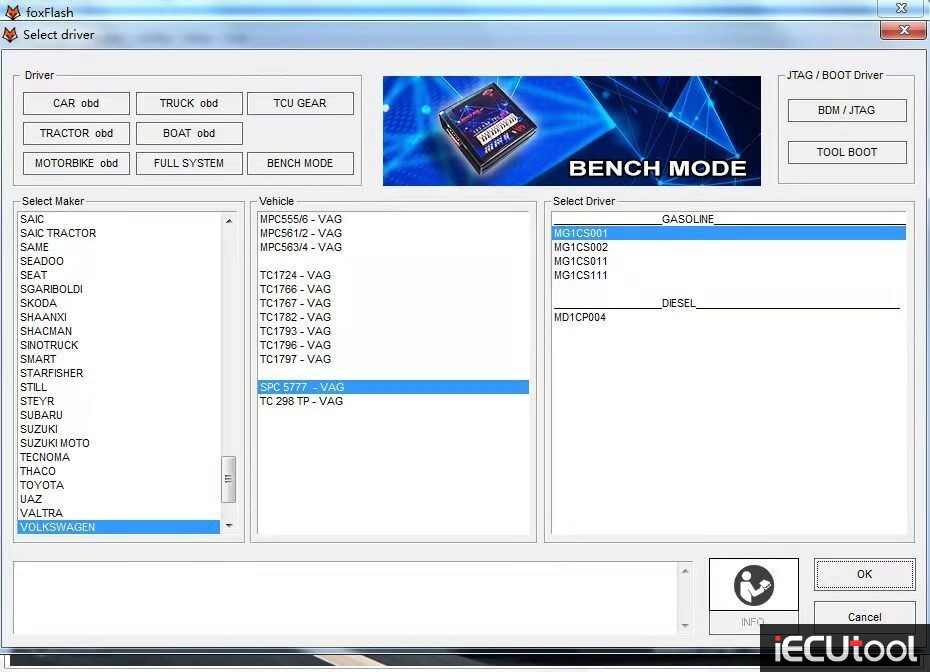

2: BENCH mode: we also call it service mode,  you can use this mode clone or backup all ecu data, read the internal flash and external flash and eeprom data, so you can save a lot of money for clone ecu and tcu , you also can  clone tcu and chiptuning with this mode.
3: Jtag mode: open the ecu , and wire it or use ours adapter connect ecu ways,some of denso ecu always need use this mode for read and write .
4: Boot mode: open the ecu and always can backup everything , read the flash and eeprom , you can save some ecu cause your obd write failed, or some others reason cause the ecu dead.
5:Full system: you can read and write by pinout for  most of ecu and tcu
6: BDM mode: some of the ecu need read and write in bdm mode ,open the ecu and use ours adapter connect it


Fox Flash Software Supported Functions
ECU clone
TCU clone
Chiptuning
Stage1-stage4
Vmax off
Adblue and SCR off
DPF  OFF
Flaps OFF
popbangs
gearbox data to adjust LC
sport display
immo off
dpf off
dtc off
GPF/OPF Removal
DPF Removal
EGR Removal
DTC Removal
ADBlue Removal
HOT Start Fix
IMMO Removal
Readiness Calibration
Flaps / Swirl Removal
TVA Removal
Sport Displays Calibration
Cold Start Noise Reduction
Kickdown Deactivation
StartStop Disable
MAF Removal
Speed Limiter Removal
Torque Monitoring Disable
Burbles Activation
Popcorn Activation
EVAP Removal
Exhaust Flap Removal
SAP Removal
AGS Removal
BMS/BPCM
Lambda/O2 Removal
Launch Control
OBD Reading Protection
Boost Sensor Calibration
LC, AL and NLS for MED9.1
Checksum Fix
vmax, swirl off
restoring ECU or TCU factory setting service
VIN fix (EEPROM support checksum , so you can easy change VIN then write back )

FoxFlash Tool Support types:

• CAR
• TRUCK
• MOTORBIKE
• TRACTOR
• BOAT

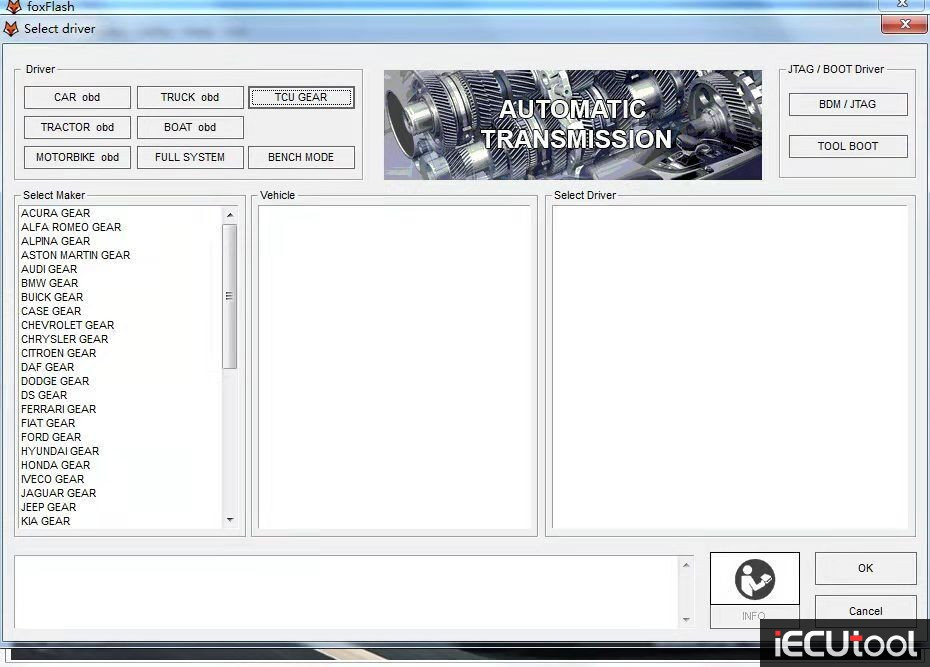

• Additional TCU package available for Automatic Transmissions.

Supported Winols damaos supply

As we all know,winols damaos and A2L is very expensive,we supply these to ours customer as free, so you can get it for chitpuning , dtc off, and so on

Compatibility
Supported Control Units
We believe a control units list can be considered as a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.

Please note that foxFlash can help you select the right protocol with its auto-detection feature during identification on most control units.

Multiple connection possibilities:
EXAMPLES OF CONNECTION IN FULL SYSTEM BOSCH / DELCO / DELPHI / DENSO / MARELLI / SIEMENS / CONTINENTAL / TEMIC

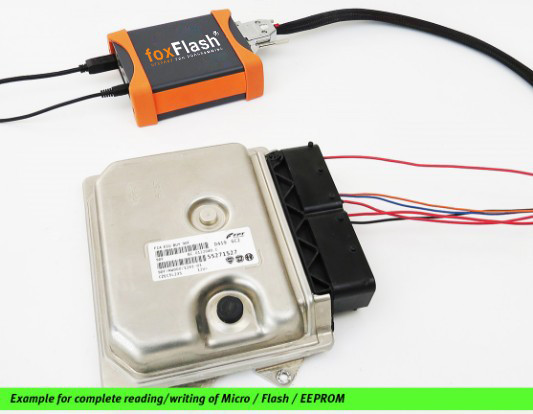

BENCH CONNECTION

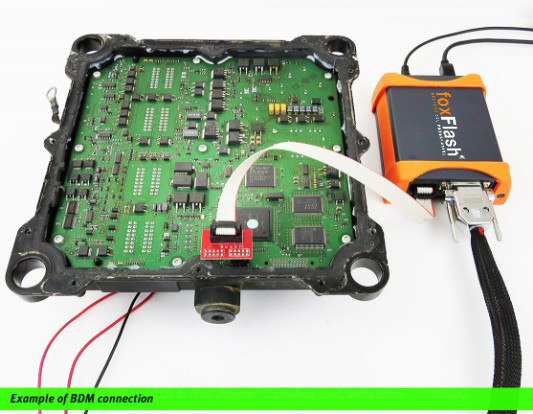

BDM CONNECTION

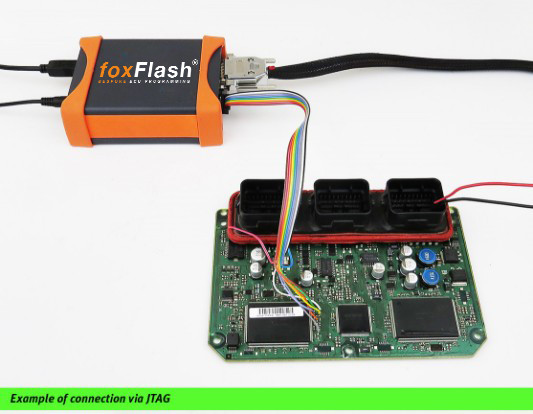

JTAG CONNECTION

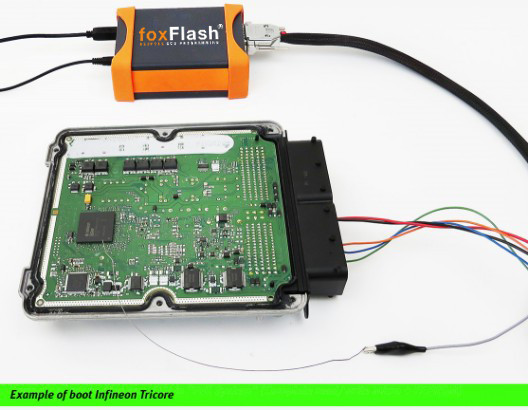

BOOT MODE CONNECTION

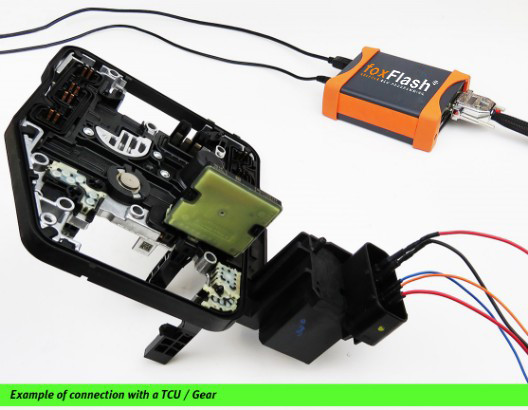

BENCH CONNECTION WITH AUTOMATIC GEARBOX

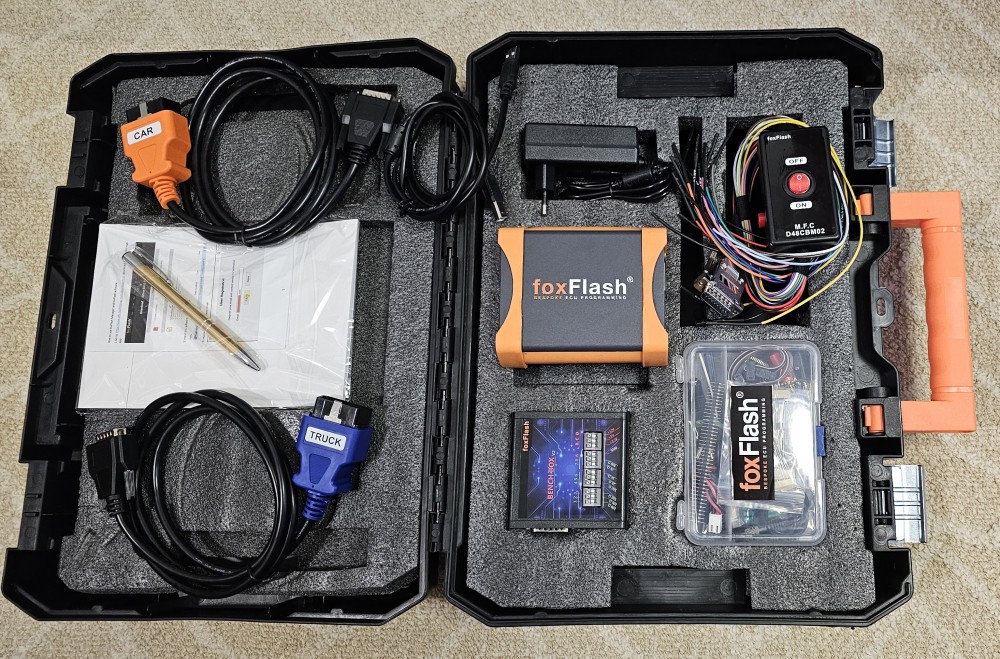

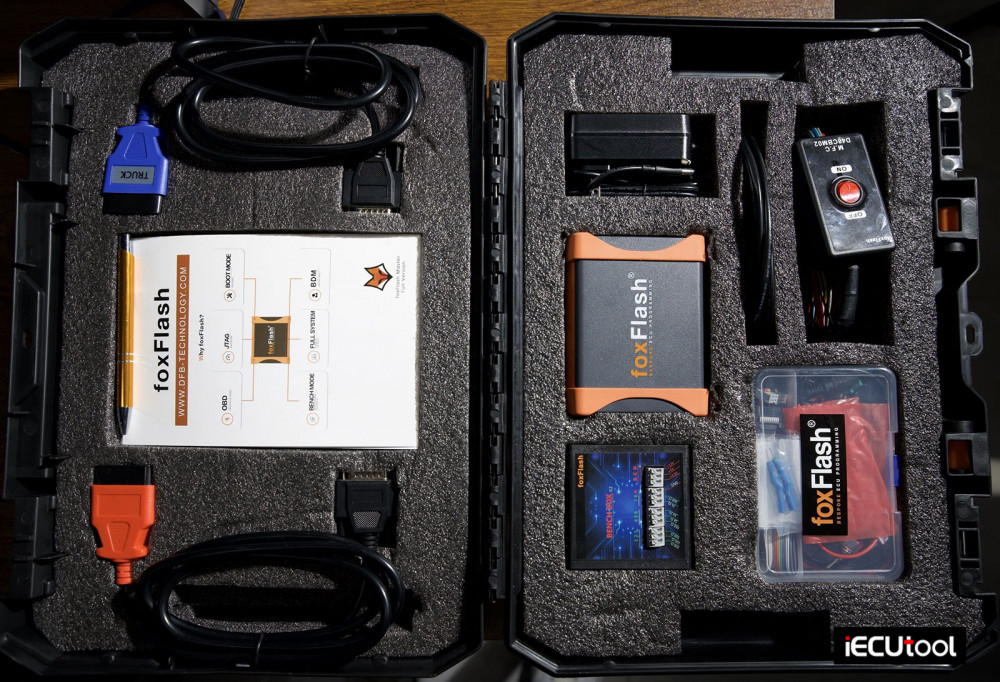

Foxflash full package dispaly:
Hardware:

1pc x Master machine
1pc x Fox bench box
1pc x USB cable
1pc x Power adapter
1pc x Fox box store over 10 adpaters
1pc x Jtag and bdm cables
1pc x Pen
1pc x Notebook

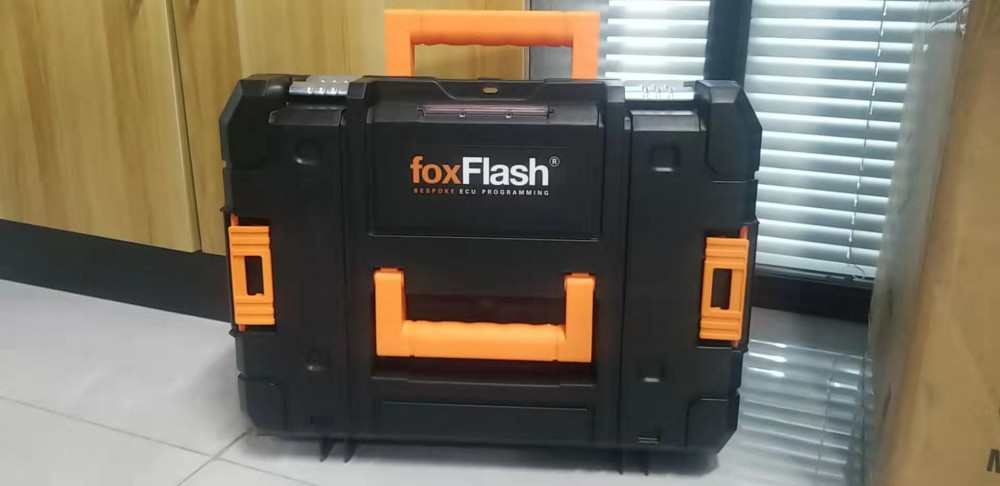

1pc x Suitcase
1pc x Function cable for boot, bench, kline links .
1pc x Truck OBD cable
1pc x Car OBD cable
1pc x Paper box
1pc x Install guide

Software:

1pc x  Main software
1pc x  Technical Support
1pc x  Login account for software and tools
1pc x  PDF pacakges for connecting ecu and tcu
1pc x Join facebook group for support
1pc x Online chat support for use

Extra pacakge according to users request after the user get the tool.

1pc x Tuner account
1pc x Helpdesk
1pc x WinOLS damaos, A2L

NOTE: Send your register email to info@dfb-technology.com to activate your account. Then download free damos files.
