Programator Launch X431 IMMO X-PROG3 GIII PC Adapter Work With X431 X-PROG 3

Product Description

2024 Original Launch X-Prog3 GIII PC Adapter With XProg3 ECU/IMMO Programmer

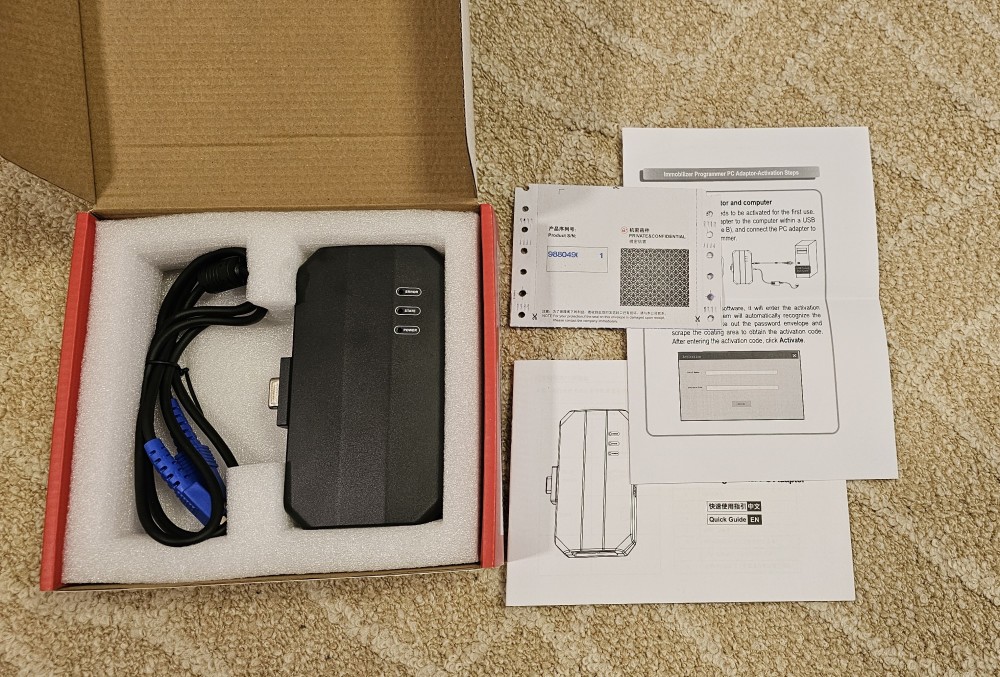

Package Includes: Launch X431 X-PRO G3 PC Adaptor + Launch X431 GIII X-PROG 3

X-Prog3 GIII PC Adapter Features:

• Ship from EU/UK/DE, Fast Delivery and No Tax！
• Used in conjunction with X-PROG3 anti lift matching programmer

X-PROG3 PC Adaptor

• Easy to copy data
• Powerful search function
• 2D menu, clear and easy to choose
• Convenient modification of ECU data
• Support engine data validation function
• One Year Free Update (After one year, will be about €242 One Year Update)

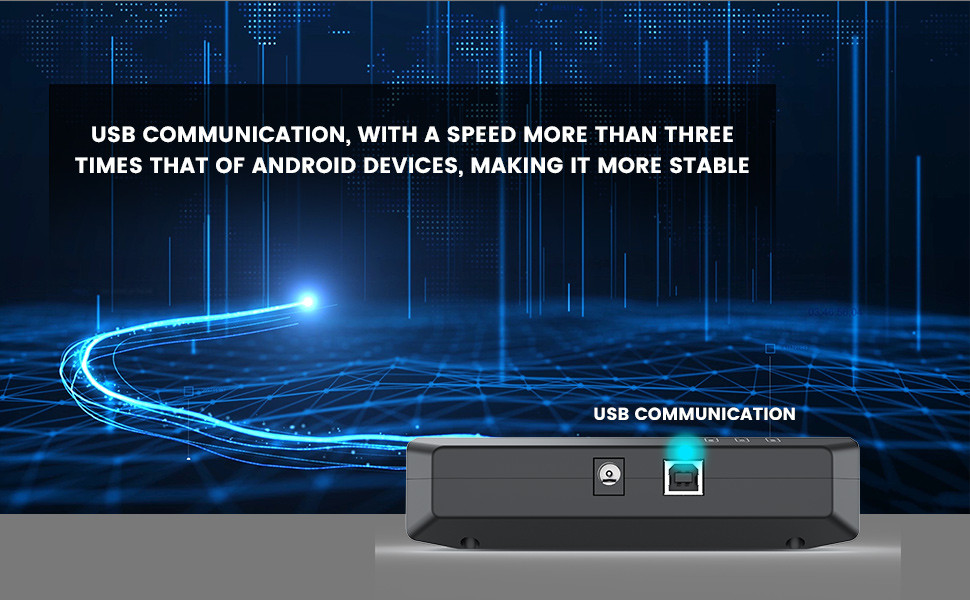

• USB communication, with a speed more than three times that of Android devices, making it more stable
• Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese

PC Software Interface Description:

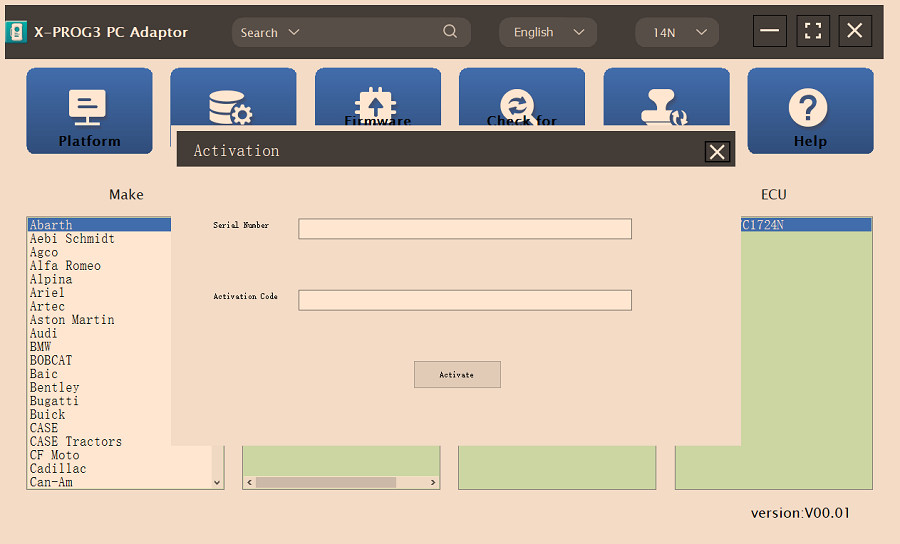

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once,    no need to activate it again later), as shown in Figure 1

NEW UPDATE:
Major upgrade! Engine data validation is available with PC cloning software, a vital function after modifying ECU data.
Often only found on expensive devices, we brought it to all X-431 PROG3 PC adaptor and ECU & TCU Programmer users at no extra cost.

Engine data validation is a crucial process for maintaining the accuracy and consistency of ECU data. After modifying ECU data itis essential to conduct data validation. With launch cloning sotwares exclusive feature. You can ensure optimal ECU/TCU operation achieving precision without extra cost.

View more here>>>




X431 X-PROG G3 Highlights:

• All-in-One Key Programmer. Integrates Multiple Function Models
• Reads & Writes Most Engine/ Gearbox ECUs Without Disassembling the Shell
• Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.

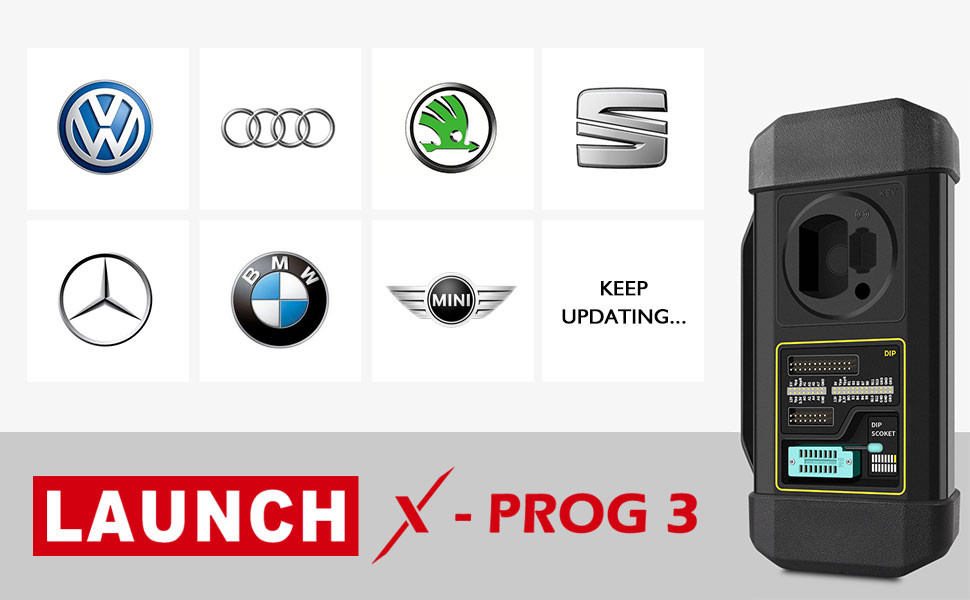

• Supported BrandsVW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota… (updates to be continue)
• Supports VW/ AUDI MQB Platform Engine ECU Replacement or Cloning (Read engine ECU data directly from the key).
• Works with Reprogramming Device to Backup/ Restore Programming Data (For Bosch/Siemens engine ECU).
• Enables Reading/ Writing EEPROM, On-Board MCU, and BMW CAS4+/ FEM Chips, Mercedes-Benz Infrared Keys, Generating Special Keys, Reading BMW Engine ISN Code.

V10.95 Launch X431 GIII X-PROG 3 Immobilizer Key Programmer

X-431 GIII X-PROG 3 Highlight

• LAUNCH Official authorized dealer, 100% original
• Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
• Supported models: 60+ brands in America, Europe and Asia.  More models and systems continue to be updated.
• Supported brands: VW, AUDI,Porsche,SKODA, SEAT, BMW, MERCEDES BENZ, TOYOTA, Opel, Renault, PSA, Fiat and more continue to be updated
• For advanced key programming, you can check optional extended IMMO software, all vehicle manufacturers will be available (over 100 other brands).
• X-431 GIII X-PROG 3 advanced immobilizer & key programmer is a powerful chip reading device that can read and write keys to the vehicle.
• Compatible with Multiple X-431 Series Diagnostic Tablet (PRO Elite, X-431 V, X-431 V+,X431 PRO3, X431 Pro5, X431 ProS, X431 Pro3s+,X431 PAD III, X-431 PAD V, X-431 PAD VII, Immo PAD, Immo Pro, Immo Plus，Immo Elite, X-DIAG Pro3 etc)

X431 X-PROG G3 Main Functions:

• Supports MQB.
• All-in-One Key Programmer. Integrates Multiple Function Models.
• Reads & Writes Most Engine/ Gearbox ECUs Without Disassembling the Shell
• Supports VW/ AUDI MQB Platform Engine ECU Replacement or Cloning (Read engine ECU data directly from the key).
• Works with Reprogramming Device to Backup/ Restore Programming Data (For Bosch/Siemens engine ECU).
• Update VAG MQB NEC35XX D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3537 add key & all keys lost NEW!!!
• X-PROG 3 enables reading and writing EEPROM, on-board MCU and BMW CAS4+/FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine INS code.
• X-PROG 3 enables anti-theft type identification, remote control matching, key chip reading and matching, anti-theft password reading and anti-theft component replacement.
• More than just key programming — The LAUNCH XPROG 3 also supports advanced coding/programming functions: - ECU replacemetn for 4TH Generation Audi (0AW/0B5) gearboxs. - Reading, writing & cloning of the ECU for 4TH Generation VW UDS engines. - BMW E chassis 8HP gearbox ECU program wiping,.etc.

XPROG3 Advantage Functions
1. Read BMW engine ISN code.
2. Read/write BMW CAS4+ and FEM chips.
3. Read/write Audi fifth-generation steering column chips
4. Read/write EEPROM.
5. Read/write MCU.
6. VW Fourth-generation Dump Mode All Keys Lost.
7. Read engine in BENCH mode.
8. Read gearbox data.
9. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
10. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
11. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
12. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
13. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
14. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU)
etc.

Extended function
Use with MCU3 adapter to do Benz All Keys Lost and ECU TCU Reading.
Use with Launch RH850 Adapter for Renesas Encrypted RH850 MCU Read and Write
Use with Launch ECU Bench Adapter for Renesas Encrypted RH850 MCU Read and Write
Use with X431X-PROG3 PC Adaptor Support Read/Write ECUs Data And Engine Data Validation
Use with Gearbox Cloning adapters Faster connection without mcu3 adapter or a bundle of adapters.
Use with Toyota emulator key: can collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip.
Use with Toyota 27 pin smart key AKL cable   Support For Toyota 4A, 8A-A9, and 8A-AA smart keys all lost (dismantle and read the immobilizer box)
Use with Toyota H non-smart key AKL cable Program Toyota 8A mechanical keys all lost. The applicable models are: 2014 onwards Corolla, Levin, Camry, Highlander, and Prado
Use with Toyota 24-pin smart key AKL cable   Support Dismantle And Read The IMMO Box for F15/F18 smart keys, 2019 onwards such as Highlander, Alphard, and Vellfire, equipped with TMLF12 smart box
Use with X431 Key Remote Maker support to Read Transponder, Generate Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Remote (Launch X431 remote), and Unlock Toyota smart key, etc functions.

Launch X431 G-3 Core Functions

• Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
• Supports the BMW CAS4/ CAS4+ module replacement.
• Supports the ECU cloning and replacement for BMW Siemens engines.
• Supports ECU replacement for the fourth-generation of VW/AUDI engine;
• Supports ECU replacement for the fifth-generation of VW/AUDI Bosch and Siemens engines.
• Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
• Erase the password for Mercedes-Benz engine and gearbox within 3S.11.
• Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
• Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
• Supports common ECU/ MCU/ EEPROM major manufacturers, with over 1200 product models, and constantly updating.
• Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).

Launch X-prog3 compatible keys:
1. Original Keys (OEM keys)
2. Launch dedicated universal remote keys
3. Xhorse Autel Keydiy universal keys (generated by corresponding remote makers.)







Support list June 2024:

How to Use Launch X-prog3 PC Adapter?


I.ECU Data Reading/Writing


1. Obtain the related ECU.

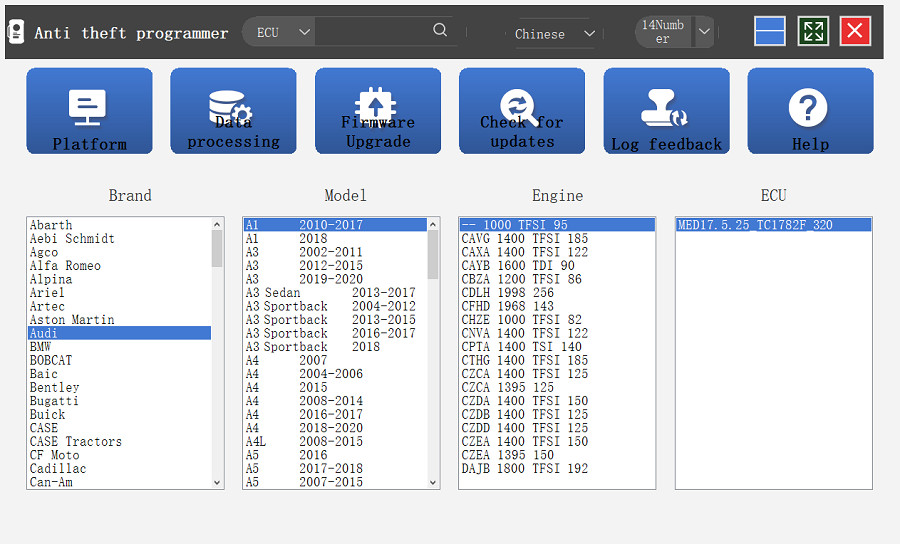

(1) Method 1: Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure 2.

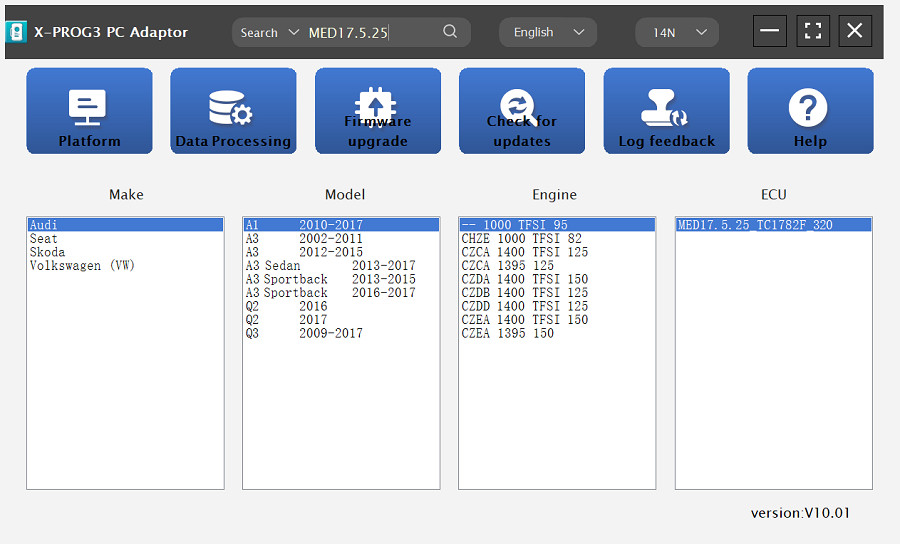

(2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure 3.

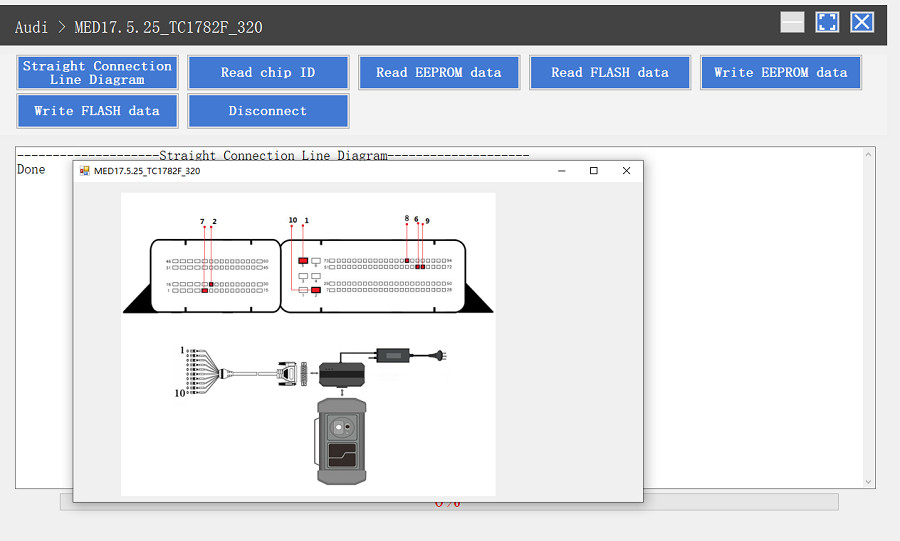

2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram, as shown in Figure 4.

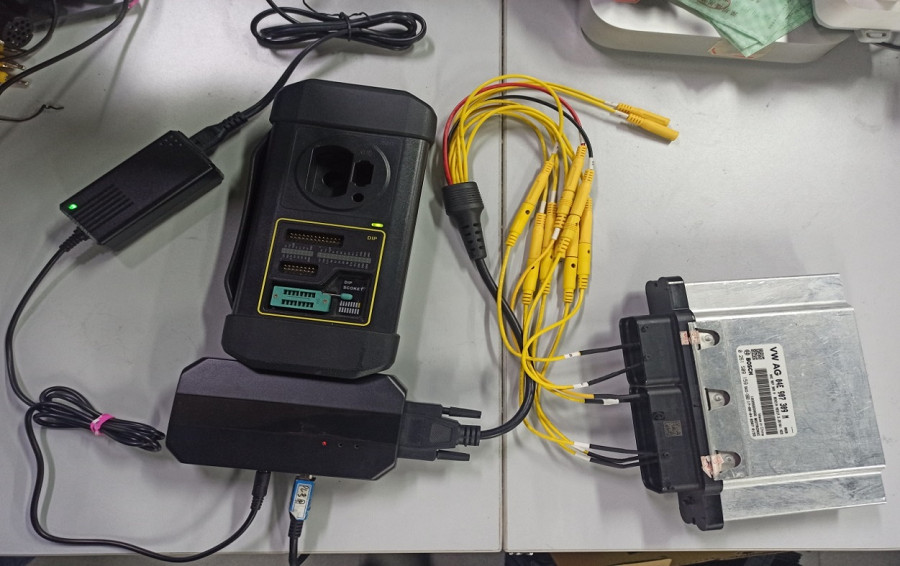

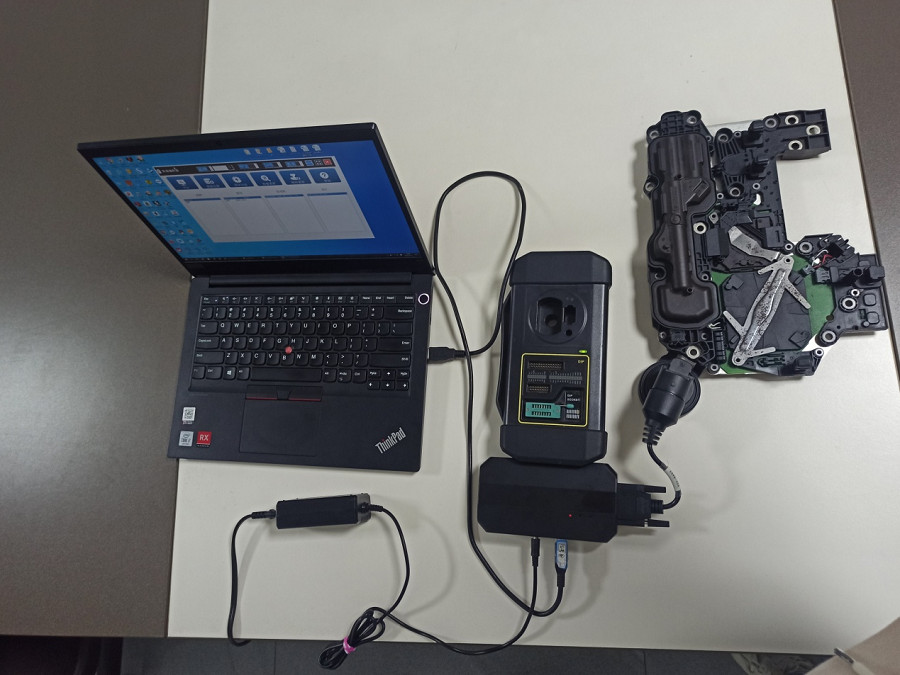

3. Connection: Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.

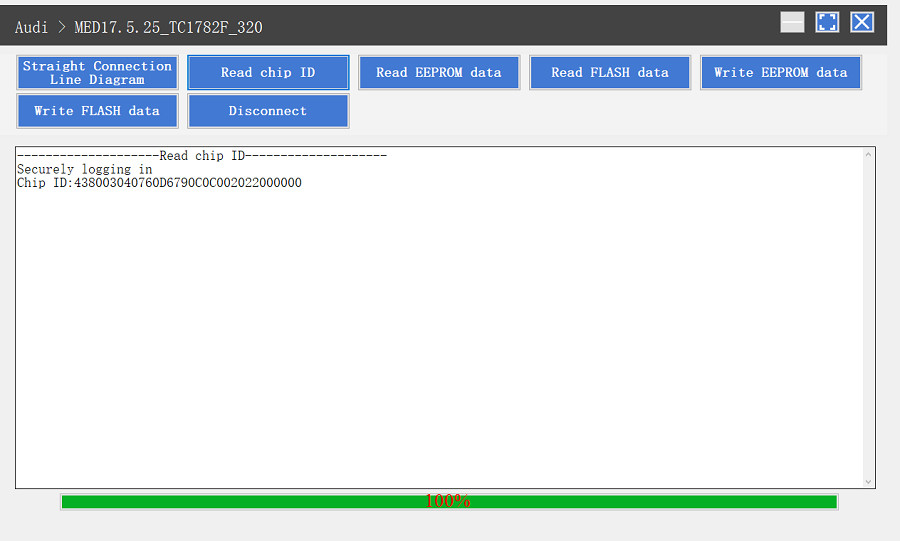

4. Read the chip ID, as shown in Figure 7.

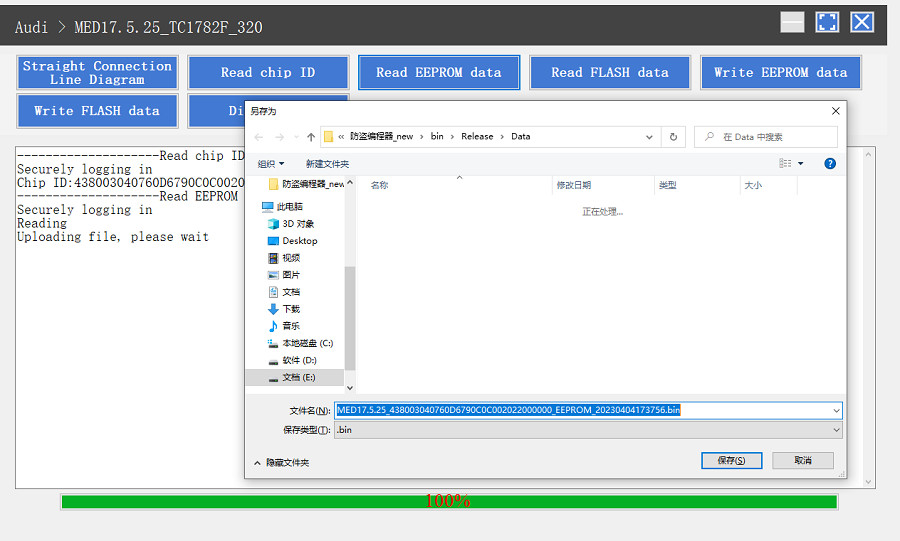

5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).

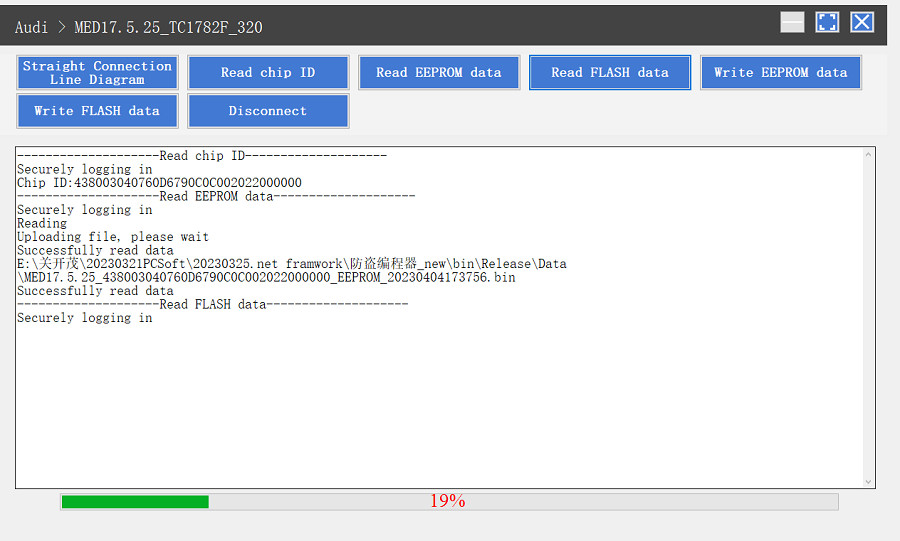

6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).

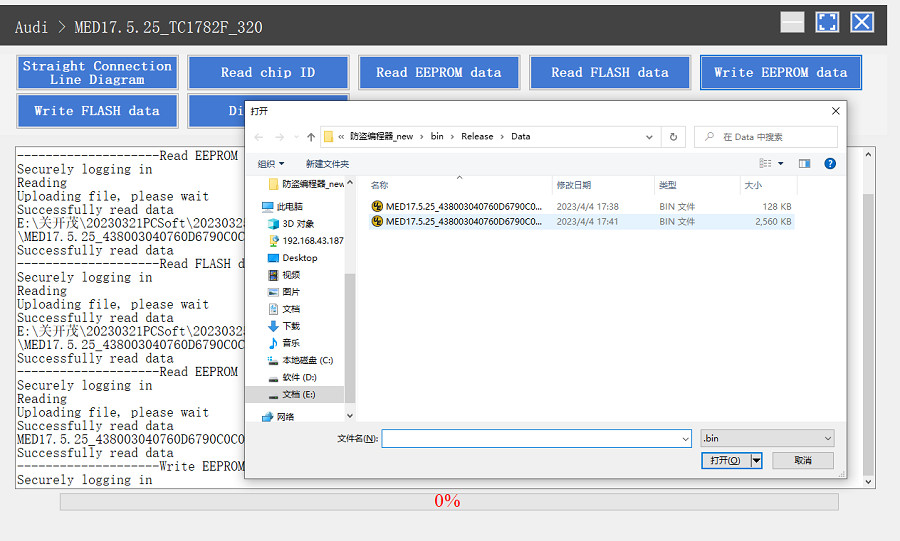

7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).



II. Data Processing

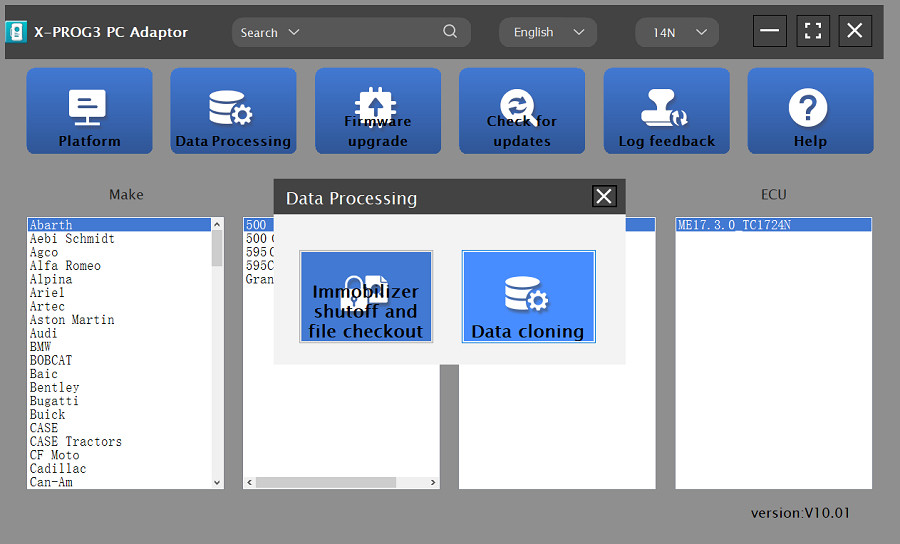

1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data, as shown in Figure 12.

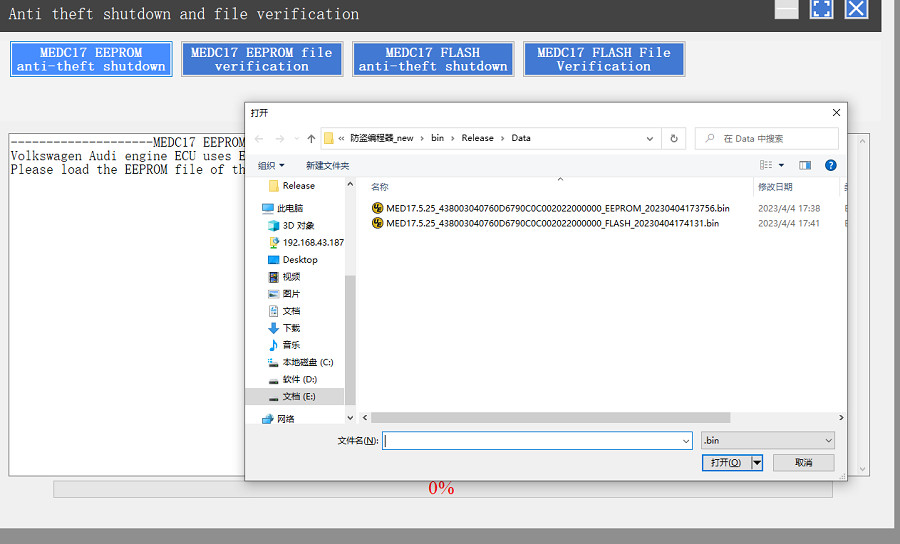

2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.
