Programator Orange5 full V1.45 + Enhanced Function Add all Authorization

Name: Programator Orange5 full V1.45 + Enhanced Function Add all Authorization
Brand: Nespecificat
SKU: 218657176
Price: 1550 RON
Availability: inStock

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier rapid - 24,00 Lei Detalii

Estimat livrare:

Miercuri, 21 Ian.

Cantitate:

Pret:

1.550,⁰⁰ Lei

Produs:

Nou, Certificat de garanție 6 luni

Politica de retur:

Acest produs poate fi returnat in 14 zile Detalii

Plata:

La predare
Ramburs
Avans

Vandut de:

UPcloud SRL

91.67% pozitive (din 2488

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Latest Version V1.45 Orange 5 Full Adapters Programming Device Hardware + Enhanced Function Add all Authorization OBD2 Auto Programmer SN:5C38

The latest version, V1.45, is compatible with all the features of previous versions of the same series V1.38 and V1.42.

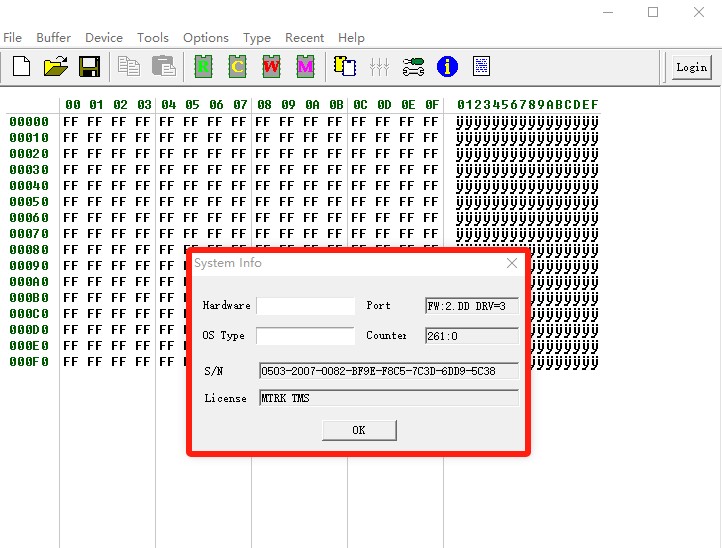

S/N: 0503-2007-0082-BF9E-F8C5-7C3D-6DD9-5C38

V1.45 Full License: MTRK TMS

v1.45 Added authorization

Computer system requirements:

No support for virtual systems, no support for VM system.

Must install a genuine computer system.

Supported: WIN 7 64-bit WIN 10

Feature:

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

"Echo" mode

Delay settings between incoming data

Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed

Supports Orange5 programmer in emulation mode.

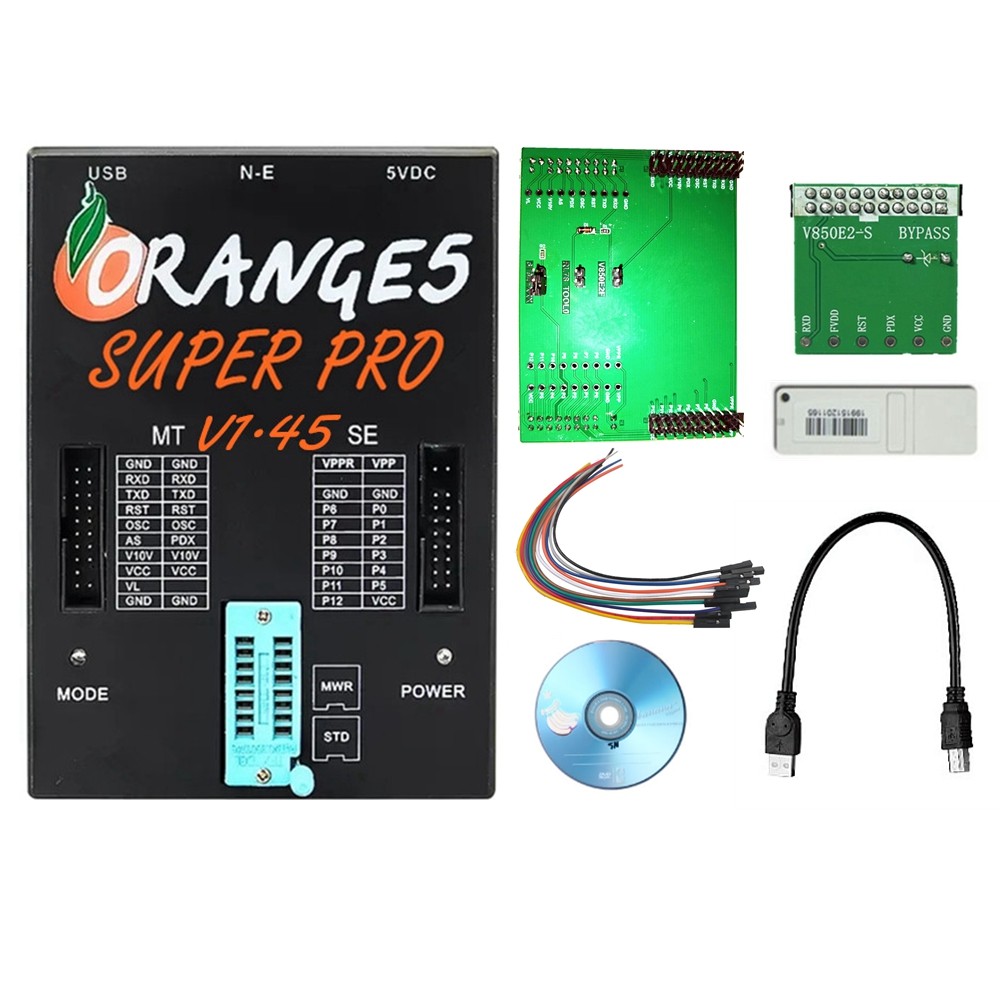

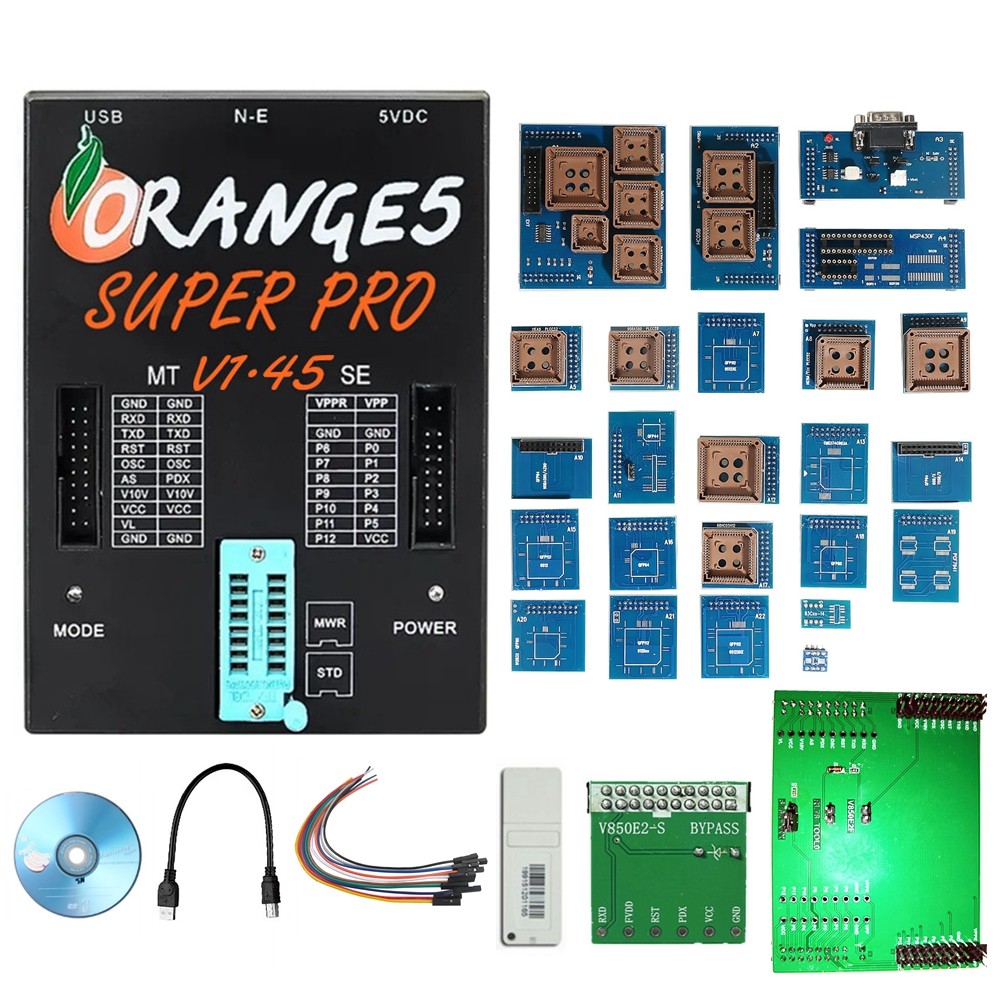

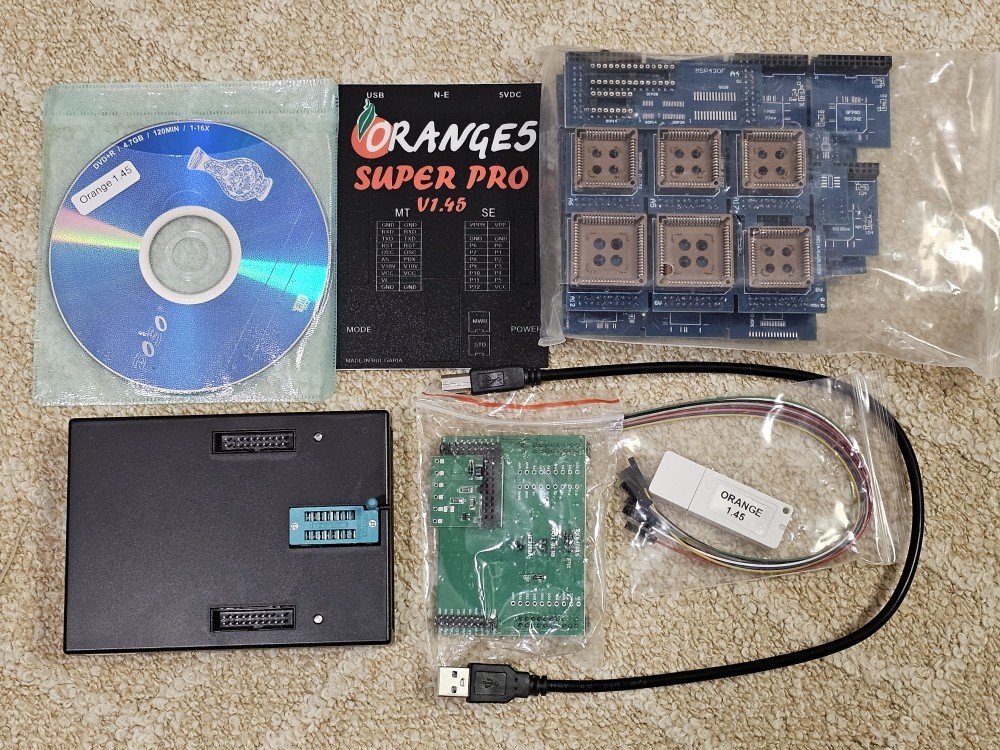

Orange5 Technical Info:

* USB power supply (USB2.0/3.0)

* Universal easy to plug panel ZIF16 for EEPROM

* Control of contacts in the sockets

* Two expansions compatible with Orange4 and Omega MTRK

* Protection against overcurrent

* Overload voltage protection

* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

* Capability of functional emulation of class CDC USB devices

* Built-in 32-bit virtual machine

* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.

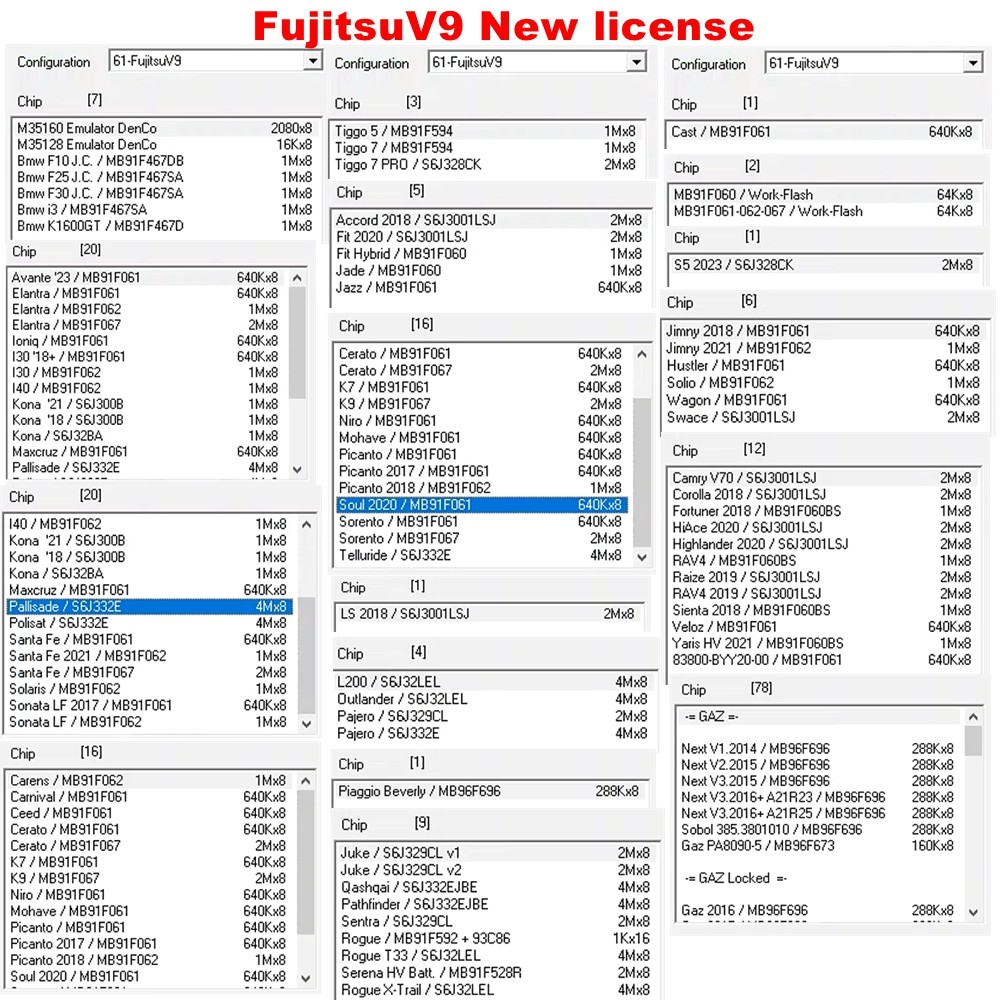

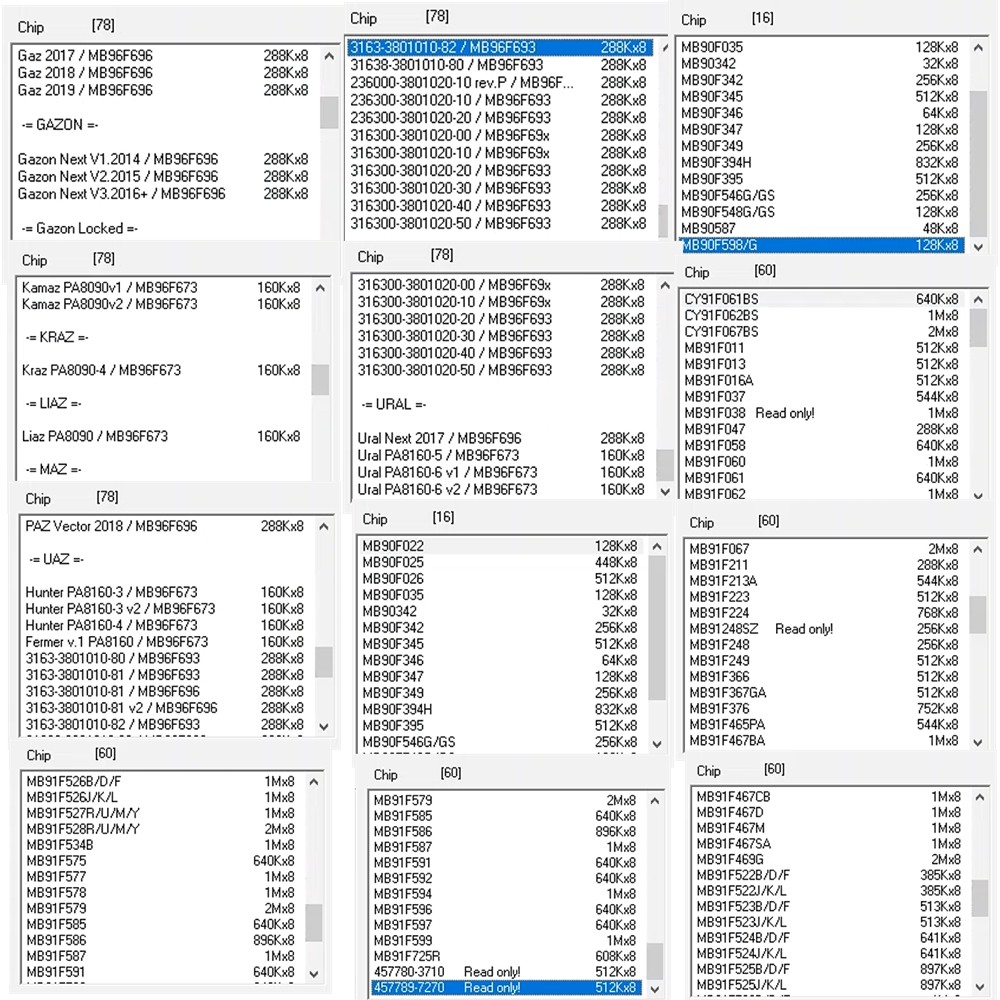

Software Licenses:

MTRK (Included in Orange-5 base)

TMS (Included in Orange-5 base)

M08V NEW

Immo HPX 9V0

NEC V850ES/SJ3 V850ES/SG3 UART

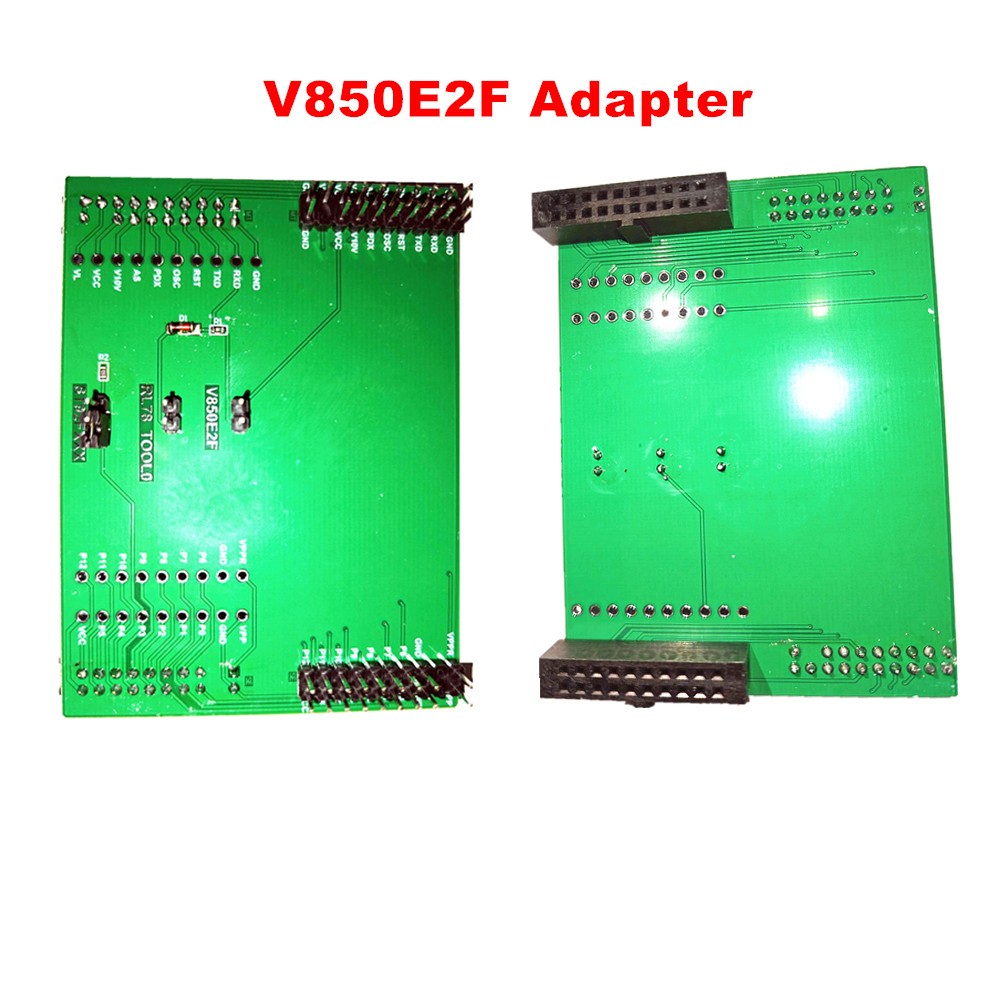

NEC V850E2 NEW

NOTICE

Orange5 ONLY connect via USB power supply 5V voltage. It can not connect external power supply via 12V ,otherwise it will burn, always shows corrupt and kill the board. And Please do not update .

Model Name: Orange 5

Software Version: V1.45

Item Length: 20cm Item

Height: 10cm

Item Width: 10cm

Supported Systems: WIN 7 64-bit, WIN 10

Material: Plastic & metal

Compatibility: Supports all authorizations

|Orange Programmer|

**Enhanced Functionality and Support** The Orange 5 programmer is the latest addition to the diagnostic tools category, offering the latest V1.45 software version with enhanced function support. This device is designed for professionals and enthusiasts alike, providing a comprehensive solution for vehicle diagnostics and programming. With its robust plastic and metal construction, the Orange 5 is built to last and withstand the rigors of daily use. Its compact dimensions of 20cm in length, 10cm in height, and 10cm in width make it a convenient tool to carry around for on-the-go repairs.

**Versatile and User-Friendly Interface** The Orange 5 programmer is not just about its hardware; it is also equipped with a user-friendly interface that supports various modes of communication, including USB 2.0/3.0, I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), and CAN (via adapter). It is also compatible with all COM ports, including virtual ones, from 1 to 20. This versatility ensures that the Orange 5 programmer can be used in a wide range of scenarios, from vehicle diagnostics to complex microcontroller programming tasks.

**Robust and Reliable Performance** The Orange 5 programmer is equipped with high-speed bidirectional pin drivers that can adjust the programming voltage from 2.0 to 21.0V, offering precise control over the programming process. It also provides a static 10V output for microcontrollers. The device boasts a robust and reliable performance, with overcurrent and overload voltage protection to safeguard against any mishaps. The Orange 5 programmer is more than just a tool; it is a reliable companion for professionals who demand precision and reliability in their work.
