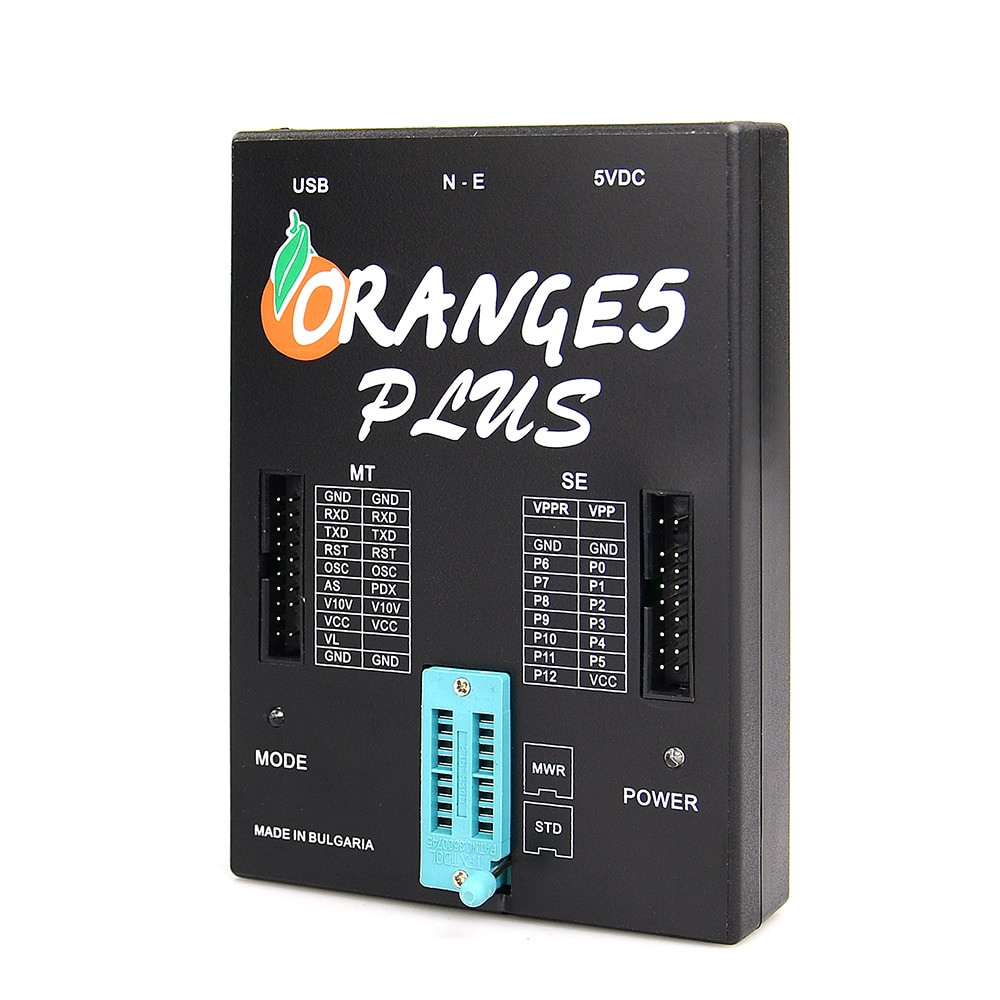

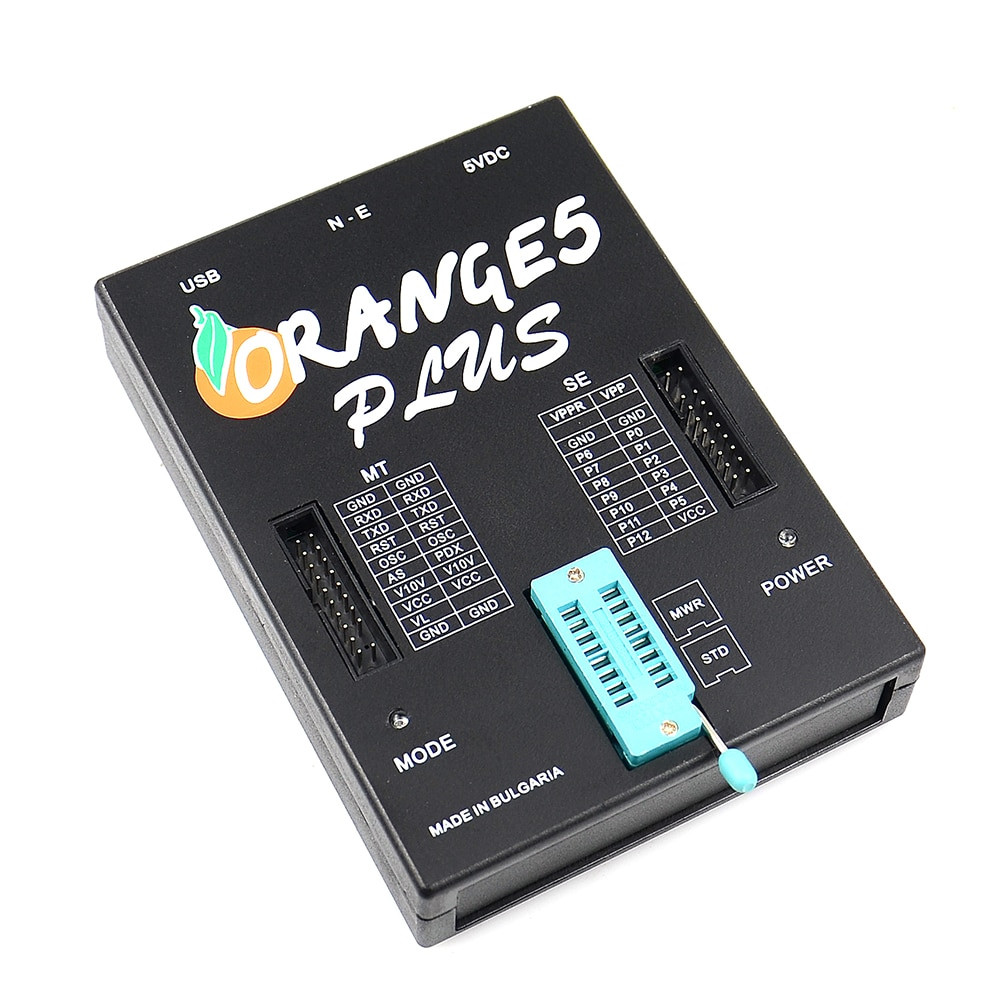

Programator Orange5 PLUS ECU Programmer OEM Full Adapters V1.35 cu dongle
Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc
1 disponibil
Produs:
Nou, Certificat de garanție 6 luni
Politica de retur:
Acest produs poate fi returnat in 14 zile
Detalii
Plata:
- La predare
- Ramburs
- Avans
Vandut de:
100% pozitive
(din 2479
)
)
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
2021 Newest Orange5
Plus V1.35 Programmer With Full Adapters Enhanced Function
ECU Programmer For Cars Free Shipping
Software Version: V1.35
Software Does not Support Update.
Language: English and
Russian
Systems: XP WIN7
WIN8
Software Licenses:
MTRK (Included in Orange-5
base)
TMS (Included in Orange-5
base)
M08V NEW
Immo HPX
9V0
NEC V850ES/SJ3 V850ES/SG3
UART
NEC V850E2
NEW

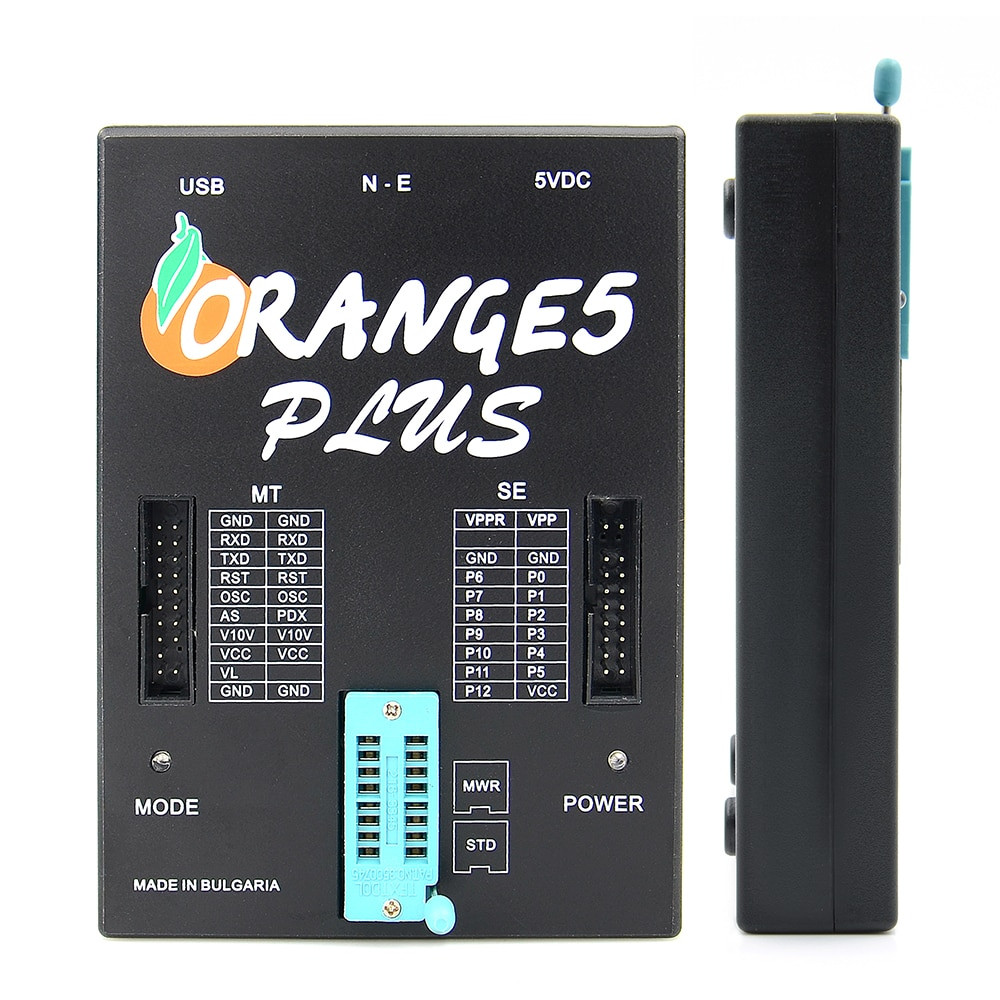

Orange5 Technical
Info:
* USB power supply
(USB2.0/3.0)
* Universal easy to plug panel
ZIF16 for EEPROM
* Control of contacts in the
sockets
* Two expansions compatible
with Orange4 and Omega MTRK
* Protection against
overcurrent
* Overload voltage
protection
* Two types of power supply:
Standart (USB) and enhanced (USB + external power
supply)
* Three 3 adjustable voltage
and current control: Voltage of power supply ( 2.0...5.0V ),
programming voltage (2.0...21.0V), additional static 10V for
microcontrollers
* High-speed bidirectional pin
drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with
frequency ( up to 24 Mhz) and out voltage(2.0...5.0V)
adjustment
* Capability of functional
emulation of class CDC USB devices
* Built-in 32-bit virtual
machine
* Supported interface: I2C,
SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN
(via adapter)
* Programmer is encolsed in a
functional box. Supported working under Windows XP/7 32bit.
[*Win8.1]
- Installation and Work with
Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for
work with COM ports.
Feature:
Supports any COM ports,
incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX
mode
Creating a list of commands
that allows editing and fast sending
Fine-tuning the exchange
rate
Saving files including command
and port settings.
Saving incoming data in binary
files
File transfer via serial
port.
Delay settings for bytes and
blocks
"Echo" mode
Delay settings between incoming
data
Managment of DTR, RTS chains,
visualising DSR, CTS, CD, RI
Program doesn't need to be
installed
Supports Orange5 programmer in
emulation mode.
Orange-5 Chip list v1.34
[November 2015]
Immo HPX 9V0
PCF
PCF7941
Reset
Al-fa Ro-meo
BSI
147
Au-di
BCM2
Ver.1 uPD70F3239
Ver.1 uPD70F3380
Ver.2 uPD70F3380
Ver.1
uPD70F3634
Dash
A2 VDO crypto
93C86
A3 UKNSI
93C56
A3 VDO '97/99
93C66
A3 VDO crypto
93C86
A3 MM 912DG128
A4 UKNSI 0012-003
93C56
A4 UKNSI 0014-001
93C56
A4 UKNSI 0016-001
93C56
A4 UKNSI '97/98
93C56
A4 VDO '97/99
93C66
A4 VDO '99/01
93C86
A4 MM 912DG128
A6 UKNSI 0012-001
93C56
A6 UKNSI 0014-001
93C56
A6 UKNSI 0016-001
93C56
A6 VDO '97/99
93C66
A6 VDO '99/01
93C86
A6 VDO crypto
93C86
A6 MM 912DG128
S3/S6 MM 912DG128
TT MM 912DG128
Immo
'94/97 4A0 953 234
93C46
De-lphi 8D0 953 234
93C46
ECU
'00/04 ECU EDC15
24C04
A3 1.8T 0261204678
24C02
A4 1.8T 0261204778
24C02
A4 '02 8E0 909 xxx
95040
ELV
MC68HC908GR16A[4L35K]
MC68HC908GR16A[0M76Z]
B-M--W
Dash
Dash with M35080
Immo
EWS-3 HC11EA9 clips
[0D46J]
EWS-3 HC11EA9 wires
[0D46J]
EWS-3 HC11EA9 adap
[2D47J]
EWS-3+ HC11EA9 clip
[0D46J]
EWS-3+ HC11EA9 adap
[2D47J]
Chery
All Chery with
0L72A
All Chery with
0L59X
Chev-rolet
Immo
Captiva MC9S08DZ60
[3M05C]
Chr-ysler
Immo
SKIM immobox 24C02
Ram uPD70F3626
Citr-oen
BSI
Berlingo 03/06 BSI v1
95160
Berlingo 03/06 BSI v2
95160
Berlingo 03/09 BSI v3
95160
C2 '03/04 BSI
95160
C3 '02/04 BSI v1
95160
C3 '02/04 BSI v2
95160
C5 '01/04 BSI
912DG128
C5 '02/04 BSI
95160
C8 '03/04 BSI
912DG128
Picasso '03/04 BSI
95160
Xsara II '01/03 BSI
95040
Immo
Berlingo Valeo
93C46
Jumper '99/06 Del-phi
93C56
Jumpy 705E6 [F82B]
Relay Del-phi
93C56
ECU
Xsara ECU EDC15C2
95P08
D-AF
Immo
MC68HC908AZ60
[2J74Y]
MC68HC08AZ32A
[2L52H]
Do-dge
Immo
SKIM immobox
24C02
Fi-at
Automotive K/CAN
IMM 009.10
BSI
Albea 912DG128
[3K91D]
Panda '02 BSI
[1L40K]
Stilo 912DG128
[3K91D]
Stilo BSI [1K79X]
Strada BSI [1K79X]
Immo
IMM001.11 [1K59H]
IMM009.01 [1K59H]
IMM009.01 [0L72A]
IMM100.01 [1K59H]
IMM110.01 [1K59H]
Bravo 705E6 [G72G]
Bravo 705E6 Clips
[G72G]
Bravo 08AZ32
[1H56A]
Cinquecento '96
93C46
Coupe '96 immobox BO-SCH
93C46
Ducato De-lphi
93C56
Marea 08AZ32
[1H56A]
Punto 93C46
Punto De-lphi
93C66
Scudo 705E6 [F82B]
Palio '09 [0L72A]
Seicento De-lphi
93C56
ECU
Scudo '01 JTD EDC15C2
95P08
Fo-rd
BSI
Focus '03- 9S12XEP768
[5M48H]
Dash
4M5T
MC9S12H128[1K78X]
8VT4
MC9S12XHZ256[1M80F]
ECU
Focus '00 ECU
77012
Gilera
ECU
Fouco 500
[ST10F269]
Great Wall
Immo
With 0L72A
Hyu-ndai
ECU
Accent KEFICO ECU
M95160
Elantra KEFICO ECU
M95160

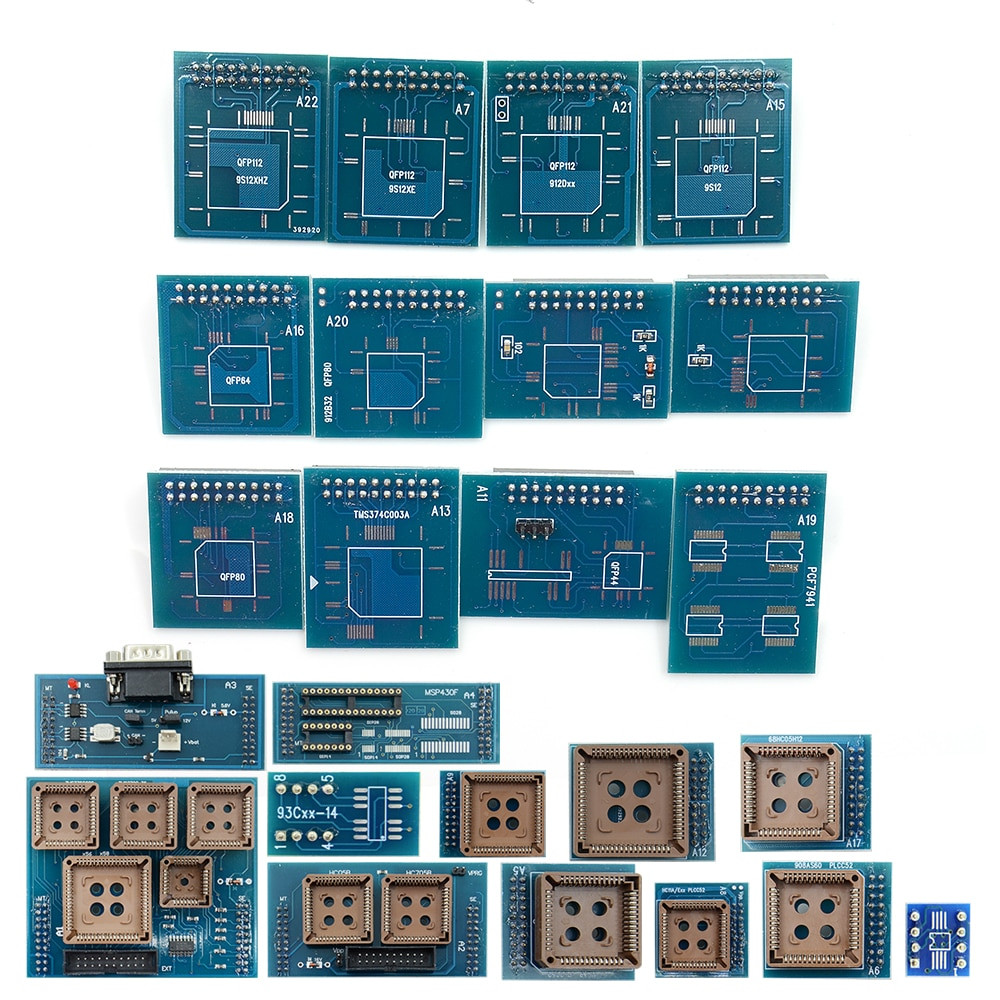

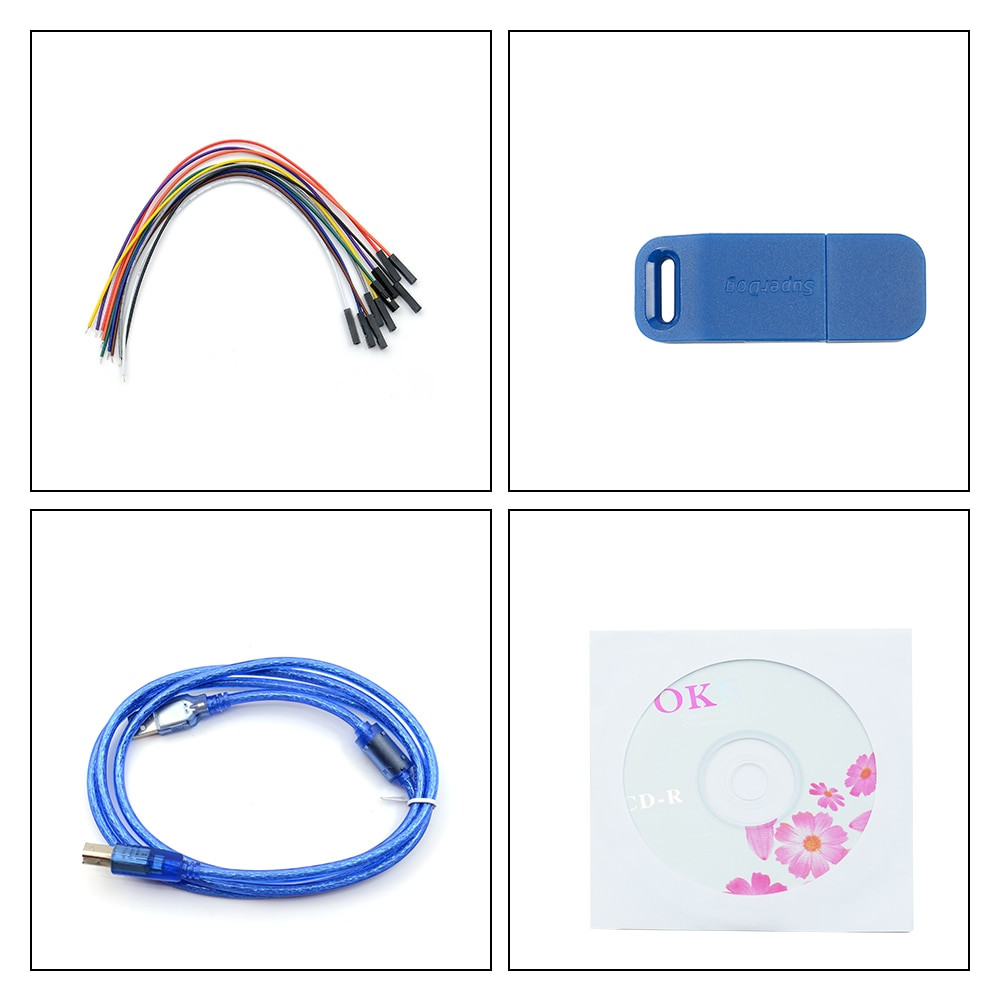

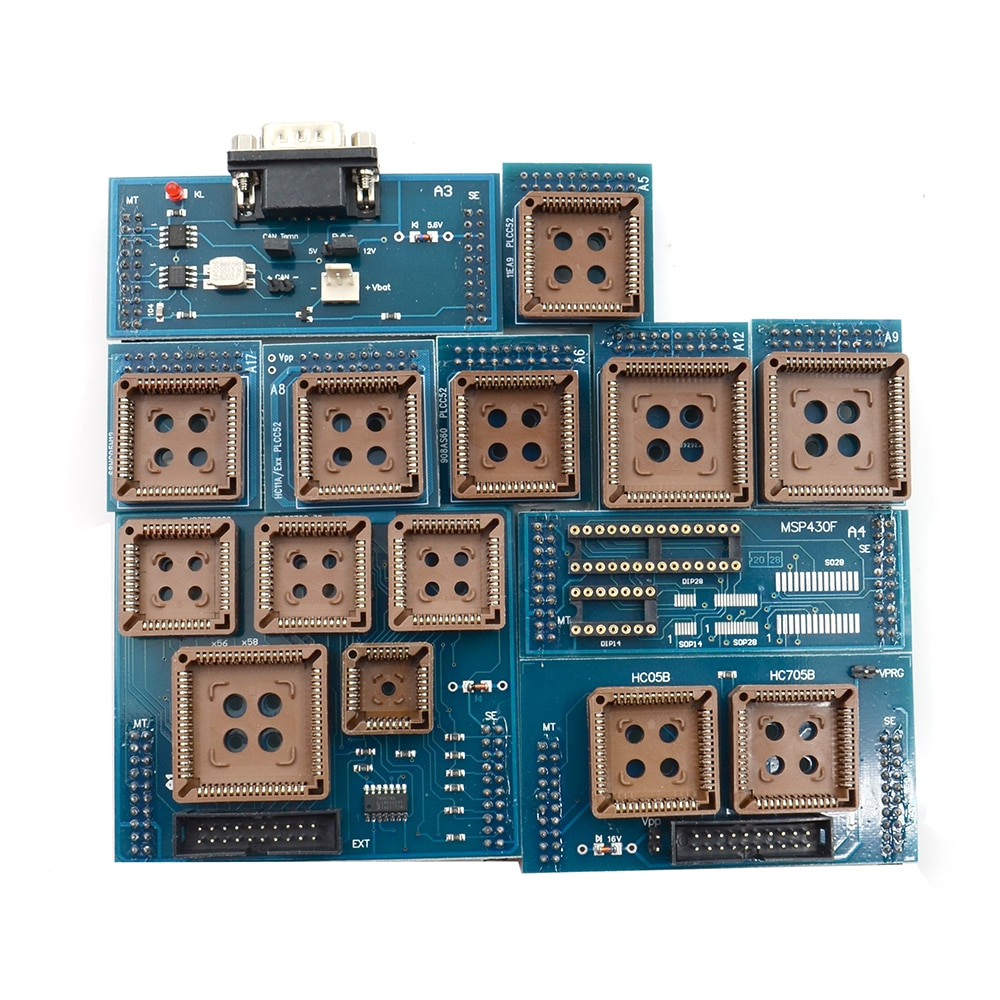

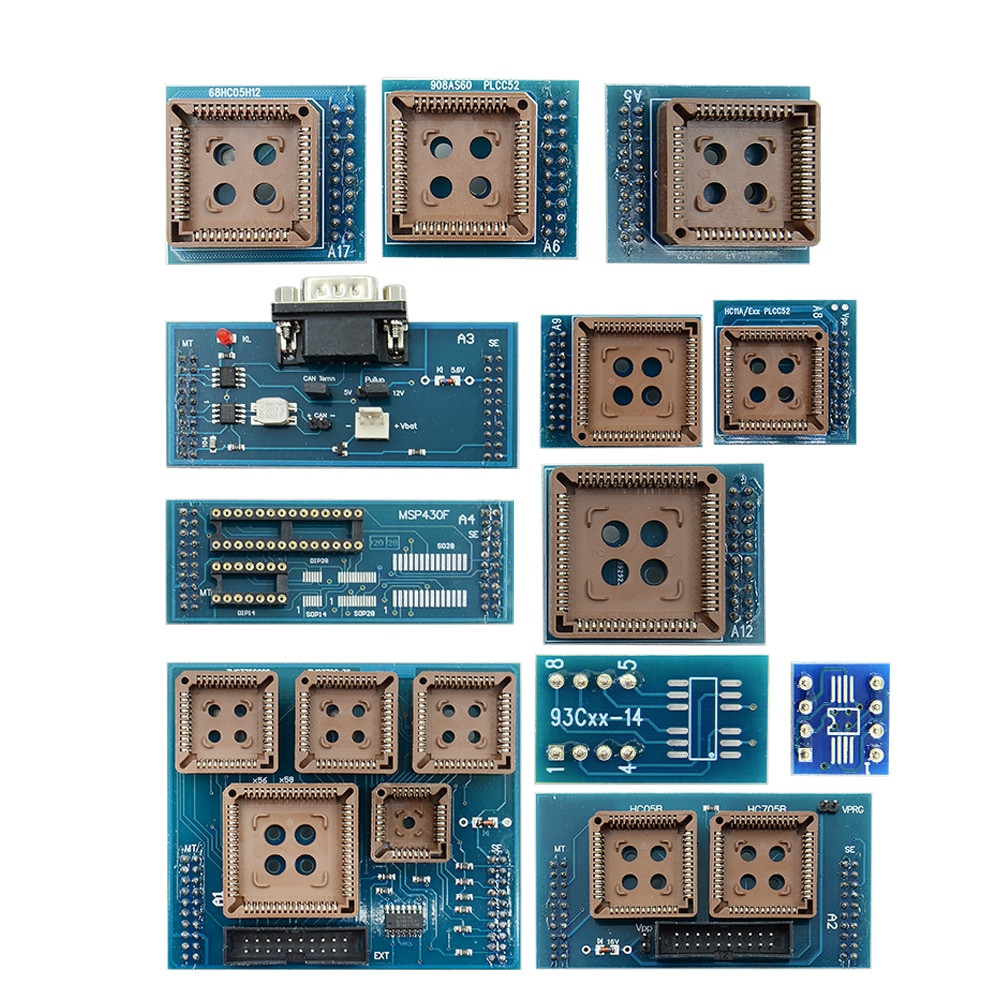

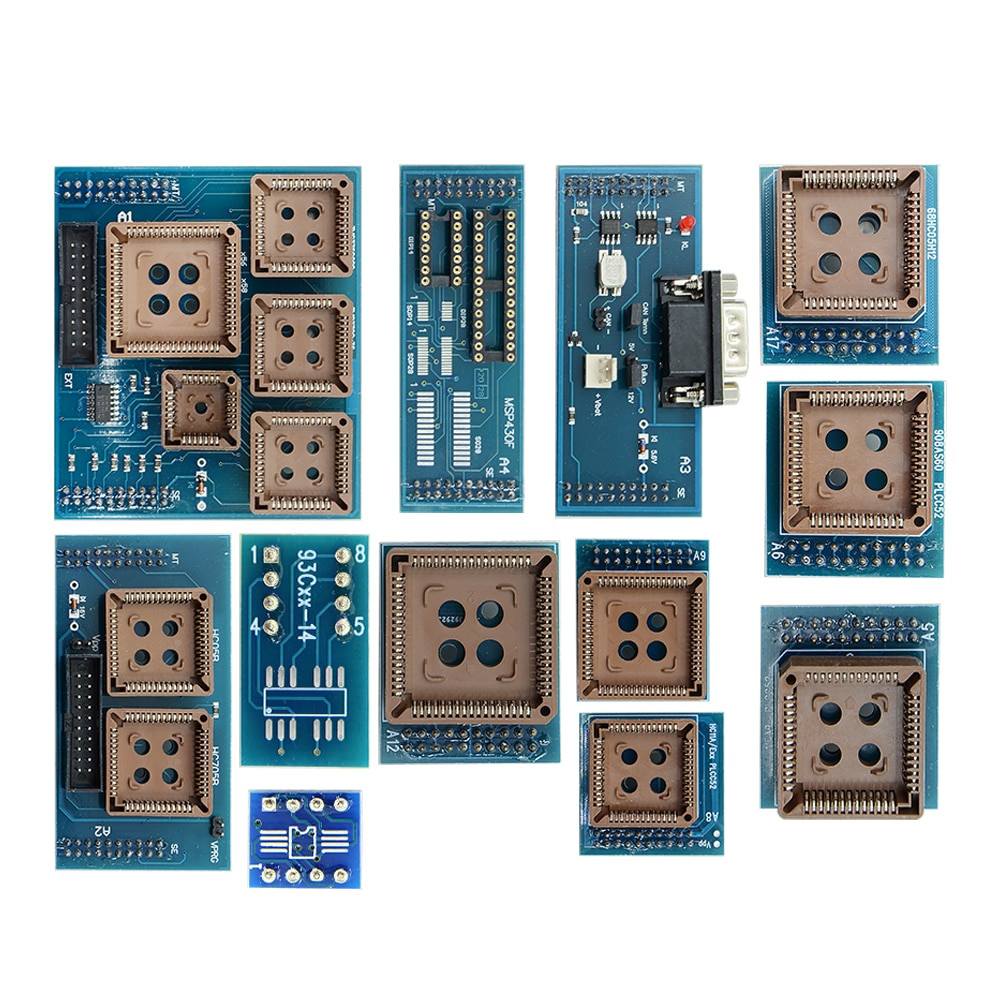

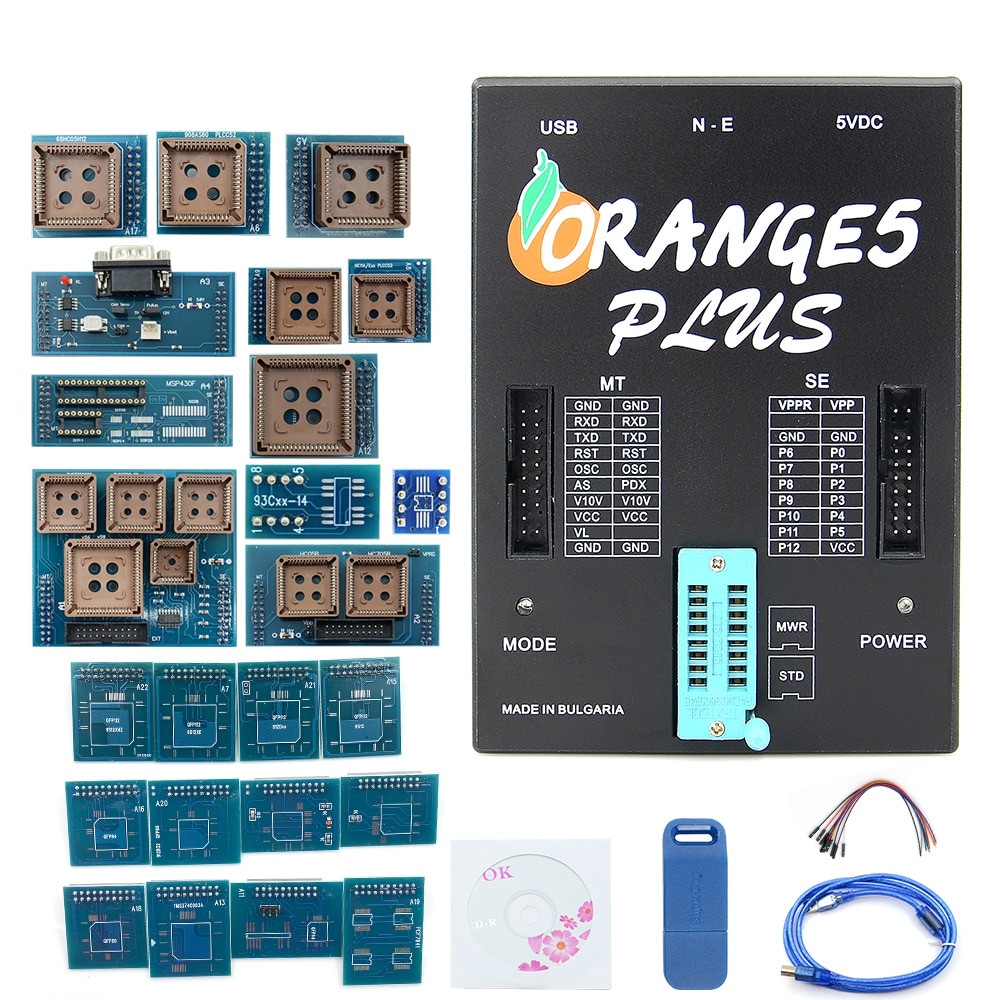

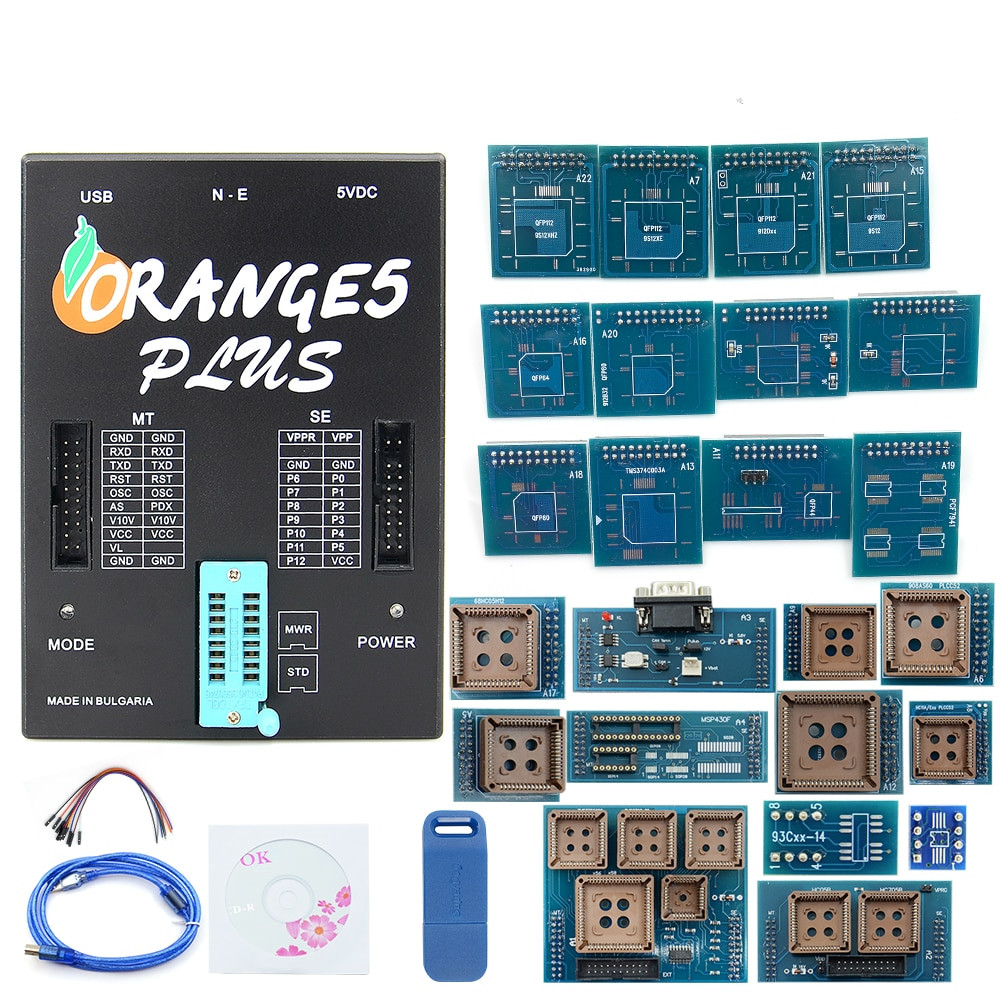

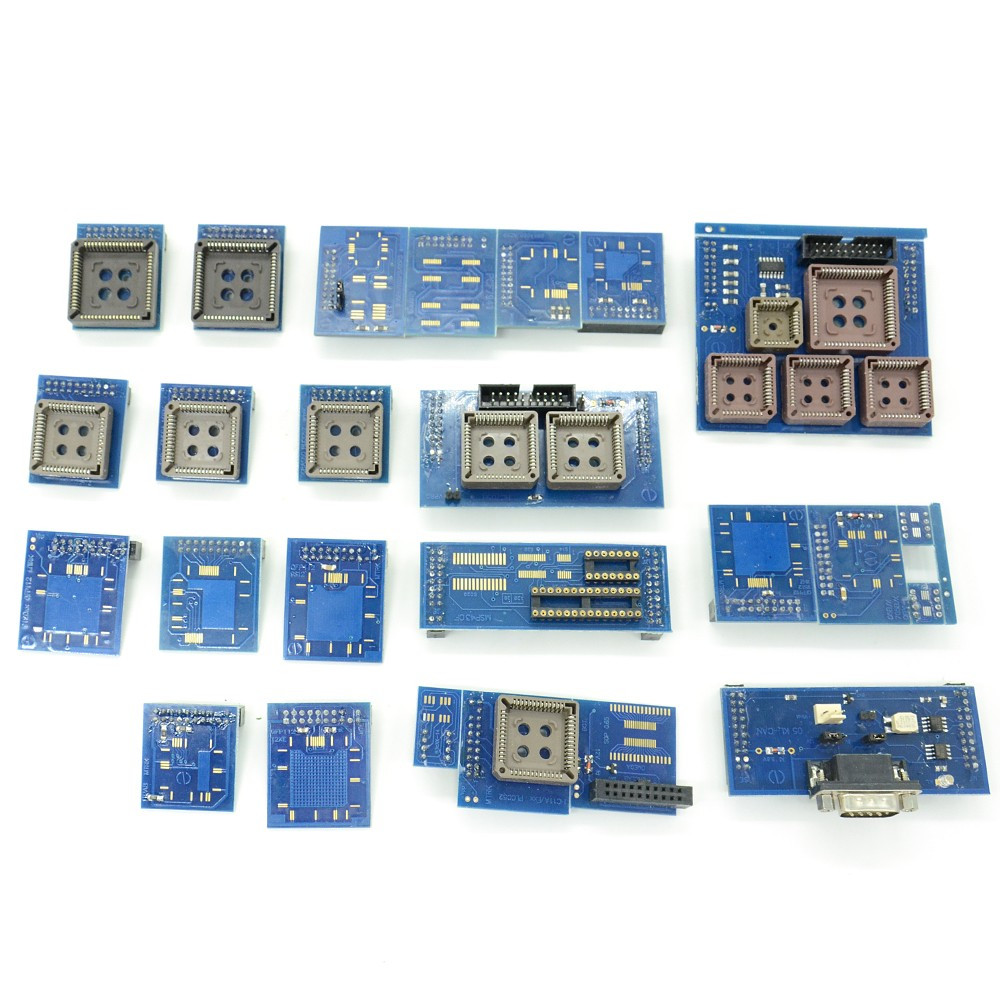

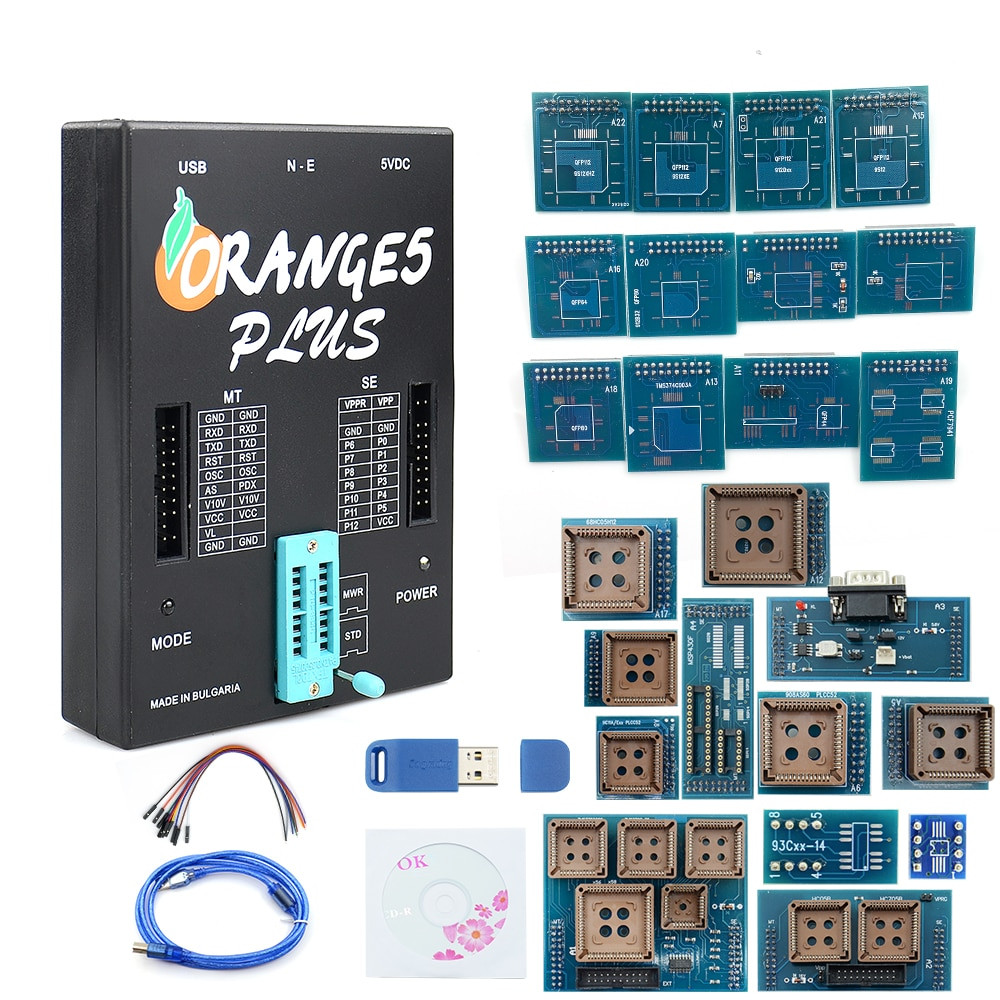

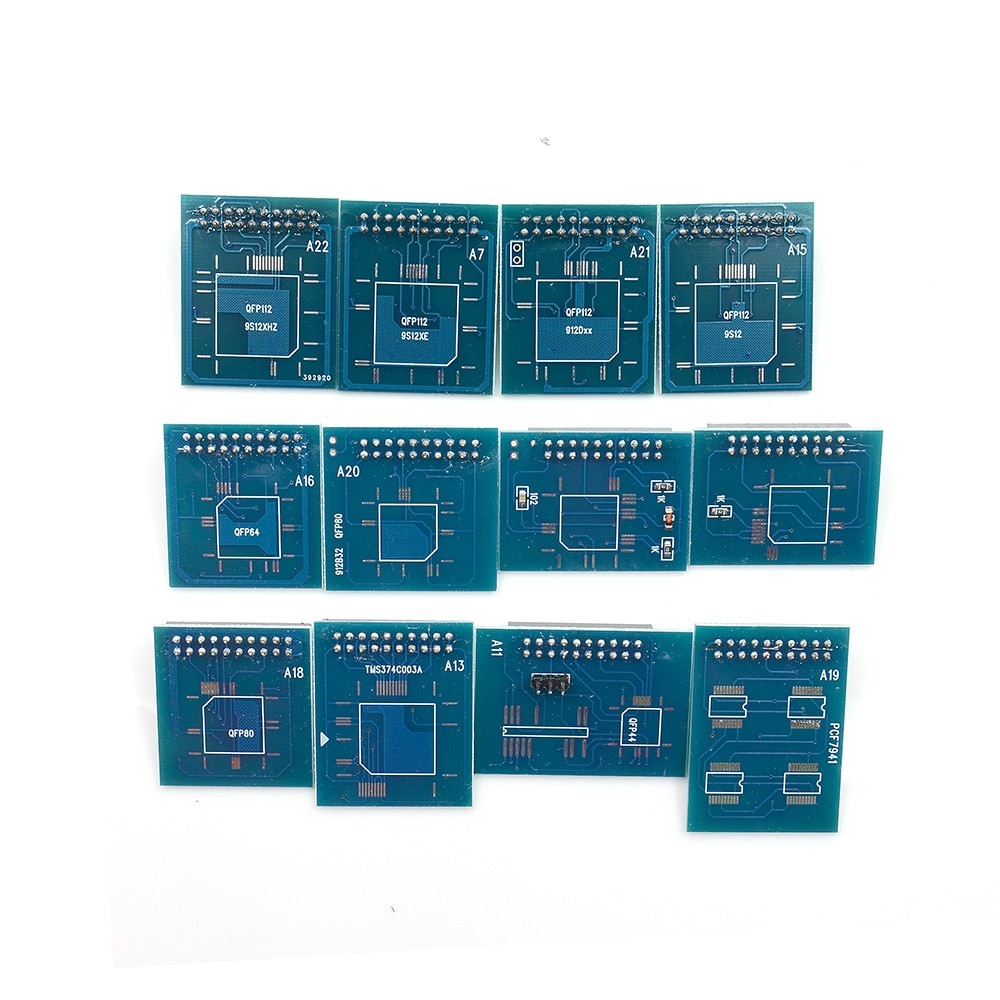

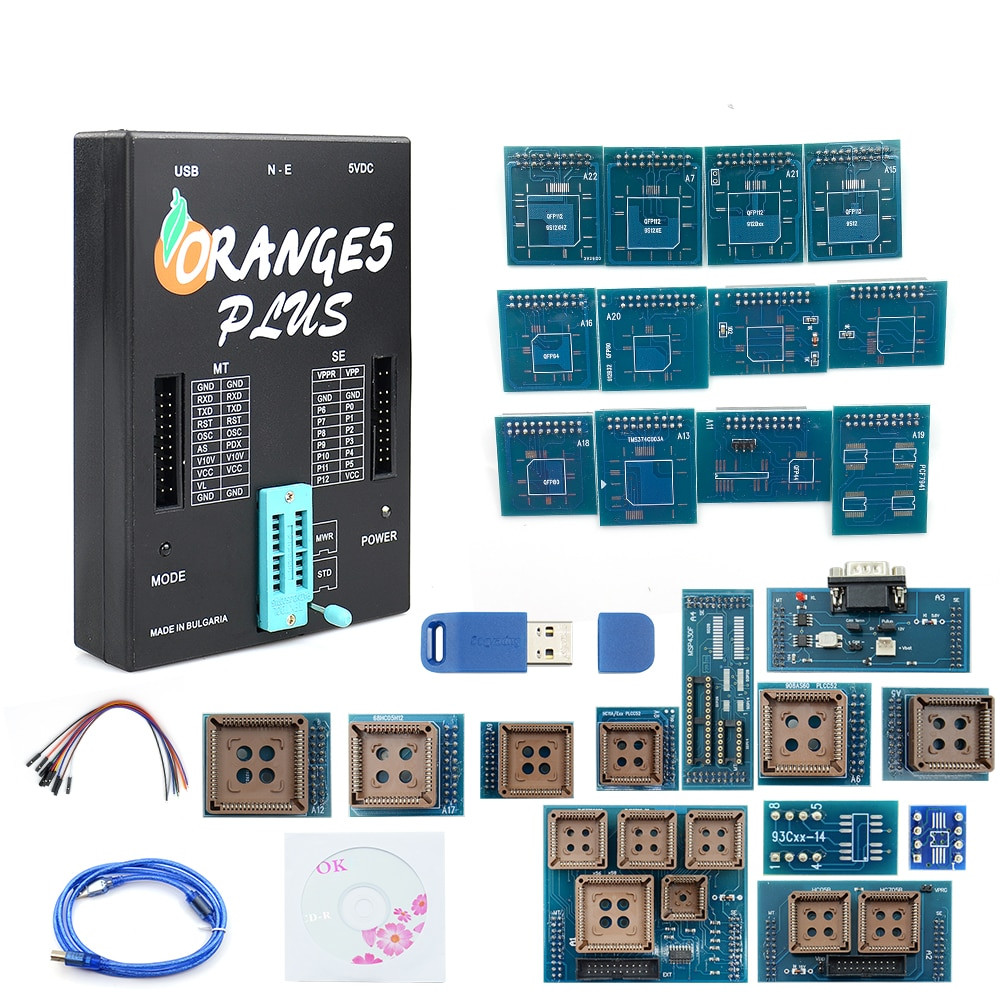

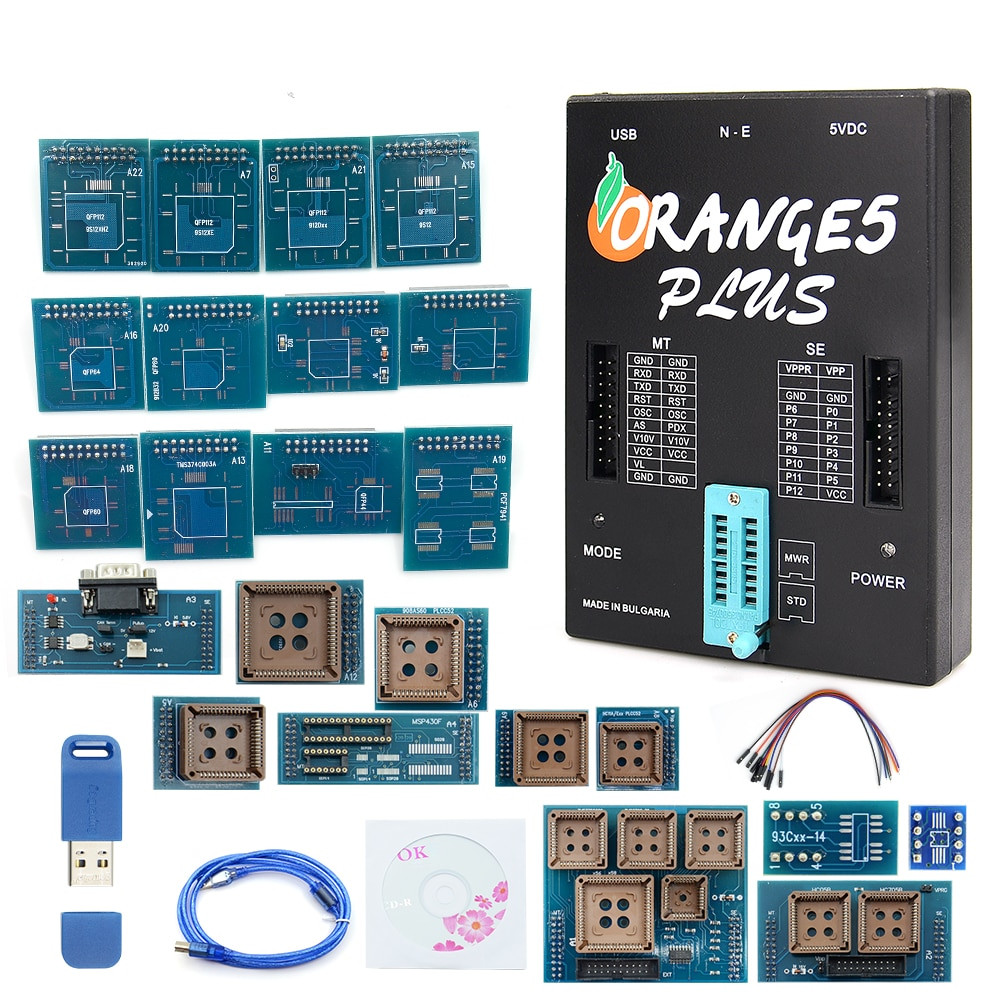

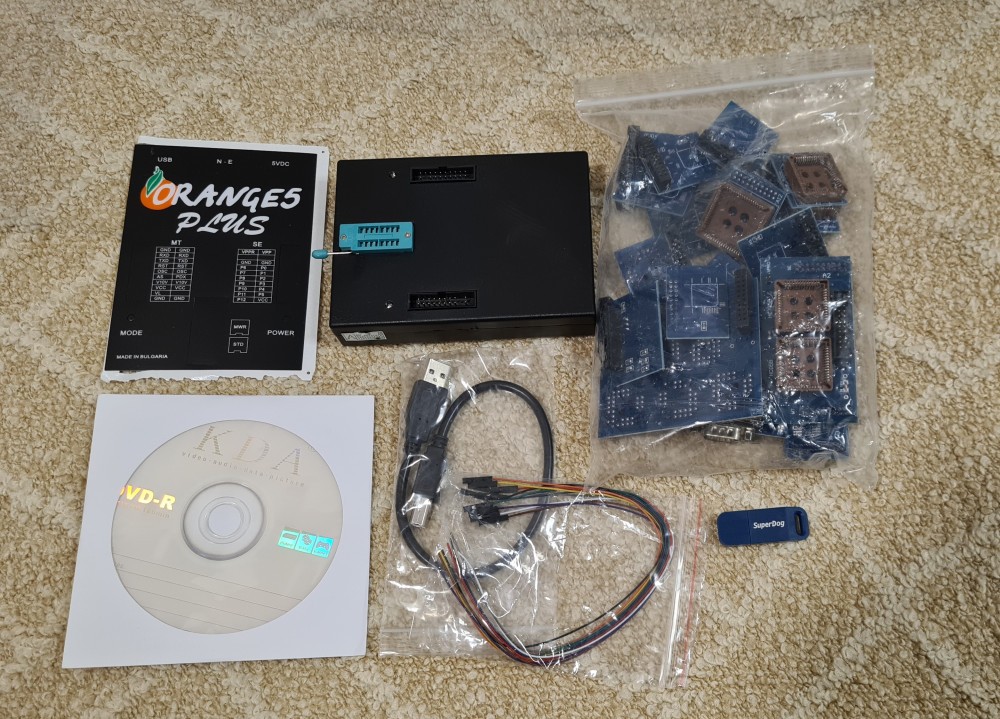

Packiage List:
Orange-5 programmer
1
Power adapter 1
USBcable 1
Incircuit wire 10
SOIC8/DIP8 Expert adapter
1
SOIC8/DIP8 adapter
1
SOIC8_14_93Cxx adapter
1
SSOP8/DIP8 1
Lead with clips SOIC8 & DIP8
1
Adapter 05L28/05B
1
Adapter 908AS60/AZ60
QFP64 1
Adapter 68HC(7)05P3/E6
1
Adapter 05B/X_705B/X QFP64 V2
1
Adapter 11PA8/11E9 QFP64
1
Adapter 68HC05H12
1
Adapter 68HC11EA9
1
Adapter 908AS60
1
Adapter 9S12Dxx 1
Adapter 912Dxx 1
Adapter 9S12X 1
Adapter 912B32 QFP80
1
Adapter 68HC11F1
1
Adapter 68HC11L6
1
Adapter 68HC11KA4
1
Lead 11E9(20) with power
1
Lead for EWS3 mask 0D46J
1
Adapter TMS374C003A
1
Adapter MSP430F 1
Adapter 68HC11KA4 PLCC68
1
Adapter 908JL
1
Adapter PCF7941 1
Adapter 9S12XE
1

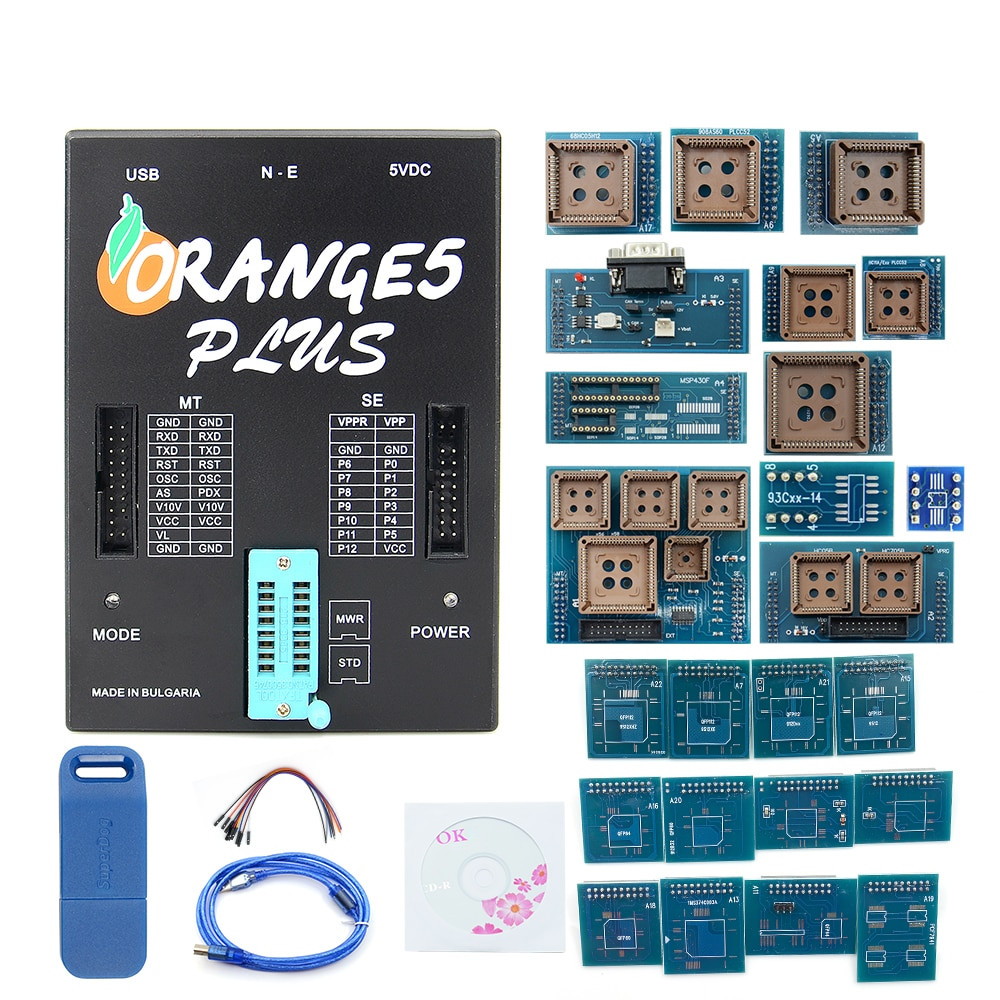

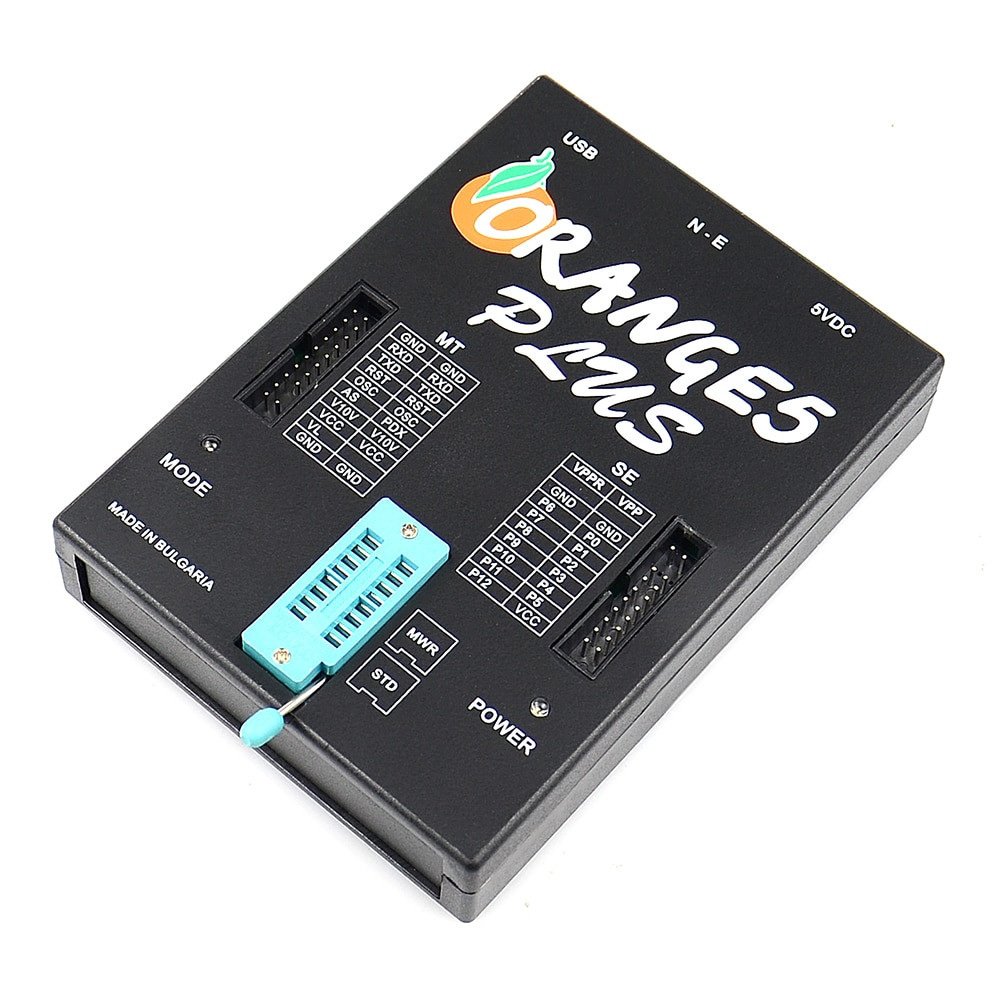

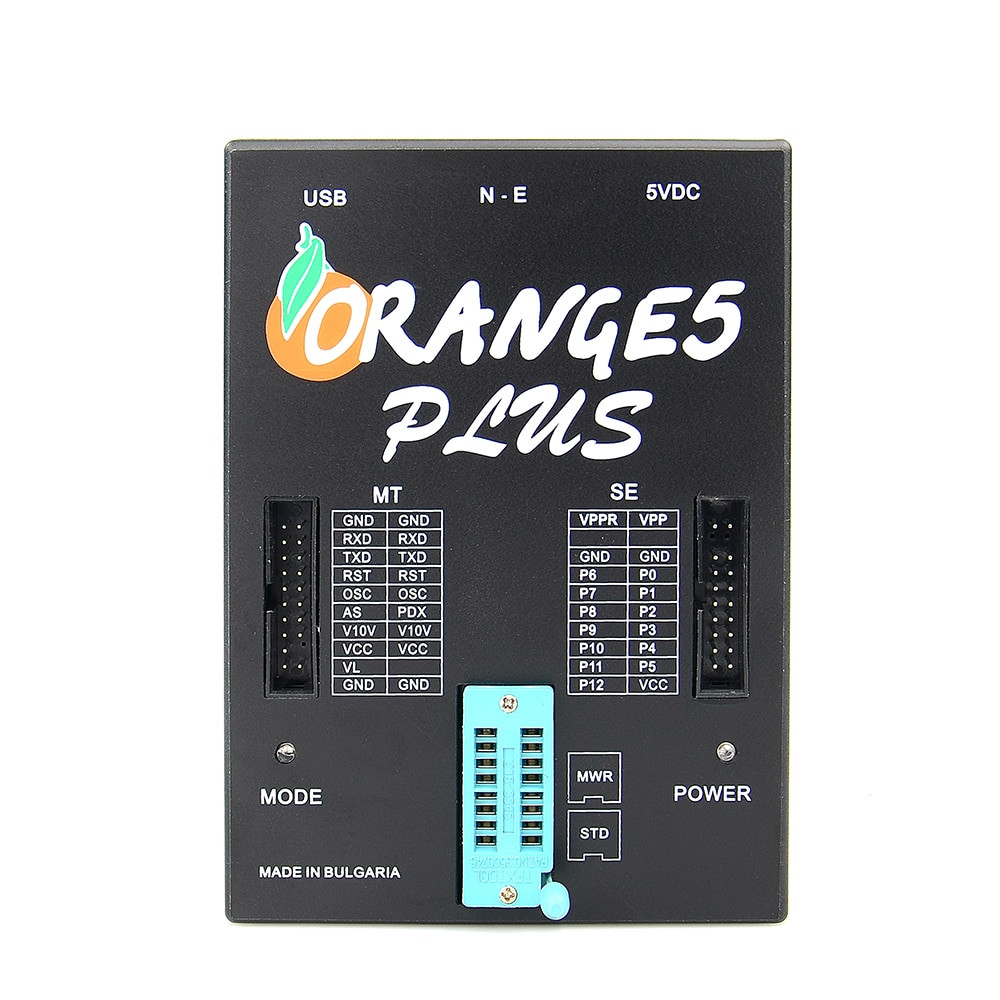

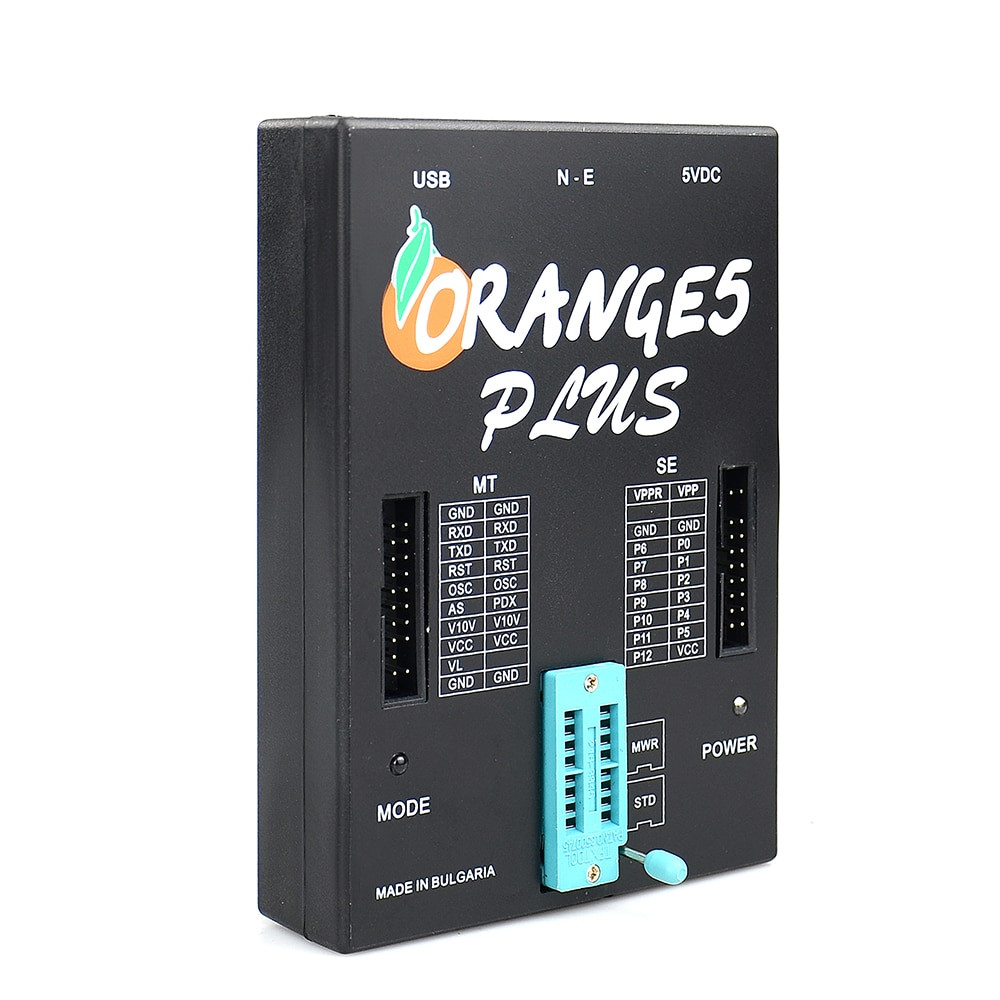

Orange 5 Plus
V1.35
Orange 5 full
set
