Programator V1.3.0.14 Super UPA RED - rosu USB + 21 daptoare UUSP
Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc
2 disponibile
Produs:
Nou, Certificat de garanție 6 luni
Politica de retur:
Acest produs poate fi returnat in 14 zile
Detalii
Plata:
- La predare
- Ramburs
- Avans
100% pozitive
(din 2479
)
)
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
New
Upa-usb is the full set with all
adapters.
The main Device can be directly connected to
the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional
DB9 male / female 1:1 extension cable. It's equipped with an 40pin
ZIF Socket for all narrow and wide DIP / DIL devices as well as
with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most
commonly used devices.
New UPA USB Programmer with Full
Adaptors
Language: English
Software
Vesion: V1.3
UPA USB Programmer
Description:
New Upa-usb is the full set with all adapters,
The main Device can be directly connected to the Elrasoft.com UUSP
(UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1
extension cable. It's equipped with an 40pin ZIF Socket for all
narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF
(150mil, narrow) socket to cover most commonly used
devices.
Device configuration is done over special
config keys which make the work convenient and safe compared to
wiring up all manually.
Additional packages can be covered by commonly
available Adapters plugged into the 40 pin ZIF socket.
The main Device further includes a 10 pin ISP
connector where the included ISP Adapters can be connected using a
standard 1:1 flatribbon cable (included). The included PLCC ISP
Adapters are to be put directly over the soldered chip of the
target device making the work convenient and safe compared to
soldering or using clips connecting up all manually. (Power from
the UUSP to the ISP target can be enabled or disabled by a jumper
next to the 10 pin ISP connector)
UPA-USB Device Programmer V1.3 Update
Info:
Added MC9S12HY64/HA32 support
Added Serial Flash memory support:
A25L512/010/020/040/080/016/032,
SST25VF512A/010A/020B/040B/080B/016B/032B,
S25FL004A/008A/016A/032A/064A
Added 24C1024, 24C1025 support
Added Bulk erase data memory to PICs
16F913-7/946, 12F629/675
Added script function GetPage
Added script function AutoBaudRateDevice (hc08
devices only)
Added script function
GetProgrammerFrameChildCtrl( AChildCtrlName: string):
TControl
Added script function EnablePicMemoryAreas (
AProgram, AID, AConfig, ACalibration, AEEPROM: boolean ):
boolean;
Fixed bug with script functions ProgramDevice,
ReadDevice ... when used with PICs
Fixed bug with SetHC08SecurityBytes (SecBytes:
string) function
Fixed bug with 68hc11 reading if Oscillator is
not set to Auto
Updated script example files
The software is digitally signed
USB driver upausb.sys is digitally
signed
EEproms
Simply connect the mainboard to the UPA
programmer directly or by using a DB9 male / female extension cable
(1:1). Insert the correct config key into the slot of the mainboard
and start programming either via the ZIF or SOIC Socket. You can
also use the included DIL to 10pin Flat-ribbon header, put it
inside the ZIF socket and wire up an SOIC clip or clamps for ISP
use from there.
Motorola MCU's
Pick the Adapter you want to use, attach the
flat cable to the Adapter (PIN1 is always indicated, on both the
cable and also the Adapter) and also to the main board's 10pin ISP
connector. Select the VCC supply source by the jumper on the
mainboard next to the ISP connector (on = target supplied from upa,
off = target got own supply). Slide the Adapter over the soldered
PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no
pin counting, saves lots of time and hassle and let's you make your
job faster, precise and easier)
Once your workshop is equipped with our
Adapter Set you will have a all new UPA Experience.
STMicroelectronics ST62*:
ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9),
CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
Motorola HC05*: MC68HC05B6, MC68HC05B8,
MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6,
MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*, MC68HC05X16,
MC68HC05X32
Motorola HC08*: MC68HC08AS20, MC68HC08AS32,
MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60,
MC68HC908AZ60A
Motorola HC11*: MC68HC11A1, MC68HC11A8,
MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4,
MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8,
MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
Motorola HC12*: MC68HC912B32, MC68HC912BE32,
MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128,
MC68HC912DG128A
Motorola HCS12*: MC9S12D64, MC9S12A128,
MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256
Atmel 8051 Architecture: AT89S51, AT89S52,
AT89S53, AT89S8252, AT89S8253
Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313,
AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515,
AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163,
ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15,
ATtiny2313
Microchip PIC12: PIC12F508, PIC12F509,
PIC12F629, PIC12F675
Microchip PIC16: PIC16F627(A), PIC16F628(A),
PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77,
PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871,
PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A),
PIC16F877(A)
EEPROMs I2C: 24C01, 24C02, 24C04, 24C08,
24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82,
85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814,
PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116,
SDA2516, SDA2526, SDA2546, X24C00, X24C01
EEPROMs Microwire: 7002, 93C06, 93C14, 93C46,
93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001,
GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
EEPROMs SPI: M35080, 25C010, 25C020, 25C040,
25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10,
M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080,
ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043,
X5045
EEPROMs Miscellaneous: CXK1011, CXK1012,
CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101,
TC89102
*EEPROM Only
NEC ..uDP780828A uDP780948 uDP780949 uDP780973
uDP780974
TMS...TMS370CX02 TMS370CX32 TMS370CX36
TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912
TMS370CX58 TMS370CX58 78K0/HC912
TMS375C006

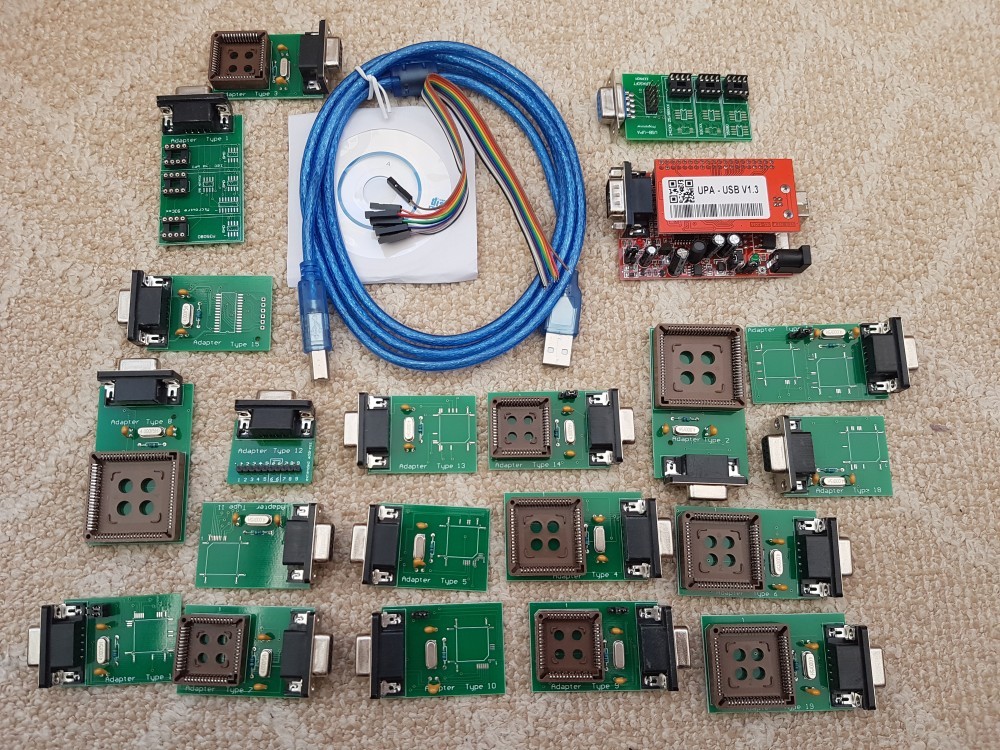

Package List:
1pcXMain unit
1pcXUSB cable
1pcXCD
1pcX5pin cable
1pcXAdapter Type1 Per eprom I2C,SPI, Microware
e M35080
1pcXAdapter Type2 Motorola
MC68HC11P2+MC68HC11PH8-PLCC84
1pcXAdapter Type3 Motorola
MC68HC08AS-PLCC52
1pcXAdapter Type4 Motorola
MC68HC11KA2/4+MC68HC11KS-PLCC68
1pcXAdapter Type5 Motorola
MC68HC(9)08-QFP64
1pcXAdapter Type6 Motorola
MC68HC11F1-PLCC68
1pcXAdapter Type7 Motorola
MC68HC05H12-PLCC52
1pcXAdapter Type8 Motorola
MC68HC11K-PLCC84
1pcXAdapter Type9 Motorola
MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52
1pcXAdapter Type10 Motorola
MC68HC11KA2/4+MC68HC11PA8-QFP64
1pcXAdapter Type11 Motorola
MC68HC11K-QFP80
1pcXAdapter Type12 Extended
address
1pcXAdapter Type13 Motorola
MC68HC11A8/E1/E9/E20-QFP64
1pcXAdapter Type14 Motorola
MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
1pcXAdapter Type15 Motorola
MC68HC(7)05E6-SOIC28
1pcXAdapter Type16 Motorola
MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
1pcXAdapter Type17 Motorola
MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80
1pcXAdapter Type18 Motorola
MC68HC11F1-QFP80
1pcXAdapter Type19 Motorola
MC68HC11L6-PLCC68
