Programator XPROG-M 6.12 ELDB V6.12 ECU Chip Tuning - New Generation Hardware

Product Description

New XPROG-M 6.12 ELDB V6.12 ECU Chip Tuning Tool With USB Dongle

Top 6  Reasons to Get Newest XPROG-M V6.12:

1. New Generation Hardware, runs more steady and faster than old version.
2. Latest software version: V6.12, Firmware: V4.4
3. Add new authorization: AUTH-0028-3 Renesas RL78 Authorized and AUTH-0028-4 Renesas M32C Authorized
4. Language: English
5. Operating system: WinXP/Win7/Win8
6. With USB Dongle, No need activation

XPROG-M V6.12 Using Tips:

1. XPROG-M V6.12 dongle isn't compatible with older version Xprog.
2. Please close all anti-virus software in your computer, because the anti-virus software will kill Xprog-M V6.12 driver.
3. Disconnect internet. If not, the internet may damage XPROG hardware.
4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG-M V6.12 hardware is not compatible with other versions of XPROG software.
5. Never try to UPDATE it, the hardware will be damaged if you try to update it online.

Installation Notice:

The windows system requirements are as follows:
1. Windows system should be windows XP 32bit or windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...
2. The windows system should be with at least 2 partitions (except the CD ROM.)
3. Can not be working with virtual hard disk.

Software Install:

1. Click the file "installation.reg", get the file information to the regedit.
2. The file "AdbeRdr11000_zh_CN.exe" must be installed, otherwise the Xprog software will fail to start.
3. Plug the Xprog main interface to the computer and install the USB driver.
4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then open the software.

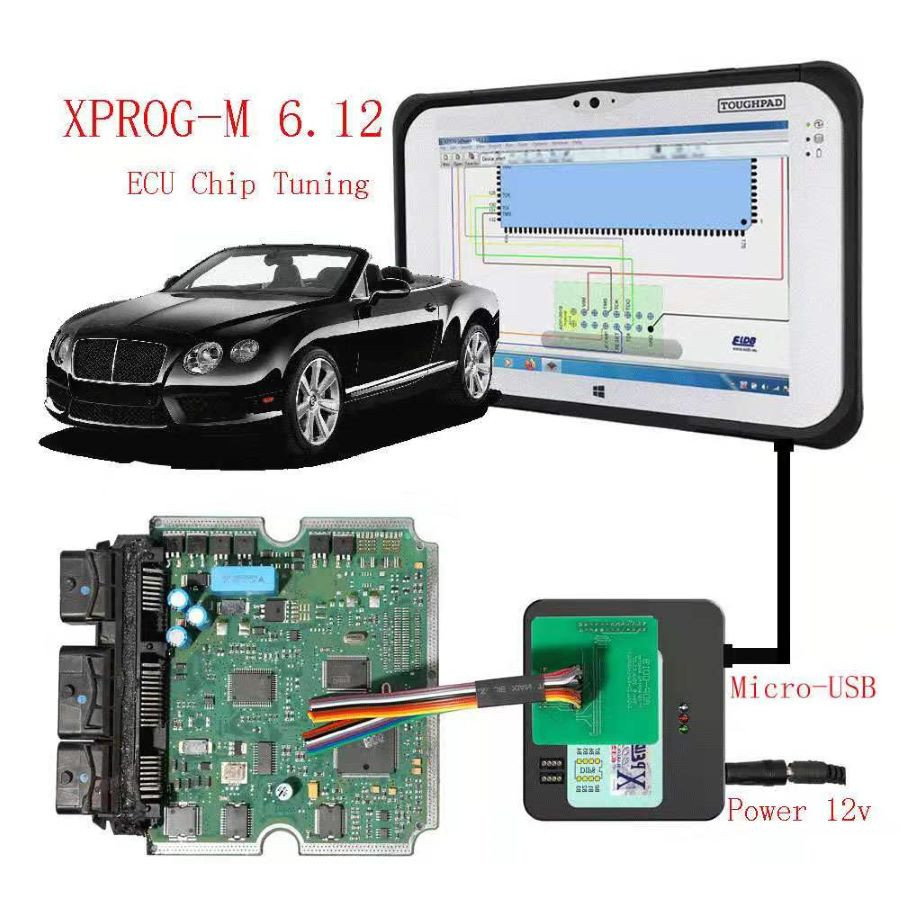

XPROG-M V6.12 Connection Display:

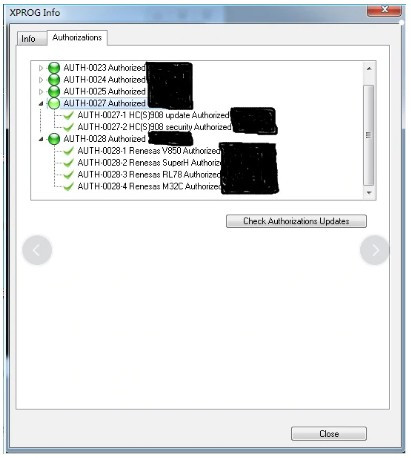

 XPROG-M V6.12 Authorizations:

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 security Authorized 2016/3/13
AUTH-0028-1 Renesas V850 Authorized 2017/10/9
AUTH-0028-2 Renesas Super H Authorized 2017/10/9

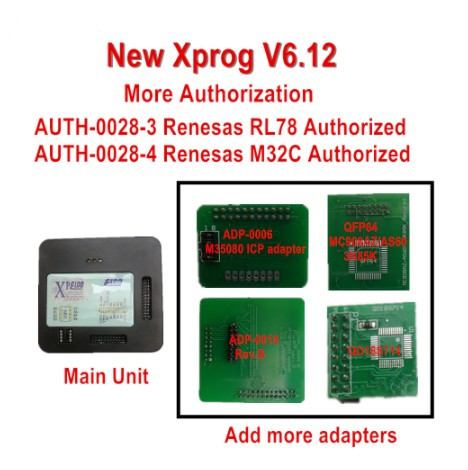

XPROG-M V6.12 Newly Added Authorizations:

AUTH-0028-3 Renesas RL78 Authorized
AUTH-0028-4 Renesas M32C Authorized



XPROG-M V6.12 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

XPROG-M V6.12 Newly Added Adapters:

ADP-0019 Rev.B
ADP-0006 M35080 ICP adapter
QFP64 MC908AZ/AS60 3K85K adapter
QO18S714

Additional Adaptor for 5M48H P-Flash

ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

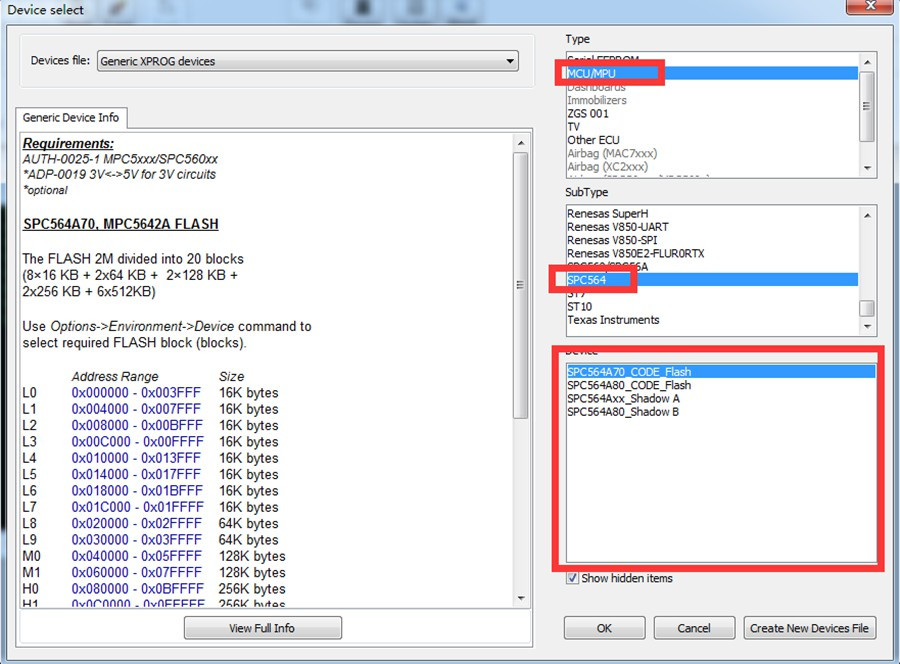

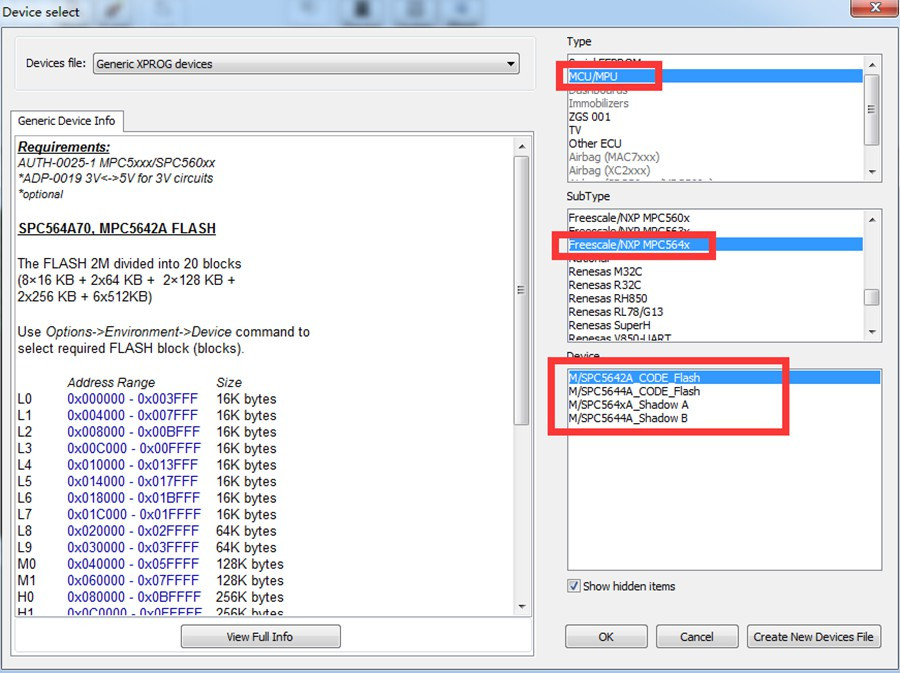

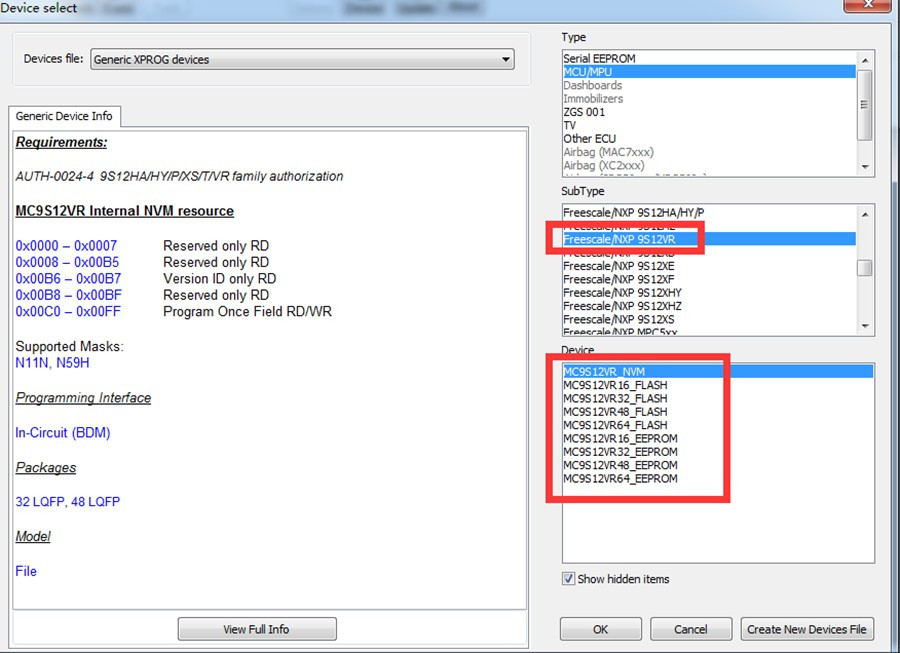

XPROG-M V6.12 added functions(a part) are shown below：





XPROG V6.12 PCB VS XPROG V5.84 PCB:

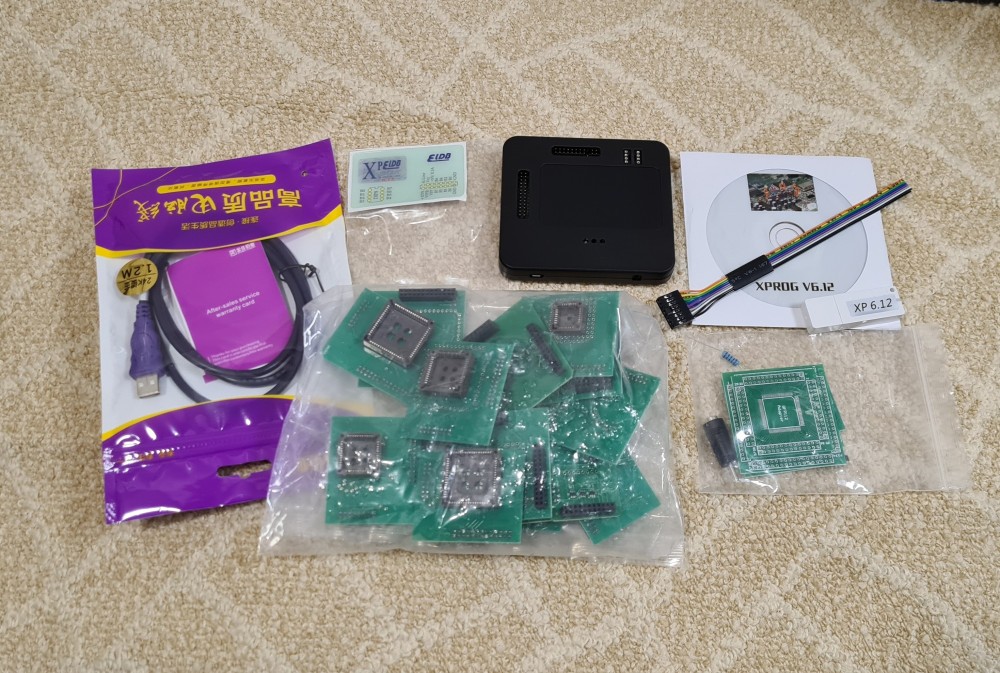

Package includes:

1PC x XPROG-Box Hardware (Aluminum Enclosure)
19PCs x Adapters Set
1PC x USB Cable
1PC x 16Pin Cable
1PC x CD with XPROG-Box Software (V6.12)

XPROG-M 6.12 Feedback:

Review 1:
work perfect  today
cas 3 read ok
jcb tacho HC908LJ12 ok
Colt airbag hc12d64 ok

Review 2:
I work on that 6.12 for two weeks. It doesn't work on VM, but I installed in on 64bit Win 10, works properly, but this chinese adobe is not working.
Xprog is working like a charm, the only drawback is that I had to copy the connection diagrams and rename the files to have easy access, as without adobe there is no diagrams within the software.
So if opening pdfs manually is not a problem to You, than it's a good tool

Review 3:
all opened authorization work fine.
