Programator Yanhua YH35XX pentru 35160WT/35128WT EEPROM F chassis odometer 35128WT G chassis VDO odometer

Product Description

Yanhua YH35XX Programmer for 35128WT Read/Write

This package come with both Yanhua YH35XX Programmer and Yanhua YH35XX Simulator

Features:

Independent programmer with software; it can deal with M35080/ M35080-3/ M35080-6/ M35080V6/ M35080VP/ 80DOWQ/ 080DOWT/ 160DOWT/ 160DOWQ/ 35160WT*/ 35128WTchip.
No need any other tools to do the odometer correction.

Support BMW full series clusters！

As we all know，bmw dashboards from August 2015 are equipped with a 35160WT/35128WT EEPROM which is not erasable and has page-id which locks this memory to its own  dashboard-micro.
If you need to correct such dashboards you CANNOT erase or substitute the original memory with recovered/bought one. You have to emulate the original memory with our emulator.

Software can be run directly when the programmer is connected to PC;
Simulator replaces the original 35160WT/35128WT EEPROM;
Easy to use;
No risk;
No red dot on odometer;



Models covered:

F classis odometer with 35128WT EEPROM
G classis  VDO odometer

YH35XXProgrammer + Simulator Instruction

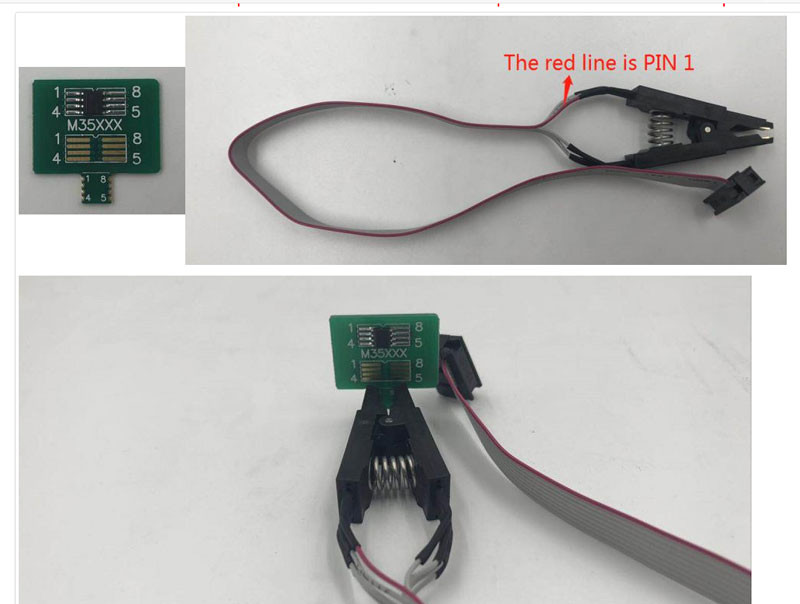

1. Dismantle the original 35XX EEPROM from the odometer and solder it to the adaptor board.Then clamp the adaptor board with the solder-free clamp.Make sure the direction of the adaptor board and solder-free clamp is correct.

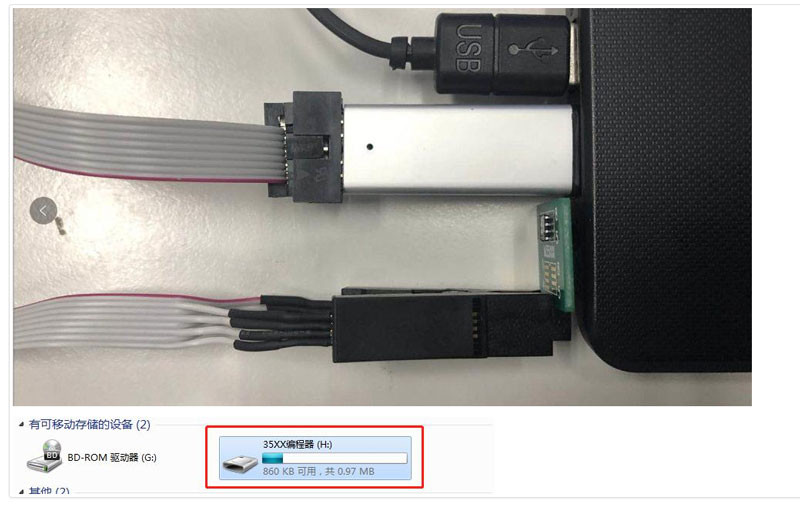

2. Plug the YH35XX programmer into the USB port of the PC，Click "computer" and it will recognize a usb flash drive named 35XX programmer.

PS: It can only work in Windows 7 and Windows 10 PC

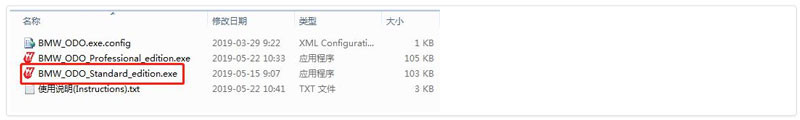

3. Click U disk35XXprogrammer,Double-click "BMW_ODO_Standard_edition. exe" to open the software.

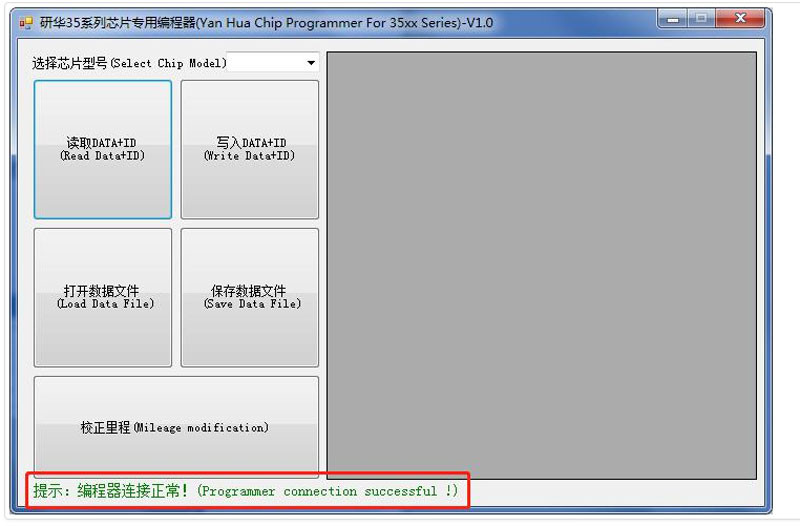

4. Wait for the prompt: Programmer connection successful,Then run it.

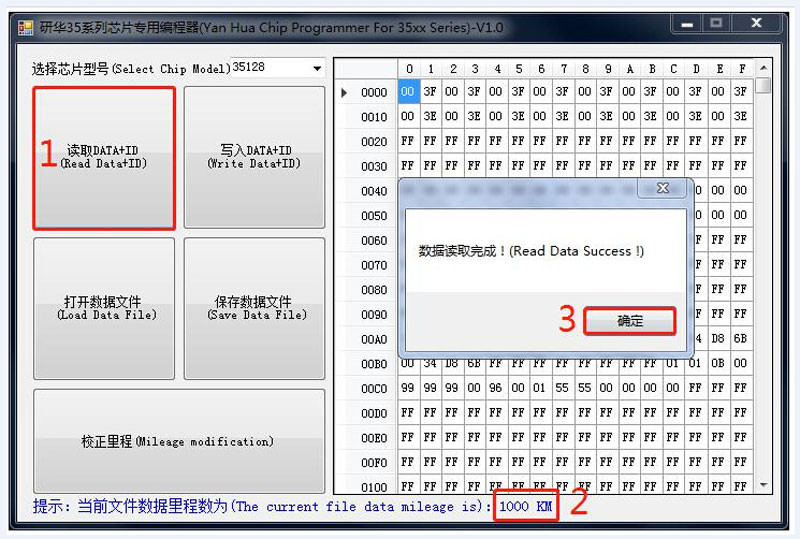

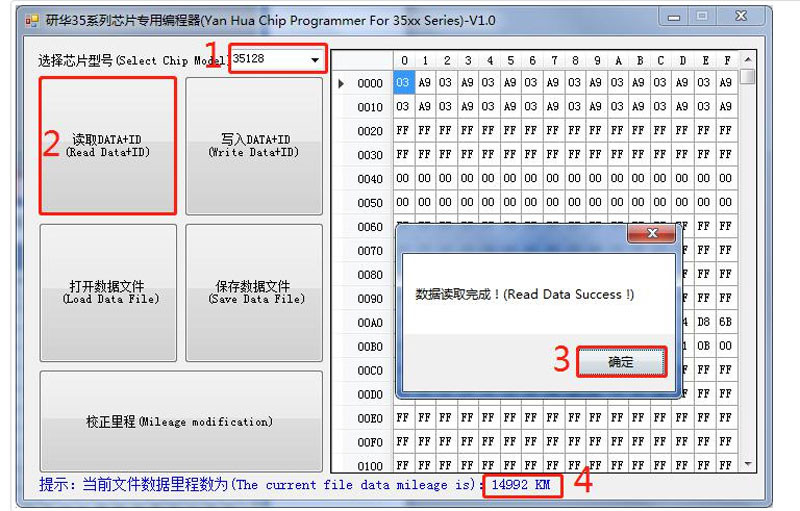

5. Select the EEPROM model and click "Read DATA+ID",check whether the read mileage is the same as the actual mileage.

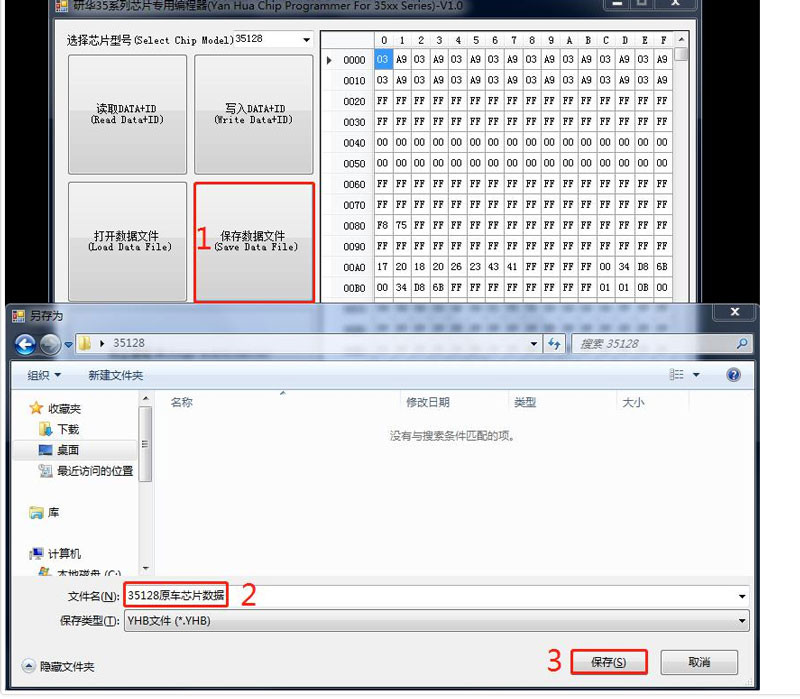

6. Click "Save Data File",Save the original data of original EEPROM to the folder.

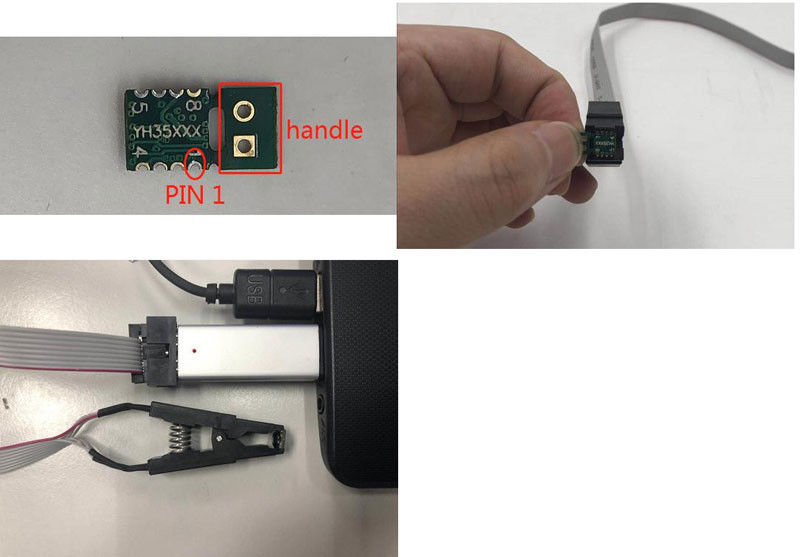

7. Hold the handle of the simulator,Clamp the Simulator with the solder-free clamp.Pay attention to the direction.Then connect the solder-free clamp to the programmer, connect the programmer to the PC.

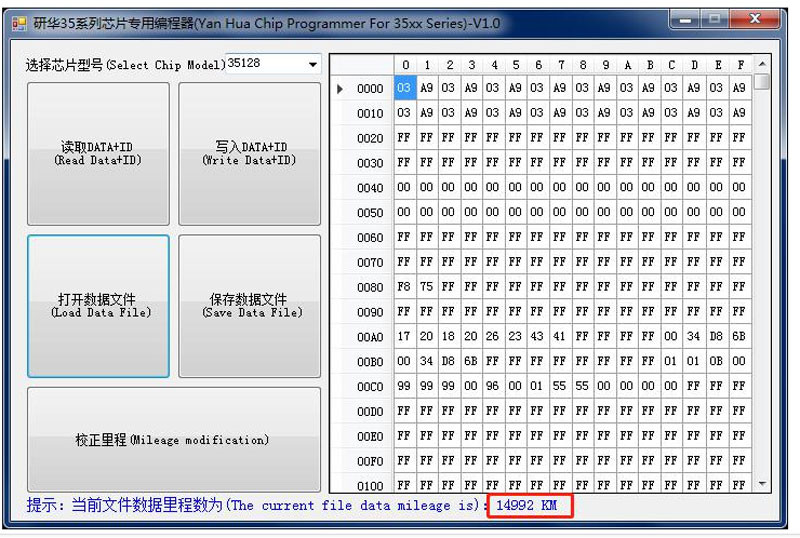

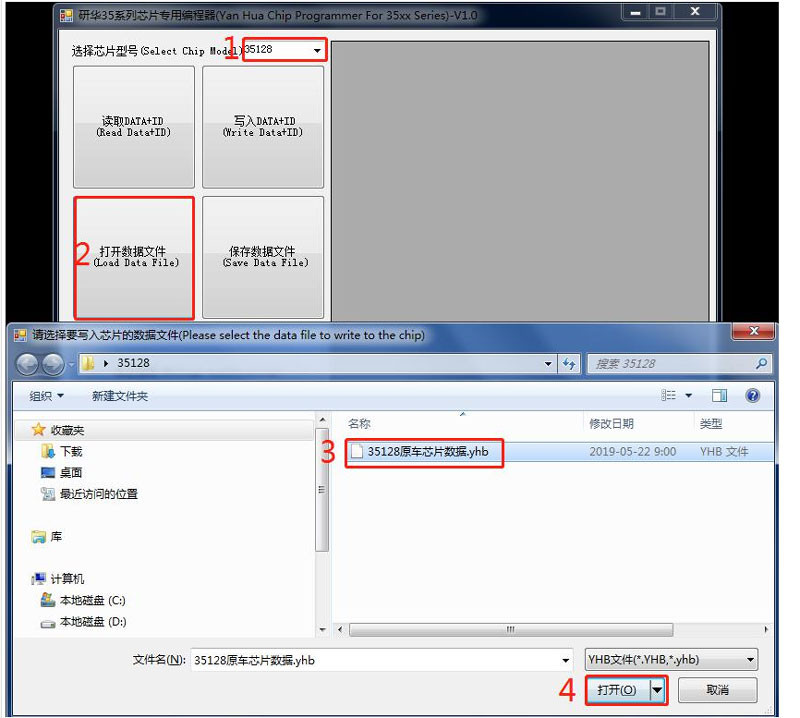

8. SelectEEPROM model, click "Load Data File",Select thecorresponding data of original EEPROM and load it. Check whether the displayed mileage is the same as the mileage displayed in odometer.

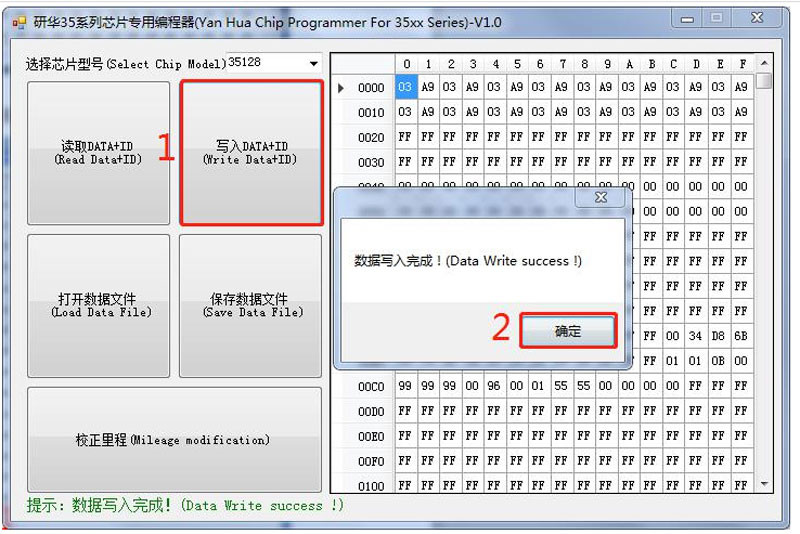

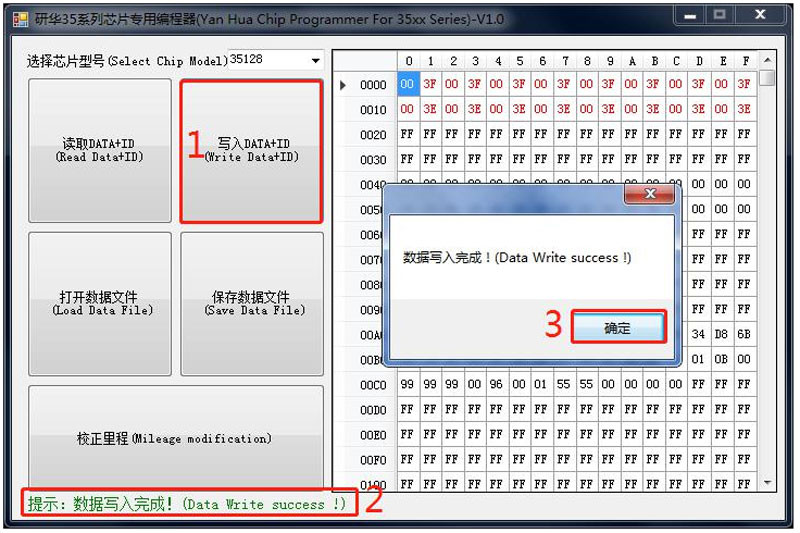

9. Once the mileage is confirmed, click "Write DATA+ID",Write the original data into the Simulator.

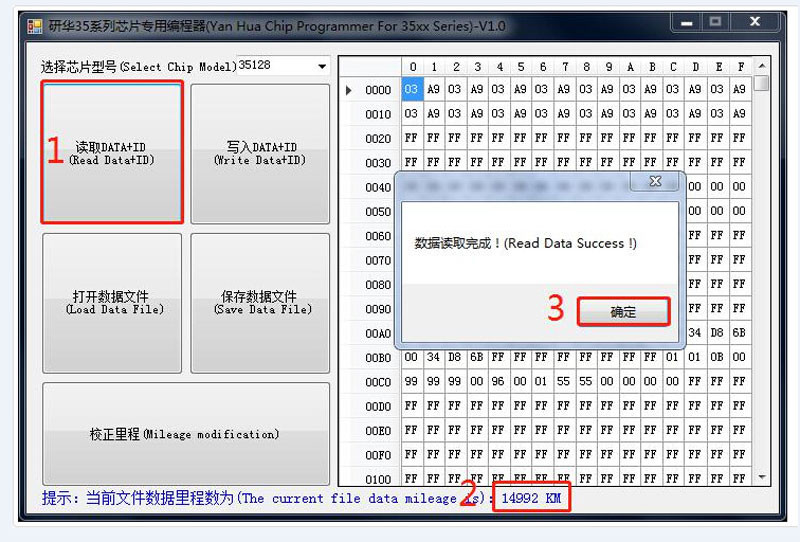

10. Click "Read Data+ID", read the data written into the Simulator, and check the mileage.

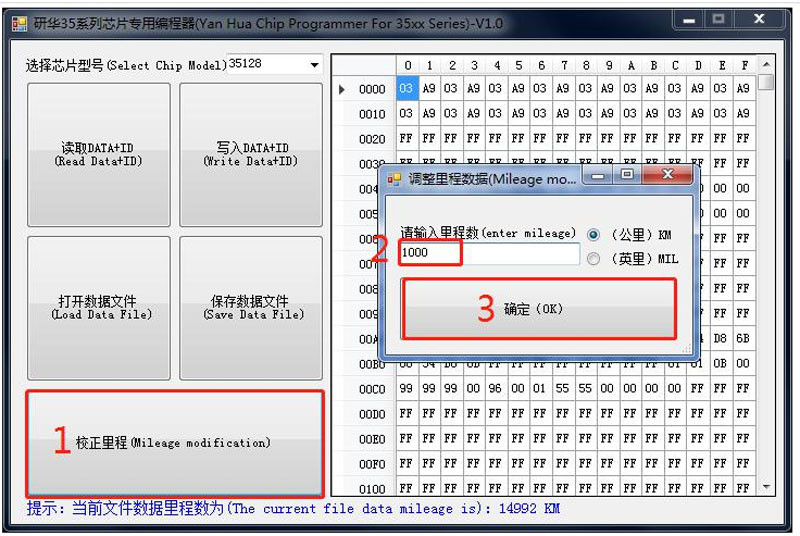

11. After the mileage is confirmed, click "Mileage modification" and input the mileage you want.




12. After confirm the input mileage is correct,click "Write DATA+ID" to write the modified data into the Simulator.

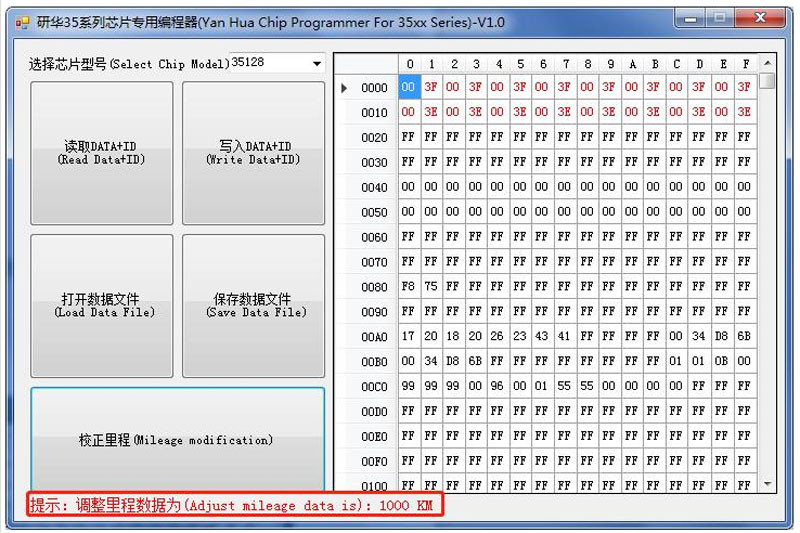

13. After the data is written, click "Read DATA+ID" to check whether the mileage modification is correct.

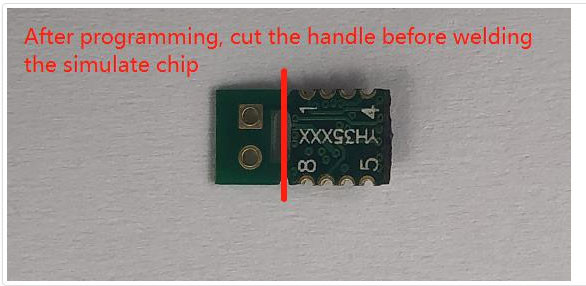

14. If the displayed mileage is the same as what you want, cut off the handle of the Simulator, and solder the Simulator to the original EEPROMposition.Pay attention to the EEPROM direction.Install the odometer back to the car to verify whether themileage modification is successful.

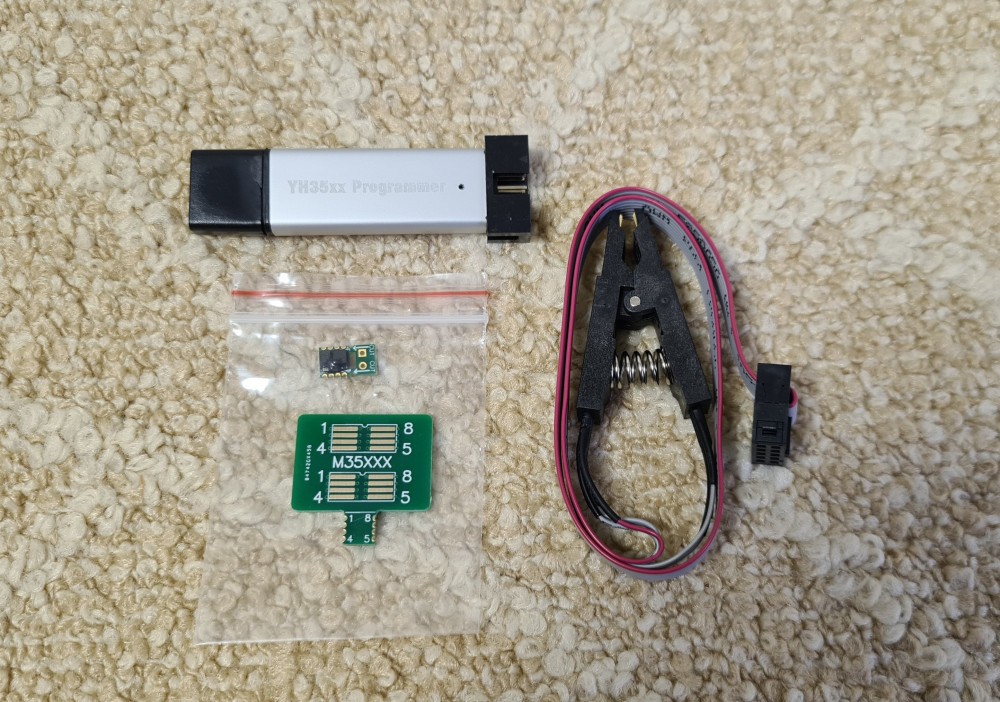

Package includes:

1pc x YH35XX Programmer
1pc x Simulator
