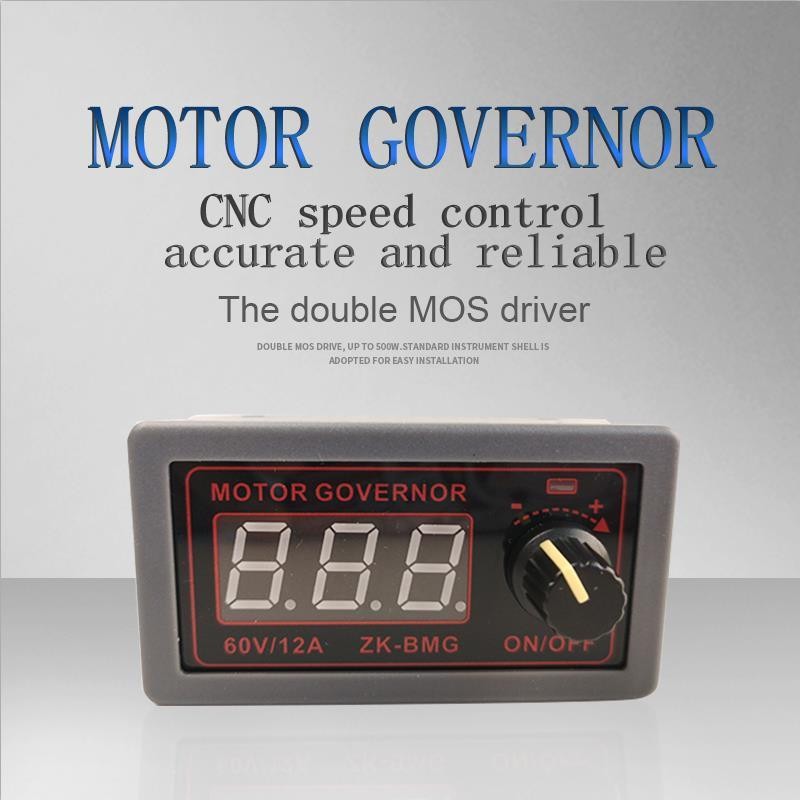

Regulator variator controler turatie motor 9 - 60V 12A

Modul regulator de turatii pentru motoare de curent continuu.

Specificatii:

Tensiune de intrare: DC 9-60V

Curent maxim de iesire: 12A
Eficienta de conversie: 94%
Frecventa de operare 1 - 99KHZ
Protectie: scurt circuit
Dimensiune placa: 79x43 mm
Protectie la sarcina maxima
Protectie la polaritate inversa

SETUP
DENERAL
1: Short Press: Momentary (Press & Release)
2: Long Press: Press & Hold until Display Changes (~10sec. Release after)
NOTE: Normal Display default is Duty Cycle
3: Connect Power (BE SURE OF CORRECT POLARITY)
NOTE: DO NOT CONNECT LOAD UNTIL SETUP IS FINISHED

4: Normal Mode: (Duty Cycle ”Speed” Adjust)
4.1: Short press Digital Pot: Turn Output ON/OFF (Alternate Action)
4.2: Increase Duty Cycle: Rotate Digital Pot clockwise:
4.3: Decrease Duty Cycle: Rotate Digital Pot counterclockwise

5: Limit (Parameter) Set Mode: Long press Digital Pot to select the Parameter Set Mode.
5.1: Short press Digital Pot to scroll through parameters:
Default Output (ON/OFF )@ Power Up, Duty Cycle Lower Limit, Upper Limit and Output Frequency
5.1.1 Default Output State: Display shows “ON” or “OFF” (SEE EXAMPLE 1)
5.1.2 Lower Limit Value: Display shows “L” and a 2 digit number. (SEE EXAMPLE 2)
Upper Limit Value: Display Shows “H” and a 2 digit number OR “100” (100%)
5.1.3 Output Frequency display in “F” and 2 digit number
5.2: Set Default Output State @ Power Up: Rotate Digital Pot clockwise or Counter Clockwise (ON/OFF will Alternate)
5.3: Increase Upper Duty Cycle Limit: Rotate Digital Pot clockwise
Decrease Upper Duty Cycle Limit: Rotate Digital Pot counterclockwise
5.4: Increase Lower Duty Cycle Limit: Rotate Digital Pot clockwise
Decrease Lower Duty Cycle Limit: Rotate Digital Pot counterclockwise
5.5: Set Frequency:
Increase Frequency: Rotate Digital Pot clockwise
Decrease Frequency: Rotate Digital Pot counterclockwise
5.6 : Exit & Save/Return to Normal Mode: Long press Digital Pot until Display Changes (~5sec)
