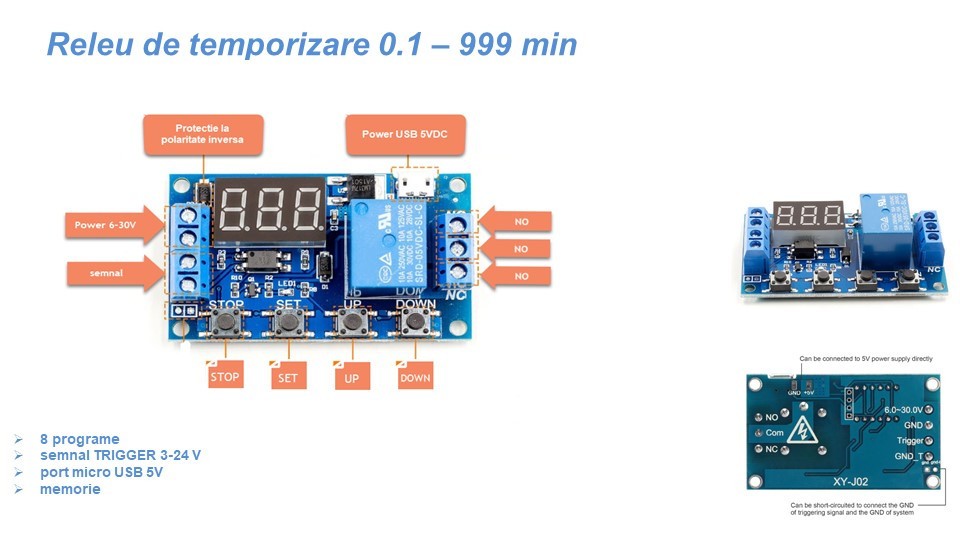

Releu temporizare temporizator timer 12V 24V microUSB 0.1-999min

Releu cu temporizator si display 6-30V micro USB 0.1-999 min

Modul pentru aplicatii de temporizare. Se poate alimenta cu 5V micro USB, suporta alimentare intre 6-30V cc. Are functie de TRIGGER cu tensiune intre 3-24 V cc, protejat cu optocuplor .
Configuratia ramane salvata dupa oprirea alimentarii.
Displayul se opreste automat dupa 5 minute.

Specificatii:
• Tensiune de alimentare 6-30V sau 5V micro USB
• Tensiune functie TRIGGER 3-24V dc
• Capacitate maxima de icarcare releu : max 5A AC DC
• Domeniul de reglare 0,1 sec – 999 min
• Numar programe 7

P1: (Require an external trigger signal)
After trigger signal received, turn on the LOAD for OP time then turn off the LOAD and waiting for next signal to on again.
Below are the options while OP is operating:
P1.1: Signal being trigger again will not interrupt the OP
P1.2: Signal being trigger again start OP again
P1.3: Signal being trigger again reset the timer and waiting for trigger signal again; (Turn off the LOAD & stop timing)
P2: (Require an external trigger signal)
After trigger signal received, turn off the LOAD for CL time then turn on the LOAD for OP time and waiting for next signal to off again.
P3.1: (Require an external trigger signal)
After trigger signal received, turn on the LOAD for OP time then turn off the LOAD for CL time, this will continuous loop / cycle.
Once trigger signal received again LOAD will off and loop will stop.
Cycle times (LOP) can be pre-set.
P3.2: (No trigger signal require)
Autorun, turn on the LOAD for OP time then turn off the LOAD for CL time, this will continuous loop / cycle.
Cycle times (LOP) can be pre-set.
P4: (Require an external trigger signal)
After trigger signal received, turn on the LOAD then start time counter
Once no more trigger signal LOAD will off and counter will stop.
Set Time
• 0.1 second (minimum) ~ 999 minute (maximum) adjustable
• Press STOP button to select the time frame by adjusting the decimal point
• xxx. – Decimal point at the back, 1 – 999 second
• xx.x – Decimal point at middle, 0.1 – 99.9 second
• x.x.x – Decimal point all light up, 1 – 999 minute
How to set
The blinking Mode at the main menu is current mode (default is P1.1)
To select the Mode by press and hold SET key for 2 seconds and select interface mode by pressing UP / DOWN key to choose the Mode (P1.1 ~ P4) and press SET to confirm
After confirm the mode, it will need to set OP Time – Power on time (Closed circuit), UP / DOWN to choose, SET to confirm
CL Time – Power off time (Open circuit), UP / DOWN to choose, SET to confirm
LOP Time – Cycle / loop times (1-999 time / --- infinity), UP / DOWN to choose, SET to confirm
After set the LOP, press and hold SET key for 2 seconds to back to main menu

Main menu
When the relay is not triggered, display shows "000" (with no decimal point).
When relay triggered will clearly show the decimal point

Vine impreuna cu manual de utilizare
