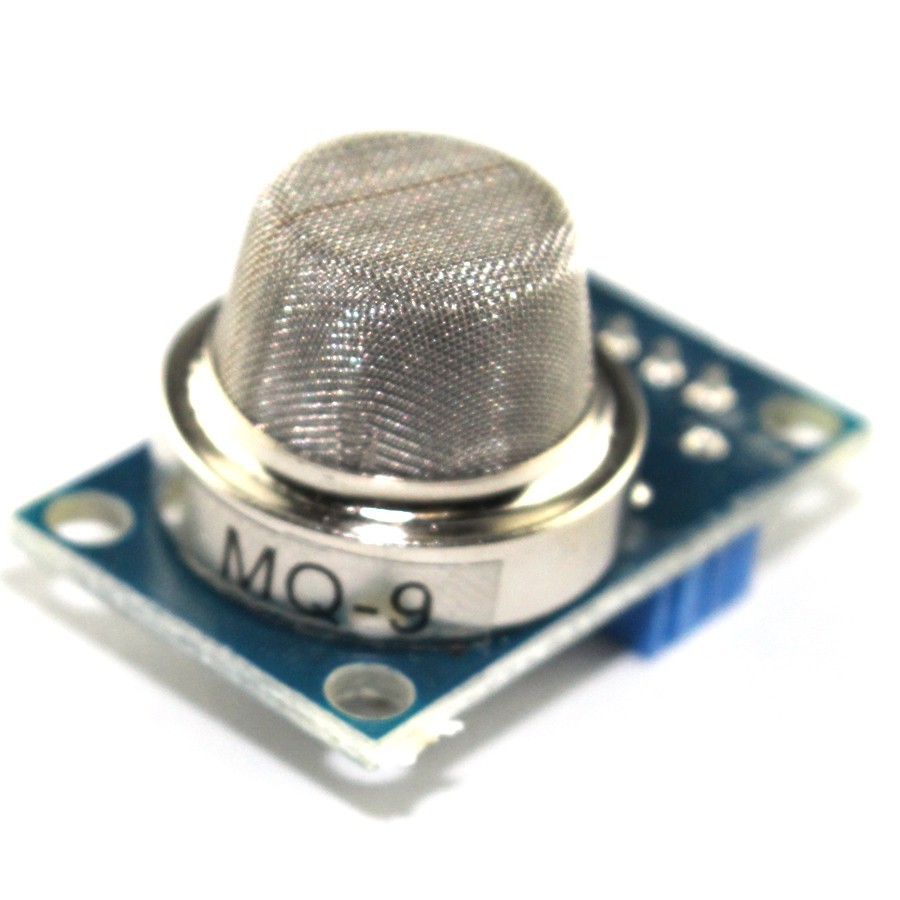

Senzor CO MQ-9 / Carbon monoxide combustible gas sensor Arduino (m.1741)

Produsul este nou!

Produsul este la fel cu cel prezentat in fotografii!

Specificații în limba engleză:

Warm tip: the store product only to provide description of the information and electronic documents, there is no technical advice and support, please take care of the novice, thank you for understanding.

MQ-9 sensor profile:

The gas sensing material used in the MQ-9 gas sensor is the two tin oxide (SnO2), which has a low electrical conductivity in the clean air.

The electrical conductivity of carbon monoxide was detected by high temperature cycling test (1.5V).

The electrical conductivity of the sensor increased with the increase of the concentration of carbon monoxide in the air.

Using a simple circuit, the electrical conductivity can be changed to an output signal corresponding to that of the gas concentration.

MQ-9 gas sensor for carbon monoxide, methane, liquefied gas with high sensitivity, the sensor can detect a variety of carbon monoxide and combustible gas, is a suitable for a variety of low-cost sensor.

Module application:

Suitable for family or factory gas leak monitoring device, suitable for carbon monoxide, combustible gas and other monitoring devices, can test the carbon monoxide 10 1000ppm CO to, combustible gas 100 10000ppm to range

Module feature:
1, the use of high quality dual panel design, with power and TTL signal output indicator;

2, with DO switch signal (TTL) output and AO analog signal output;

3, TTL output signal is low level. (when the output is low, it can be directly connected to the microcontroller or relay module).

4, the output of the analog voltage with the higher the concentration of higher voltage.

5, the detection of carbon monoxide has a good sensitivity.

6, four screw holes for positioning;

7, product appearance size: 32 (L) *20 (W) *22 (H)

8, has long service life and reliable stability

9, rapid response recovery characteristics

Electrical performance:

Input voltage: DC5V power (current): 150mA

DO output: TTL number 0 and 1 (0.1 and 5V)

AO output: 0.1-0.3V (relative no pollution), the highest concentration of about 4V

Special remind: sensor is energized, the need to preheat the 20s about, the measured data is stable, heat sensor belongs to the normal phenomenon.) because of the internal electric heating wire, if hot is not normal.

Test procedure:

Functions:

This version supporting test procedures

Chip: AT89S52

Crystal: 11.0592MHZ

Baud rate: 9600

Compiler environment: Keil

[statement] this procedure is only used for learning and reference, please indicate the copyright and author information!

Pachetul conține:
• 1 bucată x senzor MQ-9 (cod produs: m.1741)

Se expediază în toată țara prin curierat rapid în sistem ramburs.

• DPD - 15,5 lei
• FAN COURIER - 15,5 lei
• Urgent Cargus - 15,5 lei
• Poșta Romană (Prioripost) - 15,5 lei

Dacă aveți nelămuriri sau întrebări vă rog nu ezitați să sunați sau să-mi scrieți.
