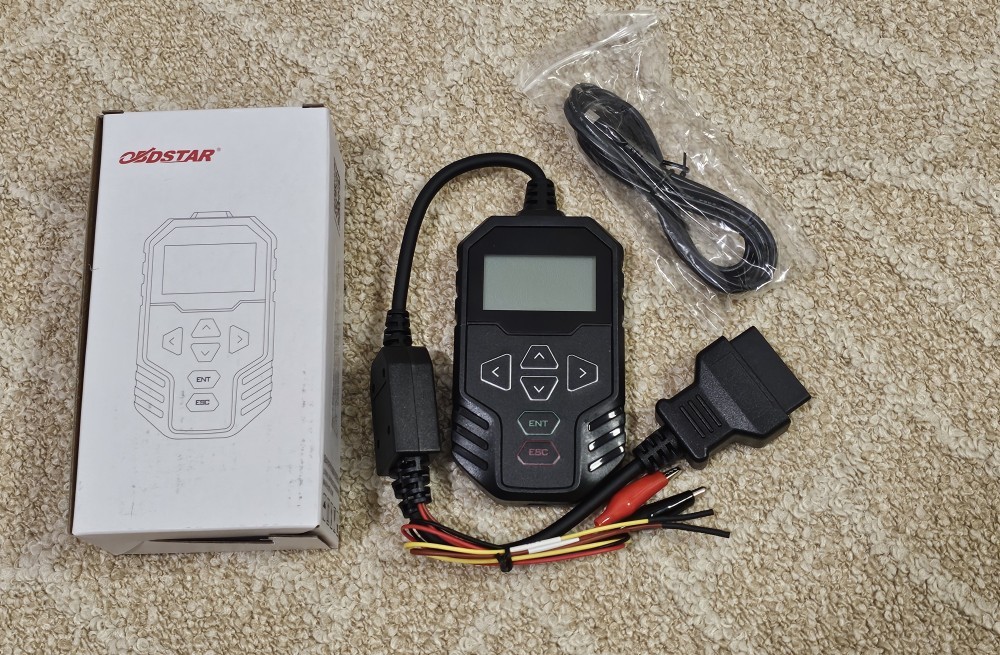

Simulator OBDSTAR MT203 CAN Driver/Gateway CAN Driver & Gateway Simulation

Name: Simulator OBDSTAR MT203 CAN Driver/Gateway CAN Driver & Gateway Simulation
Brand: Nespecificat
SKU: 261517559
Price: 550 RON
Availability: inStock

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier rapid - 24,00 Lei Detalii

Estimat livrare:

Vineri, 23 Ian.

Cantitate:

Pret:

550,⁰⁰ Lei

Produs:

Nou, Certificat de garanție 6 luni

Politica de retur:

Acest produs poate fi returnat in 14 zile Detalii

Plata:

La predare
Ramburs
Avans

Vandut de:

UPcloud SRL

91.67% pozitive (din 2488

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Product Description

OBDSTAR MT203 CAN driver/Gateway simulator is a tool designed for automotive electronics maintenance and repair with 2-year free update. It provides CAN driver and gateway simulation function, supports multiple vehicles, and is a compact device, which is a good helper for automotive electronics maintenance engineers.

OBDSTAR MT203 CAN Driver/Gateway Simulator Support CAN Driver & Gateway Simulation

MT203 CAN driver/Gateway simulator is a tool designed for automotive electronics maintenance and repair. It provides CAN drive and gateway simulation function, supports multiple vehicles, and is a compact device, which is a good helper for automotive electronics maintenance engineers!

Background

1. CAN Drive Function

The Dash, Audio, Gear Lever, Handbrake and other modules of latest vehicles enter working state mainly through CAN transmission, however, occasionally automotive technicians servicing the module are detaching from vehicle CAN network, thus causing no operational status. This function can simulate CAN communication to wake up the ECU module, so that the module can enter the working state, which can be tested and verified. It also saves the need to purchase a large number of startup platforms and wiring harnesses for various vehicle models, reducing costs for automotive technicians.

2. Gateway Function

At present, an increasing majority of automobiles are designed with gateway modules for security and efficiency reasons, the majority of ECU modules and diagnostic scanner requires a gateway to pass through the protocol type and baud rate to accomplish the communication. When the ECU module needs to be detected with the diagnostic scanner, it requires an additional connection to the corresponding model's gateway to complete the transmission, which greatly causes inconvenient detection. MT203 gateway simulator works to emulate the majority of automotive gateways to accomplish various types of protocols and baud rate conversion, and the diagnostic scanner provides an efficient way to communicate with the ECU module. Eliminates the need to purchase different gateways for various models and create wiring test platforms, reducing costs for automotive technicians.

Applicable Scenarios:

Automotive electronic ECU repair (Airbag, Dash, BCM and other modules simulation gateway diagnostictest by BENCH)
Automotive electronic ECU repair (Dash, Audio, Gear Lever, AC panel and other modules CAN drive test by BEHCH)
E-Car components repair (Compressor, DCDC, On-board charger and other modules simulation gateway diagnostic test by BENCH)

Advanced Functions:

Using STM32H723 high-performance MCU, fast running speed;
Support standard CAN, Low speed(fault-tolerant CAN), CANFD protocols:
Automatic scanning, manual baud rate selection, custom input baud operation;rate and other modes to simulate different types of gateways;
Integrated design, comes with 120Ω resistor switch, easy to operate;
Simple and intuitive menu allows you to quickly master the device;
Mini USB upgrade cable directly connected to the PC for one-key upgrade.

Supported Protocol Types/Functions:

Standard CAN/Standard CAN

500K/250K 500K/125K

Custom Baud Rate

Standard CAN/Tolerant CAN

500K/83.3K

500K/100K

500K/125K

125K/125K

Custom Baud Rate

Standard CAN/CAN FD

500K/5M

500K/2M

Custom Baud Rate

CAN Driver Supported Functions:

Supports Dash, Audio, Gear Lever, AC Panel and other test functions for below models:

for AUDI, for FORD, for PORSCHE, for BENZ, for JAGUAR, for ROLLS-ROYCE, for BMW, for LAMBORGHINI, for VOLKSWAGEN, for DODGE, for LAND ROVER, for VOLVO.
