Sursa laborator stabilizata tensiune curent reglabile 35V 5A dual display

Produsul nu este un dispozitiv gata de lucru ci un component si necesita dupa caz asamblare, reglare, instalare de catre o persoana specializata.
Utilizarea incorecta poate duce la distrugerea iremediabila a produsului !

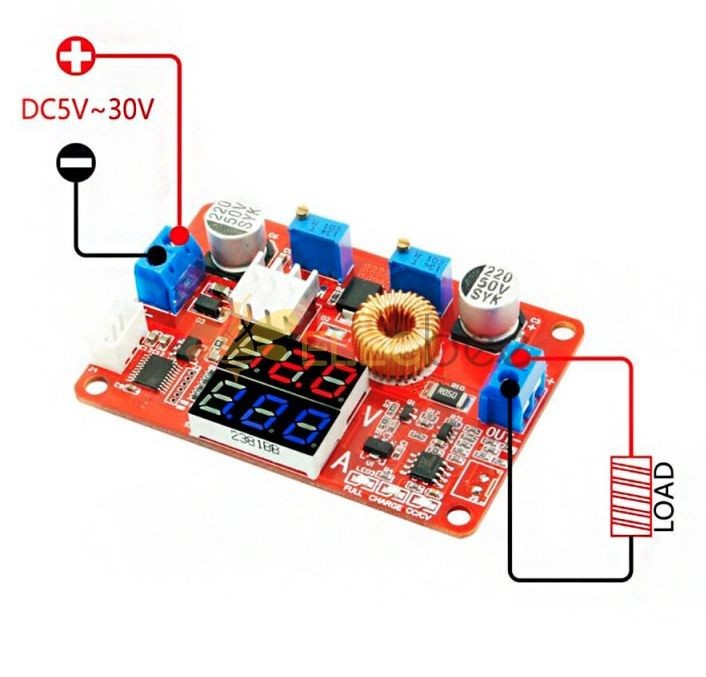

Sursa reglabila stabilizata coboratoare de tensiune step down, curent si tensiune reglabile din semireglabili mutitur de 10k, posibilitate de conectare la portul serial, utilizabila ca atare sau sursa de laborator, sursa LED, sursa incarcare acumulatori.

Module nature: Asynchronous rectification, non-isolated, CC CV Buck-module
Input voltage: (U-IN) DC5V~35V
Output voltage: (U-OUT) DC 1.25V~32V
Output current: 5A (max) above 3A to strengthen heat dissipation
Output power: 75W (max)
Switching frequency: 300Hz
Output ripple: ripple 50mmV 20M bandwidth
Load regulation rate: ±0.5%
Voltage adjustment rate: ±2.5%
Working current: >
Product size: 73×48.6×14.2mm
Product weight: 32g
Fixed aperture: φ3.8mm

Communication protocol: baud rate 9600Bps
BB, CC frame header (2 bytes)
ADDR module address
00, 01: 00 current read command, 01 voltage read command, 1 byte
XX XX: any value (2 bytes)
CRC: check (1 byte)
Current return command, voltage return command
