Telecomanda IR + receptor Arduino / PIC / AVR / ARM / STM32

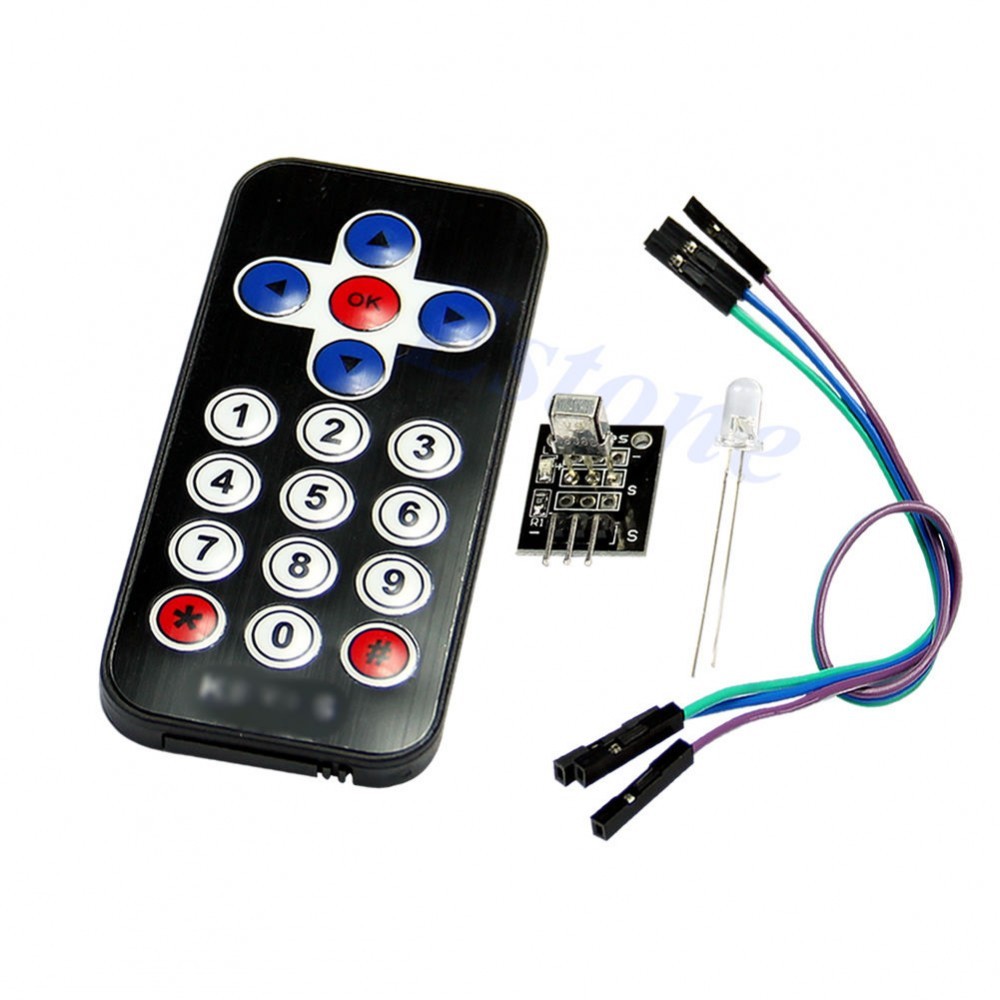

Arduino suite by ultrathin Mini infrared wireless remote control infrared remote control and 38 KHZ infrared receiving module, the Mini ultra-thin has 20 function keys, the infrared emission furthest distance up to 8 meters, very suitable for indoor control devices of all kinds. Infrared remote control receiving module can receive standard 38 KHZ modulation signals, by means of programming the Arduino, the remote control signal decoding operation can be realized, which can produce all kinds of remote control robots and interactive work. Specification: Battery:CR2025 Button batteries (Included) Transmission Distance: up to 8m (depending on the surrounding environment, sensitivity of receiver etc) Effective Angle: 60° Static Current: 3~5uA, Dynamic Current: 3~5mA Remote size:8.5 x 4 x 0.65cm(L x W x H) Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Test Code: #include int RECV_PIN = 11; //define input pin on Arduino IRrecv irrecv(RECV_PIN); decode_results results; void setup() { Serial.begin(9600); irrecv.enableIRIn(); // Start the receiver } void loop() { if (irrecv.decode(&results)) { Serial.println(results.value, HEX); irrecv.resume(); // Receive the next value } }
