Tester injectoare complet 2in1 CR-C diesel common rail + S60H Nozzle Validator

CR-C Common Rail Injector Tester + Common rail diesel nozzle Injector tester S60H

How to test a common rail Injector  ?

   Need  two   conditions:

      1，Electrical pulse signal  (CR-C  Common Rail Injector Tester )

      2, High pressure fuel  (S60H  Common rail diesel nozzle Injector tester)

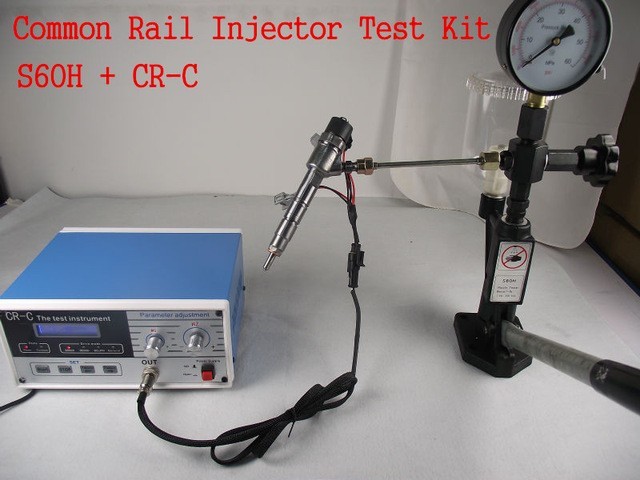

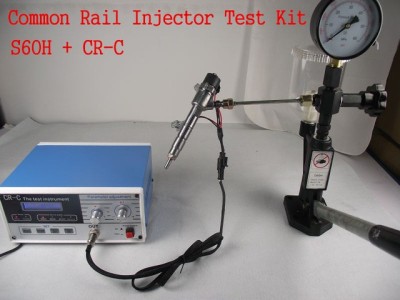

    As Shown below picture, it's the basic method.

PRODUCT 1:

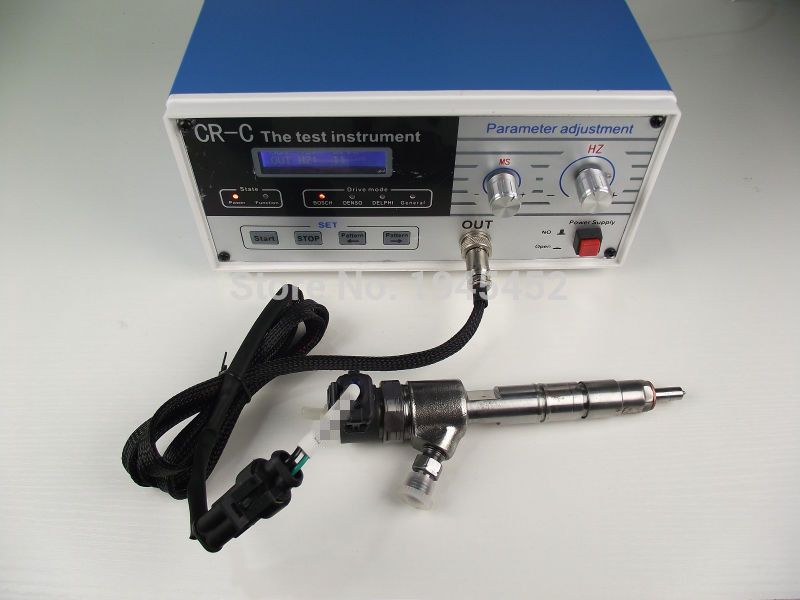

CR-C Common Rail Injector Tester

CR-C common rail injector tester is a easy operated tool, could do the test with the injector hand pumps. It’s small size and light weight, could meet the requires from repairman on the simple device of testing.

PRODUCT 2:

Common rail diesel nozzle Injector tester  S60H

Diesel Injector Nozzle Pop Tester fuel injector nozzle tester with 0 - 400 BAR / 0 - 6000 PSI Dual Scale Gauge BOSCH injector checker is suitable for all common rail injector and mechanical injectors, auxiliary products have compression release valve, it can check the fuel injection conditions of various types of injector quickly and easily. It also can be used with common rail injector 118 solenoid valve tester to test various types of common rail injectors. The injector checker equipped with two different types of tubing. You can freely switch suitable for detecting the injector, it is a good choice to Initial inspection injector working state.

HOW to Test

    As we know driver common rail injector,not only need  a tester but also need hight pressure fuel,

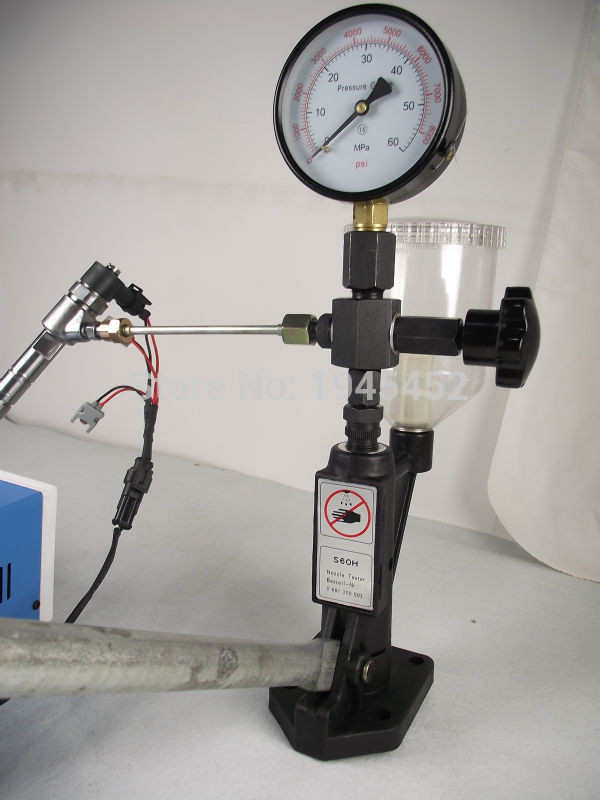

so we used a manul fuel pressure pump  S60H   as  show in follow picture

1, the high pressure oil common rail injector directly or into the holder is connected to the common hand pressure calibrator.

2, according to the corresponding plug injector brand choice, will harness and injector connected up correctly.

3, according to the fuel injector brand, drive mode selecting corresponding, at this time can hear the injector solenoid valve suction armature "Pa, Pa" voice.

4, by constantly under pressure calibrator lever, provide the suitable injection pressure, the general pressure value takes 30-40MPA best, at this time can be observed on the fuel injector atomization performance.

5, through the external cylinder, can be detected on the injector fuel injection quantity and oil return.

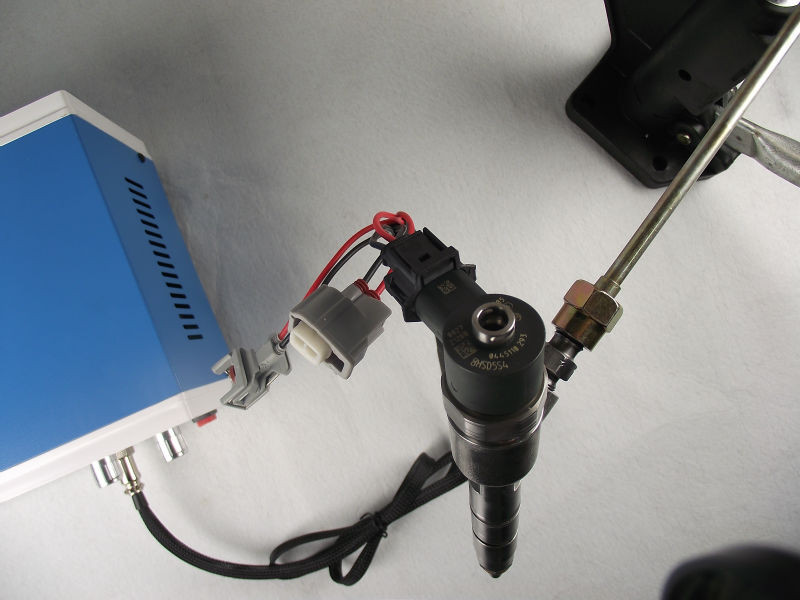

 Test BOSsCH  injector ,use the connector for bosch
