Tester prof. Caterpillar CAT ET III CAT ET3 vers. 2019A , Adapter 3 P/N 317-7485
Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc
1 disponibil
Produs:
Nou, Certificat de garanție 6 luni
Politica de retur:
Acest produs poate fi returnat in 14 zile
Detalii
Plata:
- La predare
- Ramburs
- Avans
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Tester prof. Caterpillar CAT ET III
CAT ET3 vers. 2019A , Adapter 3 P/N
317-7485
Hightlights:
1. Firmware
Version : Adapter III , best replacement of Adapter
II
Software Version :
V2018A (With ET Keygen)
2. With Fast
USB
communication
3. Operate System:
windows XP/Windows7 32 Bit
ONLY
4. Compatible Vehicle: For Trucks,
Excavators, Air Compressors, Ships, Drilling
Rigs
5. Support
Multi-Languages: English, Chinese, Danish,
French, German, Italian, Japanese, Portuguese, Russian,
Spanish
Description:
CAT Communications
Adapter III 317-7485 is the latest generation of the CAT
Communication Adapter group,and replaces the CAT Comm Adapter II.
This is the only recommended communication device for CAT,and the
only datalink device that will allow you to properly communicate
with a CAT engine on dual datalinks. This function is needed for
some CAT ET (Electronic Technician) functions.
ET
Function:
1.Display "Logged
Event Codes" to show engine over speeds,High temperatures, fuel
consumption, etc.
2.View ECM’s current
configuration and change user settings
3.Perform diagnostic
tests and calibrations, and calibrate
4.Electro-mechanical
and electro-hydraulic components
5.Context sensitive
help leads operator through every task Cat ET can
perform
6.Data Logger and Data
Log Viewer allows recording of ECM signals for delayed
troubleshooting capability.
Functionalities Shows
all operating conditions that cause high repair costs such
as:
Over speeds, high
temperatures, fuel consumption, transmission shift counts. This can
provide awareness to change operator Cat "ET Trainer" is now
included in ET Program. It allows Users to train and practice using
Cat ET without a Communications adapter or Electronic Control
Module (ECM).This is a free feature of Cat ET.
Communication:
1. Allows
communication between service tools and engine controls using
various data links such as J1939/11, DeviceNet (future release),
CAT DataLink, and J1708 (ATA) vehicle networks
2. Flash program
allows adapter firmware upgrades as additional features become
available
3. Uses J1939/11,
high-speed data link (part of ADEM III controls), substantially
reducing flash times
4. Automatically
selects J1939/11 when flashing the engine (reduces the flash time
approximately 80%, from 14 minutes to 3
minutes).
Specification:
1.ECM Summary screen
lists every control module on equipment
2.Being tested and
gives information on these modules.
3.Fast hookup and real
time display of systems status. Displays ,readings such as rpm,
boost, pressures, temperatures, etc. for Easy
troubleshooting.
4.Identifies faulty
sensors, harness connectors, and system parameters which are out of
specification. Allows customers
5.To help dealer
identify problems without visiting machine.
6.Identifies
intermittent sensors and wiring problems during Machine operation
and keeps a record of each one. Showswhen problem occurred and how
often it happened.
7.Added information to
allow customer to assist dealer in diagnosing and repairing
problems. (Troubeshooting Help is not built in with in the program,
you will still need go back to books in order to follow a repair
description and steps in each Fault Code display within the
program).English and metric units of measure integrated help file
to easy learn the "How To" around the software.

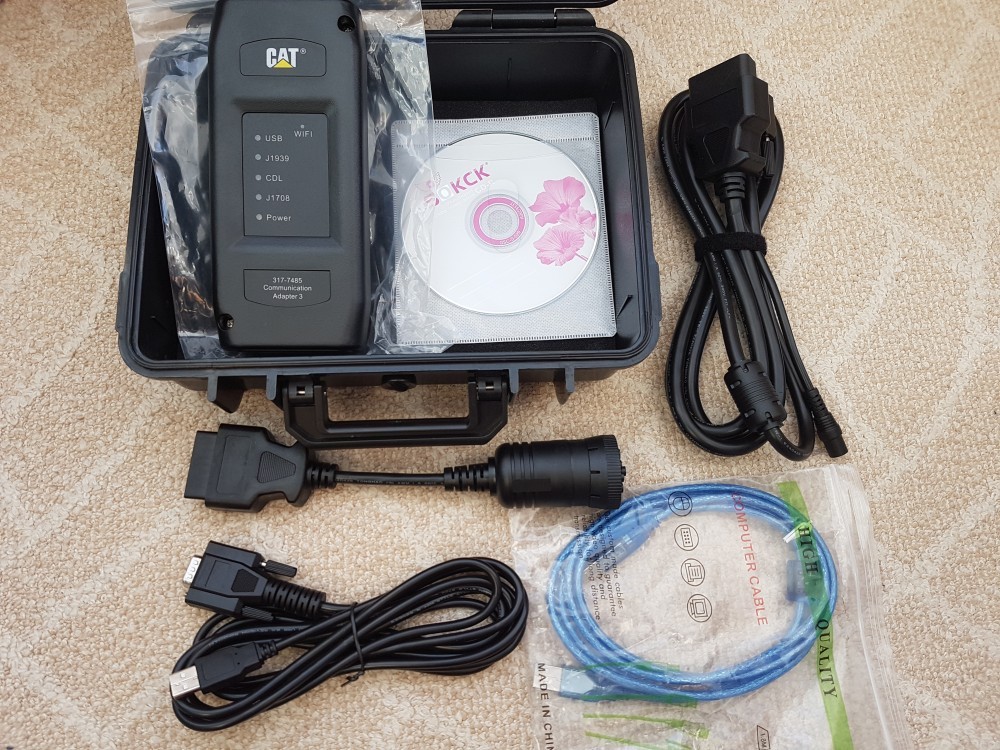

Package
Included:
1 x CAT 3 ET
adapter
1 x 9 needle
diagnosis line for Truck
1 x USB
line
1 x Software
CD(With vedio instruction)
1 x Black
Plastic Carry case
