Tuner Technics ST S 4

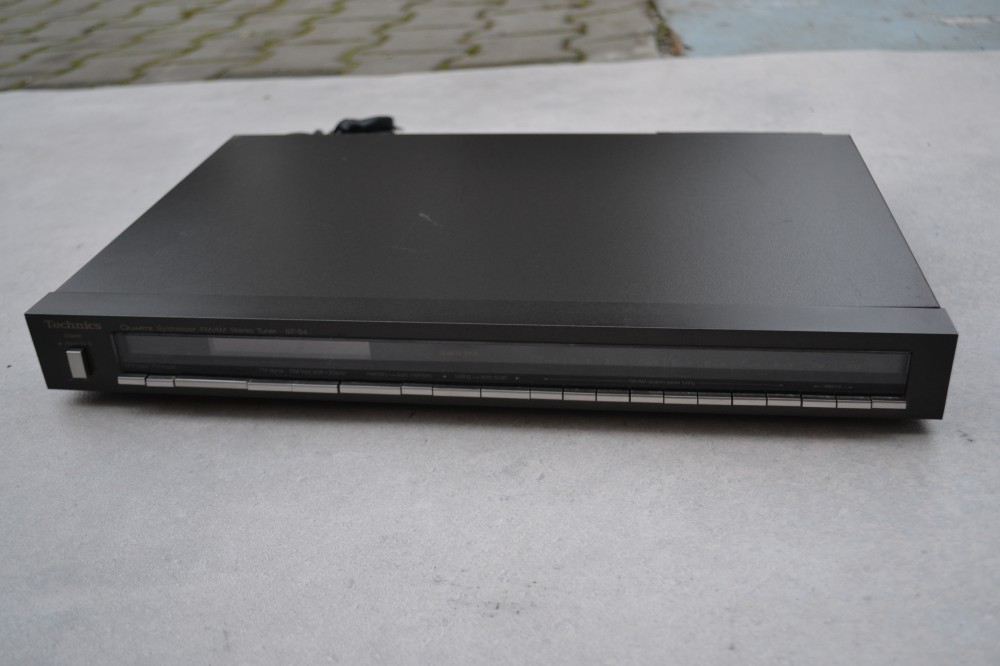

Tuner Technics ST S 4 : 16 memorii, made in Japan, afisaj, quartz lock, poze reale.

Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Superheterodyne (common)
Wave bands
Broadcast (BC) and FM or UHF.
Power type and voltage
Alternating Current supply (AC)
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: Quartz Synthesizer AM/FM Stereo Tuner ST-S4 - Technics brand
Shape
Book-shelf unit.
Dimensions (WHD)
430 x 53 x 300 mm / 16.9 x 2.1 x 11.8 inch
Notes
Quartz Synthesizer AM/FM Stereo Tuner Model Technics ST-S4.

Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Digital
FM Tuning Range: 87.9 to 107.9 MHz
MW Tuning Range: 522 to 1611 kHz
Sensitivity: 2.0µV (FM), 250µV (MW)
Signal to Noise Ratio: 65dB (FM)
Distortion: 0.1% (FM)
Selectivity: 60dB (FM), 55dB (MW)
Frequency response: 20Hz to 15kHz (FM)
Output: 300mV

Net weight (2.2 lb = 1 kg)
3.3 kg / 7 lb 4.3 oz (7.269 lb)
Price in first year of sale
280.00 $
Mentioned in
- - Manufacturers Literature (Service Manual)
Literature/Schematics (1)
-- Original prospect or advert (Technics Catalogue - 'A class of its own')
Author
Model page created by Franz Scharner. See "Data change" for further contributors.
