Tuner Technics ST Z 45 L

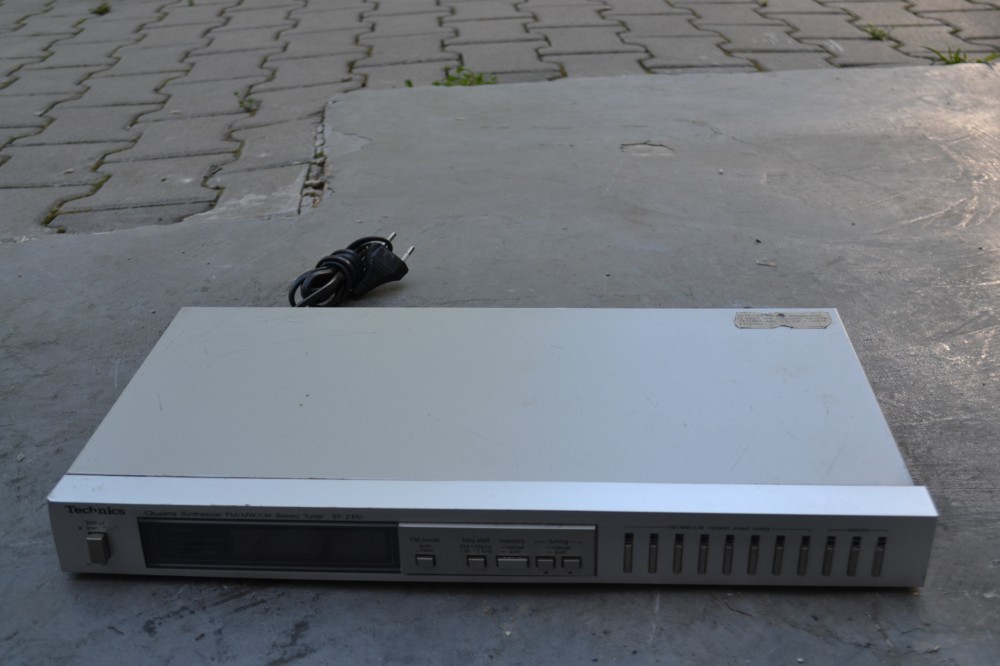

  Tuner Technics ST Z 45 L : culoare argintie, 16 memorii, afisaj, Fm/Am, mici zgarieturi, poze reale, made in Japan.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Quartz Synthesizer FM/AM Stereo Tuner ST-Z45 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 53 x 245 mm / 16.9 x 2.1 x 9.6 inch

• Notes

• Quartz Synthesizer FM/AM Stereo Tuner Model Technics ST-Z45.

  Type: Mono/Stereo Tuner
  Tuning Bands: FM, MW
  Tuning Scale: Digital

  FM Tuning Range:
  87.5 to 108 MHz

  MW Tuning Range:
  530 to 1620 kHz (10kHz Step)
  522 to 1611 kHz (9kHz Step)

  Sensitivity: 0.9µV (FM), 20µV (MW)
  Signal to Noise Ratio: 70dB (FM)
  Distortion: 0.15% (FM)
  Selectivity: 65dB (FM), 55dB (MW)
  Frequency response: 20Hz to 15kHz (FM)
  Output: 600mV
  Power Consumption 8 Watts

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Mentioned in
• - - Manufacturers Literature (Instruction/Owners Manual)

• Literature/Schematics (1)
• -- Original prospect or advert (Technics Catalogues - 'Products' and 'HiFi')

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
