VXDIAG VCX FD J2534 Passthru, USB, WiFi, USB Type C, LAN, DoNET

VXDIAG VCX FD Hardware J2534 Passthru Only without Car License

VCX-FD is an intelligent vehicle diagnostic interface designed by Autocar, representing the next generation of diagnostic technology. The product adopts a newly upgraded dual core high-speed processor, which fully supports multi-channel CAN-FD/DoIP and traditional diagnostic protocols, and is compatible with more original diagnostic software. VCX-FD also supports local and super remote dual-mode diagnosis, providing users with an excellent diagnostic experience.

Highlights for VCX FD Hardware:


• Firmware/License: Free update
• USB, WiFi, USB Type C, LAN and DoNET optional connection
• Support DOIP and CAN FD
• Functions: Diagnostic/programming/coding
• Item type: obd2 scanner

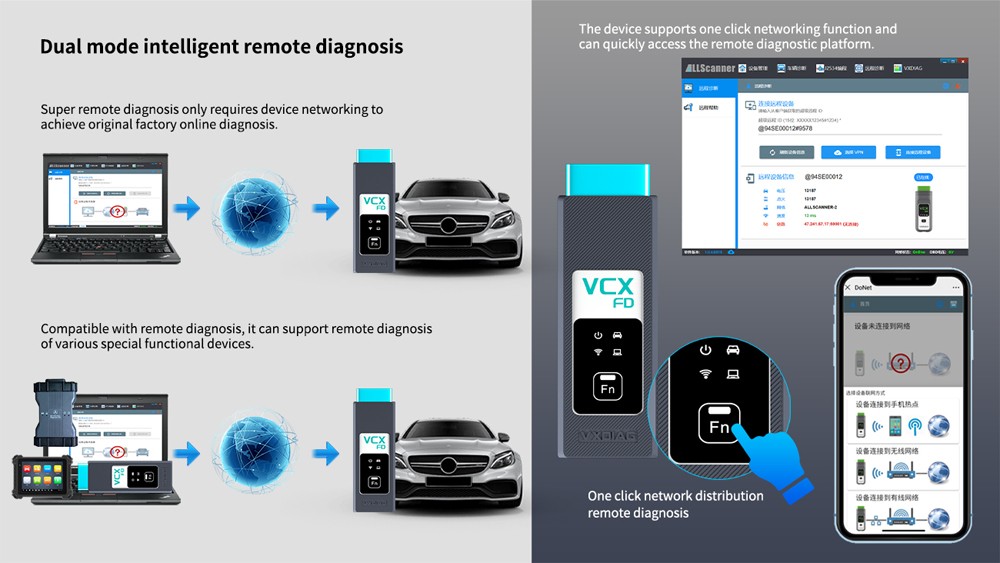

• Support offlince coding, remote diagnosis
• SAE J2534 Passthru for OEM online programming (need online account)
• Compatible with OEM diagnostic software
• Customize car license for the car brands (coming soon)
• can be used as J2534 passthru device for pcm-flash, J2534 Hyundai/Kia, bitbox, alexflasher, gromcalc and many other programs. Free to test by yourside.

VXDIAG VCX FD Unit Specification


• Dual processor 580MHz + 550MHz
• Support option 1/2
• Support CAN FD
• 802.11n 150Mbps
• USB Type-C
• Type C to RJ45
• OBD-II
• Software switchable protocol for all pins of OBD
• Remote support
• The interface component, adopts quick pull-and-plug technology, is more stable. Because it is tested to be able to pull and plug 10,000 times.
• With the small size and strong structure, Doip VCX SE is easy to carry. It can update firmware and DOIP firmware, etc.

VCX-FD is Extreme Performance Vehicle Diagnostic Interface

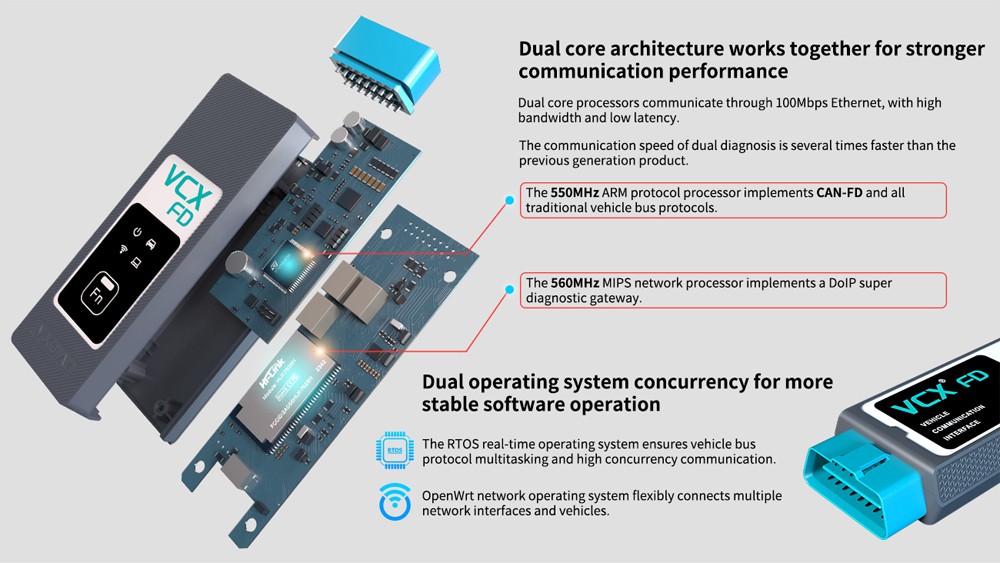

1. Dual -core architecture coordinated work, more communication performance
The 550MHz ARM protocol processor implements CAN-FD and all traditional vehicle BUS protocols.
The 560MHz MIPS network processor realizes the DOIP super diagnostic gateway.
Dual -core processors communicate through the Ethernet, high bandwidth and low latency.
The diagnostic communication speed has been several times more than the previous generation of products.

2. Dual operating system, the software is more stable
The RTOS real -time operating system guarantees the vehicle bus protocol multi -task and the communication.
OpenWRT network operating system flexibly connects a variety of network interfaces and vehicles.

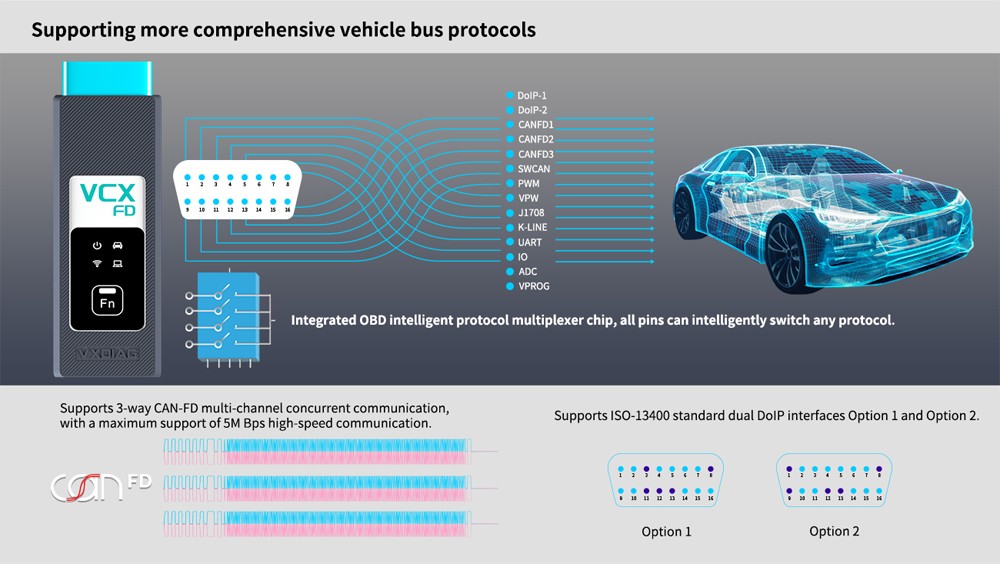

3. Support more comprehensive vehicle BUS protocol
Integrate OBD intelligent protocol multi -router chips, all pins can intelligently switch any protocol.
Support 3-channel CAN-FD multi-channel complication, up to 5M BPS high-speed communication.
Support ISO-13400 standard dual-road DOIP interface Option 1 and Option 2.

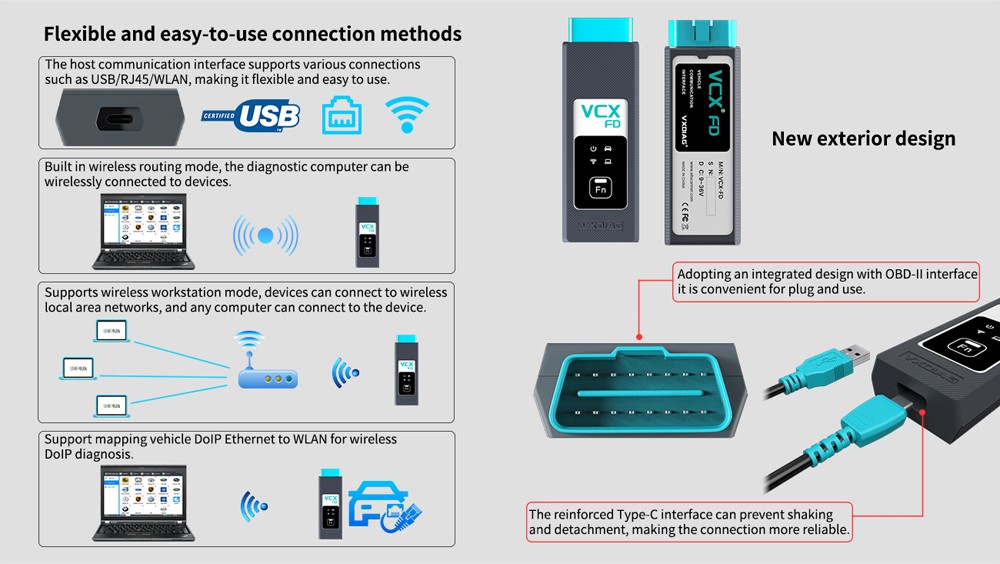

4. Flexible and easy -to -use connection method
The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built -in wireless route mode, diagnostic computers can wirelessly connect devices.
Support the wireless workstation mode, the device can access the wireless LAN, and any computer can connect the device.
Support the vehicle DOIP Ethernet into WLAN to achieve wireless DOIP diagnosis.

5.  Brand New Design
Adopt an integrated design of integrated OBD-II interface, which is convenient to plug and play.
The reinforced Type-C interface can prevent shaking and falling off, and the connection is more reliable.



VCX-FD is a More Powerful Vehicle Diagnostic Equipment

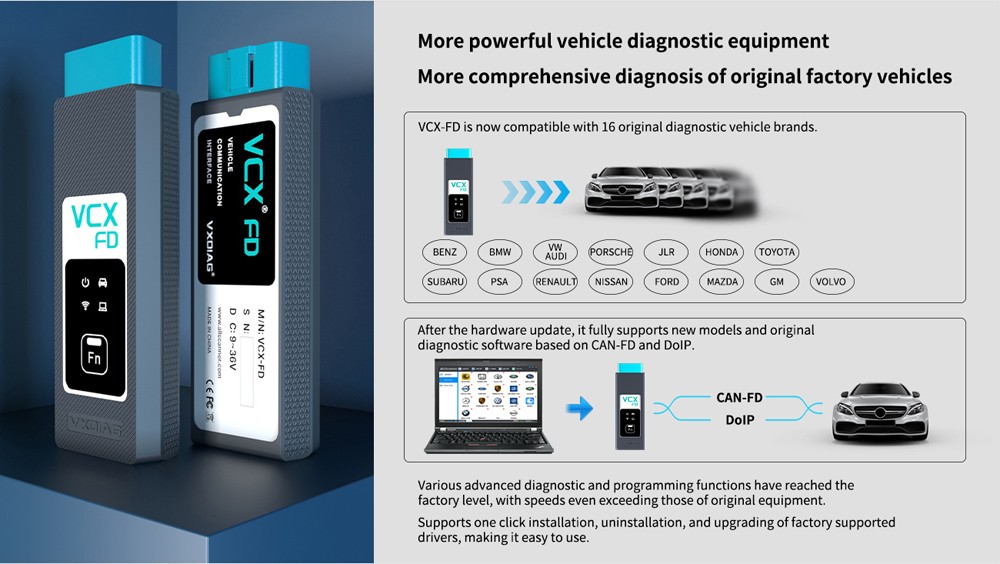

1. More comprehensive original vehicle diagnosis
The original diagnostic model brands that VCX-FD are now adapted to have 15 species.
After the hardware update, it fully supports new models and new original diagnostic software based on CAN-FD and DOIP.
Various advanced diagnosis and programming functions have reached the original level, and the speed even exceeds the original equipment.
Support one -click installation, uninstall and upgrade the original factory support driver, easy to use.

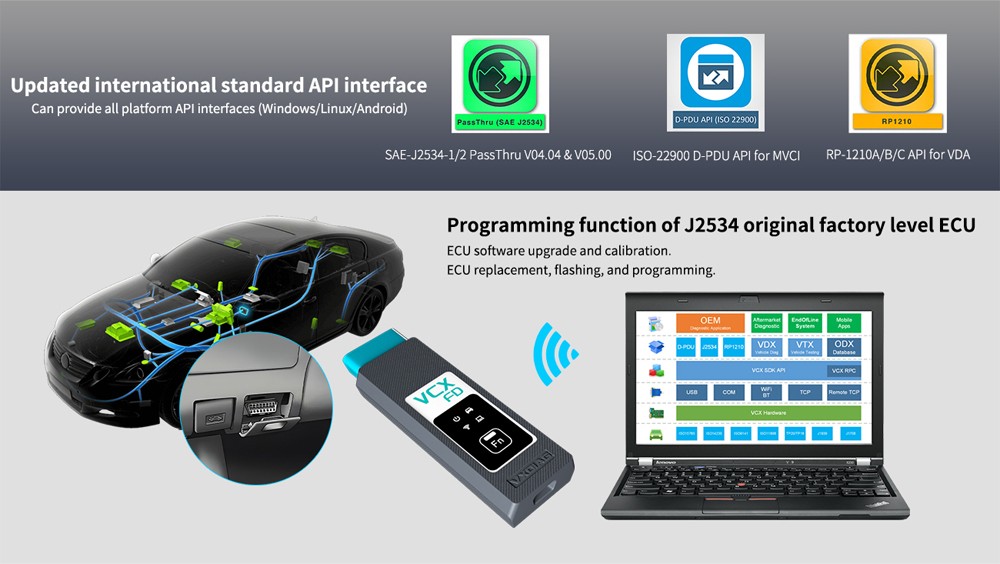

2. Upgraded international standard API interface
SAE-J2534-1/2 PASSTHRU V04.04 & V05.00
ISO-22900 D-PDU API for MVCI
RP-1210A/B/C API for VDA

3. Support J2534 Original Online ECU Programming (Needs original online account)
ECU software upgrade and calibration.
ECU replacement and programming.





Hardware Configuration:


	Items	Description
	Network processor	32bit 560MHz MIPS 32MB FLASH 128MB DDR
	Protocol processor	32bit 550MHz ARM 1MB FLASH
	Diagnostic interface (vehicle)	SAE-J1962 Standard OBD-II diagnostic interface
	DoIP interface (vehicle)	ISO-13400-4 Option1/2 Ethernet
	Wired interface (PC)	USB TYPE-C
	Network interface (PC)	USB Type-C to RJ-45 Ethernet
	Wireless interface (PC)	Wlan 802.11 B/G/N wireless network
	Button	Fn Reset
	Indicator light	5 LEDs: power, wireless, communication, vehicles and remote
	Powered by	Vehicle power supply: DC 9V-36V (compatible 12V and 24V)
	Power consumption	2W
	Dimension	L x W x H = 140 x 50 x 25 (mm)
	Weight	Equipment weight: 0.3kg Product +toolbox +packaging weight: 0.8kg
	Shell	Reinforced plastic shell
	Operating temperature	-20～+70 °C
	Storage temperature	-40～+85 °C
	Standard certification	EU CE and the US FCC

Support BUS Protocol


Package List:

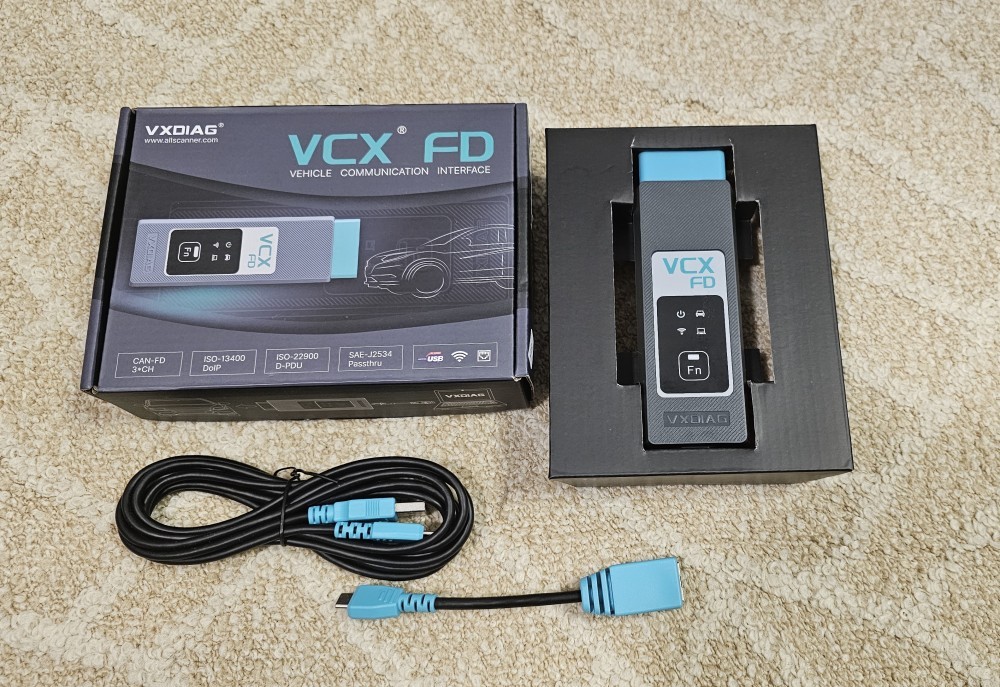

1pc x VCX-FD Interface
