Adaptor GODIAG ECU GPT Boot AD Programming J2534/ Openport/ foxFlash/ Godiag GT100

Name: Adaptor GODIAG ECU GPT Boot AD Programming J2534/ Openport/ foxFlash/ Godiag GT100
Brand: Nespecificat
SKU: 201516482
Price: 390 RON
Availability: inStock

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier cu Garantia de Livrare - 18,00 Lei Detalii
Ridicare de la locker - 13,09 Lei

Estimat livrare:

Marți, 6 Mai.

Cantitate:

Pret:

390,⁰⁰ Lei

Primesti 390 puncte in aplicatie

Produs:

Nou, Certificat de garanție 6 luni

Politica de retur:

Acest produs poate fi returnat in 3 zile Detalii

Plata:

La predare
Ramburs
Avans
Ramburs cu Garantia de Livrare

Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.

Vandut de:

UPcloud SRL

100% pozitive (din 2479

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Product Description

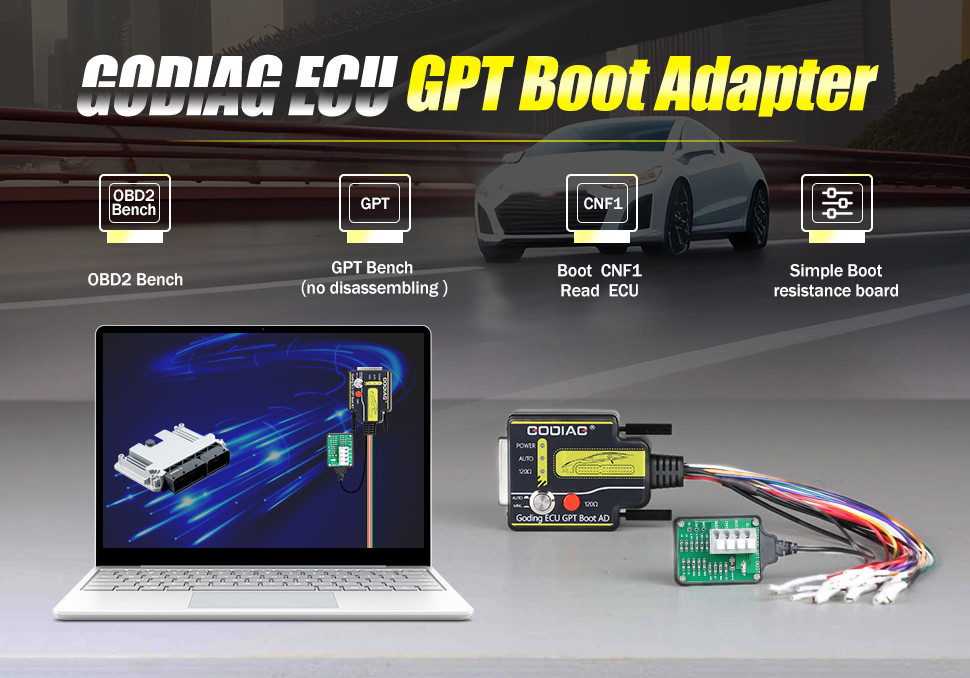

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

GODIAG ECU GPT Boot AD Programming Adapter

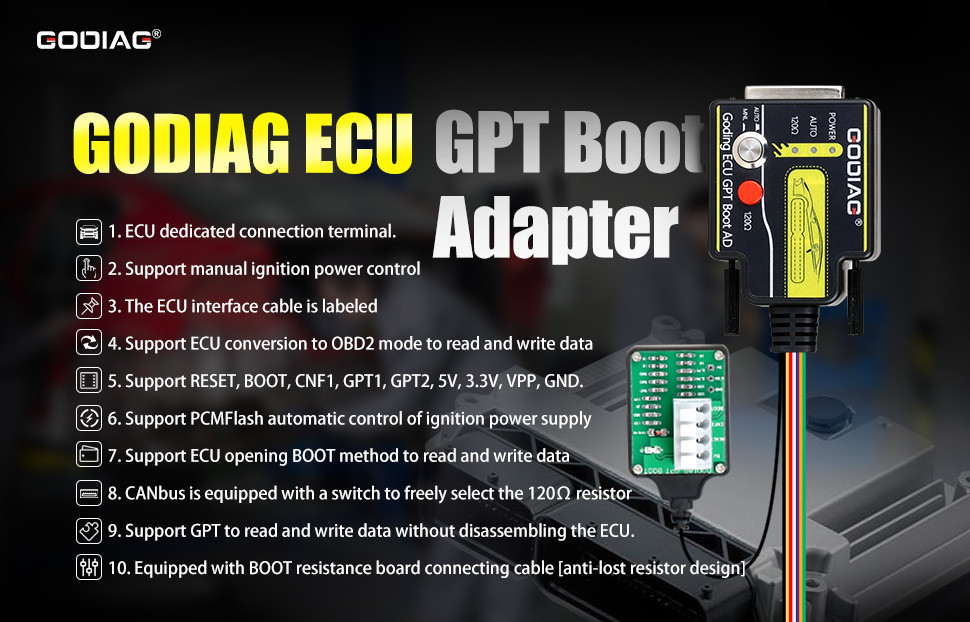

Features:

1. ECU dedicated connection terminal.

2. Support manual ignition power control

3. The ECU interface cable is labeled

4. Support ECU conversion to OBD2 mode to read and write data

5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.

6. Support PCMFlash automatic control of ignition power supply

7. Support ECU opening BOOT method to read and write data

8. CANbus is equipped with a switch to freely select the 120Ω resistor

9. Support GPT to read and write data without disassembling the ECU.

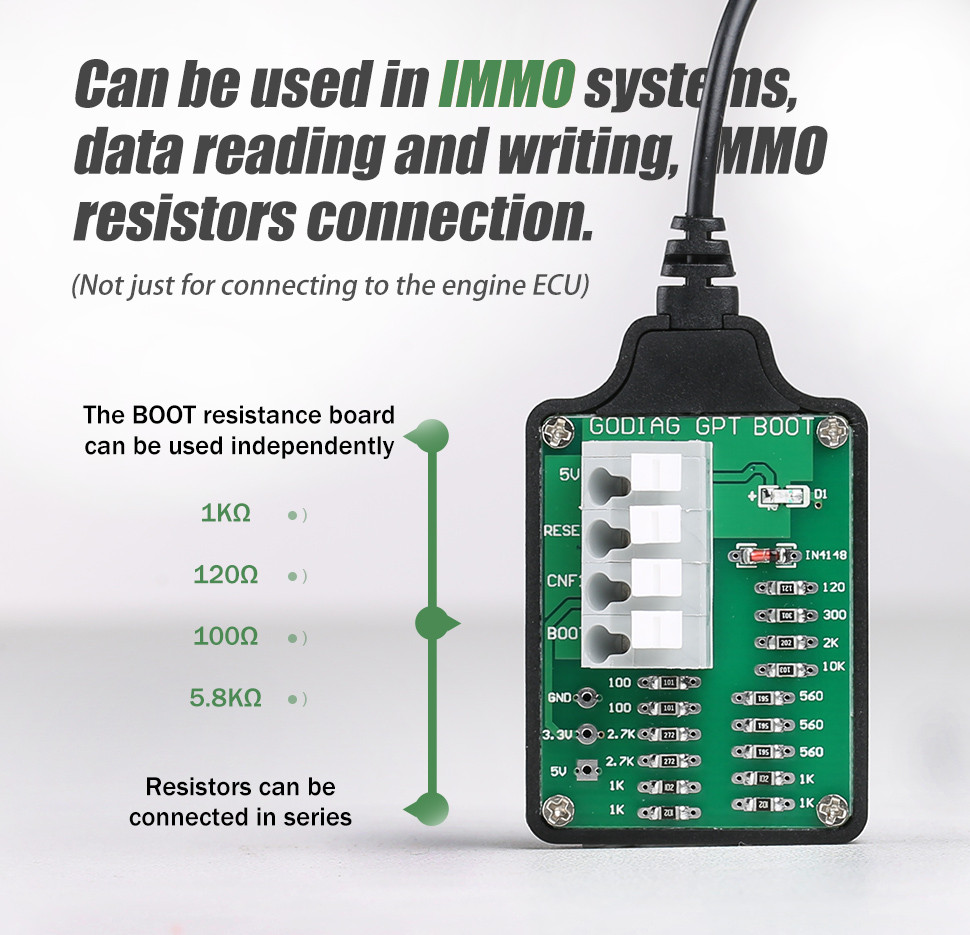

10. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]

Functions:

Diagnostic function supports standard OBD2 protocol equipment.
Supports ECU reading and writing data, and supports J2534 devices.
Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

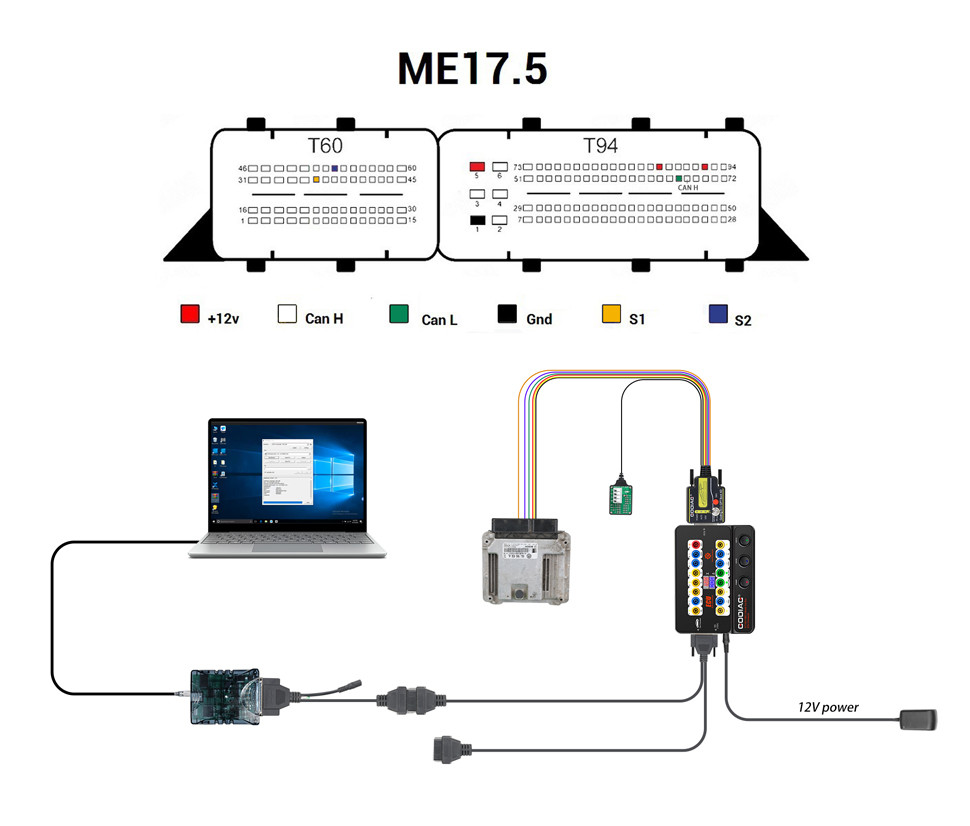

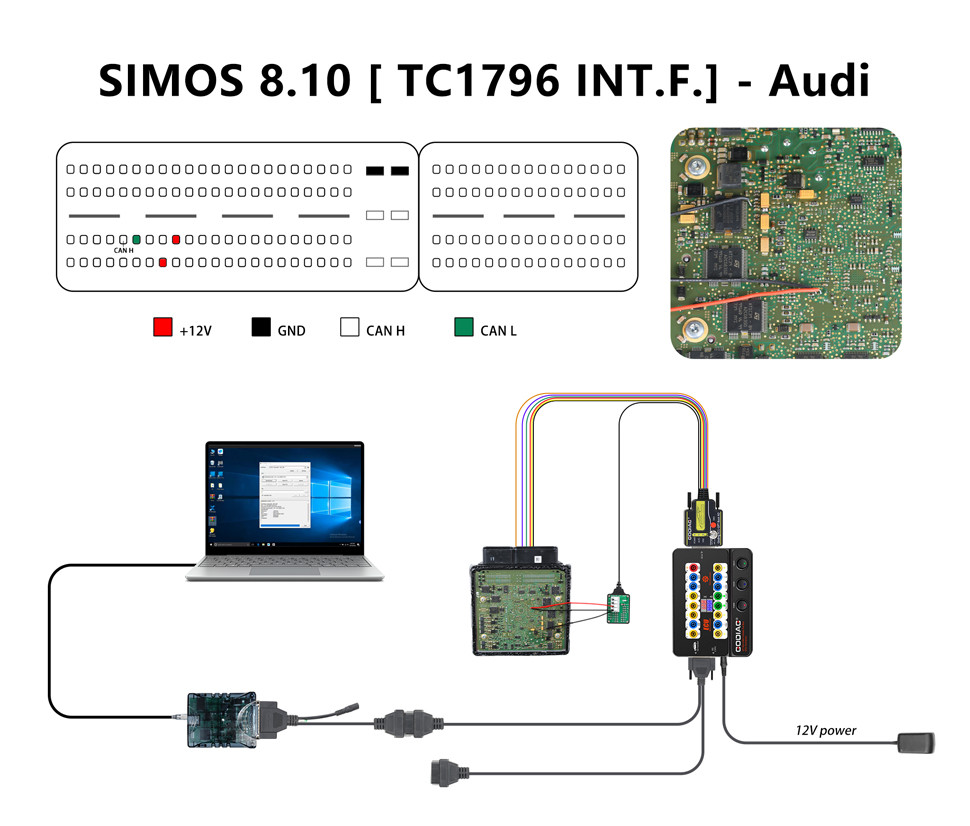

Connection Method of GODIAG ECU GPT Boot AD programming adapter, J2534 device and PCMFlash dongle software.

J2534 device	connection method	PCMFlash dongle software	advantages
			easy, convenient and save money
			Convenient to observe communication status, current and voltage and other working status

Comparison:

Items
GPT	√	√	√	√
BOOT	√	√	√	√
CNF1	√	X	X	X
Compatible with J2534 devices	√	√	X	X
BOOT resistance board	√	X	X	X
Dedicated ECU terminal	√	X	X	X
Power ignition manual /automatic switch	√	√	X	X
CANbus freely select the 120Ω	√	Fixed 120Ω	X	Fixed 120Ω
5V 3.3V GND CNF1	√	X	X	X

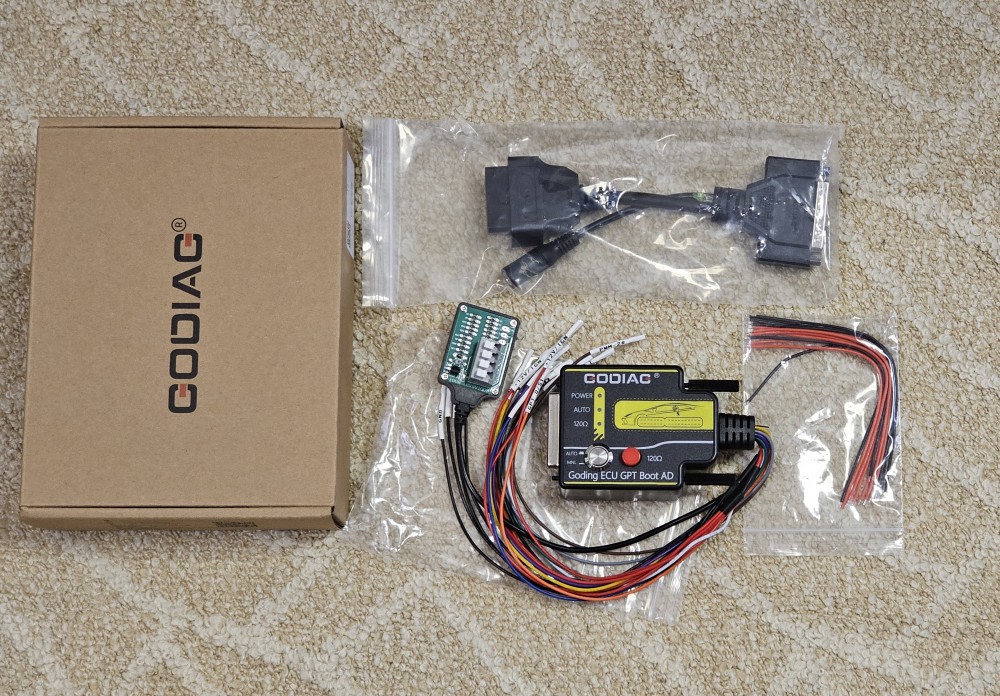

Package Includes:

1pc x GODIAG ECU GPT Boot AD Programming Adapter
