Adaptor Xhorse VVDI Audi BCM2 pentru VVDI Key Tool Plus and VVDI2 + VVDI Prog

Product Description

Xhorse VVDI Audi BCM2 Solder Free Adapter

Xhorse BCM2 solder-free adapter is the best affordable choice when all your keys are lost or when you want to add keys. It works with Key Tool Plus/ VVDI2+VVDI Prog. It's able to provide a simple and safe way to add keys as well as a solution when all keys are lost for AUDI vehicles.

This adapter is used to read Audi's encrypted BCM computer data. There is no need to solder anymore while reading AUDI BCM2 module, therefore, it is friendly to the people without soldering techniques. Being solder-free it creates a safer environment and also protect users’ money by avoid damaging AUDI BCM2 modules.

Xhorse BCM2 solder-free adapter brings convenience for locksmiths to greatly improve efficiency during key programming. With the adapters, users no longer need to disassemble and solder modules, which will surely save you much time.

Key Features of Xhorse BCM2 Solder-free Adapter Set For Audi:

I. All Key Lost, No Soldering Techniques Required.
II. No Need to Connect VW Server to Compute Data(Save Your Money).
III. Obtain BCM2 Immo Data Without Original Key ID
IV. Compatible with VVDI Key Tool Plus Pad and VVDI2 + VVDI Prog ( VVDI Prog is Used to Read BCM2 Data).
V. Real Free Update Online as other Xhorse tools.
VI. Use A Regular 754J Key on the market to Program. No Special Requirement on the Keys Used.
VII. Share BCM2 function in the Future Updates.

Supports:

2013-2019 A4L,  A5, Q5
BCM2 version: 0711, 0650, 0641, support add key and all keys lost

2013-2019 A6L,  A7, A8
BCM2 version: 0825, 0824, 0827, support get BCM2 immo data when all keys lost

Support get BCM2 immo data without original key ID
Support exchange BCM2 function in future updates.

compatible with vvdi key tool plus and VVDI2 + VVDI Prog. (need Prog to read BCM2 data).
It does not require tokens.  Free update as other xhorse tools.
Don't need a special key. Use a regular 754J key on the aftermarket to program.

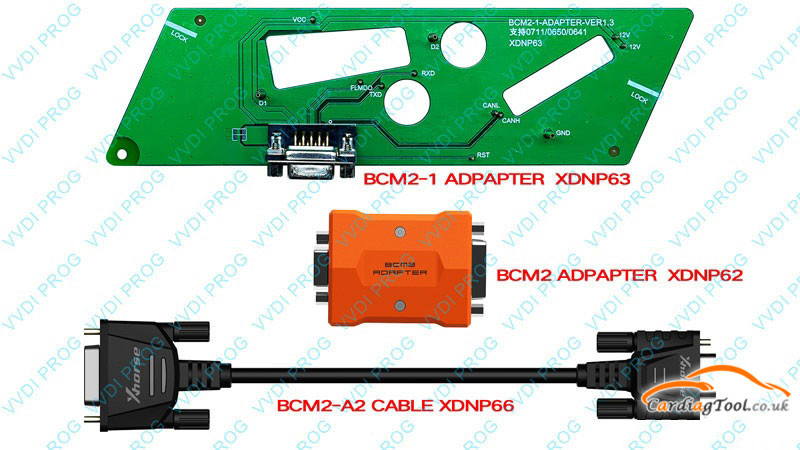

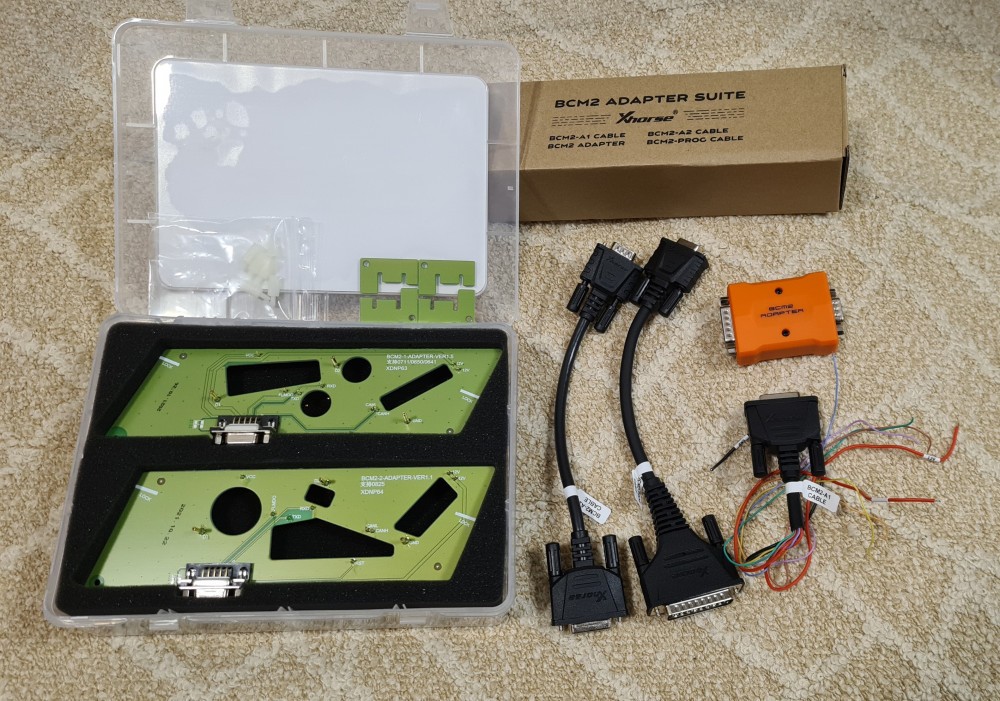

Package List:

1 set*Xhorse BCM2 Solder-free Adapter
1 pcs* XDN63 BCM-1 Solder free Adapter
1 pcs* XDN64 BCM-2 Solder free Adapter
1 pcs* XDN67 BCM2-PROG Cable
1 pcs* XDN66 BCM-A2 Cable
1 pcs* XDN65 BCM-A1 Cable
1 pcs* XDN62 BCM2 Adapter

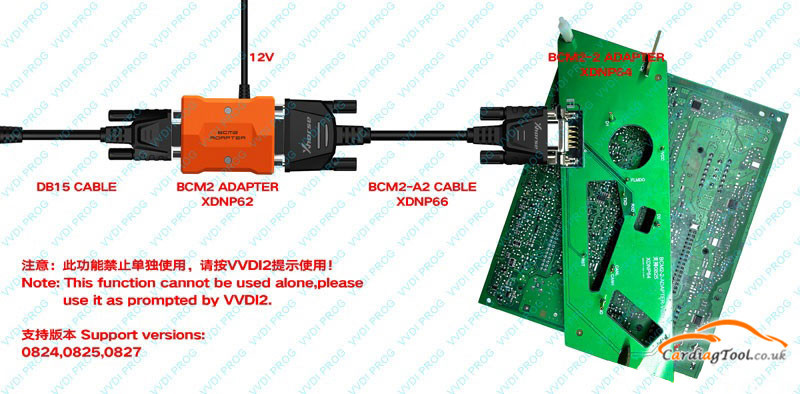

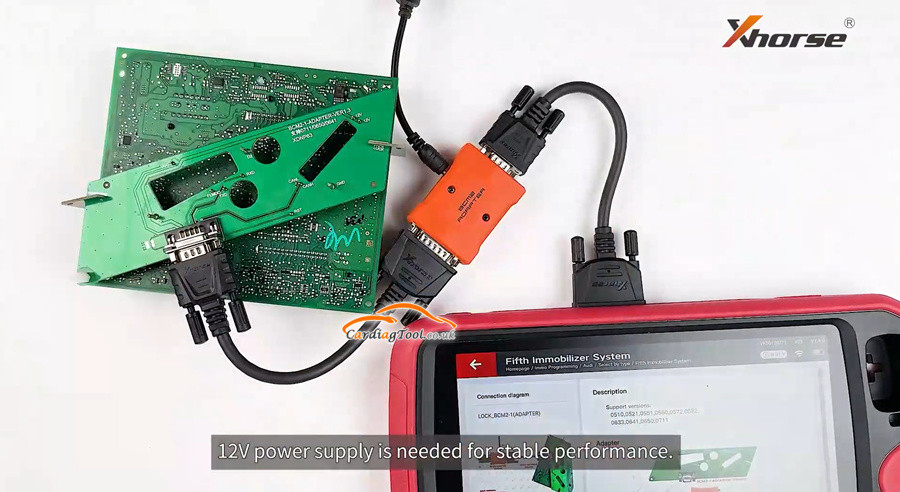

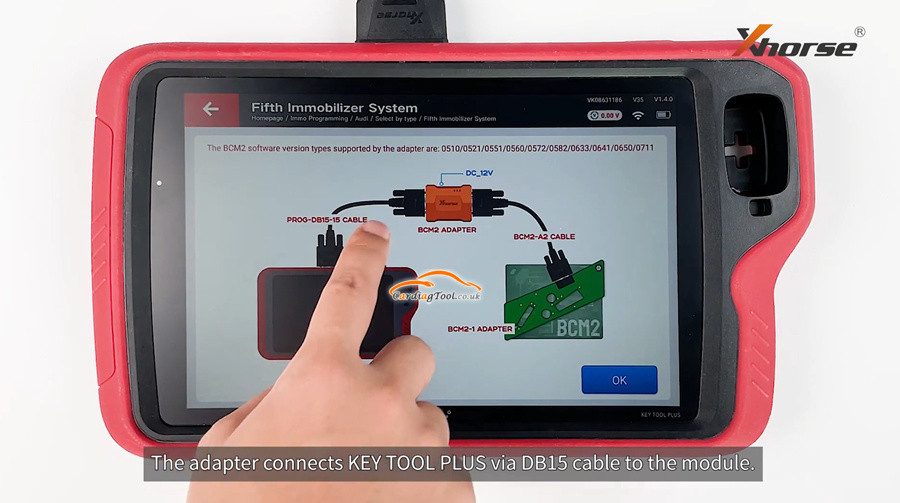

Audi BCM2 Wiring Diagram to VVDI Key Tool Plus

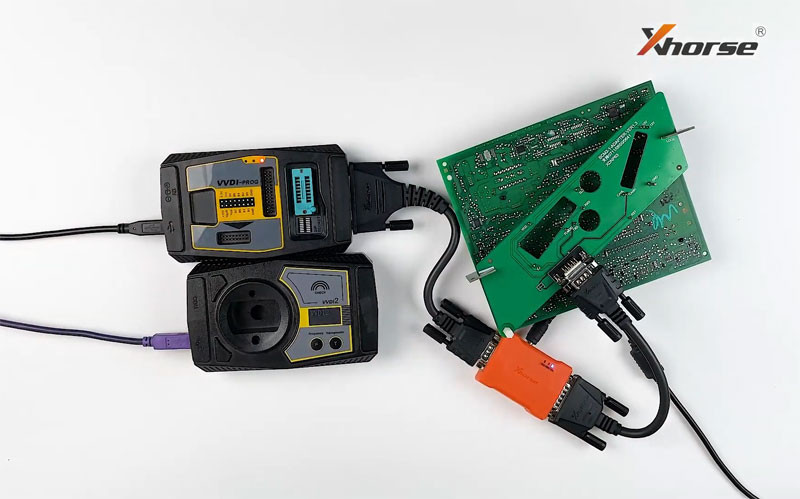

Audi BCM2 Wiring Diagram to VVDI2 and VVDI PROG



THIS FUNCTION CANNOT BE USED ALONE. USE IT AS PROMPTED BY VVDI2.

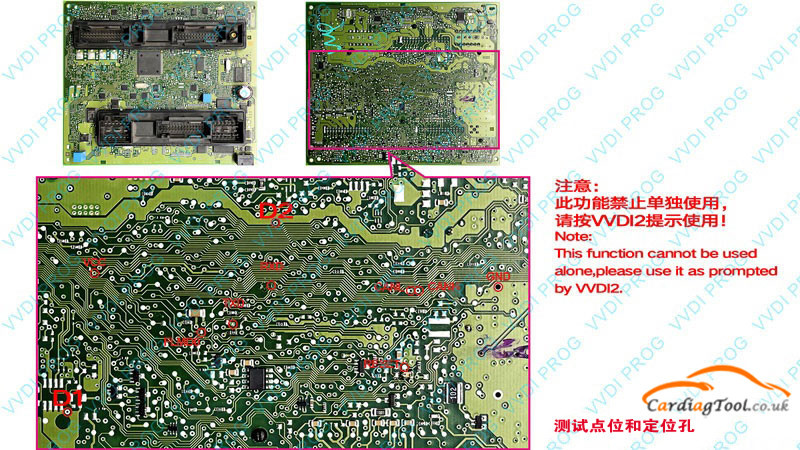

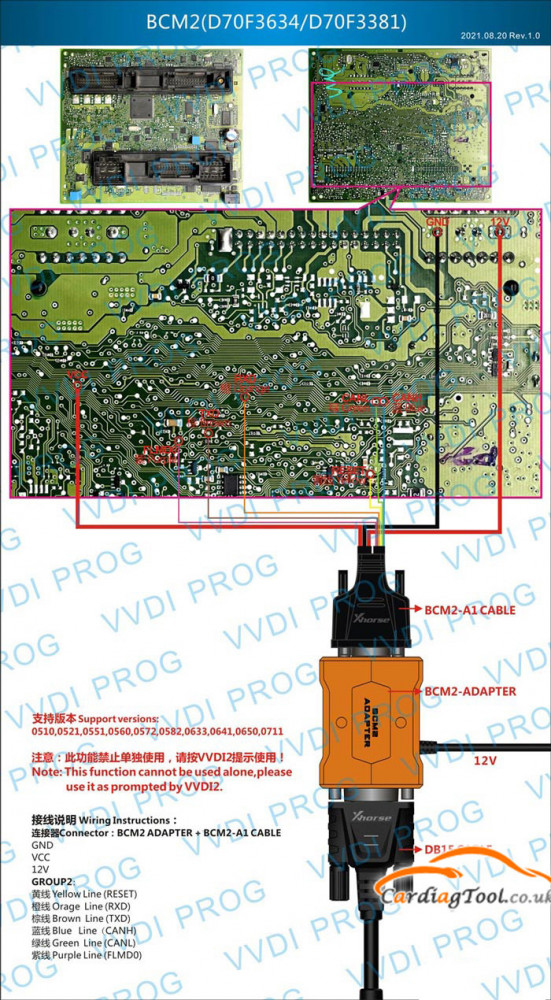

Audi BCM2 D70F3634/D70F3381

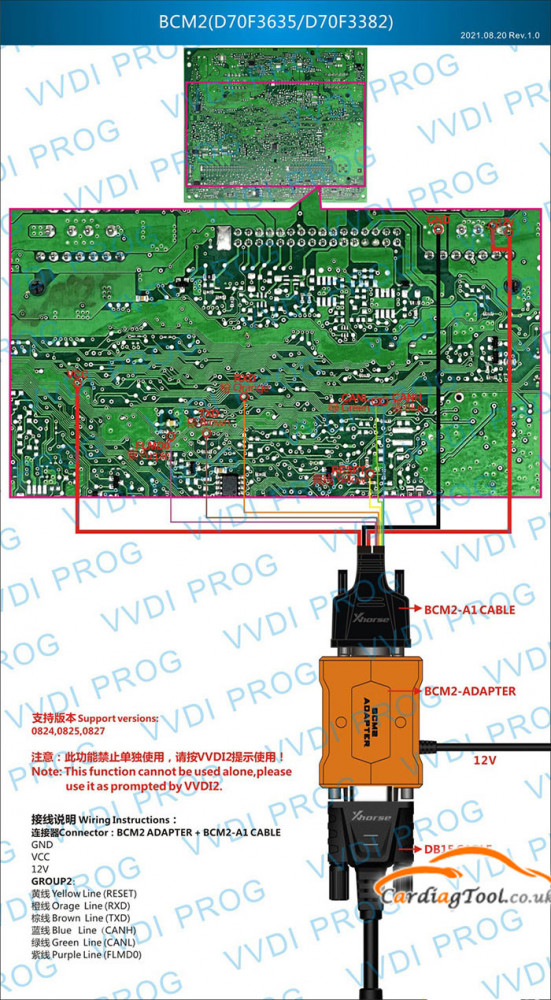

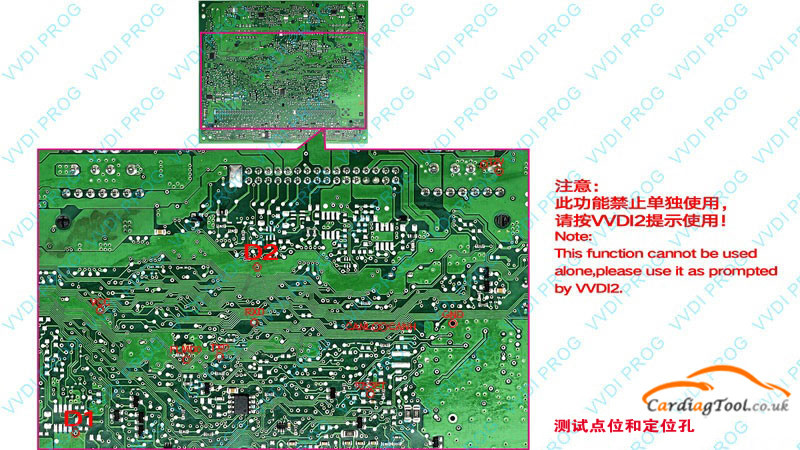

BCM2 D70F3635/D70F3382






Xhorse BCM2 Adapter FAQs:

1. Does BCM2 Adapter support A6L all key lost?
A: A6L does not support currently. At present, it only supports A4L, A5, and Q5 all-lost-free data. A6L supports reading BCM2 all key lost. You need to find a third party to get the sync data.

2. Does the adapter work with VVDI2?
A: VVDI2 will also upgrade the software to support this function, but reading BCM2 data requires theVVDI PROG.

3. Does it support OBD way for A4L from 2013 to 2018 year?
A: No. The 2013-2018 year A4L needs to read BCM2 data through the Audi free soldering adapter, while the A4L before 2013 can obtain BCM2 data by OBD, and no need get data from third party.

4. Can I read BCM2 data directly by wiring?
A: The solder-free adapter kit has 6 parts. Its core component is the orange BCM2 adapter. With this adapter, the BCM2 data can be read by soldering wires. In addition, in order to prevent welding damage to the BCM2 ECU, we strongly recommend that novices choose a solder-free adapter.

5. Is BCM2 easy to disassemble?
A: It is convenient, BCM2 is usually hidden behind the protective pad of the car trunk, which is a buckle plastic box. You can take out the BCM2 circuit board by gently prying the buckle.

6. Is there an fee when using BCM2 adapter? Will cost bonus points?
A: A: No update fee or fee to pay to Xhorse, but some car models need third party sync data, and no points will be deducted.

7. Are there any special restrictions on the keys used?
A: You can use the 754J key currently on the market.

8.With how Xhorse programmer work it? Vvdi key tool plus, VVDI2 or vvdi prog?
A: KTP, VVDI2+vvdi prog (need prog to read BCM2 data)
