Xhorse XDMLB0 VVDI MLB Tool Key VAG pt. VVDI2 VVDI Key Tool Plus

Product Description

Xhorse MLB-TOOL MLB TOOL A Pro Tool for MLB Work With VVDI2/ KEY TOOL PLUS

Xhorse MLB Tool Highlights:


• It can work with VVDI2 or KEY TOOL PLUS, Support VVDI MLB special submachine, Support original key
• Excel in key adding for MLB models
• No Need to Remove the Chip
• Wireless Key Generation for Ultimate Convenience
• Immo Detection Made Easy
• Compatilility with Original Keys and Xhorse Specialized Keys
• Rewrite Uninitialized Key IDs
• No Need for On-Vehicle Data Collection
• No points required when using VVDI MLB specialized key
• Software Update online, current version 1.1.4.0
• Operating system: Win10, Win11
• Supports original keys and VVDI MLB remote key

Note:

• To use the MLB key learning function, need to use with VVDI2 or Key tool Plus
• The device needs to activate license for MQB and Audi 5th generation key learning

It does not copy a key. Process to Add a Key with MLB Tool: Reading data, making dealer key, learning key.
It just calculates the CS from that key, in order to make a dealer key with other key. And then add key by obd always with vvdi2 or Key tool plus, just load the file MLB tool makes you save and with that CS it will start key learning process.

The following two scenarios require points deduction for MLB calculations:

1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored.

VVDI MLB Tool Features:

Excel in key adding for MLB models

• Support adding keys for Audi, Porsche, Volkswagen, Lamborghini,Bentley, and other MLB vehicle models.

No Need to Remove the Chip

• Key data calculation requires only the disassembly of the key shell, with no need to remove the chip.
• Integrated with a 22k reader, it enables wireless key reading and writing without shell removal

Wireless Key Generation for Ultimate Convenience

• Generate original dealership keys and Xhorse specialized keys wirelessly.

Immo Detection Made Easy

• Built-in Immo detection module supports wireless key recognition.

Compatilility with Original Keys and Xhorse Specialized Keys

• Support brand-new original keys (uninitialized/initialized) and can verify the status of the original keys.
• Support VVDI MLB specalized keys for unlimited reuse.

Rewrite Uninitialized Key IDs

• Support rewriting uninitialized original key IDs.

No Need for On-Vehicle Data Collection

• Simply collect key data. upload for calculation, and obtain Immo data without needing to access the vehicle.

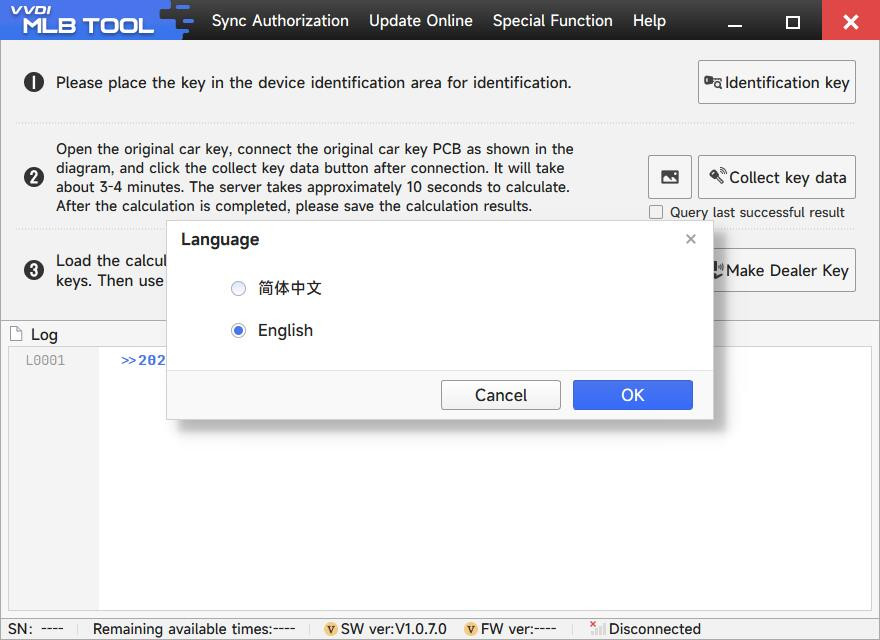

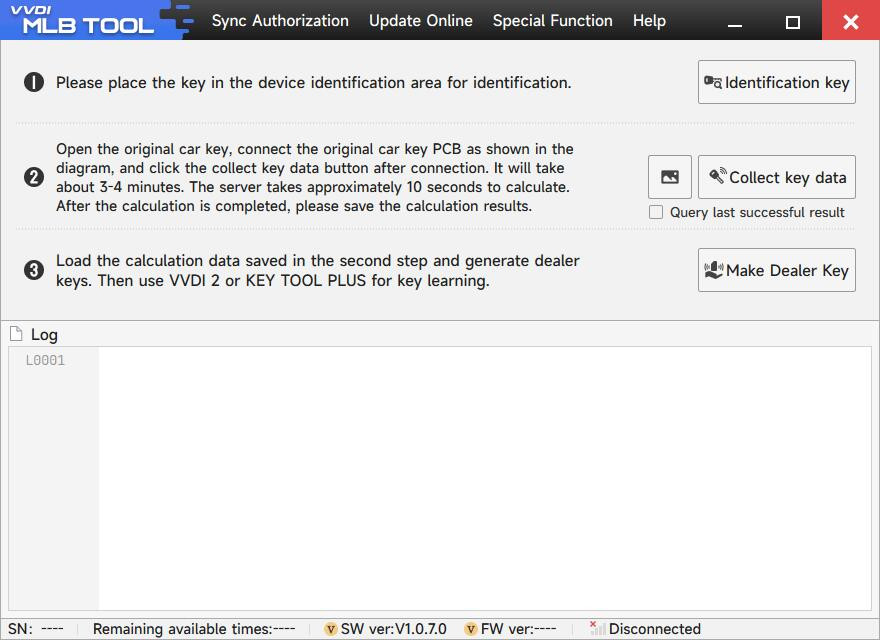

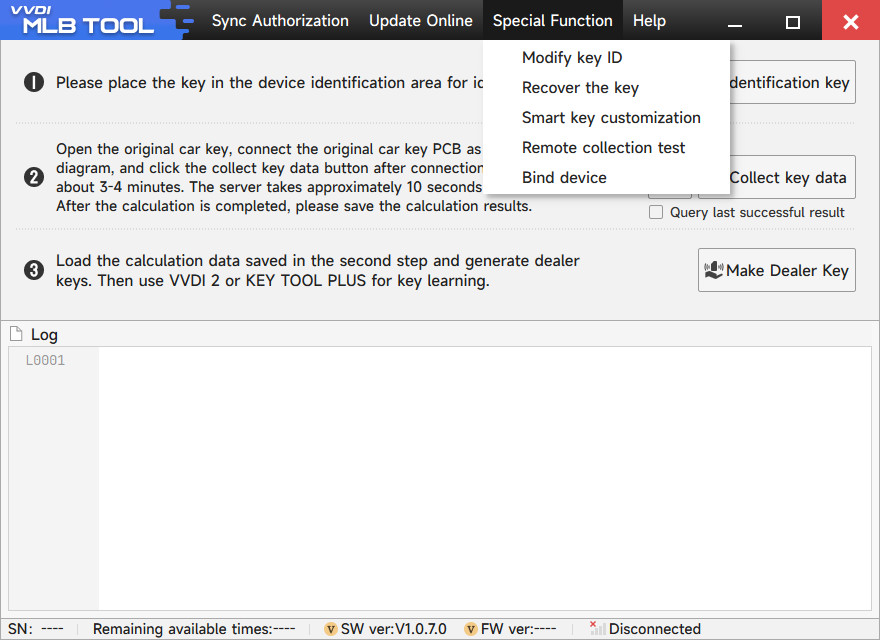

Xhorse VVDI MLB Tool Software Display:

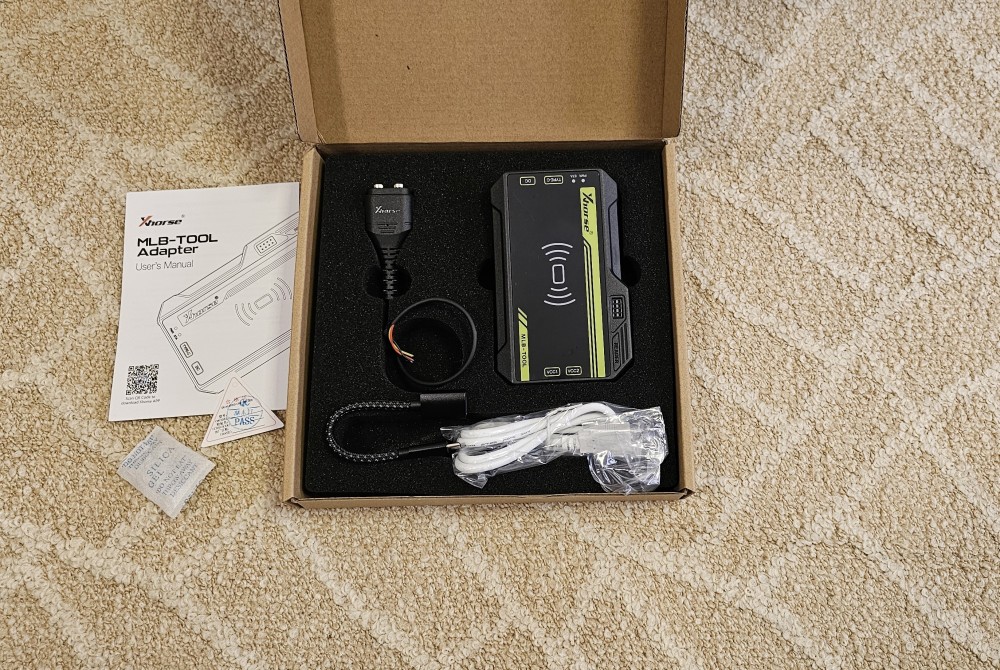

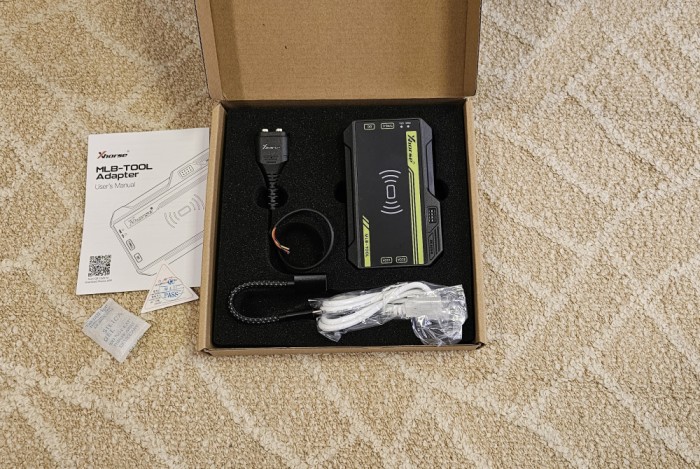

Package includes:

1pc x Xhorse MLB-Tool A PRO Tool
1pc x USB to Type -C cable
1pc x USB cable
1pc x welding harness
1pc x manual
