AIWA XK-009 Excelia Cassette Deck, High End TOP

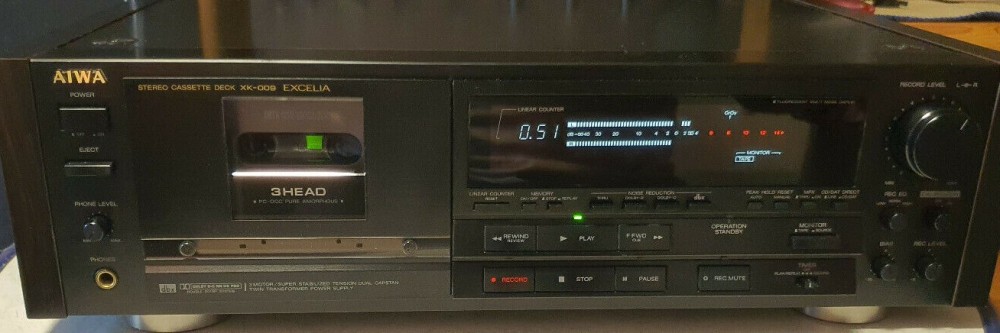

AIWA XK-009 Excelia

Fabricat in Japonia in perioada 1988-1989.  Este casetofonul "The Ultimate in cassette Performance" care deschide un nou domeniu in caseta audio, cu cateva progrese importante pentru a impinge performanta sunetului la cel mai inalt nivel posibil.  AMTS-ul original Aiwa (stabilizator de banda anti-modulatie) reduce rezonanta pentru un sunet mai clar, in timp ce Bias Shield Head Block functioneaza in timpul inregistrarii pentru a proteja capul de redare pentru efectele daunatoare de inregistrare. Capetele Pure Amorphous sunt utilizate atat pentru inregistrare cat si pentru redare, cu bobine interne infasurate cu fir de cupru PC-OCC pentru o conductivitate optima. Acest lucru se traduce prinrt-o precizie audio mai mare, in special in muzica cu pasaje delicate si tranzitive subtile.

Tehnologie:

- Super Stabilized Tension Dual Capstan, AMTS (Anti Modulation Tape Stabilizer), Resonance Damping Wood Base, Manual Recording Calibration System,  Twin Transformer Power Supply, 3 Motor, Head Stabilizer.

Noise reduction: Dolby-B, C, Double Dolby NR Circuits, DBX type II, MPX Filter, Dolby HX Pro.

Head Configuration: 3 Head Design, 4 Track/ 2 Channel

Tape: Automatic Tape Type Selection, Normal, Chrome, Metal Tape Capability, 3-Position Equalization Selector.

Transport: Dual-Capstan Transport, Belt Drive (Capstan), Mechanical Tape Loading, Auto Shutoff, 3x Motor Mechanism.

Preamplifier: Headphone Volume Control, Individual Input Level Controls

Connectivity: Headphones, RCA Input/Output Connections, CD Direct Input, Wireless Remote Control Receiver

Special Finish: Gold-Plated Headphone Jack, Gold-Plated Line Connectors.

Operation: Memory Repeat, Cue/Review, Full Logic Transport Control, Memory Stop, Record Mute, Music Scan.

Display: 4-Digit Digital Counter, Linear Tape Counter, Peak Hold, Digital Peak-Reading Meters

Electronics: Record Protection.

Calibration: 400 Hz Test Tone, 10kHz Test Tone, Manual Bias Calibration, Manual Level Calibration.

Shock Absorbtion: Acoustic Isolating Feet

Indicators: Cassette Back Lighting

Exterior: Wood Side Panels, Front Loading, Orientation Left, Black Finish

Specifications:

- Heads:  3)  1x recording head , 1x playback head, 1x erase head

- Engines: (3) 1x System servomotor (capstan), 1x DC motor (fast forward, rewind motor), 1x DC motor (AMTS)

- Frequency Response (+/- 3dB, -20dB recording) :

        - 20 Hz - 20.000 Hz  (Type I - LH )

        - 20 Hz - 21.000 Hz (Type II - CrO2)

        - 20 Hz - 22.000 Hz (Type IV - Metal)

- Bias: 105 KHz

- Signal to Noise Ratio (Type IV): 95 dB (Dbx + Metal)

- Wow and Flutter: 0.018% (WRMS)

- Input: Analog (Line/Chinch) 50 mV at 47 kOhm

 - Output : (Line/Chinch) 530 mV

- Dimensions:  469 x 136 x 433 mm

- Weight:  10,2 kg

Functioneaza foarte bine.

Se livreaza cu: manual de utilizare (in copie).

Atentie: NU SE LIVREAZA RAMBURS !

Se livreaza numai cu un curier, iar plata se face in cont BT.
Cu multumiri pentru intelegere.
