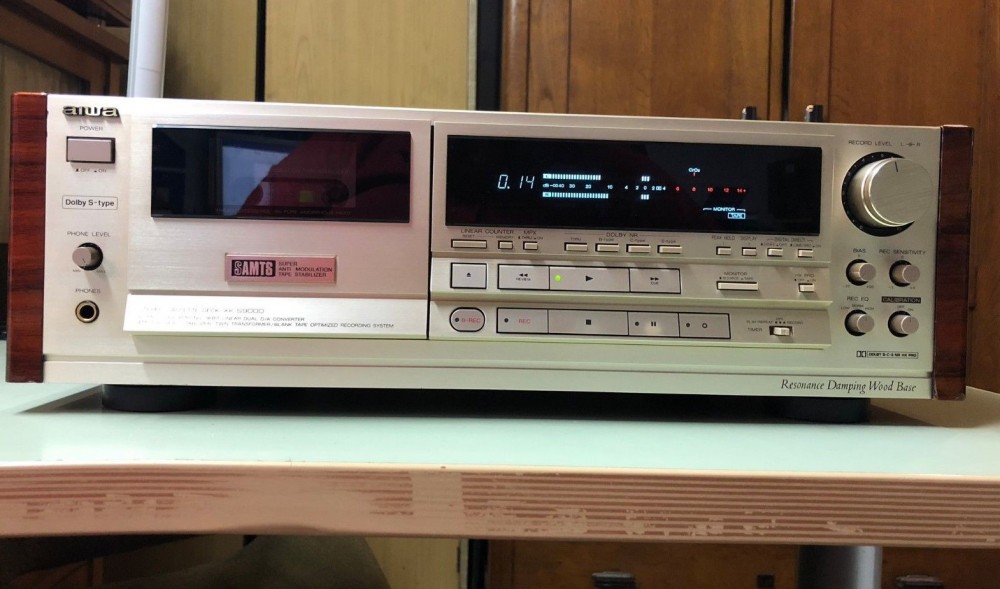

AIWA XK-S 9000 Cassette Deck, High End TOP

AIWA XK-S 9000

Fabricat in Japonia in perioada 1991 - 1992. Pret de nou in 1992 : 2000 DM. Este considerat in analizele specialistilor ca cel mai bun casetofon fabricat vreodata, fiind intr-un clasament facut de revista "Audio din Julie 1993" pe locul 1, inaintea lui Pioneer CT-95 (2) si Nakamichi Dragon (3).

Tehnologie:

- Super Stabilized Tension Dual Capstan, SAMTS (Super Anti Modulation Tape Stabilizer), Resonance Damping Wood Base, Manual Recording Calibration System, 18 bit Linear Dual D/A Converter, Twin Transformer, Blank Tape Optimized Recording System, 8 Times Oversampling, 4 Motor, Head Stabilizer.

Noise reduction: Dolby-B, C, S, Double Dolby NR Circuits, MPX Filter, Dolby HX Pro.

Head Configuration: 3 Head Design, 4 Track/ 2 Channel

Tape: Automatic Tape Type Selection, Normal, Chrome, Metal Tape Capability, 3-Position Equalization Selector.

Transport: Dual-Capstan Transport, Belt Drive (Capstan), Motorized Tape Loading, Auto Shutoff, 4x Motor Mechanism.

Preamplifier: Headphone Volume Control, Individual Input Level Controls

Connectivity: Headphones, RCA Input/Output Connections, CD Direct Input, Coaxial Digital Input, Optical TOS Digital Input.

Special Finish: Gold-Plated Headphone Jack, Gold-Plated Line Connectors.

Operation: Memory Repeat, Cue/Review, Full Logic Transport Control, Auto-Play.

Display: 4-Digit Digital Counter, Linear Tape Counter, Peak Hold, Digital Peak-Reading Meters

Electronics: High Frequency Bias Oscillator, Record Protection, DA Converter.

Calibration: Manual Bias Calibration, Manual Level Calibration.

Shock Absorbtion: Cassette Stabilizer, Anti Vibration Chassis

Digital Domain: Oversampling Digital Filter

Specifications:

- Heads:  3)  1x recording head "Stress free-6N coil pure amorphus", 1x playback head "Stress free-6N pure amorphus , 1 x erase head "Double gap Sendust".

- Engines: (4) 1x System servomotor (capstan), 1x DC motor (playback, recording winding motor), 1x DC motor (fast forward, rewind motor), 1x DC motor (SATS, cassette door).

- Frequency Response (+/- 3dB, -20dB recording) :

        - 13 Hz - 21.000 Hz  (Type I - LH )

        - 13 Hz - 22.000 Hz (Type II - CrO2)

        - 13 Hz - 24.000 Hz (Type IV - Metal)

- Signal to Noise Ratio (Type IV): 84 dB (Dolby S ON, peak level)

- Wow and Flutter: 0.018% (WRMS)

- Input: Analog (Line/Chinch) 50 mV at 47 kOhm , Digital :OPTICAL - 18 dBm, COAXIAL 0,5v pp 75 Ohm

 - Output : (Line/Chinch) 530 mV (0 VU)at 47 kOhm or more, PHONES 1,5 mW at 32 ohm

- D/A converter: Tipe - Real 18 bit linear dual D/A converter x8 over sampling linear phase digital filter. Input - Light input:  1 circuit; Coaxial input: 1 circuit 32kHz, 44,1kHz, 48Khz (automatic response). Characteristics : frequency 4 - 20.000Hz +/- 0,3dB, S/N 105dB at 1kHz, Distortion: 0,002% at 1kHz, Dynamic range: 95 dB at 1kHz, Channel separation: 100dB at 1kHz.

- Calibration: Manual Bias Calibration, Manual Level Calibratiom

- Dimensions:  (w. Wood Side Panels) 466 x 150 x 415 mm

- Weight: (w. Wood Side Panels)   14 kg

Functioneaza foarte bine. Au fost schimbate curelele, toate cele 4,  s-a facut "curatenie" si s-au gresat toate mecanismele.

Arata foarte bine, usoare urme de folosire (amprente pe butoanele "pauza" si "stop"), fara urme de loviri, pete, etc. pe cutie.

Se livreaza cu: telrcomanda si manual de utilizare (in copie).

Atentie: NU SE LIVREAZA RAMBURS !

Se livreaza numai cu un curier, iar plata se face in cont BT.
Cu multumiri pentru intelegere.
