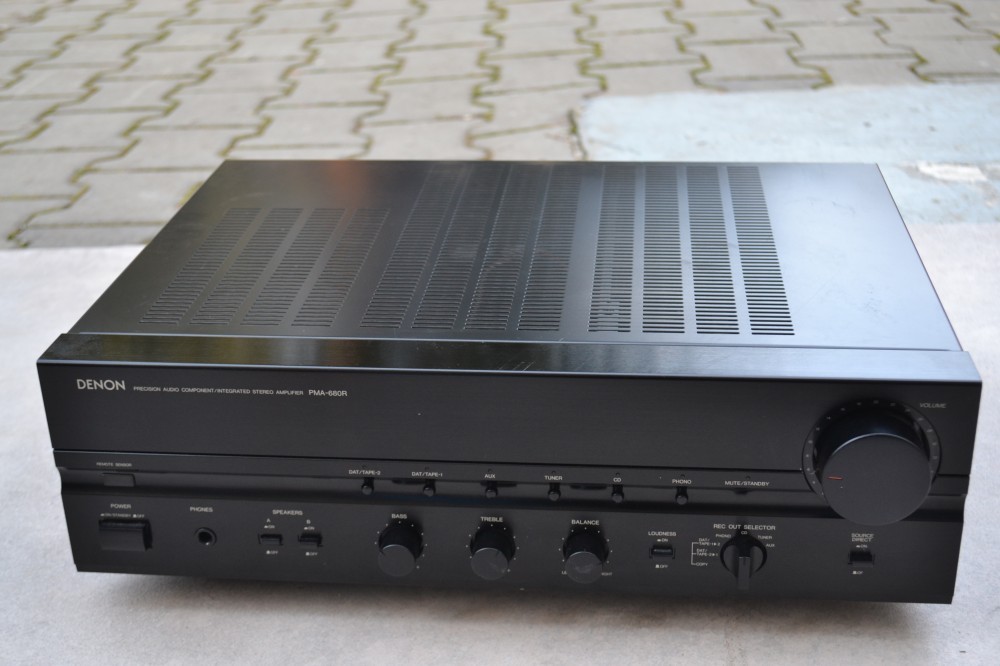

Amplificator Denon PMA 680 R

Amplificator Denon PMA 680 R : 6 intrari, 4 iesiri, impedanta 4-16 ohmi, made in Japan, reglaj bass, inalte, balance, loudness, source direct, traf toroidal, 210W consum, source direct, senzor telecomanda, poze reale.

Specifications:

1. General
System: Integrated Transistor Amplifier
Colour: 1=Silver, 2=Black: 2
Power consumption: 280 W @ 120/240 V
Pre Amplifier
Inputs: Phono MM+MC; Tuner; Tape I+II; CD; AUX
Quadro: no
Inp. Sensitivity High Level: 150 mV
Inp. Impedance High Level: 47 (Tape: 10) kΩ
Signal/Noise High Level: 110 db
Inp. Sensitivity Phono MM: 5.0 mV
Signal/Noise Phono MM: 94 db
Inp. Sensitivity Phono MC: 0.5 mV
Signal/Noise Phono MC: 75 db
Outputs: REC OUT
Equalizer
Tone Controls: Bass; Treble
Frequencies: ±8 dB/100 Hz; ±8dB/10 kHz
Filters: Subsonic (-12dB/Oct./16 Hz)
Loudness: +7 dB/100 Hz; + 6 dB/10 kHz
Power Amplifier
Speaker Outputs: 2 x 2 Speakers; Phones
Continuous Power 4Ω: 135 + 135 Watts
Continuous power 8Ω: 80 + 80 Watts
Frequency Response: 4-100,000 (+0/-3 dB) HZ
Harmonic Distortion: < 0.007 (-3 dB/ 8 Ώ) % at rated output
2. Physical
Dimensions in Inches: 17.0 x 6.3 x 15.6 (w) x (h) x (d)
Dimensions in mm: 434 x 160 x 397 (w) x (h) x (d)
Weight in lbs: 21.4 lbs
Weight in Kg: 9.7 Kg
