Autool SDT101 generator fum, detectare scurgeri fum sistem EVAP

Name: Autool SDT101 generator fum, detectare scurgeri fum sistem EVAP
Brand: Nespecificat
SKU: 257392345
Price: 715 RON
Availability: inStock

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier rapid - 24,00 Lei Detalii

Estimat livrare:

Marți, 5 Aug.

Cantitate:

Pret:

715,⁰⁰ Lei

Produs:

Nou, Certificat de garanție 1 luna

Politica de retur:

Acest produs poate fi returnat in 14 zile Detalii

Plata:

La predare
Ramburs
Avans

Vandut de:

UPcloud SRL

90.91% pozitive (din 2480

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Description：

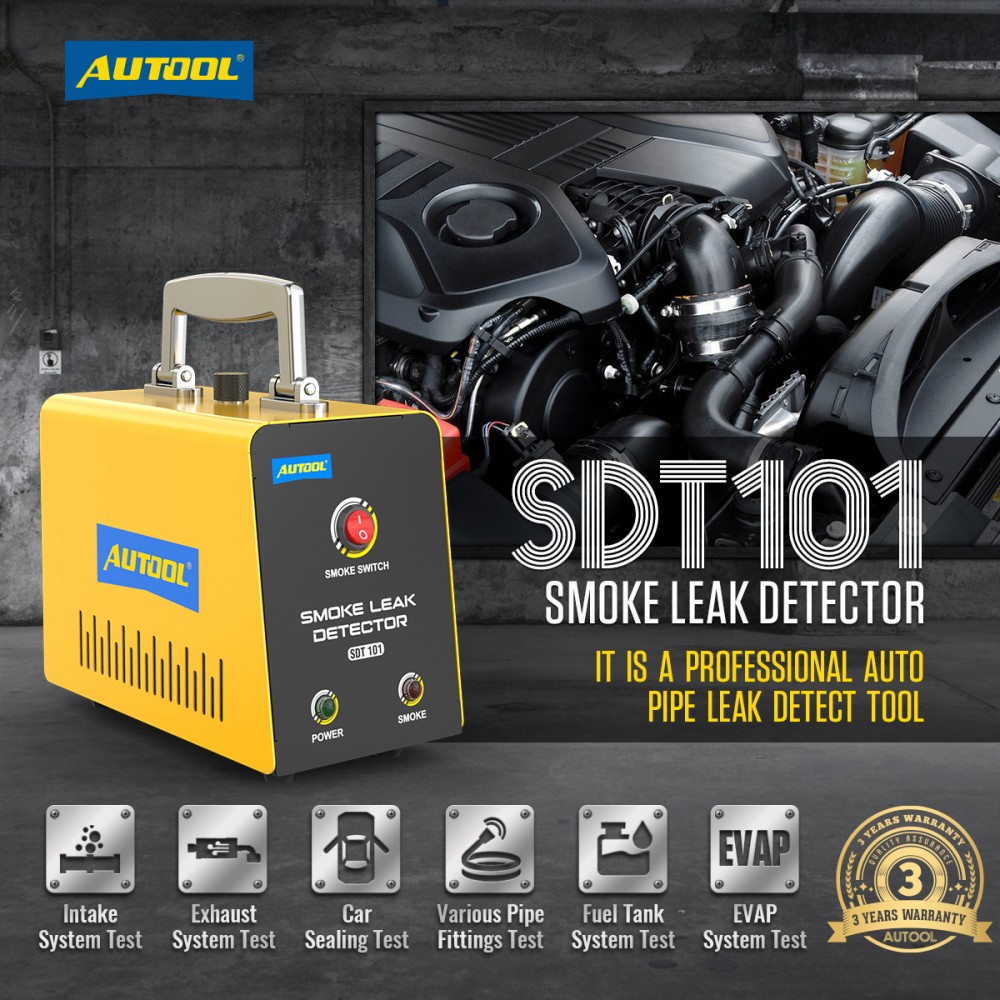

AUTOOL SDT101 Car Smoke Leak Detector is a professional auto pipe leak detect tool.It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as : Vacuum Leaks Test，Intake System Test，Exhaust Systems Test，Fuel Tank System Test，Turbo Test，Cooling System，EGR System，Crankcase System.

Note:
The SDT101 has no air compressor or air pump inside.If you want to buy a leak detector with air pump, it is recommended to buy SDT60.The product does not contain liquid, because the transportation of liquid products is prohibited on flights. You need to buy a test liquid locally, the test liquid is olive oil or baby oil.thank you.

How to do leakage test ?

1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.

4.The buyer needs to prepare an external air compressor themselve,then connect the user's own air compressor and adjust the output pressure (the output pressure of the air compressor is approximately 3.2Kpa/0.46psi).

5. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

AUTOOL SDT 101 Car Smoke Leak Detector Features :

1.[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

2.[Powerful and easy to operate] The AUTOOL SDT 101 need rely on other air machine ,Connect the detector with DC12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.Equipped with AUTOOL's latest smoke generator and 1/2PSI high pressure unit, which ensures continuous output of a large amount of smoke. The dense smoke output detects even the smallest leaks and helps you diagnose faults quickly and accurately. Significantly improves the efficiency of diagnosis.

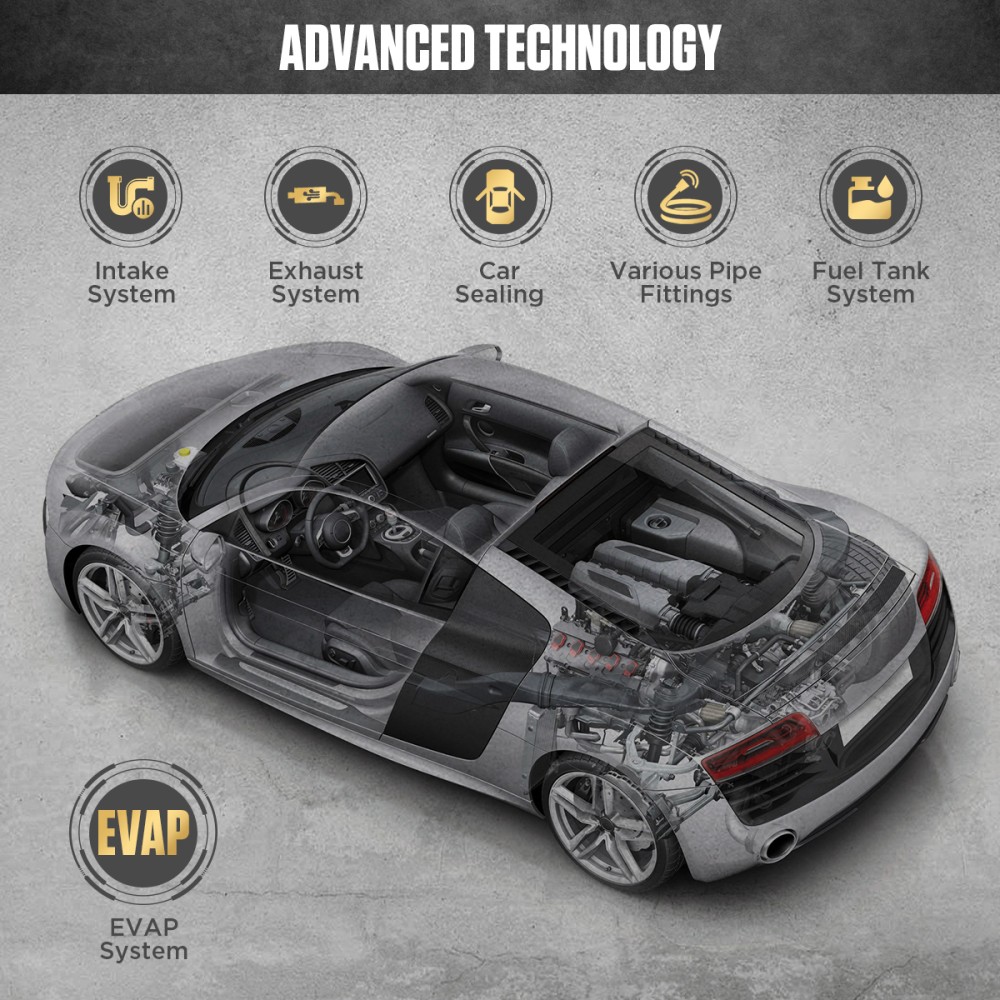

3.[Advanced technology] It works on the EVAP system (we also have another version that specially designed for EVAP system).

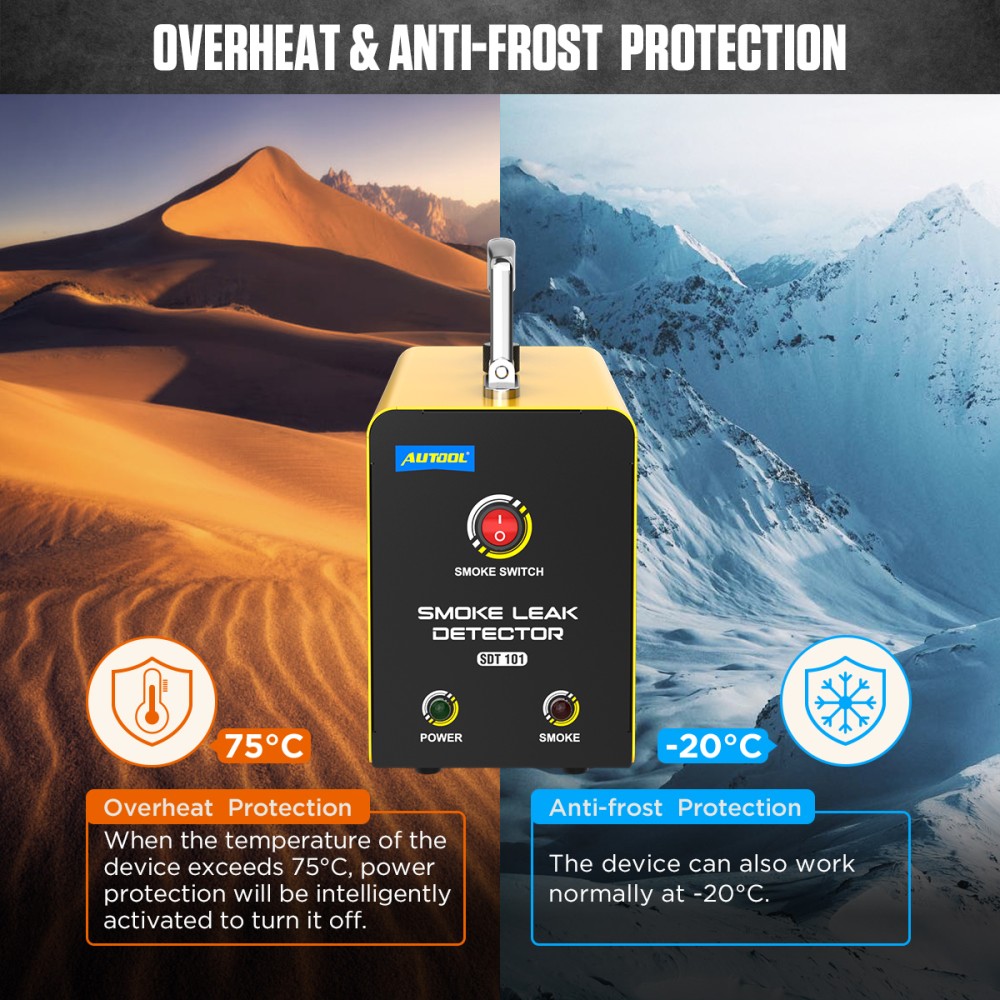

4.[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

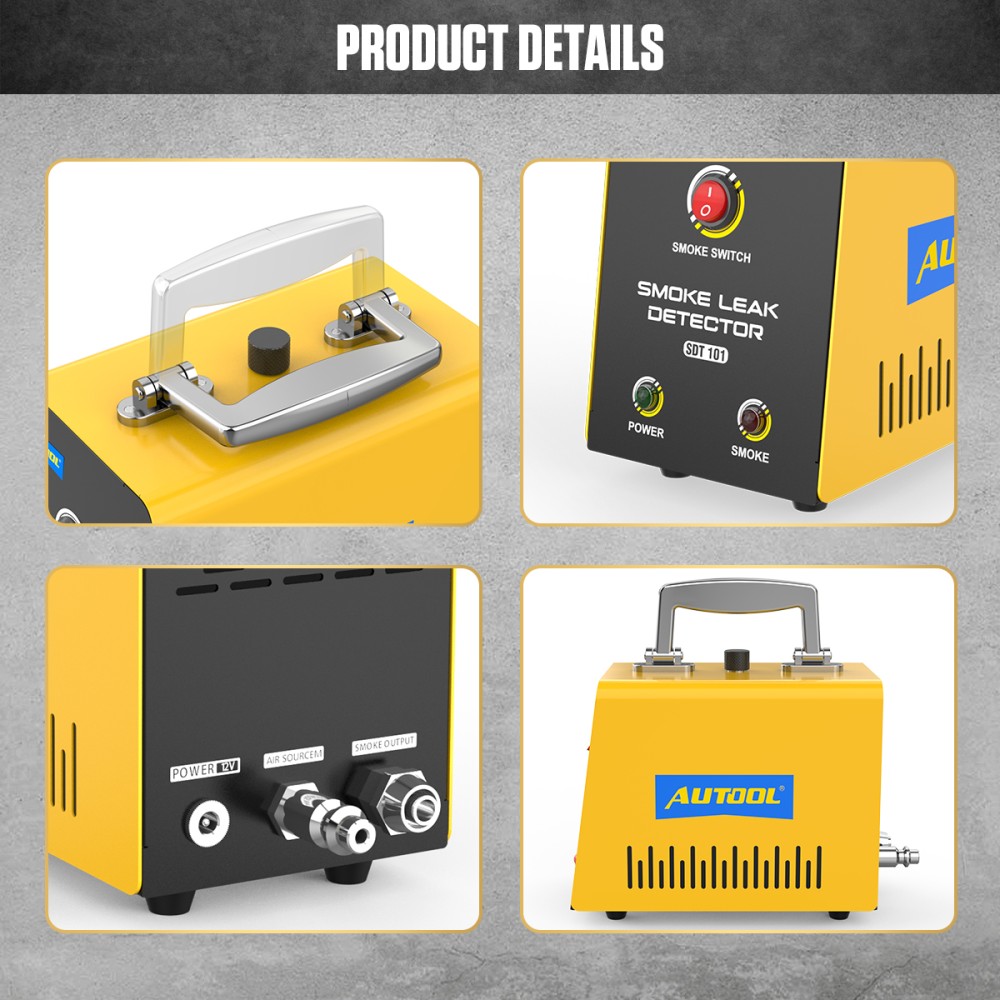

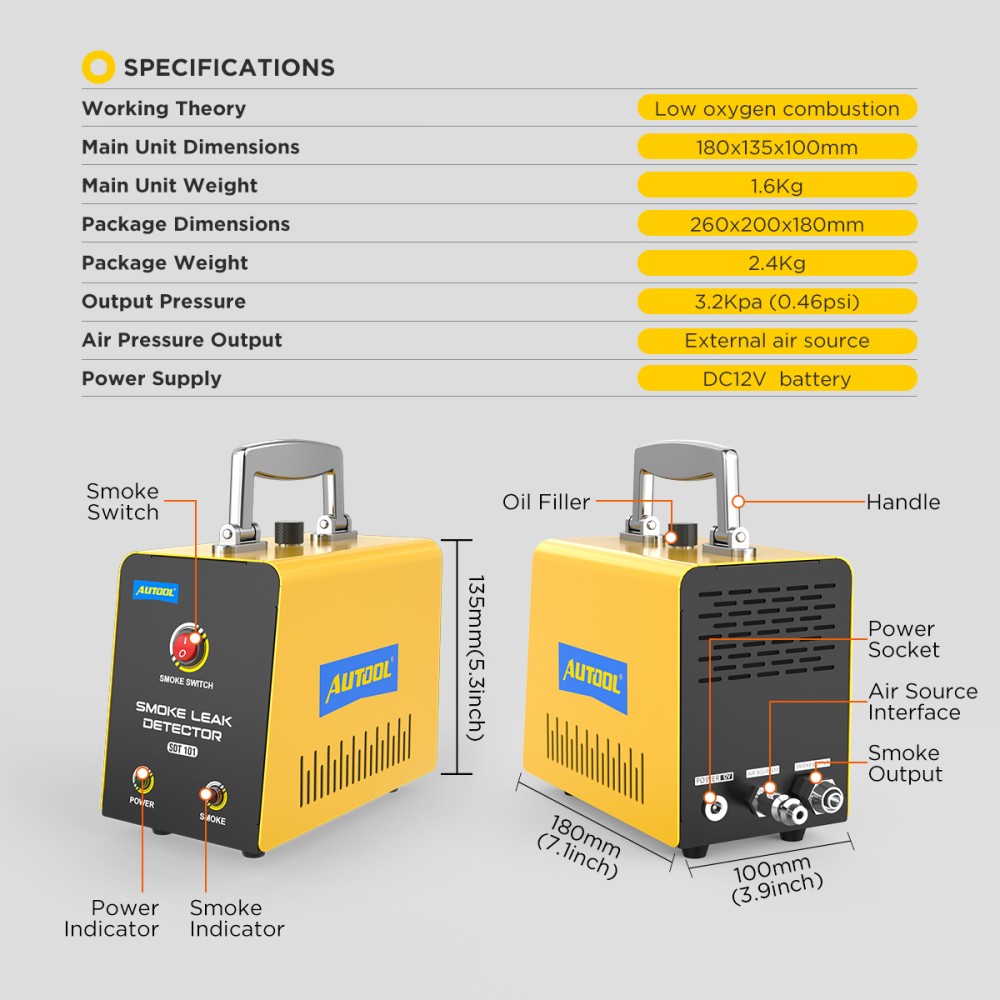

Main Unit Structure :

Hook: To hang the detector when detecting.

Working Indicator: It is lit when the detector works

Power Switch: Power it on, and the detector works

Smoke Output Tube: The smoke outlet which connecting with detection port

Power Clamp: To connect with vehicle battery. The voltage is DC12V.

Caution：

1.When you use this AUTOOL SDT 101 Car Smoke Leak Detector for the first time, fill with 10ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

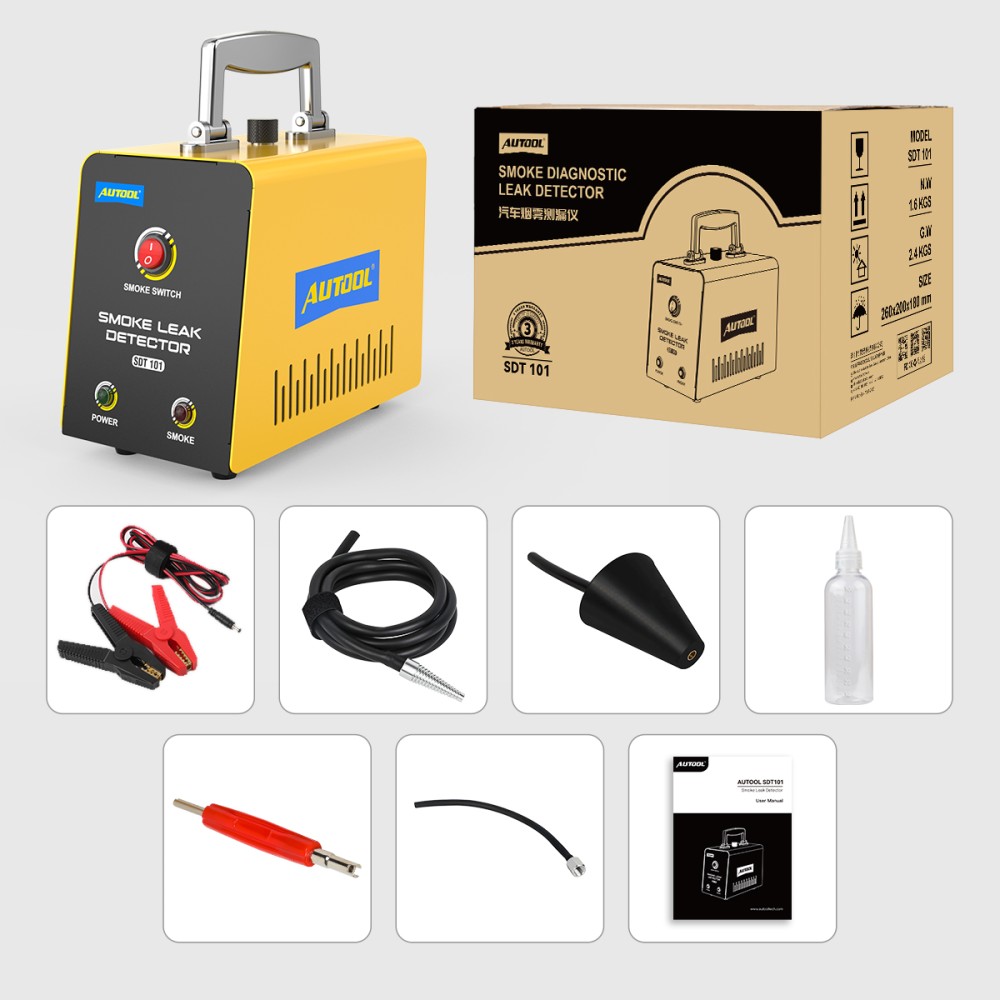

Packing List :

1pc * AUTOOL SDT101 Car Smoke Leak Detector Main Unit

1pc * EVAP Special Connector

1pc * Standard Cone Adapter

1pc * Power Cord Clamp

1pc * Valve Core Wrench

1pc * Test Oil Refill Bottle(oil not included)

1pc * Smoke Hose

1pc * User Manual

Note: The SDT101 has no air compressor or air pump inside.If you want to buy a leak detector with air pump, it is recommended to buy SDT60. Caution： 1.When you use this AUTOOL SDT 101 Car Smoke Leak Detector for the first time, fill with 10ml baby oil . Please be careful NOT to beyond this range. 2.The testing liquid : both liquid paraffin and baby oil are OK. 3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time. 4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly. 5.During the process of leak detection, please keep away from smoke-sensitive parts. 6.Do NOT run the detector over 8 minutes continuously. It needs interval rest. 7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later. 8.The round part of this detector has temperature, please be careful to avoid burns. 9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple. 10.EVAP Detection】American cars that began production in 1996 are equipped with EVAP service ports; in most American cars, the EVAP service port is usually located in the engine compartment, but the EVAP service port of some special models may be located in other locations. Open the plastic cover of the EVAP service port, then use the spool wrench to remove the check valve clockwise, then install the EVAP service port adapter, and introduce smoke from the port into the EVAP leak detection system. 11.Advanced and Safe】The AUTOOL SDT101 evap smoke machine with thick smoke output detects even the smallest leaks. It is safe and reliable as there is no need to start the vehicle during use. And the smoke output is healthy and harmless. Moreover, when this smoke leak detector can be smart power off, the power will be automatically shut off when it exceeds the 75 ℃ housing limit.
