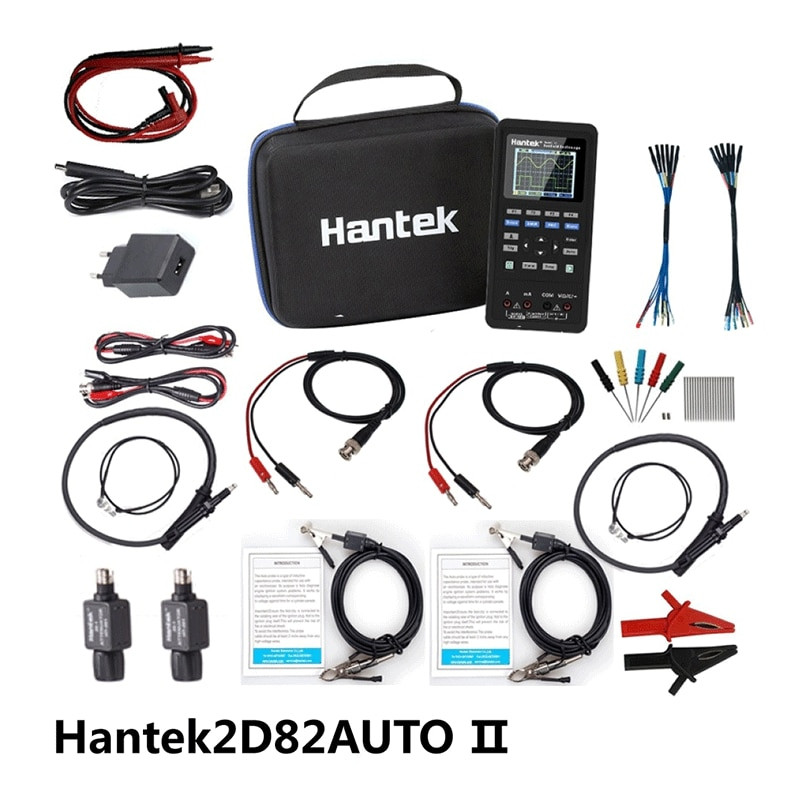

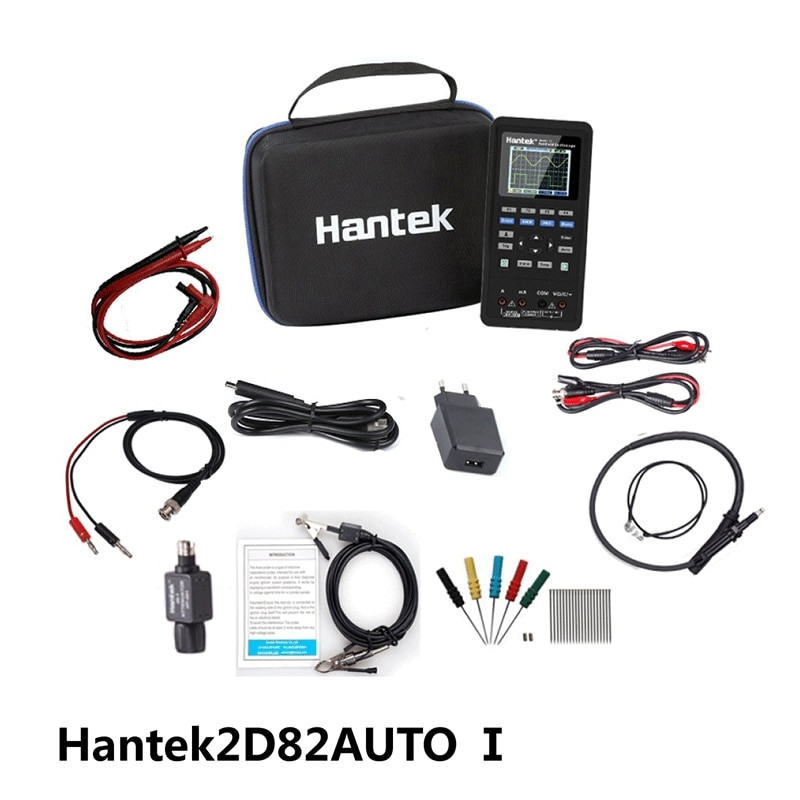

Osciloscop Auto Hantek 2D82 I auto 4in1 -2 canale, Diagnoza +Waveform Generator

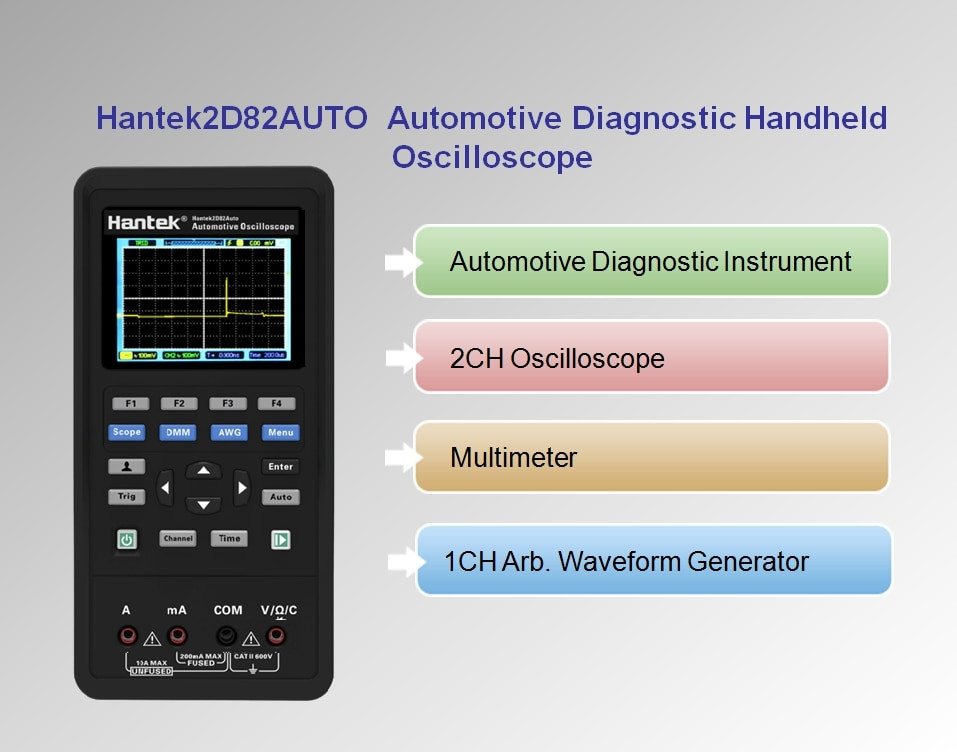

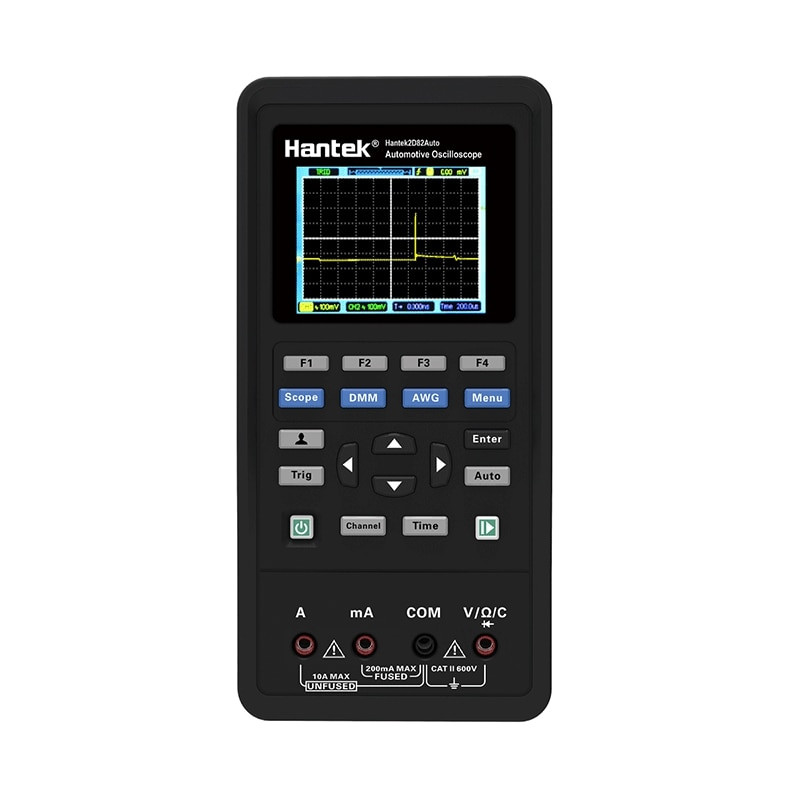

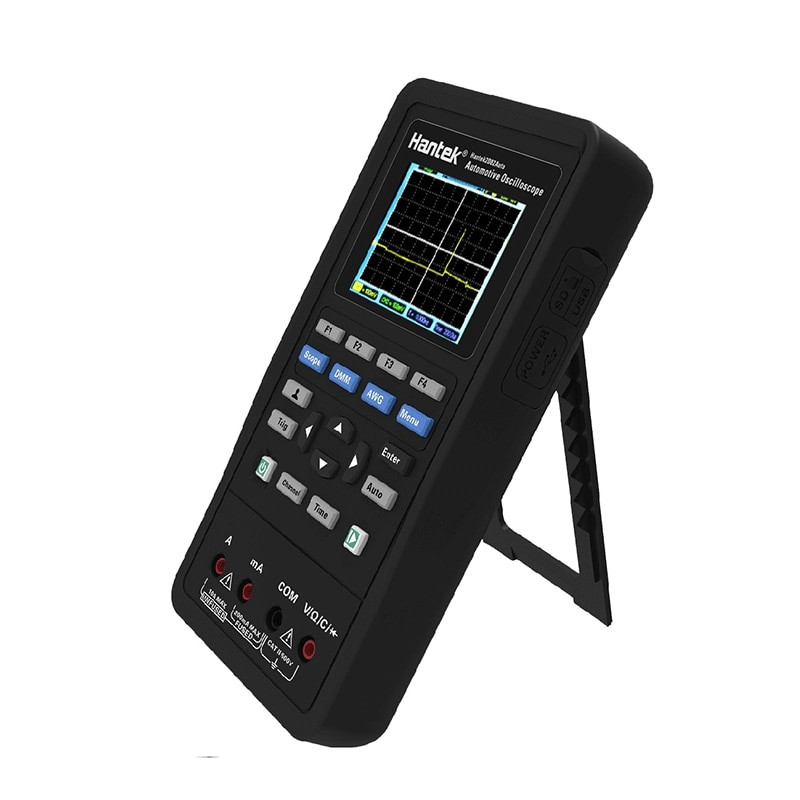

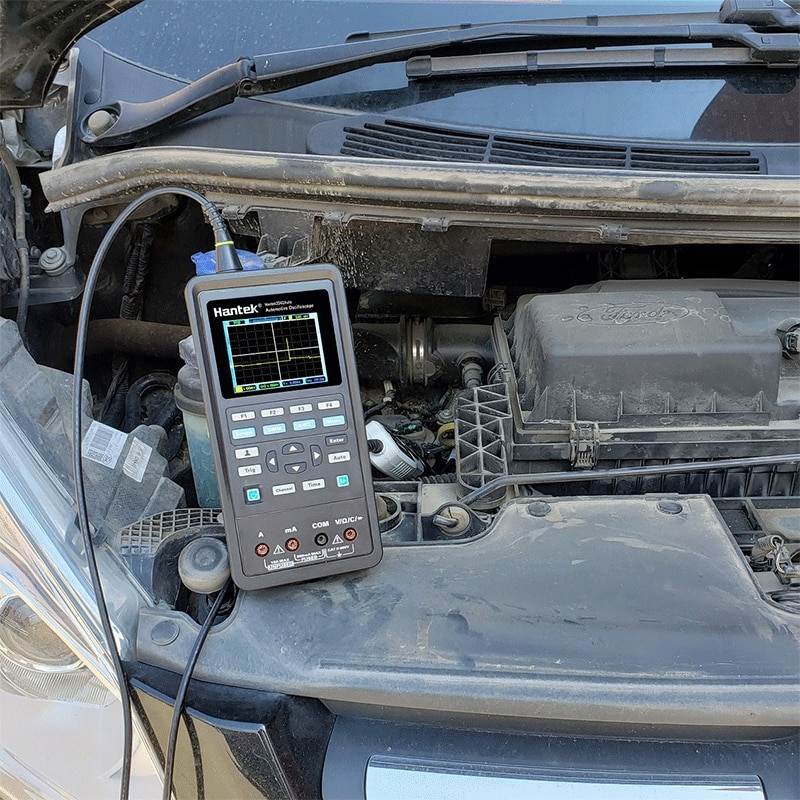

An all-new handheld oscilloscope-Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 4 in 1 multifunction tester: Automotive Diagnostic, oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.

• Based on the 2D72,beyonds 2D72.
  Automotive diagnostic functions added,owns all the 2D72's functions at the same time.

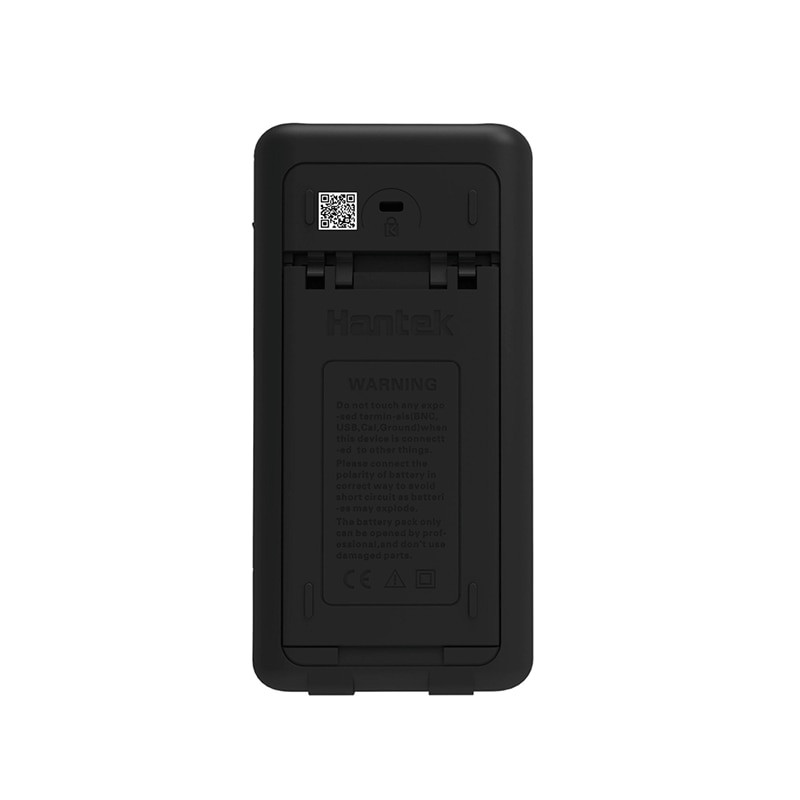

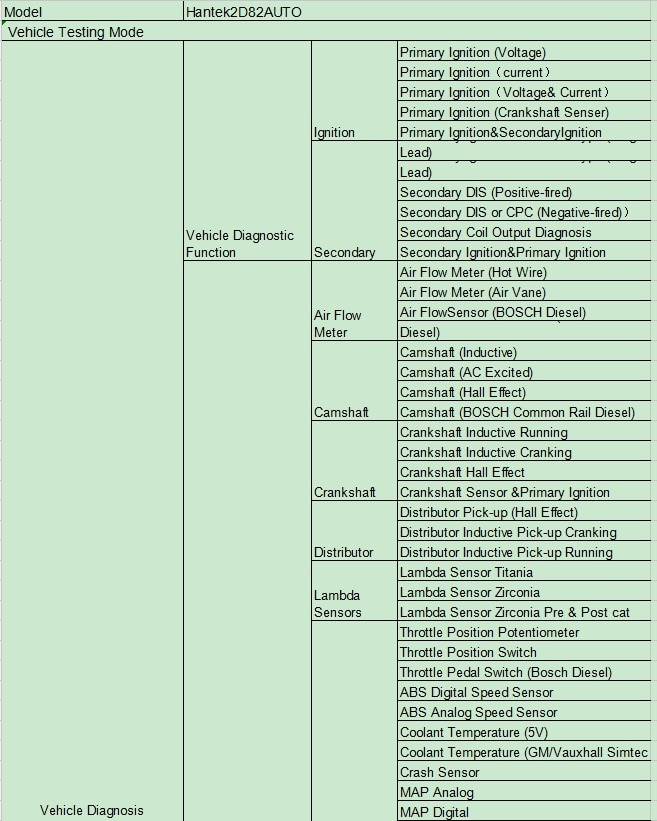

• With more than 80 kinds of car testing, and scan the QR code on the back of device can open video help files to show you how to test vehicles.

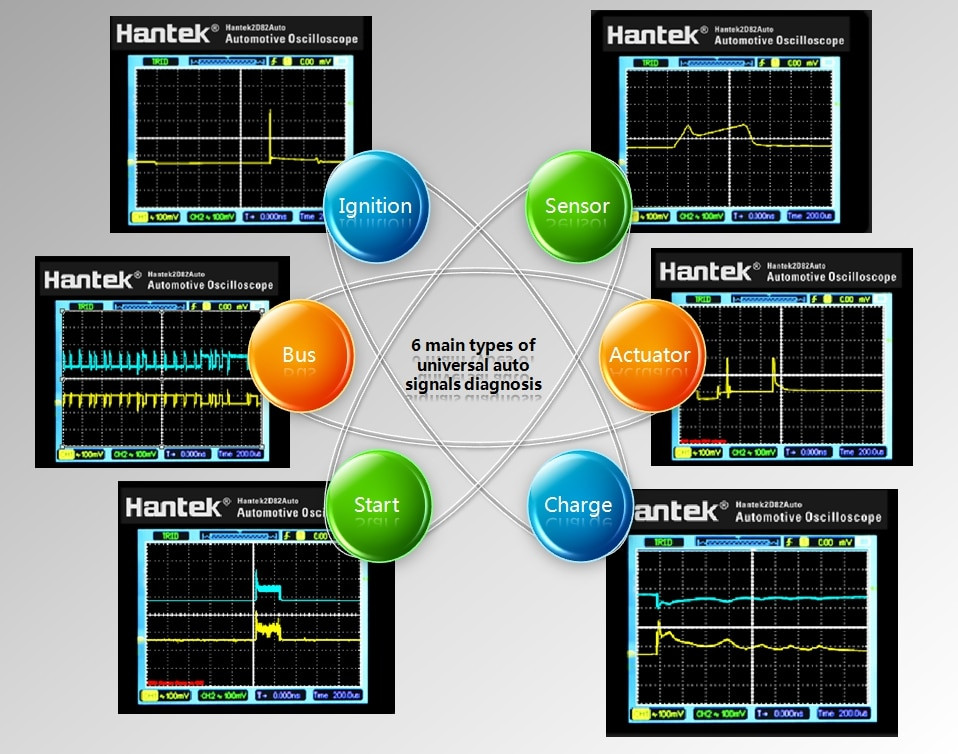

  • First test projects: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).
  • Start & Charge: Charging circuit, current and voltage.
  • Actuator: Gasoline / Diesel.
  • Bus Detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.

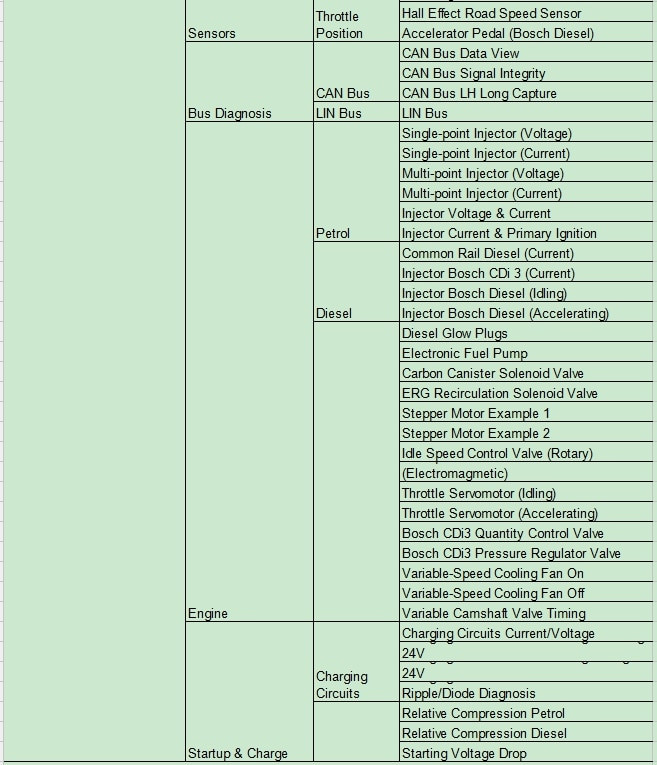

  • Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position. . .
  • Ignition: Primary/Secondary.

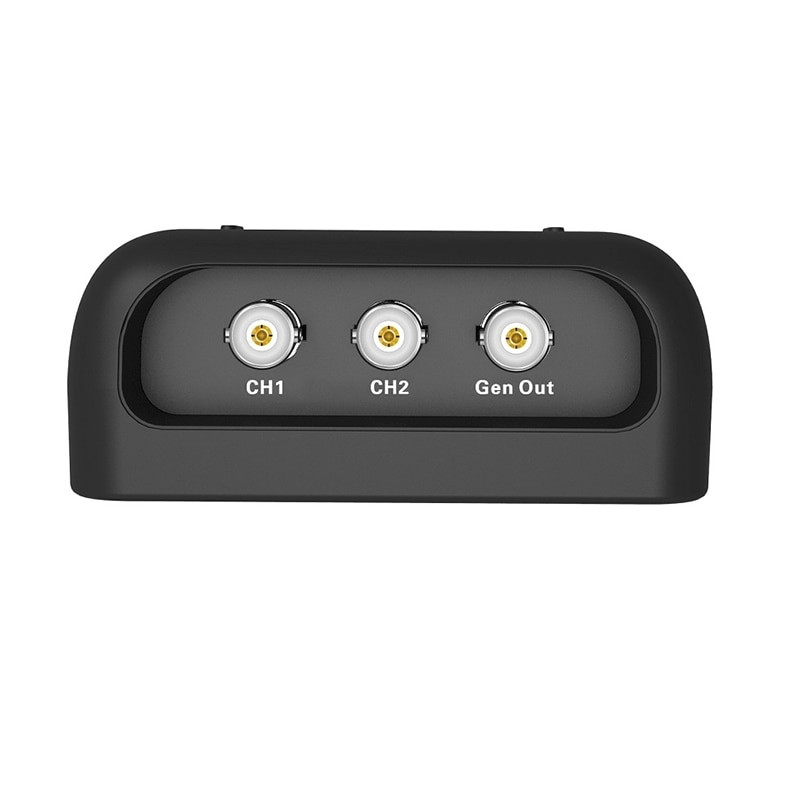

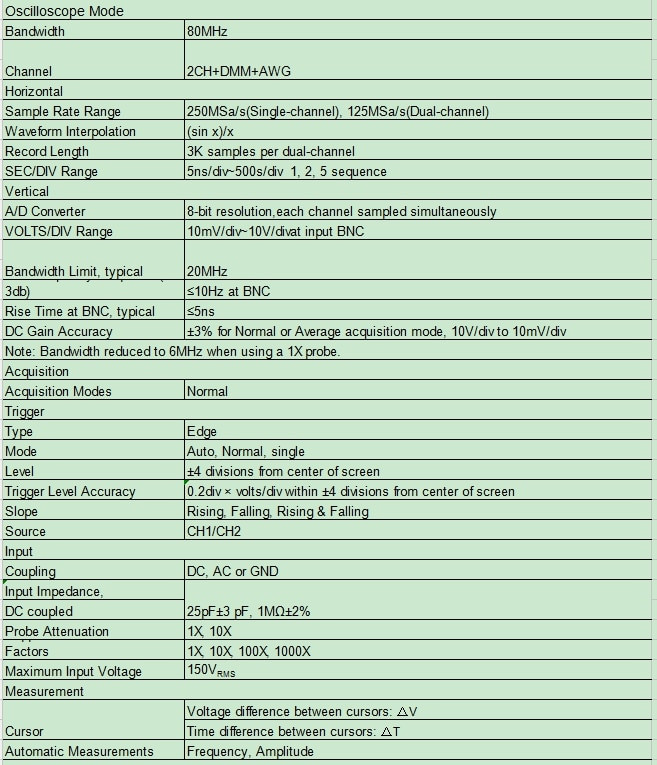

  • Oscilloscope:2 channels oscilloscope, 80MHz bandwidth, 250M sampling rate.

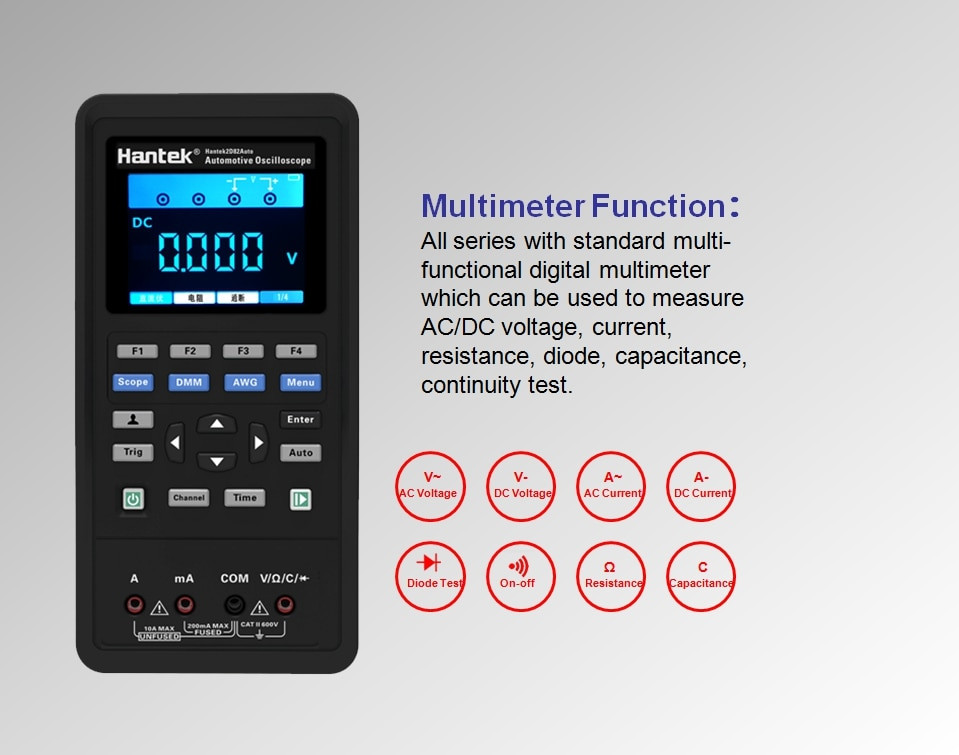

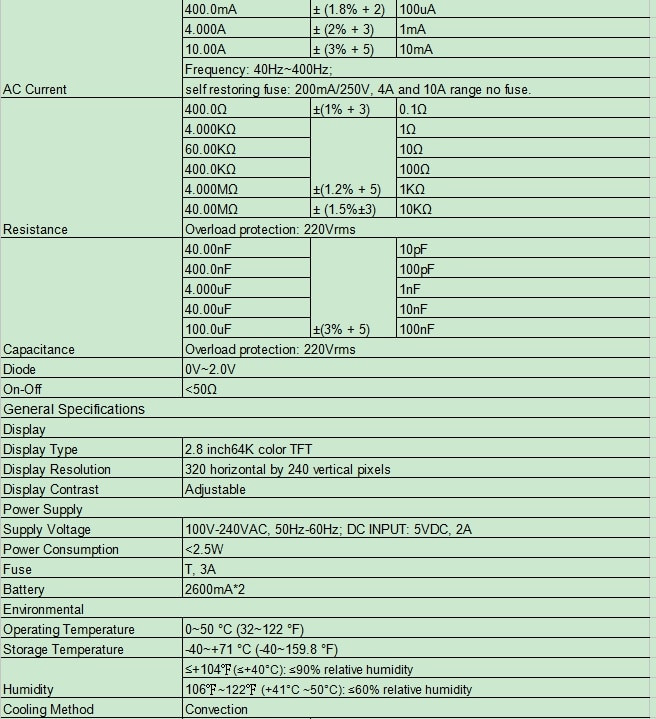

  • Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;

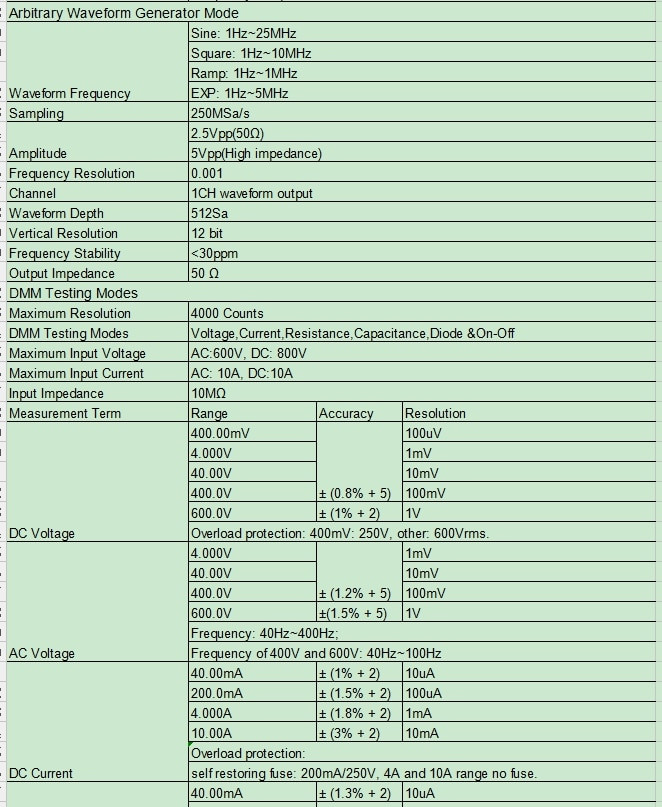

  • Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
